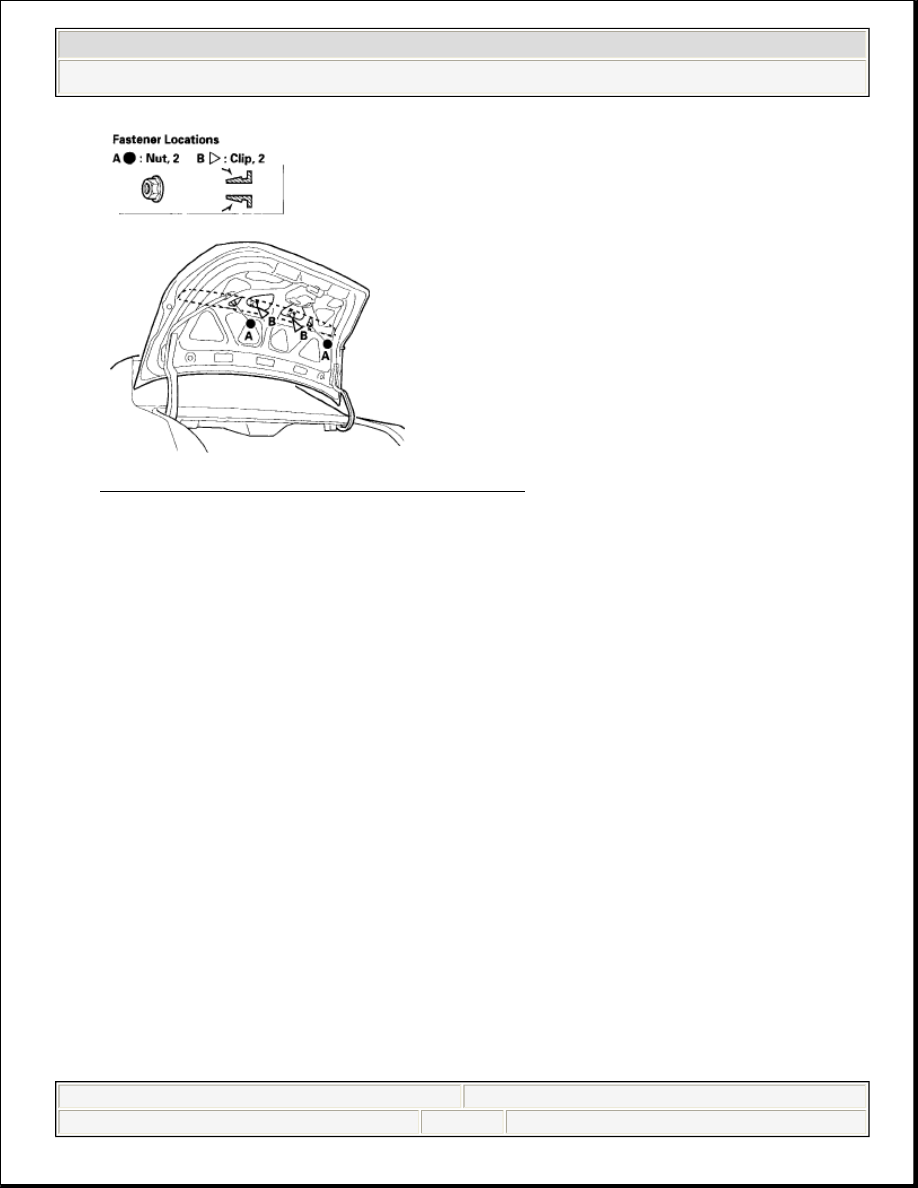

Fig. 26: Removing Rear License Trim Nuts (With Specifications) 2. Gently close the trunk lid, release the clip, and pull the rear license trim (A) out to detach the clips, then remove the trim. Take care not to scratch the trunk lid. Fig. 27: Pulling Rear License Trim Out To Detach Clips 3. Install the trim in the reverse order of removal, and note these items: Check if the clips are damaged or stress-whitened, and if necessary, Push the clips into place securely. 4-DOOR 1. If equipped, remove the trunk lid trim {see TRIM REMOVAL/INSTALLATION - TRUNK LID ). 2. Remove the bolt securing the trunk lid lock cylinder (see step 2 on page 20- 261). 3. Detach the clips by pushing it from the hole in the trunk lid (A), then remove the rear license trim (B). Take care not to scratch the trunk lid.
2008 Honda Civic EX 2006-08 ACCESSORIES & EQUIPMENT) Exterior Trim - Civic (All Except Hybrid)
|
