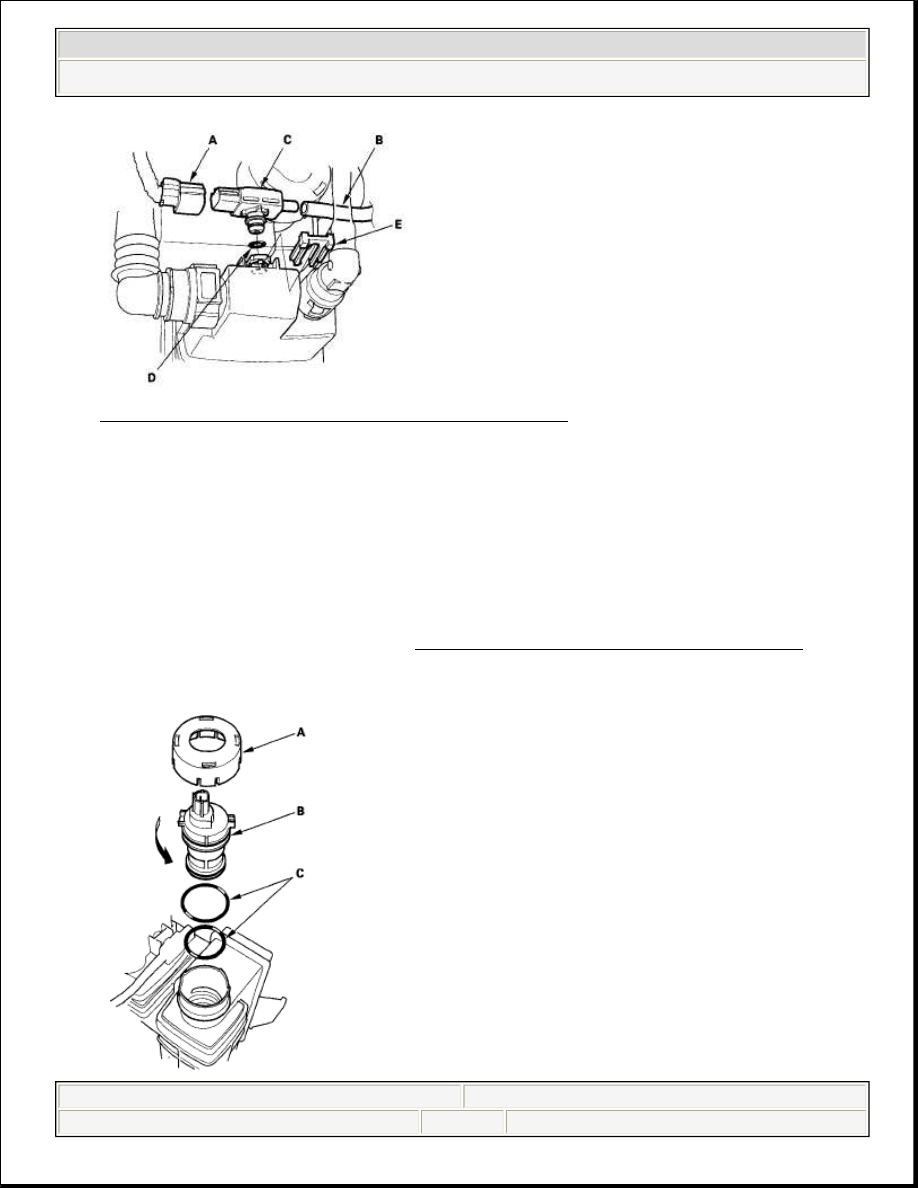

Fig. 47: Disconnecting FTP Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the hose (B), and then remove the FTP sensor (C).
4. Install the parts in the reverse order of removal with a new O-ring (D) and a

new retainer (E).

EVAP CANISTER VENT SHUT VALVE REPLACEMENT

1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
2. Remove the cap (A).

2008 Honda Civic EX

2006-08 ENGINE PERFORMANCE EVAP System (K20Z3) - Civic (Except GX & Si)

Fig. 48: Removing Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the EVAP canister vent shut valve (B).
4. Install the parts in the reverse order of removal with new O-rings (C) and a

new cap (A).

EVAP CANISTER PURGE VALVE REPLACEMENT

1. Remove the intake manifold cover (see INTAKE MANIFOLD AND

EXHAUST SYSTEM (K20Z3) ).

2. Remove the air cleaner (see AIR CLEANER

REMOVAL/INSTALLATION ).

3. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
4. Remove the fuel line (A).

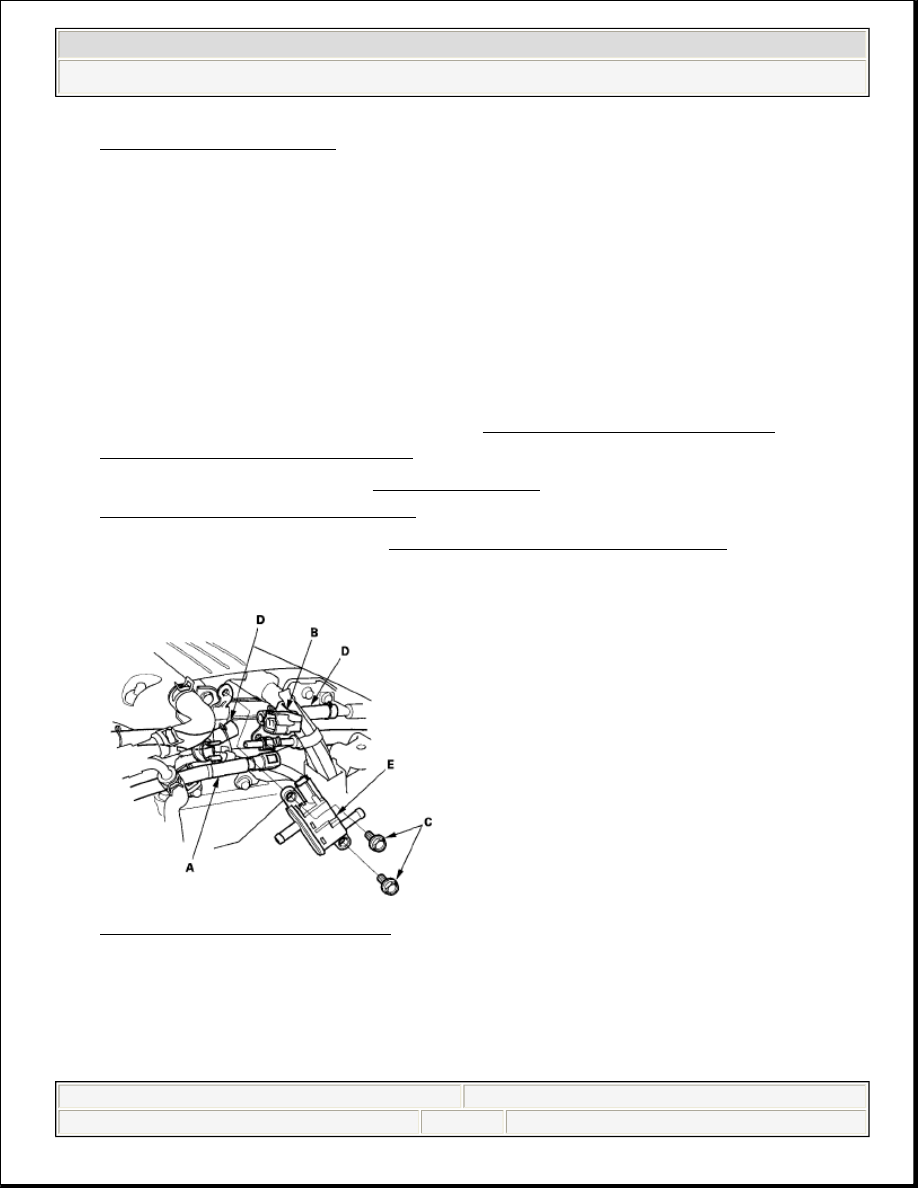

Fig. 49: Removing Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the EVAP canister purge valve 2P connector (B).
6. Remove the bolts (C) and the hoses (D), then remove the EVAP canister purge

valve (E).

NOTE:

Do not coat the O-rings with oil.

2008 Honda Civic EX

2006-08 ENGINE PERFORMANCE EVAP System (K20Z3) - Civic (Except GX & Si)

7. Install the parts in the reverse order of removal.

2008 Honda Civic EX

2006-08 ENGINE PERFORMANCE EVAP System (K20Z3) - Civic (Except GX & Si)

2006-08 ENGINE PERFORMANCE

EVAP System (R18A1) - Civic (All Except Hybrid)

COMPONENT LOCATION INDEX

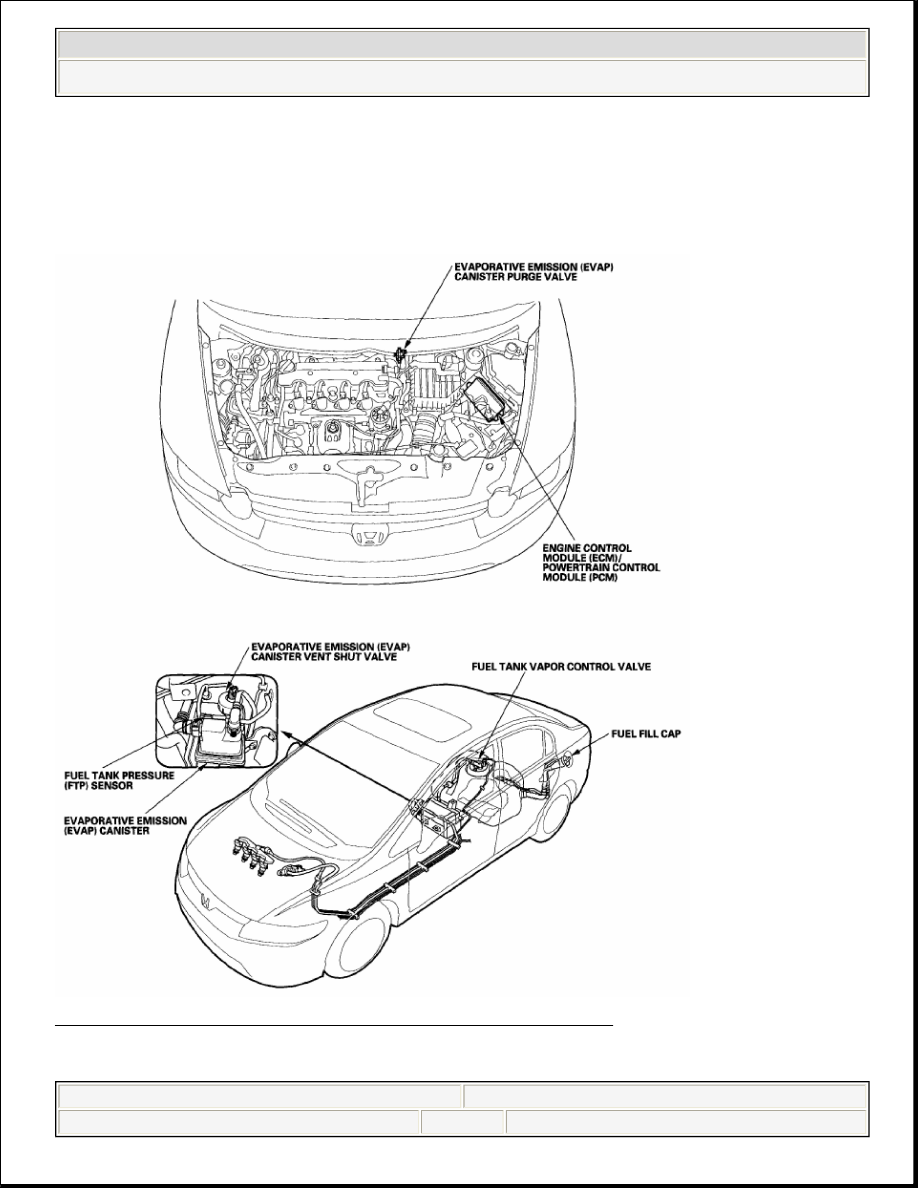

Fig. 1: Identifying EVAP System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
