Honda Civic. Manual - part 567

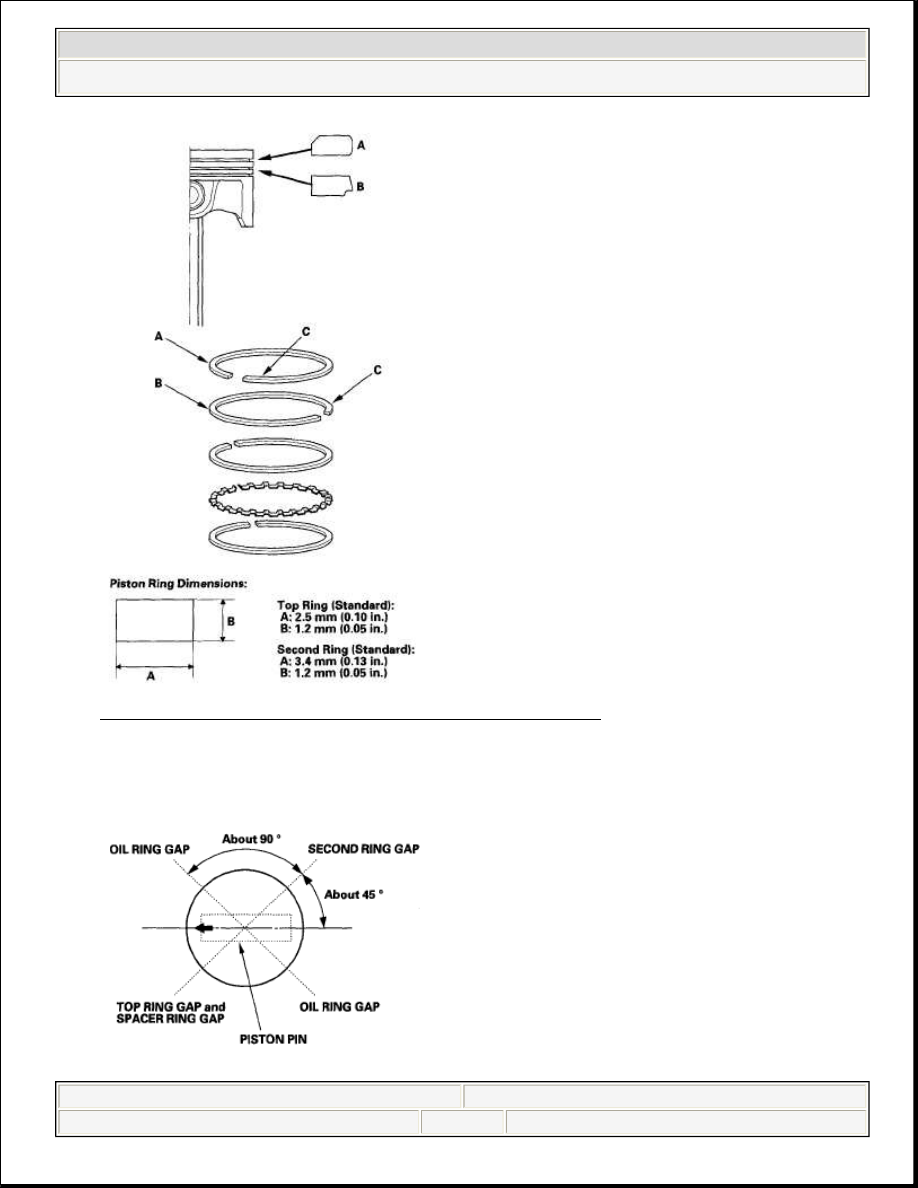

Fig. 5: Identifying Piston Rings With Installation

7. Rotate the rings in their grooves to make sure they do not bind.
8. Position the ring end gaps as shown:

Fig. 6: Identifying Piston Ring End Gaps Angle



2008 Honda Civic GX

2006-08 ENGINE Engine Block - Civic GX

































9. After installing a new set of rings, measure the ring-to-groove clearances:

Top Ring Clearance

Standard (New): 0.045-0.070 mm (0.0018-0.0028 in.)

Service Limit: 0.13 mm (0.005 in.)

Second Ring Clearance

Standard (New): 0.030-0.055 mm (0.0012-0.0022 in.)

Service Limit: 0.13 mm (0.005 in.)

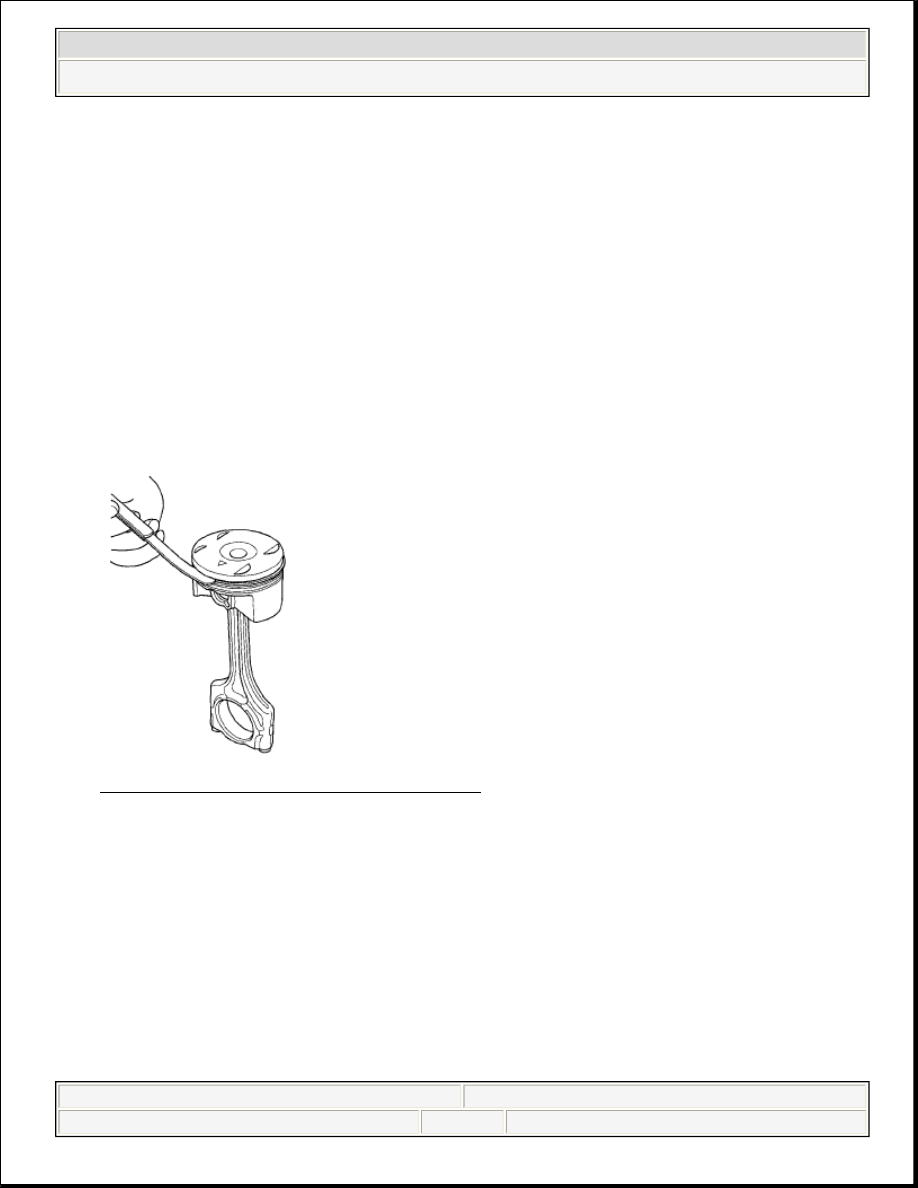

Fig. 7: Checking Top Ring Clearance



2008 Honda Civic GX

2006-08 ENGINE Engine Block - Civic GX

































2006-08 ENGINE

Engine Block - Civic (Except Hybrid)

ENGINE BLOCK (R18A1)

SPECIAL TOOLS

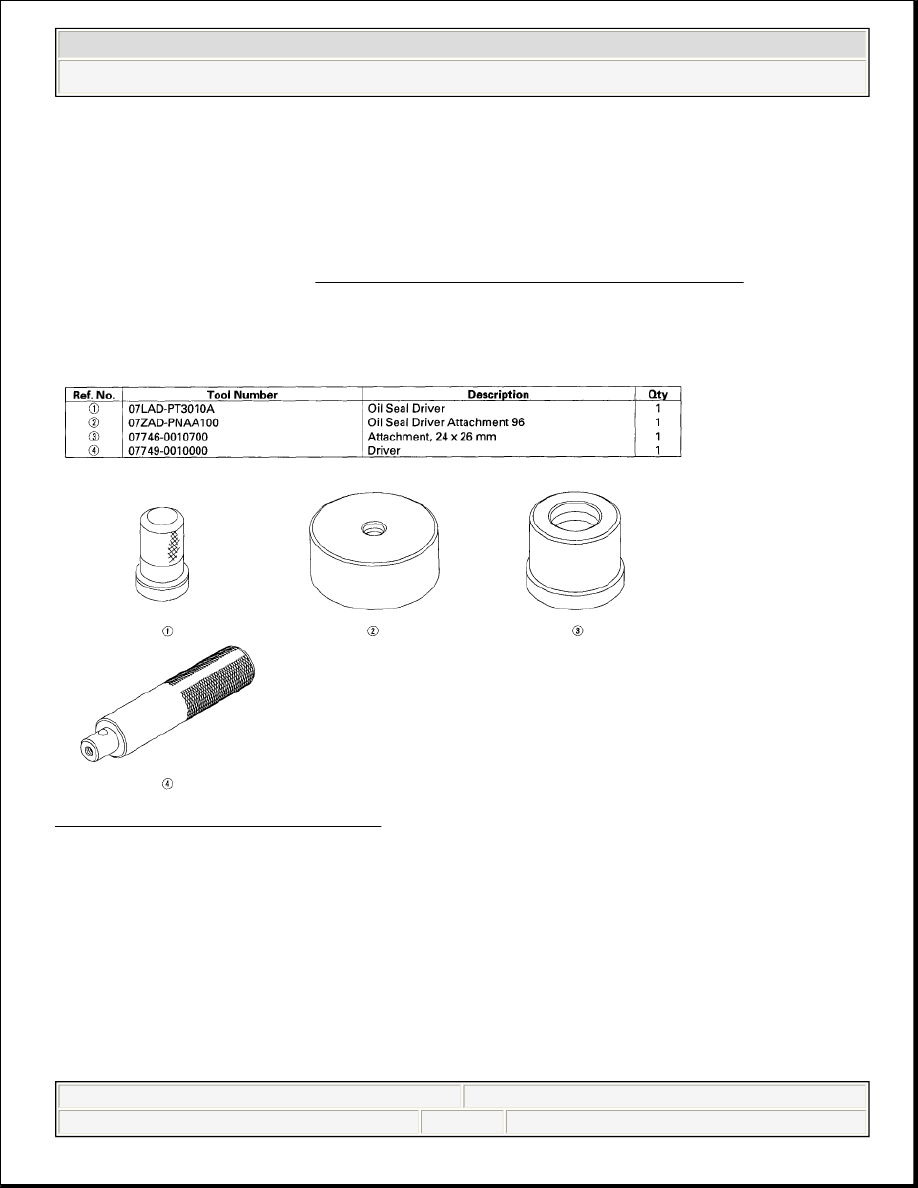

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX

NOTE:

Refer to the ENGINE BLOCK (GX) (SUPPLEMENT) article for
additional information for the GX model.



2008 Honda Civic GX

2006-08 ENGINE Engine Block - Civic (Except Hybrid)





2008 Honda Civic GX

2006-08 ENGINE Engine Block - Civic (Except Hybrid)

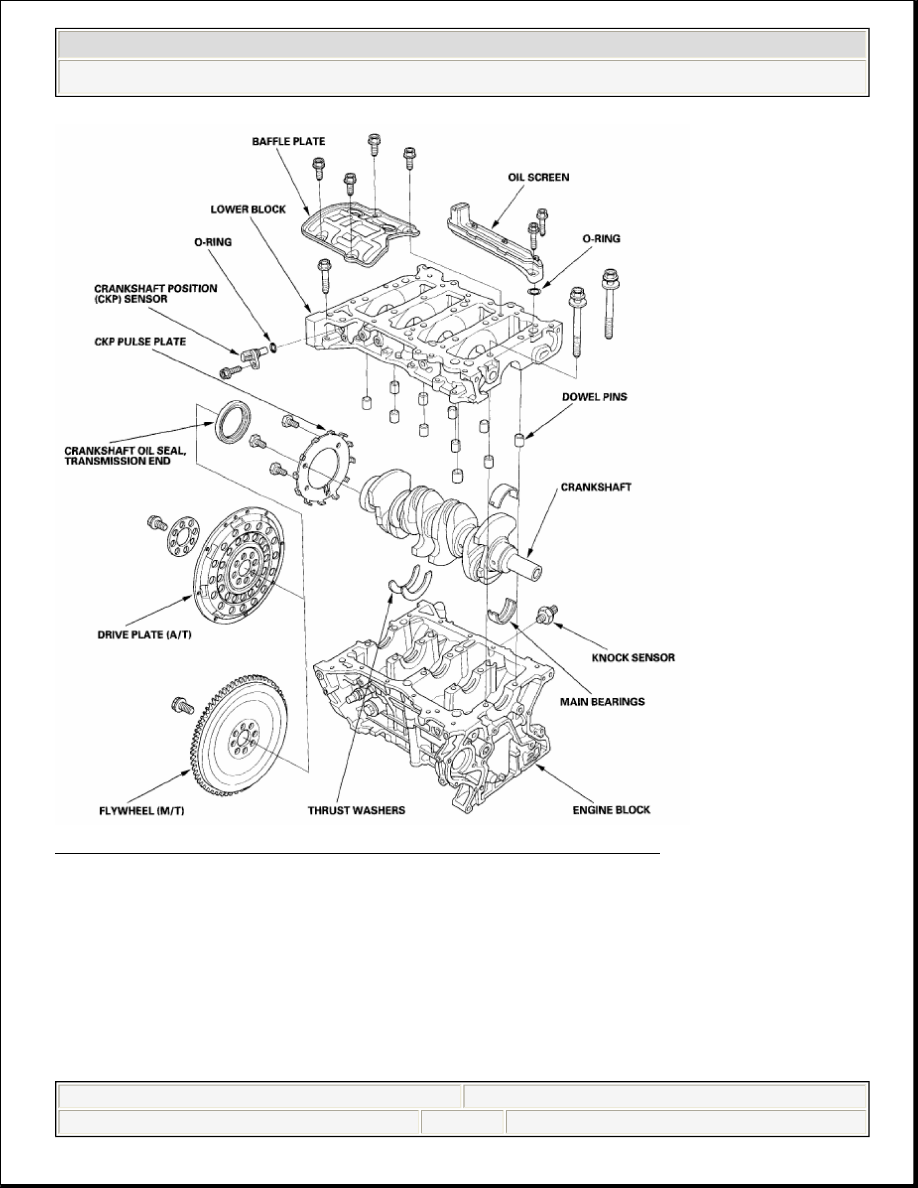

Fig. 2: Identifying Engine Block, Flywheel And Crankshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2008 Honda Civic GX

2006-08 ENGINE Engine Block - Civic (Except Hybrid)
