Honda Civic. Manual - part 557

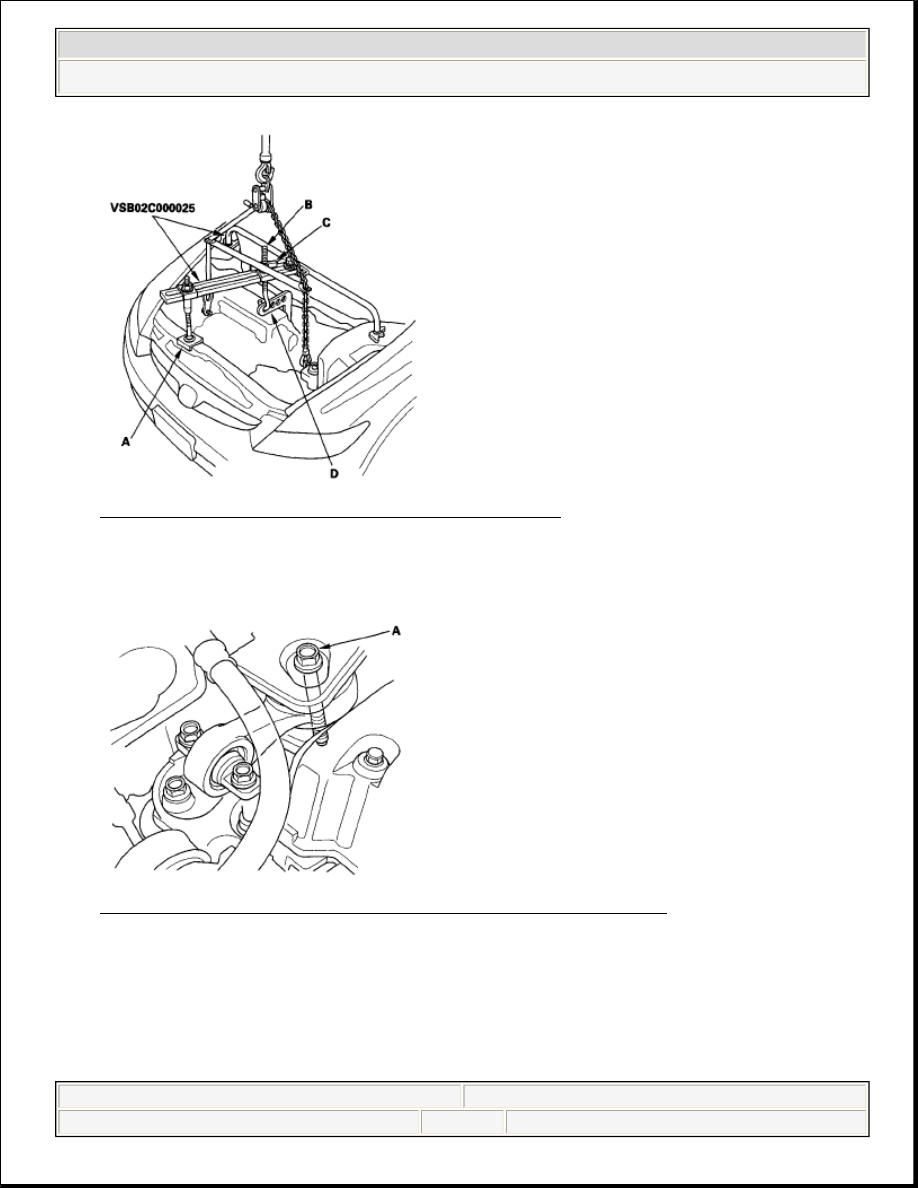

Fig. 120: Identifying Engine Hanger Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Loosen the upper torque rod mounting bolt (A).

Fig. 121: Identifying Upper Torque Rod Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Tighten the new side engine mount bracket mounting bolt and nut.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic (Except Hybrid)

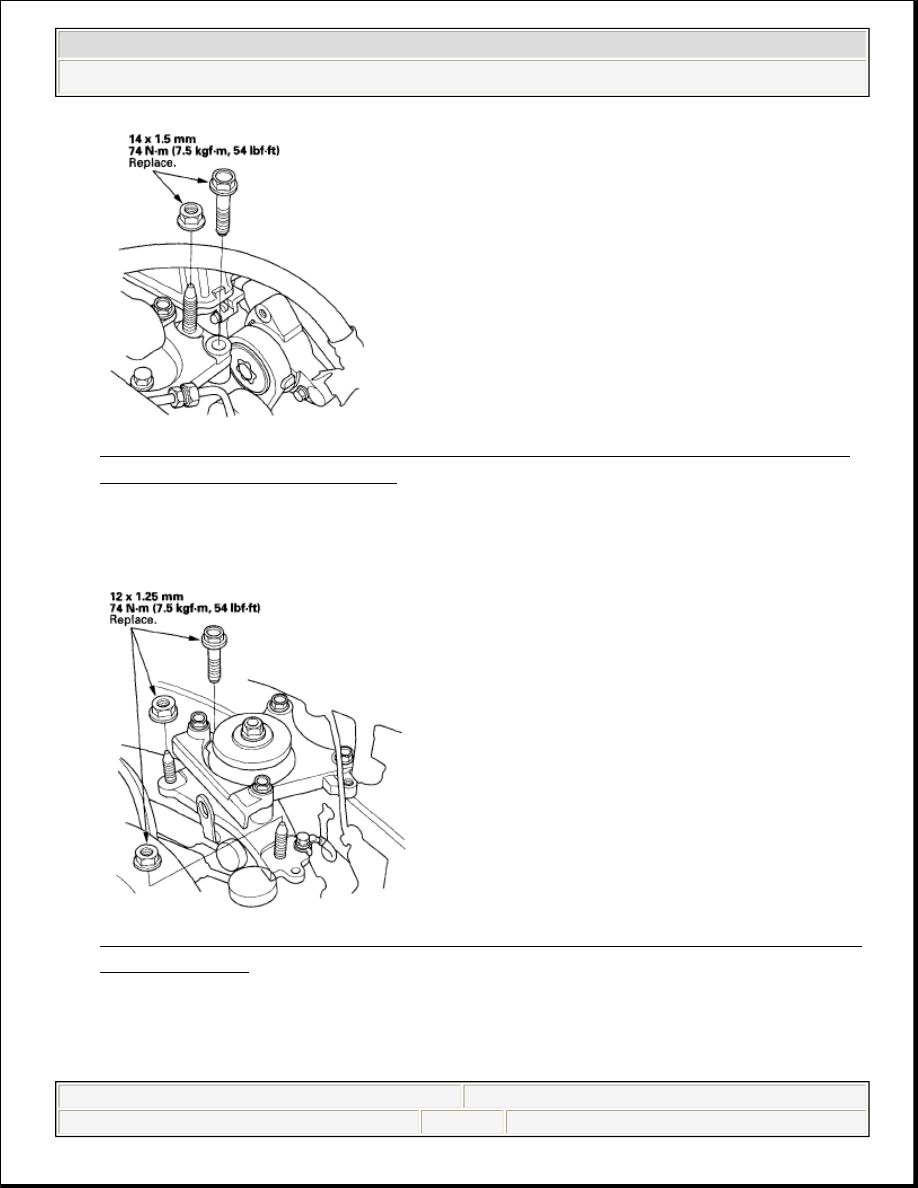

Fig. 122: Identifying Side Engine Mount Bracket Mounting Bolt And Nut
(With Torque Specifications)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Tighten the new transmission mounting bolt and nuts.

Fig. 123: Identifying Transmission Mounting Bolt And Nuts (With Torque
Specifications)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the chain hoist.
9. Remove the special tool.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic (Except Hybrid)

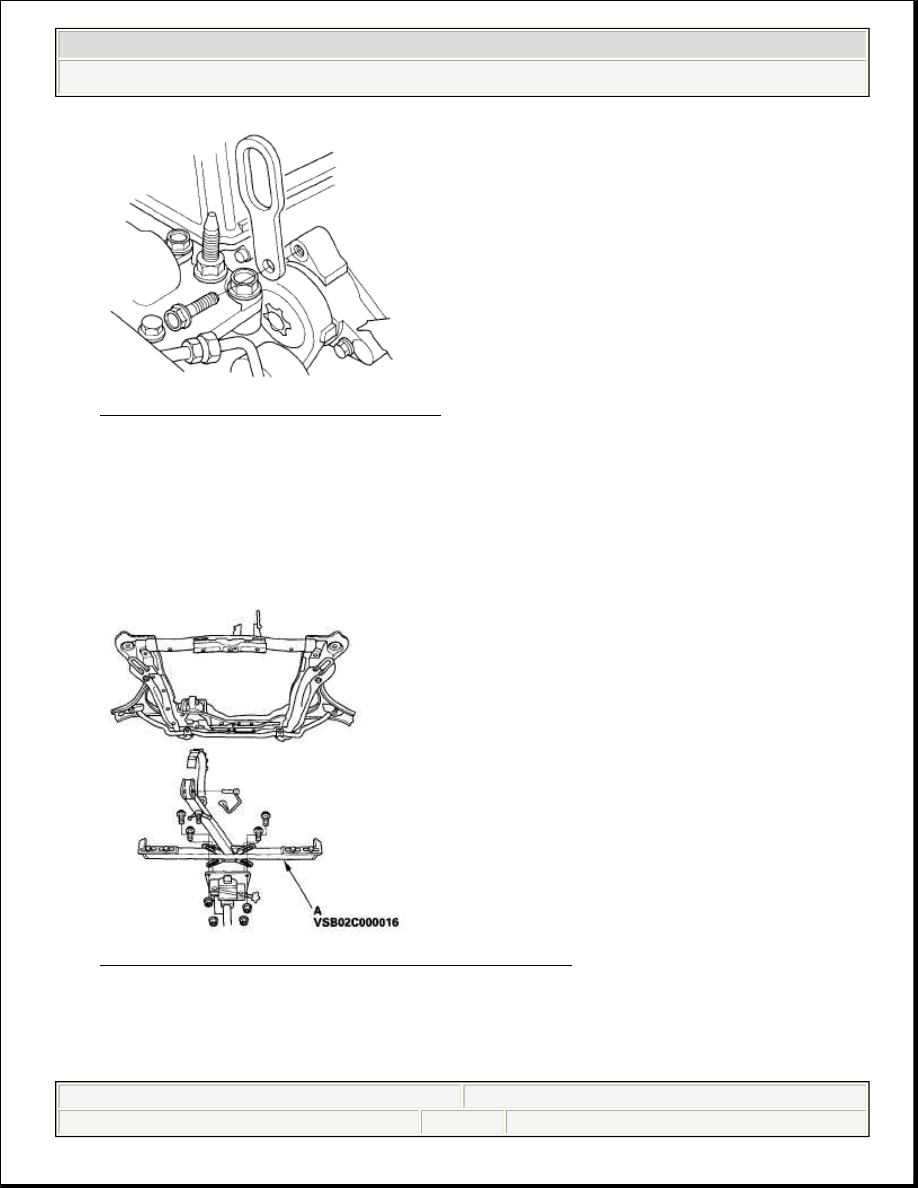

Fig. 124: Identifying Special Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Raise the vehicle on the lift.
11. 11 Set the front subframe adapter (A) to the front subframe and hang the belt of

the front subframe adapter over the front of the subframe, then secure the belt
with its stop.

Fig. 125: Identifying Front Subframe Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Line up the slots in the arms with the bolt holes on the corner of the jack base,

and tighten the bolts, then lift the front subframe up to the body.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic (Except Hybrid)

13. Loosely install the new front subframe mounting bolts.

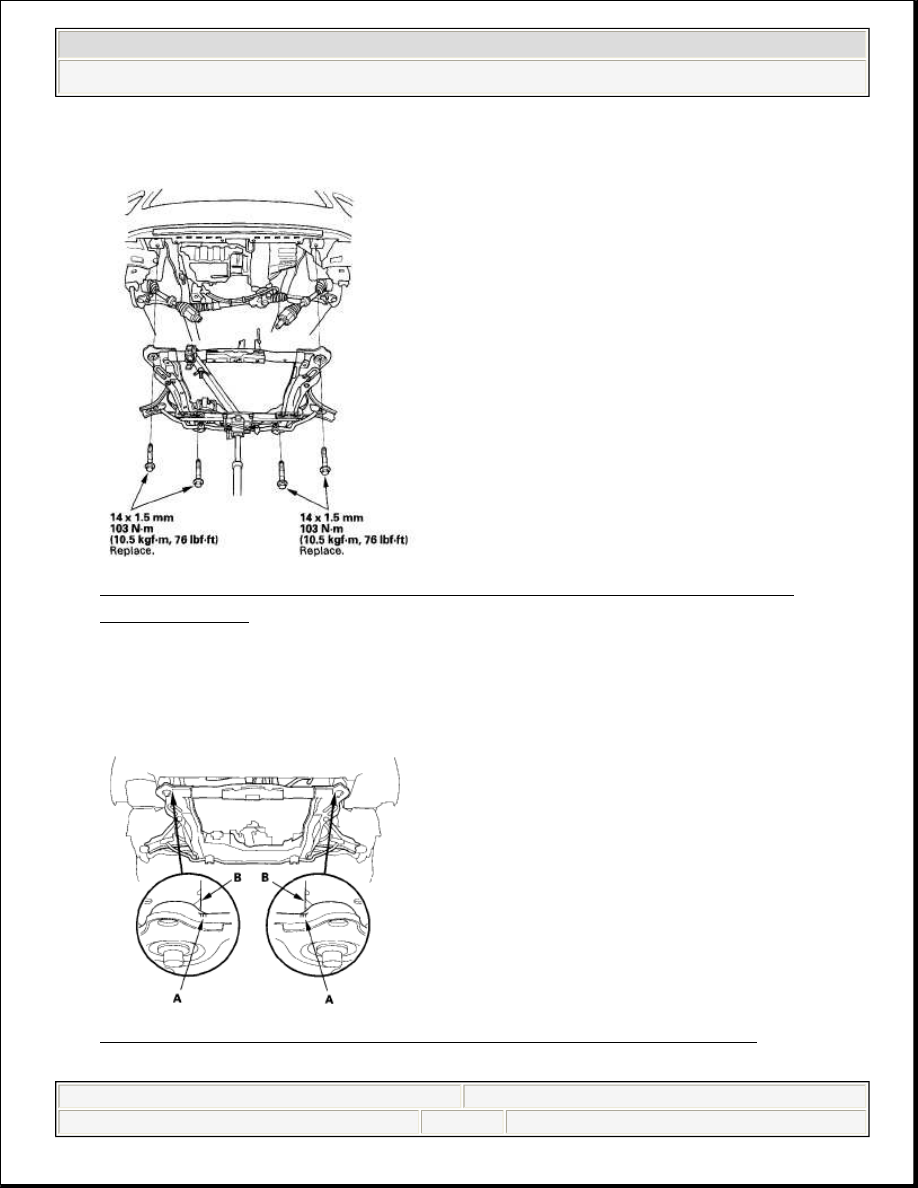

Fig. 126: Identifying Front Subframe Mounting Bolts (With Torque
Specifications)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Align the front subframe reference marks (A) to the body (B), as noted during

removal. Tighten the bolts on the front subframe to the specified torque.

Fig. 127: Identifying Front Subframe Reference Marks To Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic (Except Hybrid)
