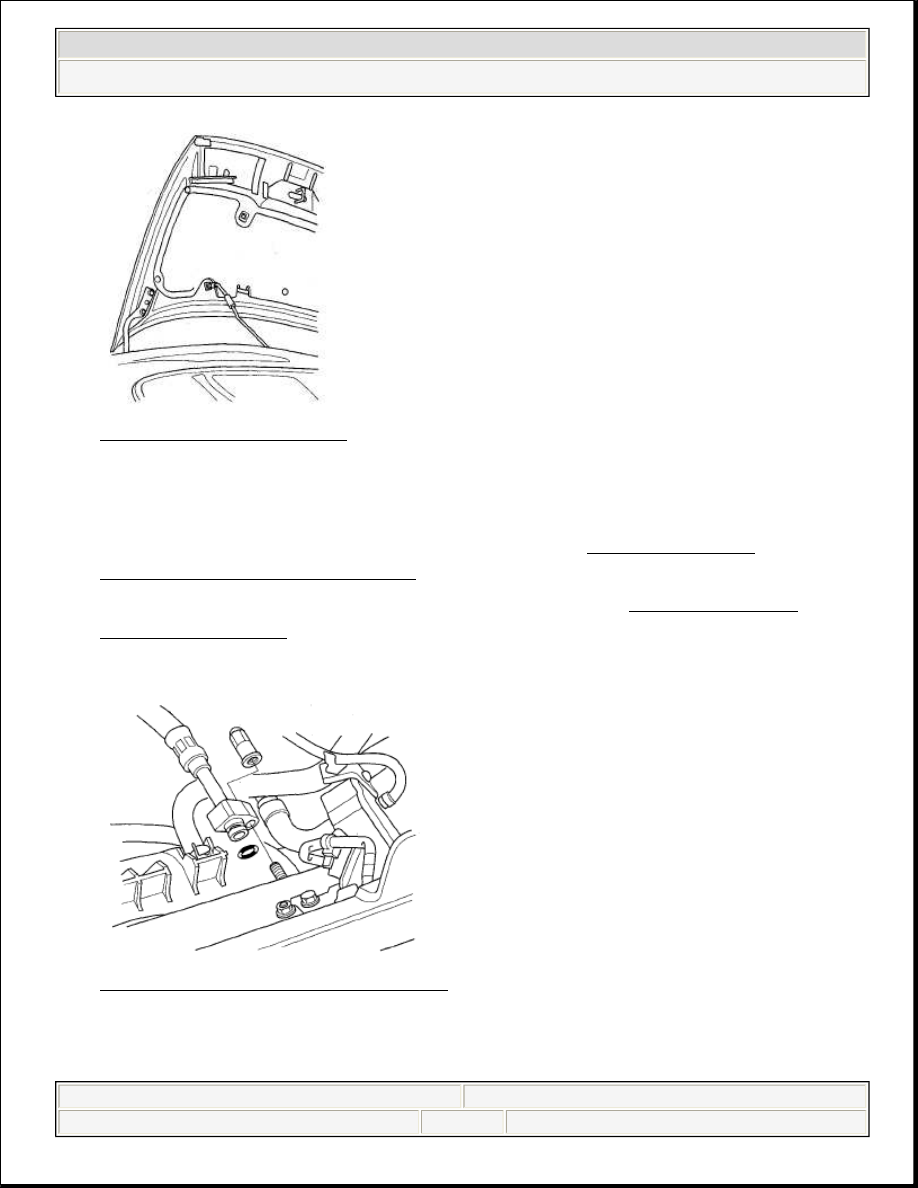

Fig. 3: Identifying Hood

5. Disconnect the negative cable from the battery, then the positive cable.
6. Remove the battery.
7. Remove the air cleaner housing assembly, refer to AIR CLEANER

REMOVAL/INSTALLATION .

8. Remove the cowl cover and under-cowl panel, refer to COWL COVER

REPLACEMENT .

9. Remove the fuel feed hose.

Fig. 4: Identifying Fuel Feed Hose

10. Remove the vacuum hose (A), brake booster vacuum hose (B), and power

steering (P/S) hose clamp (C).

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic GX

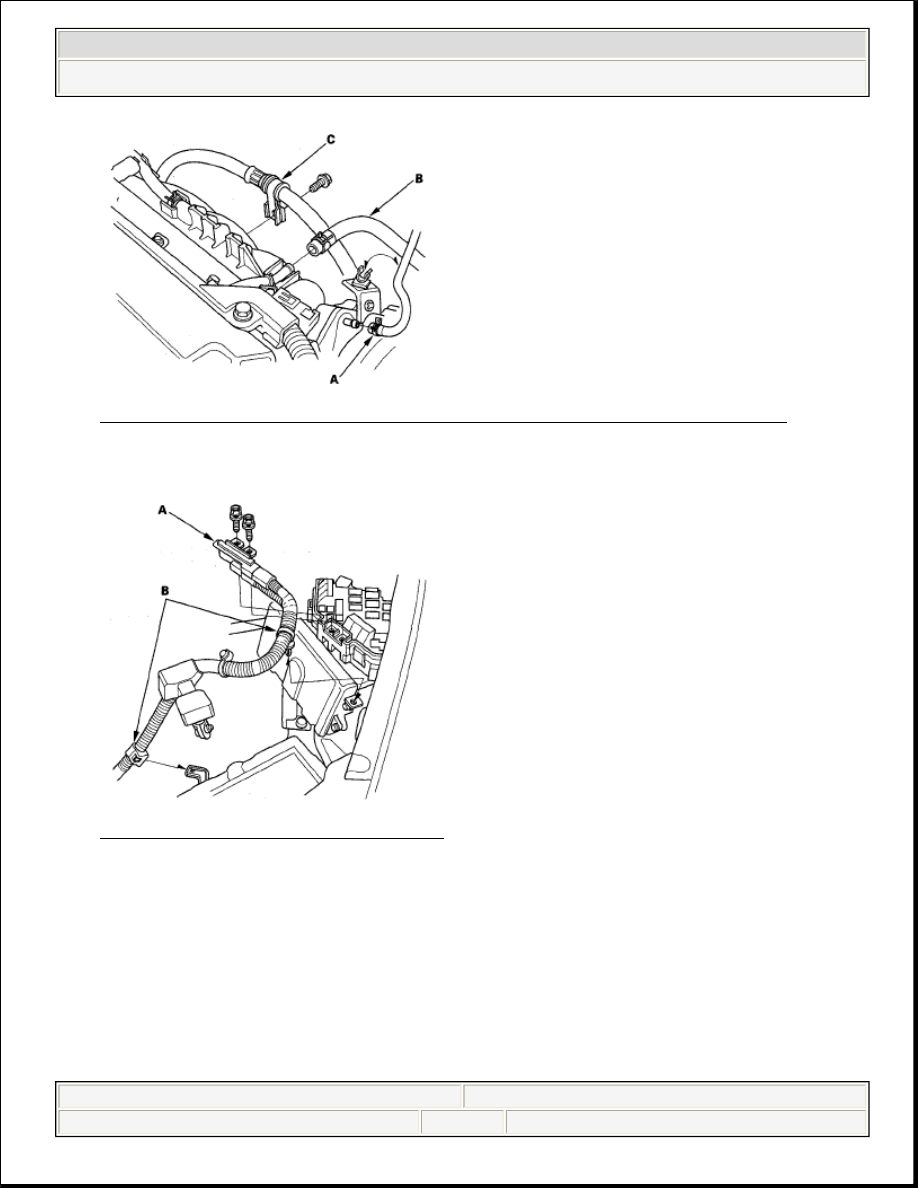

Fig. 5: Identifying Vacuum Hose And Brake Booster Vacuum Hose

11. Remove the battery cables (A) from the under-hood fuse/relay box.

Fig. 6: Identifying Battery Cables

12. Remove the harness clamps (B).
13. Remove the powertrain control module (PCM) cover (A), then remove the

three bolts (B) securing the PCM.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic GX

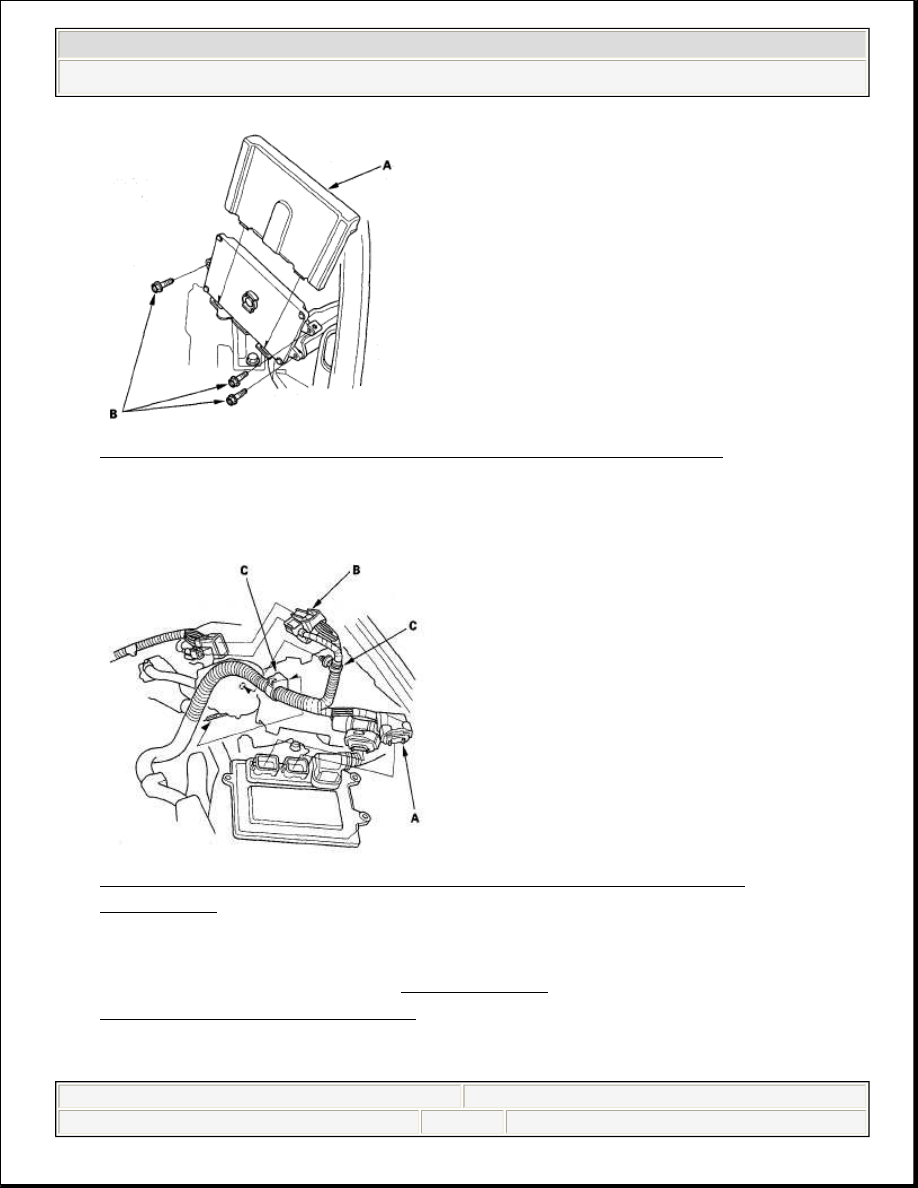

Fig. 7: Identifying Powertrain Control Module (PCM) Cover

14. Disconnect the PCM connectors (A) and the engine wire harness connectors

(B).

Fig. 8: Identifying PCM Connectors And Engine Wire Harness
Connectors

15. Remove the harness clamps (C).
16. Remove the drive belt, refer to DRIVE BELT

REMOVAL/INSTALLATION .

17. Remove the radiator cap.

2008 Honda Civic GX

2006-08 ENGINE Engine Assembly - Civic GX

18. Raise the vehicle on the lift to full height.
19. Remove the front wheels.
20. Remove the splash shield.

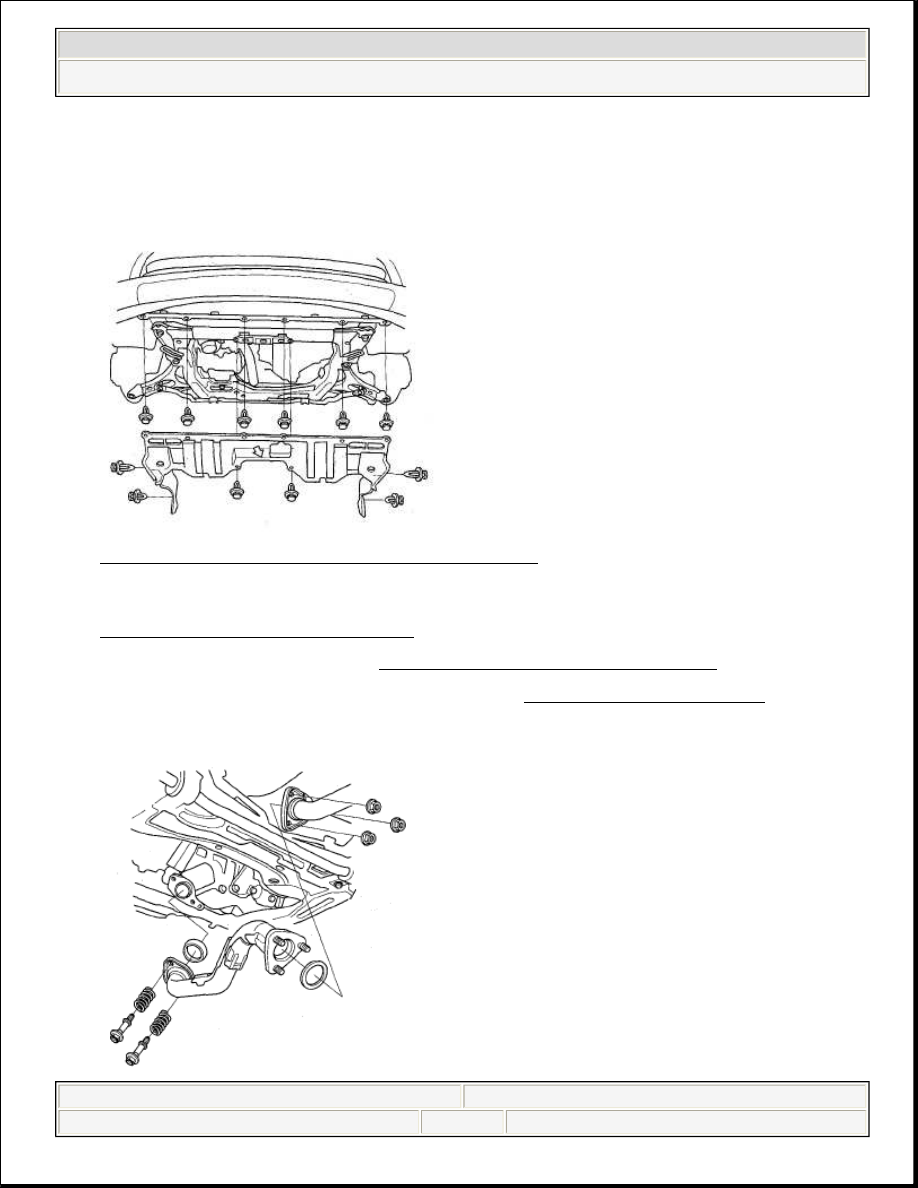

Fig. 9: Identifying Splash Shield And Clips

21. Loosen the drain plug in the radiator, and drain the engine coolant, refer to

COOLANT REPLACEMENT .

22. Drain the engine oil, refer to ENGINE OIL REPLACEMENT .
23. Drain the transmission fluid (ATF), refer to ATF REPLACEMENT .
24. Remove exhaust pipe A.
