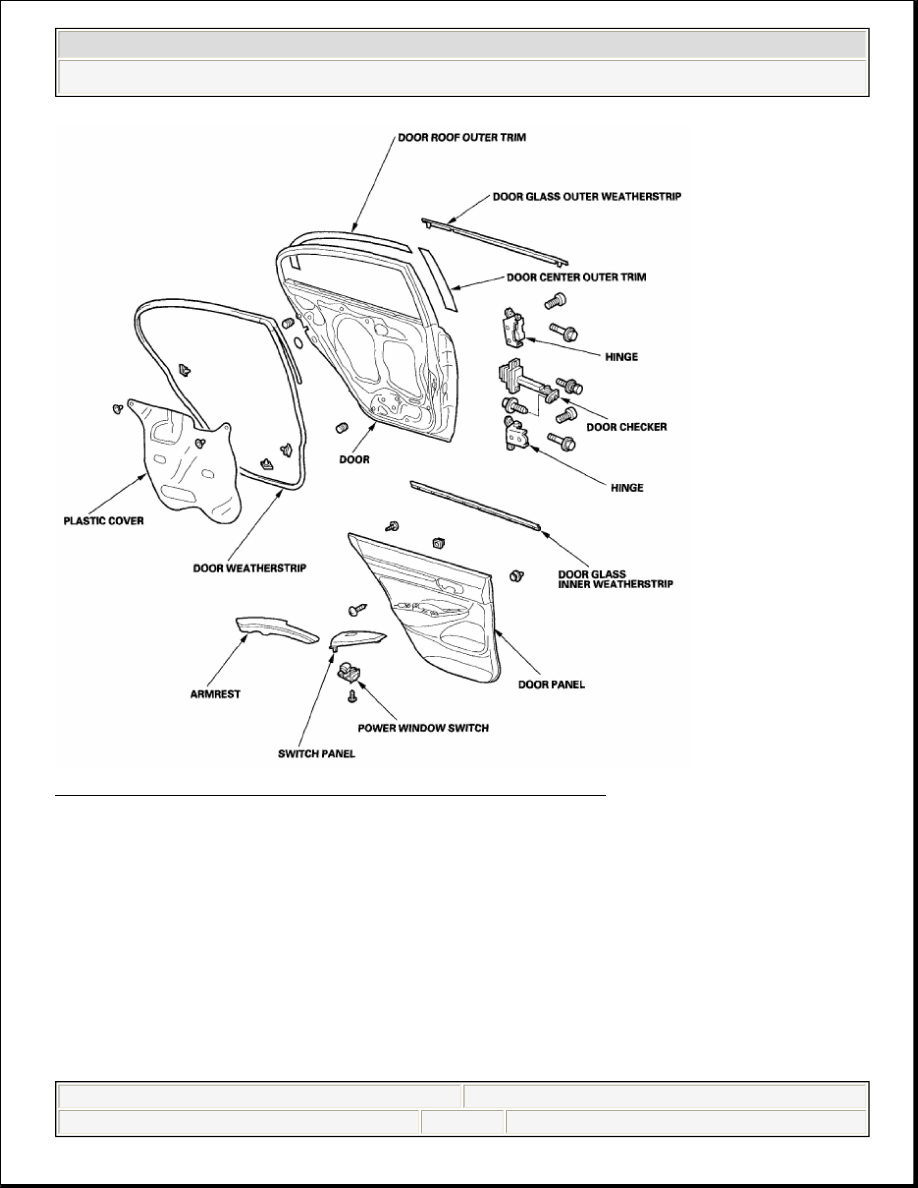

Fig. 6: Exploded View Of Rear Door (4-Door - 1 Of 2)



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Doors - Civic (All Except Hybrid)

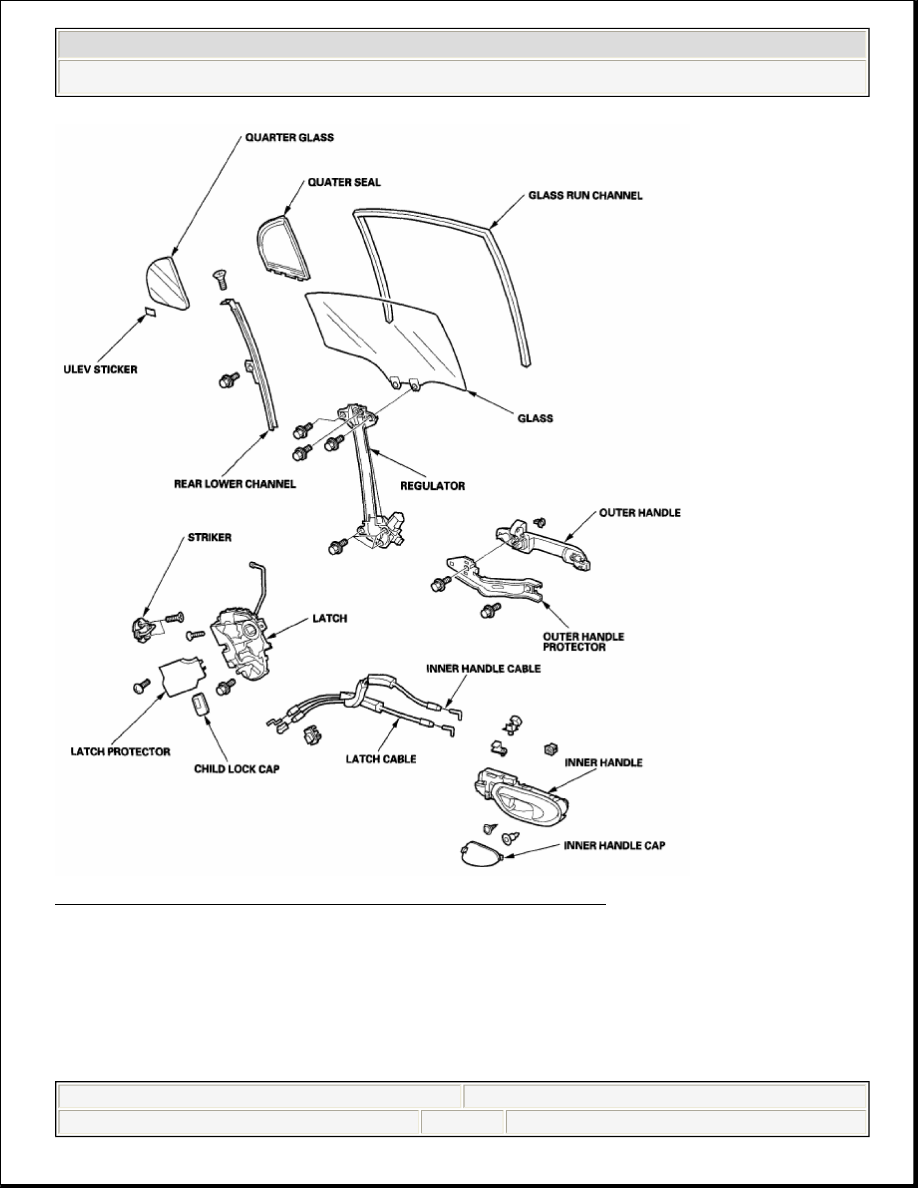

Fig. 7: Exploded View Of Rear Door (4-Door - 2 Of 2)

DOOR PANEL REMOVAL/INSTALLATION

Special Tools Required



KTC trim tool set SOJATP2014 *



Trim pad remover. Snap-on A 177A or equivalent, commercially available



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Doors - Civic (All Except Hybrid)

































*Available through the American Honda Tool and Equipment Program; call
888-424-6857

2-DOOR

1. Raiser the glass fully.
2. Remove the mirror mount cover (see step 2 in 2-DOOR ).
3. Using the appropriate trim tool, pry out on the rear portion of the inner handle

cap (A) to release the hooks (B, C).

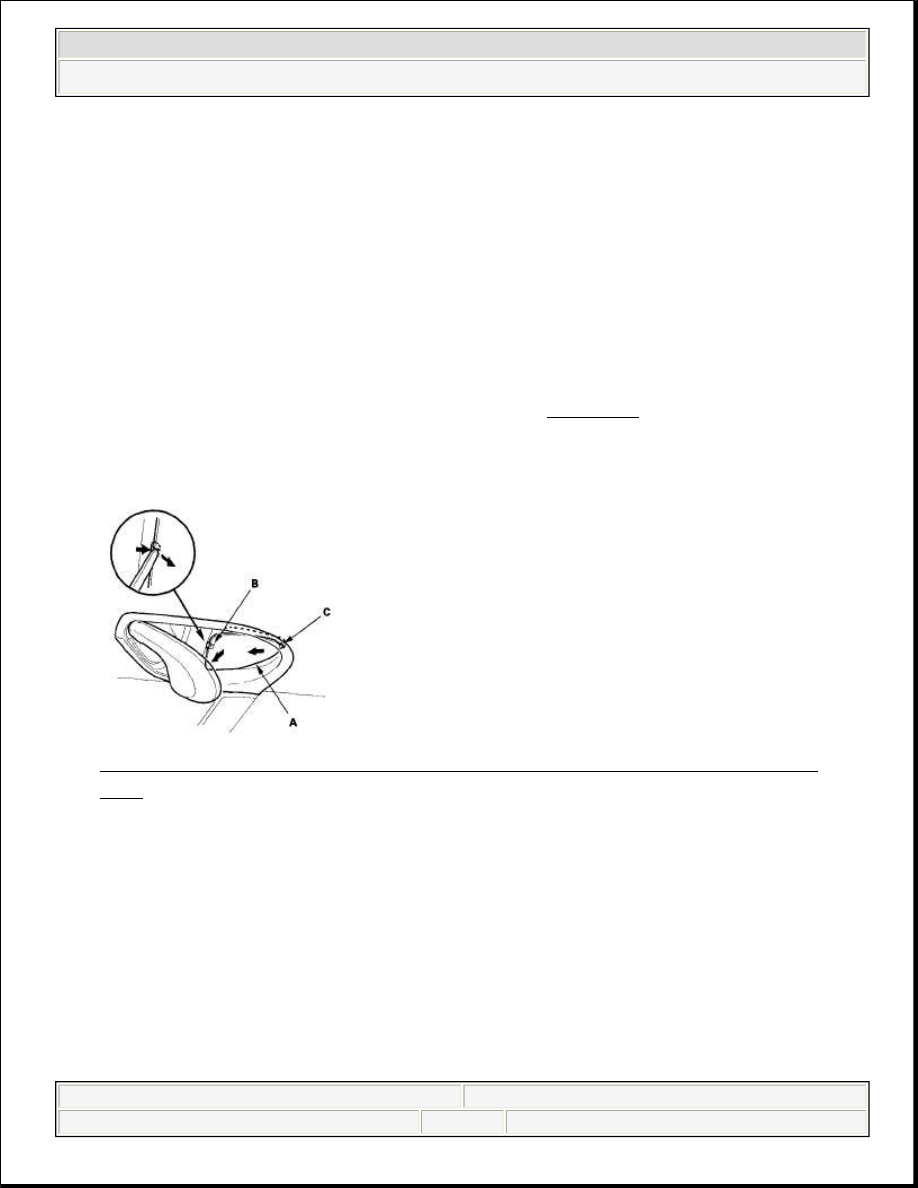

Fig. 8: Releasing Hooks Prying Out On Rear Portion Of Inner Handle
Cap


4. Remove the screw (A) and clip (B) securing the inner handle (C).

NOTE:



Use the appropriate tool from the KTC trim tool set to
avoid damage when prying components.



Take care not to scratch the door and related parts.



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Doors - Civic (All Except Hybrid)

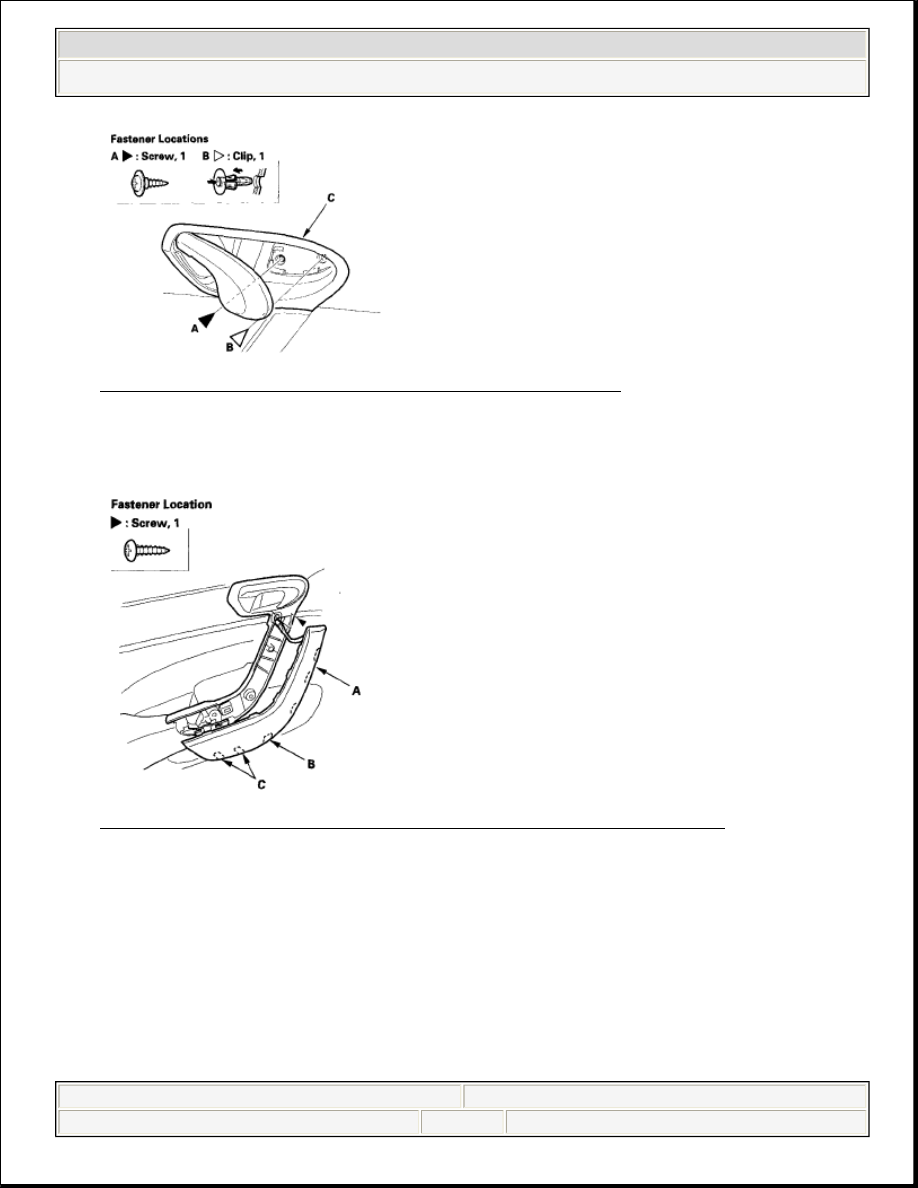

Fig. 9: Removing Screw And Clip Of Inner Handle

5. Pry out the bottom edge of the grip cover (A) at the notch (B) with the trim tool

to release the hooks (C). Then remove the cover and the screw.

Fig. 10: Releasing Hooks Prying Bottom Edge Of Grip Cover

6. Remove the screws.



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Doors - Civic (All Except Hybrid)
