joint duct (B).

Fig. 37: Removing Center Joint Duct

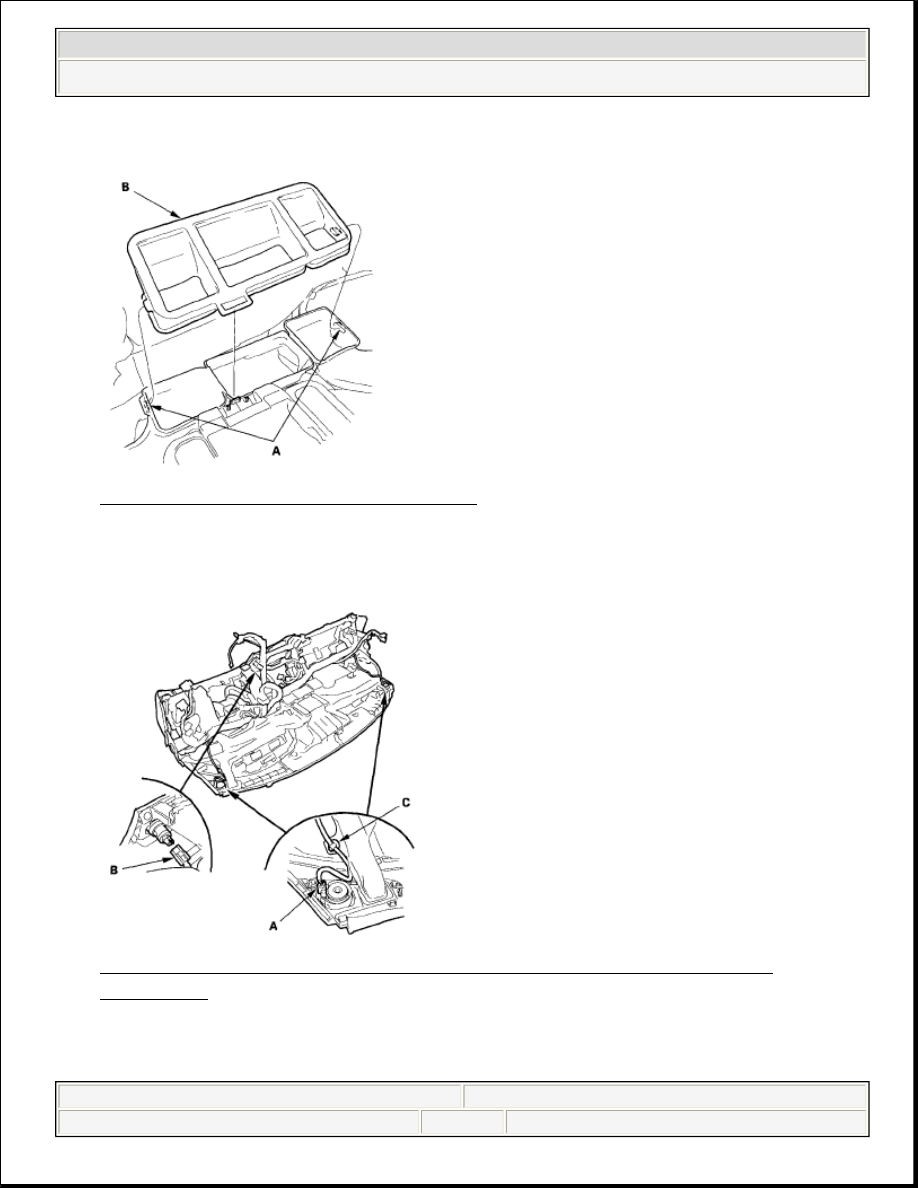

5. From the back of the dashboard, disconnect the tweeter connectors (A) and the

accessory socket connector (B), then detach the harness clips (C).

Fig. 38: Disconnecting Tweeter Connectors And Accessory Socket
Connector

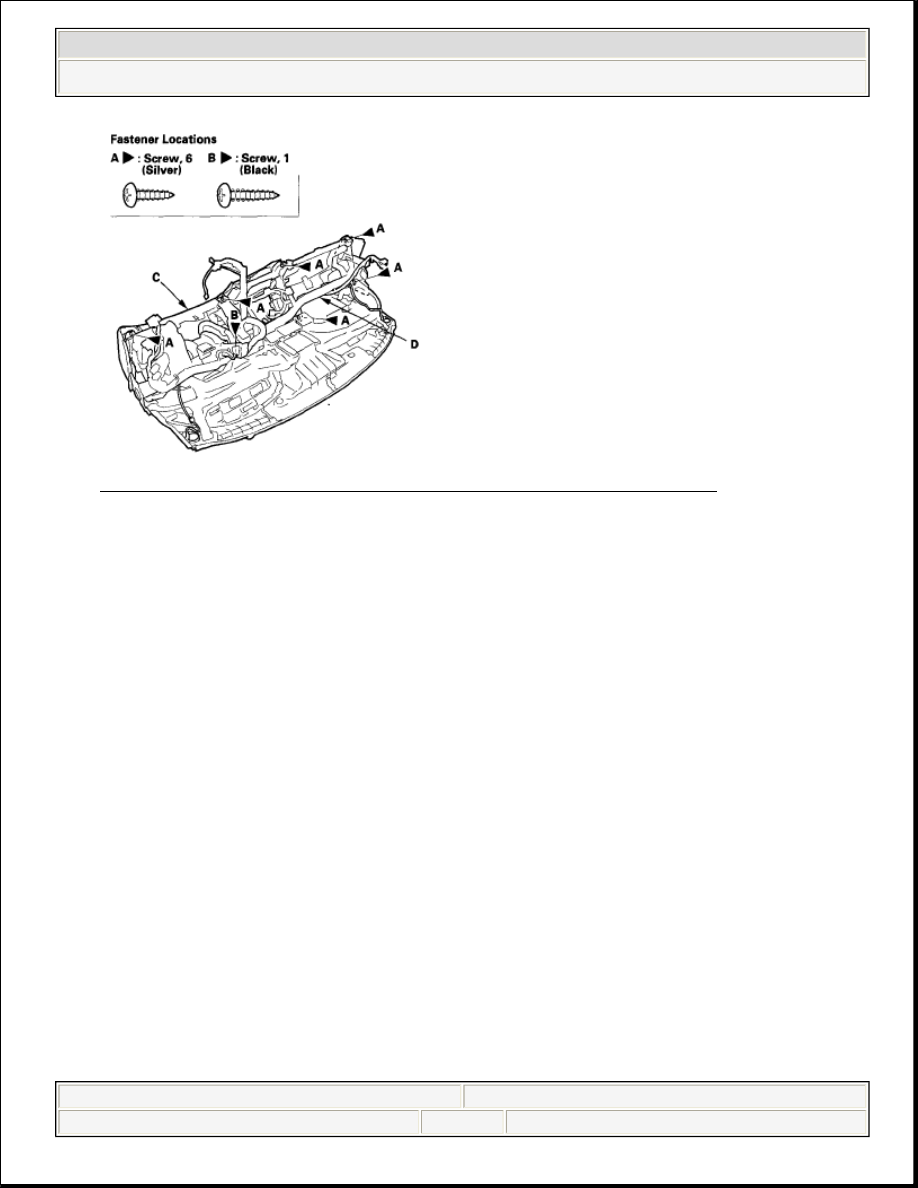

6. From the back of the dashboard, remove the screws (A, B), then separate the

dashboard (C) from the steering hanger beam (D).



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Dashboard - Civic (All Except Hybrid)



































Fig. 39: Separating Dashboard From Steering Hanger Beam

7. Assemble the dashboard and steering hanger beam in the reverse order of

removal, and note these items:



Make sure the dashboard wire harness is not pinched.



Make sure the connectors are plugged in properly.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Dashboard - Civic (All Except Hybrid)



































2006-08 ACCESSORIES AND EQUIPMENT

Rear Window Defogger - Civic (All Except Hybrid)

COMPONENT LOCATION INDEX

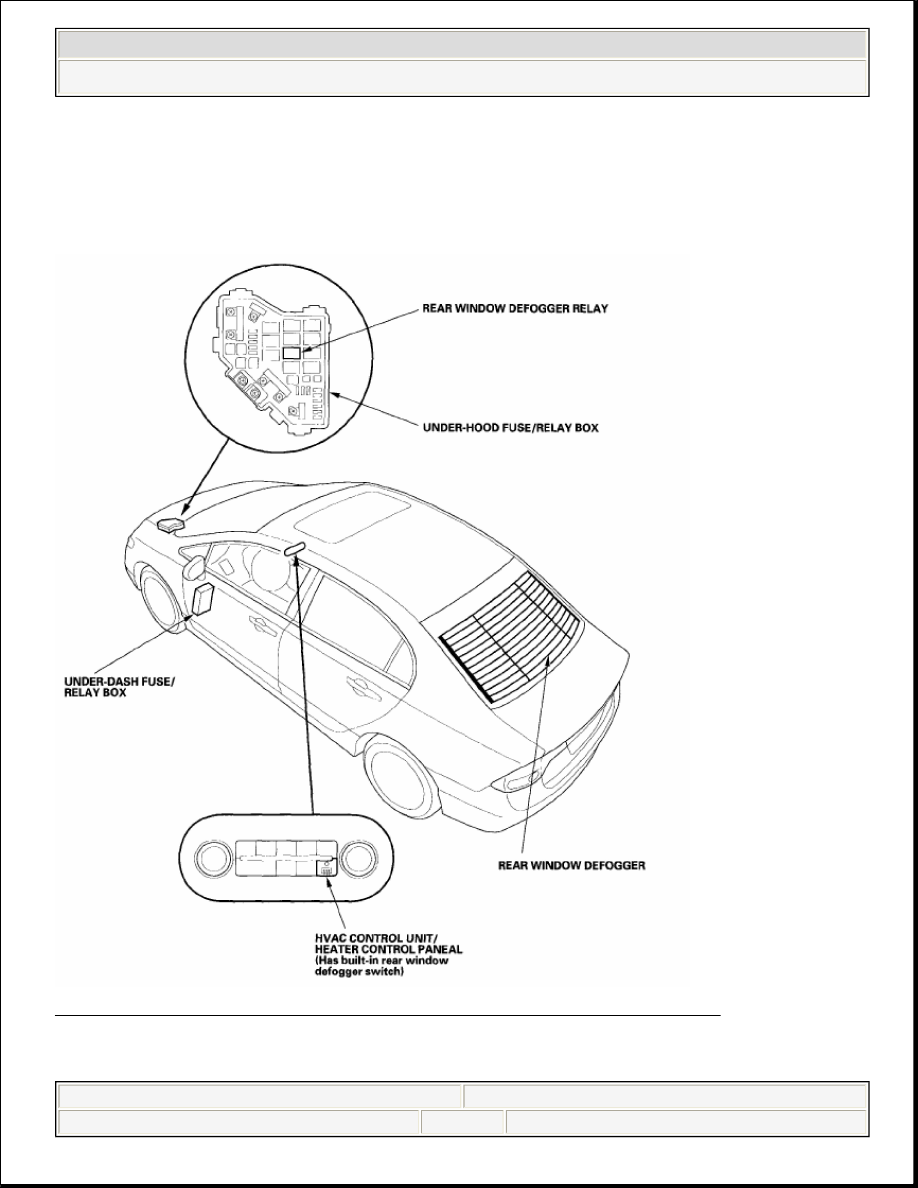

Fig. 1: Identifying Rear Window Defogger Component Locations

CIRCUIT DIAGRAM



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Rear Window Defogger - Civic (All Except Hybrid)





2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Rear Window Defogger - Civic (All Except Hybrid)

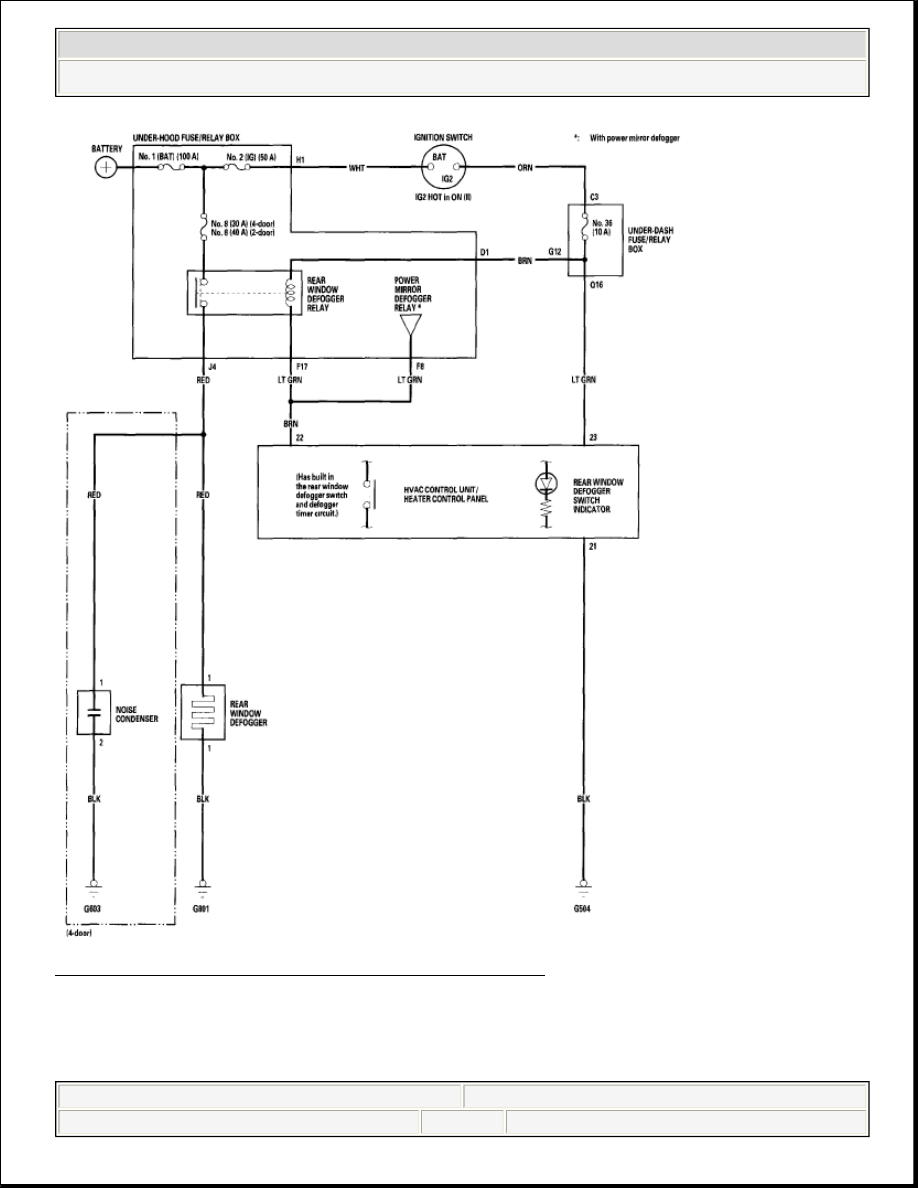

Fig. 2: Rear Window Defogger Circuit Diagram

FUNCTION TEST

NOTE:



Be careful not to scratch or damage the defogger wires



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Rear Window Defogger - Civic (All Except Hybrid)
