2006-08 ACCESSORIES & EQUIPMENT

Cruise Control (R18A1) - Civic (All Except Hybrid)

COMPONENT LOCATION INDEX

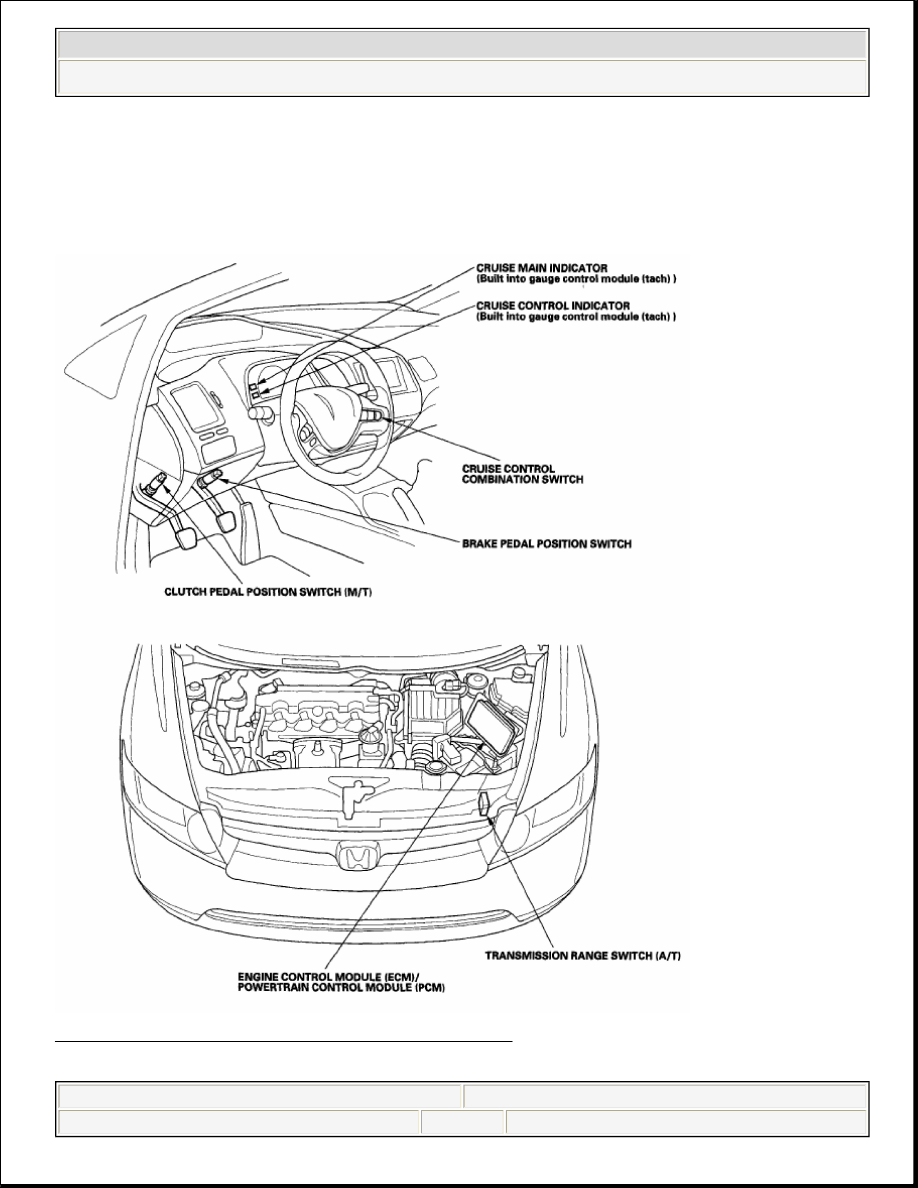

Fig. 1: Locating Cruise Control Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (R18A1) - Civic (All Except Hybrid)





2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (R18A1) - Civic (All Except Hybrid)































































SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Also check for

Cruise control
cannot be set

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Check the No. 3(10 A) fuse in the

under-dash fuse/relay box.

3. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ).

4. Do the cruise control combination

switch test (see CRUISE
CONTROL COMBINATION
SWITCH
TEST/REPLACEMENT
 ).



Cruise control can
be set, but the
cruise main
indicator does not
come on

Do the gauge control module self-
diagnostic function procedure (see
SELF-DIAGNOSTIC
FUNCTION
 ).

Faulty gauge
control module
(tach)

Cruise control can
be set, but the
cruise control
indicator does not
come on

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the gauge control module self-

diagnostic function procedure
(see SELF-DIAGNOSTIC
FUNCTION
 ).

3. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the cruise

Faulty gauge
control module
(tach)



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (R18A1) - Civic (All Except Hybrid)

































control indicator signal input.

Vehicle does not
decelerate or
accelerate
accordingly when
the set/decel or
resume/accel
switch is pressed

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the cruise
control set/decel, resume/accel
switch signal input.

3. Do the cruise control combination

switch test (see CRUISE
CONTROL COMBINATION
SWITCH
TEST/REPLACEMENT
 ).

Open circuit, loose
or disconnected
terminals:
YEL/RED, LT
GRN or LT
GRN/BLK, ORN

Set speed does not
cancel when the
brake pedal is
pressed

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the brake
pedal position switch signal input.

3. Do the brake pedal position

switch test (see BRAKE PEDAL
POSITION SWITCH TEST
 ).



Short to power
on the BRN
wire



Faulty brake
pedal position
switch

Set speed does not
cancel (engine rpm
stays high) when
the clutch pedal is

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the clutch



Short in the LT
BLU wire



Faulty clutch
pedal position



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (R18A1) - Civic (All Except Hybrid)

































pressed (M/T)

pedal position switch signal input.

3. Do the clutch pedal position

switch test (see CLUTCH
PEDAL POSITION SWITCH
TEST
 ).

switch

Set speed does not
cancel when the
cruise control main
switch is pressed

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the cruise
control main switch signal input.

3. Do the cruise control combination

switch test (see CRUISE
CONTROL COMBINATION
SWITCH
TEST/REPLACEMENT
 ).

Short to power on
the PNK, YEL wire

Set speed does not
cancel when the
cancel switch is
pressed

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ). Test the cruise
control cancel switch signal input.

3. Do the cruise control combination

switch test (see CRUISE
CONTROL COMBINATION
SWITCH
TEST/REPLACEMENT
 ).

Open circuit, loose
or disconnected
terminals:
YEL/RED, LT
GRN or LT
GRN/BLK, ORN

1. Check for PGM-FI DTCs (see

GENERAL



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (R18A1) - Civic (All Except Hybrid)
