Honda Civic. Manual - part 393

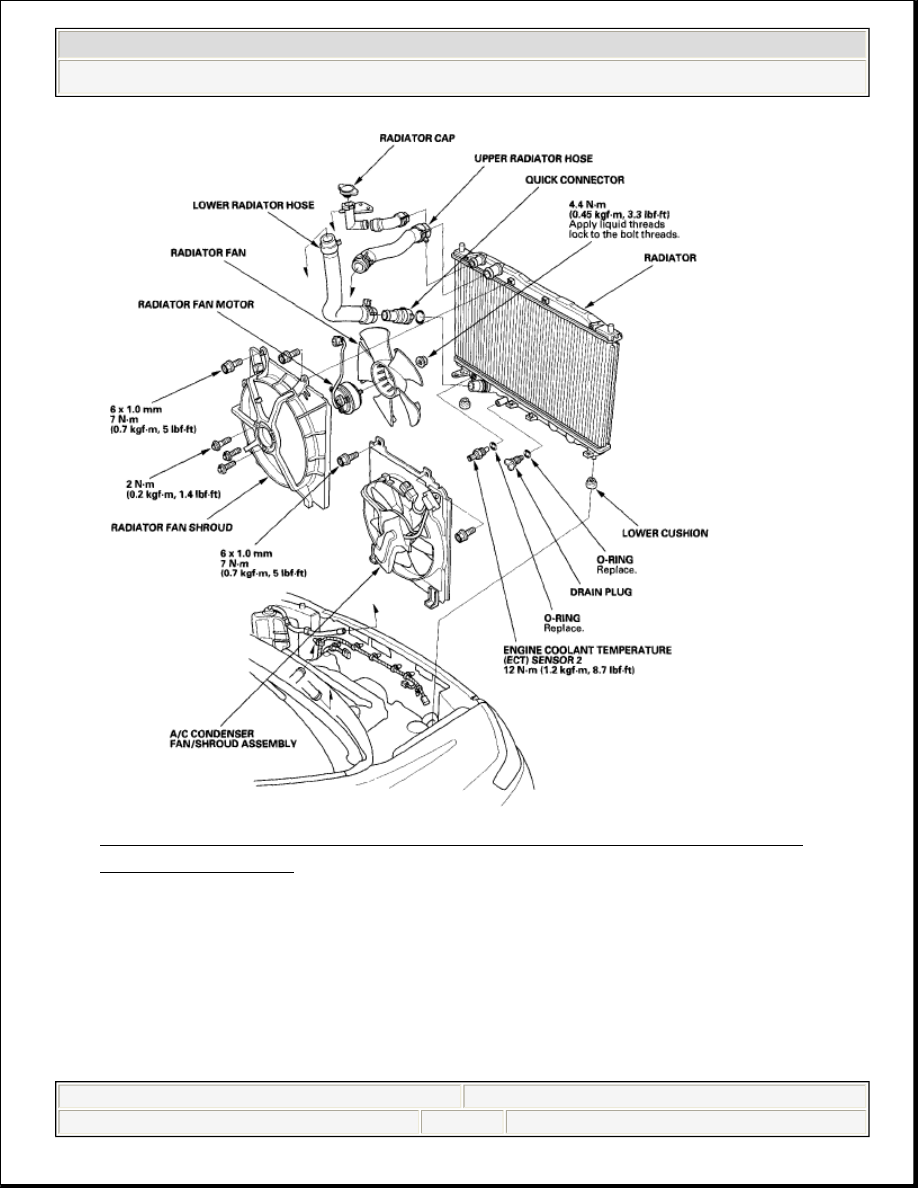

Fig. 40: Identifying Radiator And Fan Components - COPAR - With
Tightening Torque

Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Install the radiator in the reverse order of removal. Make sure the upper and

lower cushions are set securely.

14. Install the bulkhead in the reverse order of removal. Apply body paint to the

bulkhead mounting bolts.

15. Install the battery, and connect the positive cable to the battery first, then



2008 Honda Civic GX

2006-08 ENGINE Cooling System (R18A1) - Civic (Except Hybrid)



































connect the negative cable.

16. Enter the anti-theft code for the audio system and the navigation system (if

equipped), then enter the audio preset. Set the clock.

17. Fill the radiator with engine coolant and bleed the air (see step 8).



2008 Honda Civic GX

2006-08 ENGINE Cooling System (R18A1) - Civic (Except Hybrid)



































2006-08 ACCESSORIES & EQUIPMENT

Cruise Control (K20Z3) - Civic (All Except Si)

COMPONENT LOCATION INDEX

Fig. 1: Locating Cruise Control Components



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (K20Z3) - Civic (All Except Si)





2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (K20Z3) - Civic (All Except Si)































































Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Also check for

Cruise control
cannot be set

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Check the No. 3 (10 A) fuse in the

under-dash fuse/relay box.

3. Do the cruise control input test

(see CRUISE CONTROL
INPUT TEST
 ).

4. Do the cruise control combination

switch test (see CRUISE
CONTROL COMBINATION
SWITCH
TEST/REPLACEMENT
 ).



Cruise control
can be set, but
the cruise main
indicator does
not come on

Do the gauge control module self-
diagnostic function procedure (see
SELF-DIAGNOSTIC FUNCTION ).

Faulty gauge control
module (tach)

Cruise control
can be set, but
the cruise
control indicator
does not come
on

1. Check for PGM-FI DTCs (see

GENERAL
TROUBLESHOOTING
INFORMATION
 ).

2. Do the gauge control module self-

diagnostic function procedure (see
SELF-DIAGNOSTIC
FUNCTION
 ).

3. Do the cruise control input test

Faulty gauge control
module (tach)



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Cruise Control (K20Z3) - Civic (All Except Si)
