Honda Civic. Manual - part 381





Fig. 9: Loosening Drain Plug
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. After the coolant has drained, tighten the radiator drain plug.
5. Remove the coolant reservoir, and drain the coolant, then reinstall the coolant

reservoir.

6. Fill the coolant reservoir to the MAX mark (A) with Honda Long Life

Antifreeze/Coolant Type 2 (P/N OL999-9001).

Fig. 10: Identifying MAX Mark
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Pour Honda Long Life Antifreeze/Coolant Type 2 (P/N OL999-9001) into the

radiator up to the base of the filler neck.



2008 Honda Civic GX

2006-08 ENGINE Cooling System (K20Z3) - Civic (All Except Si)

































Engine Coolant Capacities (Including the reserve tank capacity of 0.4 L
(0.11 US gal))


At Coolant Change: 4.5 L (1.19 US gal)

After Engine Overhaul: 6.8 L (1.80 US gal)

Fig. 11: Identifying Engine Coolant Capacities
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Loosely install the radiator cap.
9. Start the engine, and let it run until it warms up (the radiator fan comes on at

least twice).

10. If the maintenance minder indicated to replace the engine coolant, reset the

maintenance minder (see RESETTING THE MAINTENANCE
INFORMATION DISPLAY
 ), then go to step 19. If the maintenance minder
did not indicate to replace the engine coolant, go to step 11.

NOTE:



Always use Honda Long Life Antifreeze/Coolant
Type 2 (P/N OL999-9001). Using a non-Honda
coolant can result in corrosion, causing the cooling
system to malfunction or fail.



Honda Long Life Antifreeze/Coolant Type 2 is a
mixture of 50 % antifreeze and 50 % water. Do not
add water.



2008 Honda Civic GX

2006-08 ENGINE Cooling System (K20Z3) - Civic (All Except Si)

































11. Turn the ignition switch to LOCK (0).
12. Connect the HDS to the data link connector (DLC) (see GENERAL

TROUBLESHOOTING INFORMATION ).

13. Turn the ignition switch to ON (II).
14. Make sure the HDS communicates with the vehicle and the ECM. If it doesn't

communicate, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING
 ).

15. Select BODY ELECTRICAL with he HDS.
16. Select ADJUSTMENT in the GAUGES MENU with the HDS.
17. Select RESET in the MAINTENANCE MINDER with the HDS.
18. Select MAINTENANCE SUB ITEM 5 RESET with the HDS.
19. Turn off the engine. Check the level in the radiator, and add Honda Long Life

Antifreeze/Coolant Type 2, if needed.

20. Put the radiator cap on tightly, then run the engine again, and check for leaks.
21. Clean up any spilled engine coolant.
22. Reset the maintenance information display (seeRESETTING THE

MAINTENANCE INFORMATION DISPLAY ).

THERMOSTAT REPLACEMENT

1. Drain the engine coolant (see COOLANT CHECK ).
2. Remove the splash shield .
3. Remove the lower hose, then remove the thermostat.



2008 Honda Civic GX

2006-08 ENGINE Cooling System (K20Z3) - Civic (All Except Si)

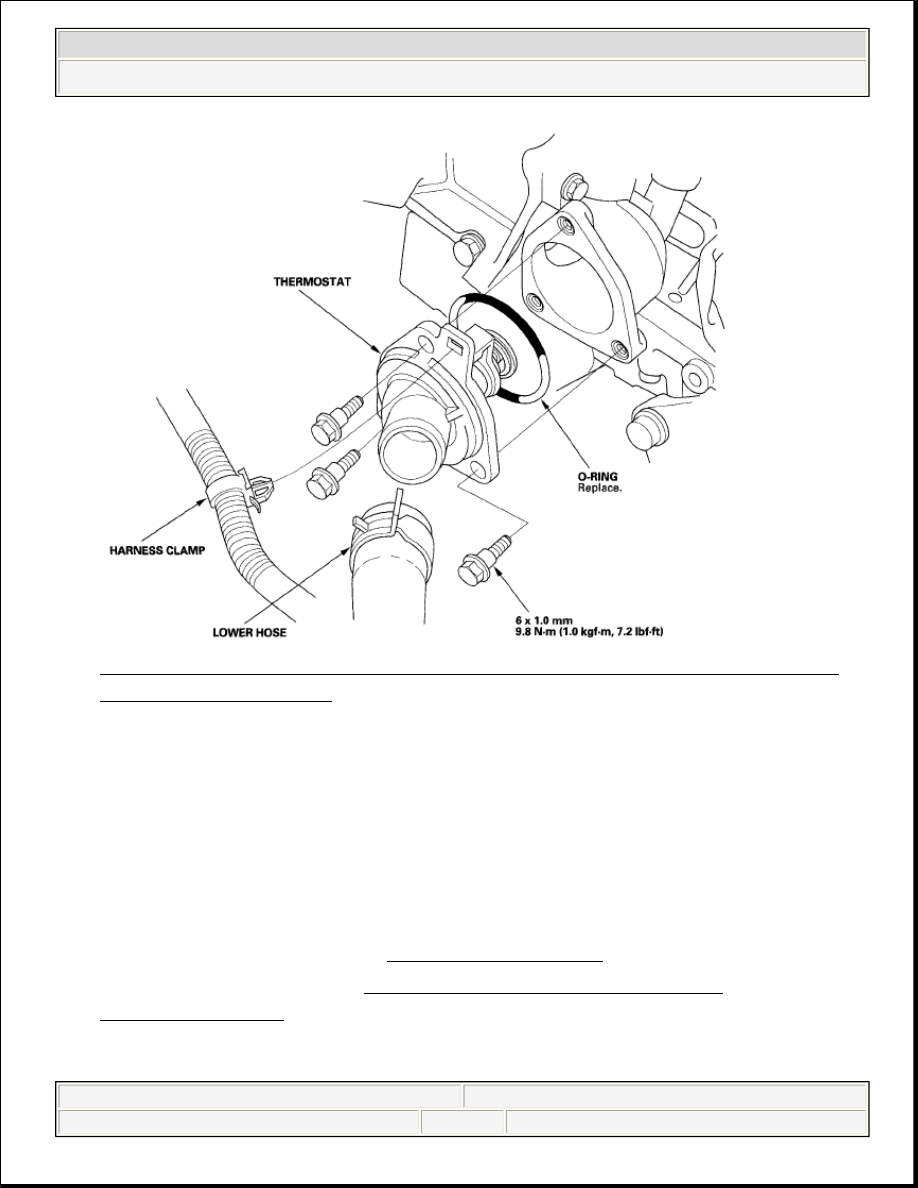

Fig. 12: Identifying Thermostat, Harness Clamp And Lower Hose (With
Torque Specifications)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the thermostat with a new O-ring, then install the lower hose.
5. Install the splash shield .
6. Refill the radiator with engine coolant, and bleed the air from the cooling

system with the heater valve open (see step 6 ).

WATER PASSAGE REPLACEMENT

1. Drain the engine coolant (see COOLANT CHECK ).
2. Remove the alternator (see ALTERNATOR REMOVAL AND

INSTALLATION ).

3. Remove the condenser fan shroud assembly.



2008 Honda Civic GX

2006-08 ENGINE Cooling System (K20Z3) - Civic (All Except Si)
