Honda Civic. Manual - part 272





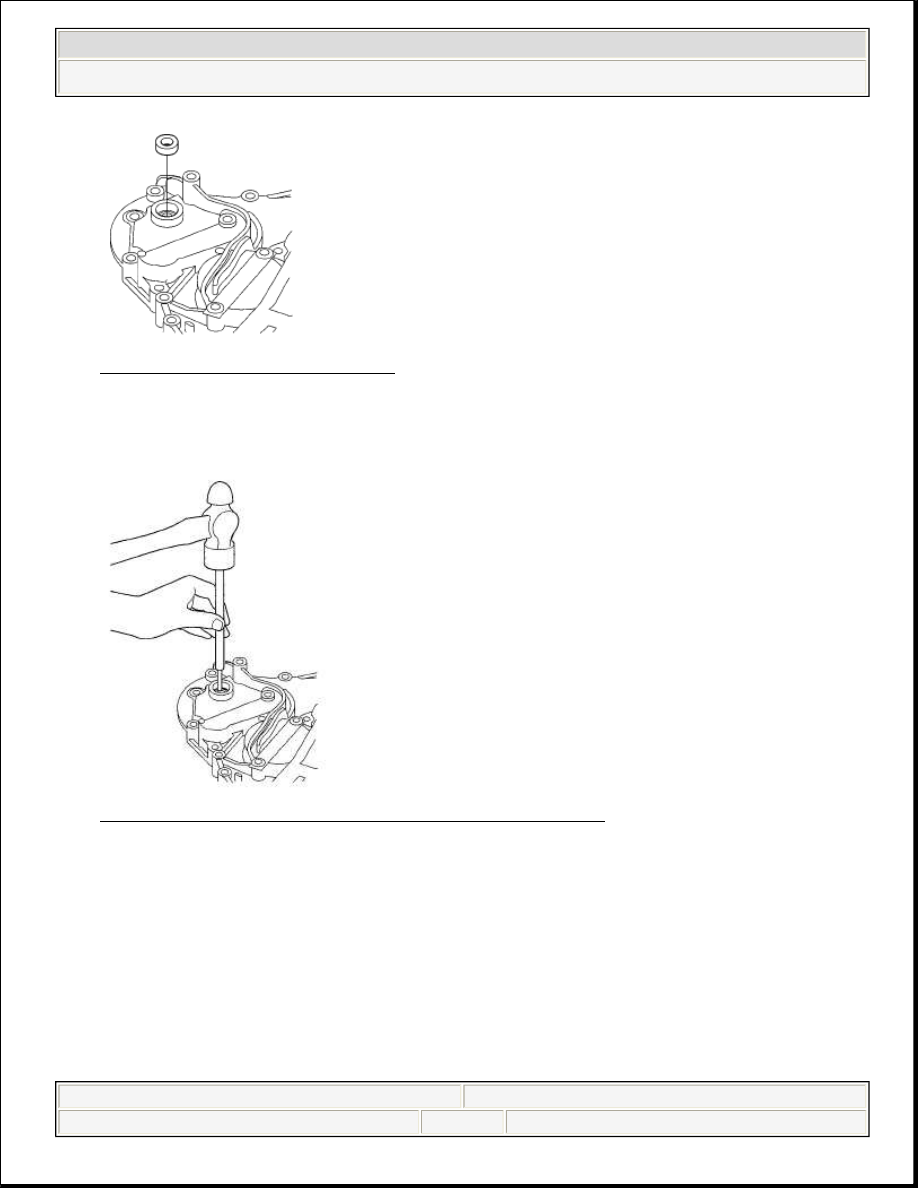

Fig. 363: Identifying Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the selector control shaft bearing from the end cover.

Fig. 364: Tapping Selector Control Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install a new bearing flush to the end cover using the driver and the 22 x 24

mm attachment.



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)



































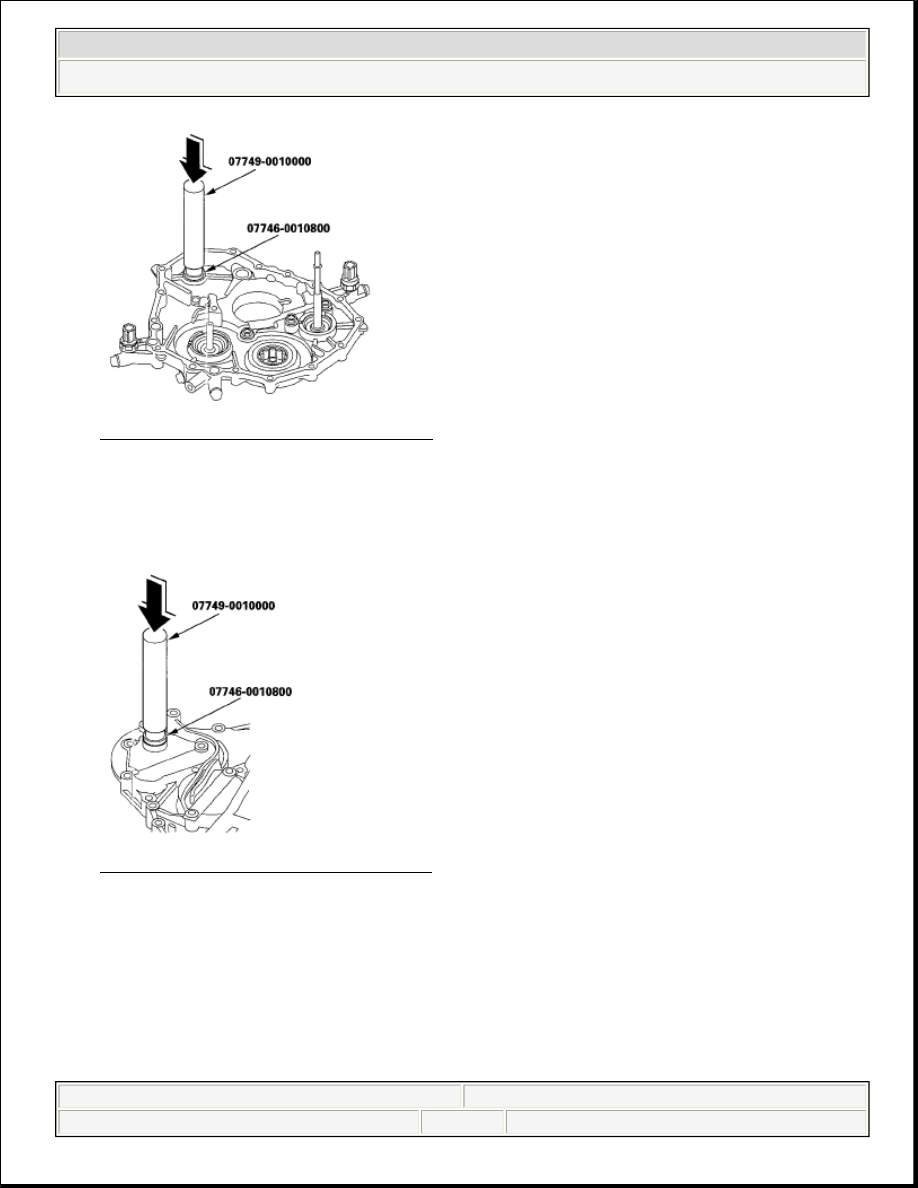

Fig. 365: Pressing Bearing Flush
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install a new oil seal flush to the end cover using the driver and the 22 x 24

mm attachment.

Fig. 366: Pressing Oil Seal Flush
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ATF FEED PIPE REPLACEMENT

1. Remove the snap ring (A), the 3rd clutch feed pipe (B), and the feed pipe

flange (C) from the end cover (D).



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)



































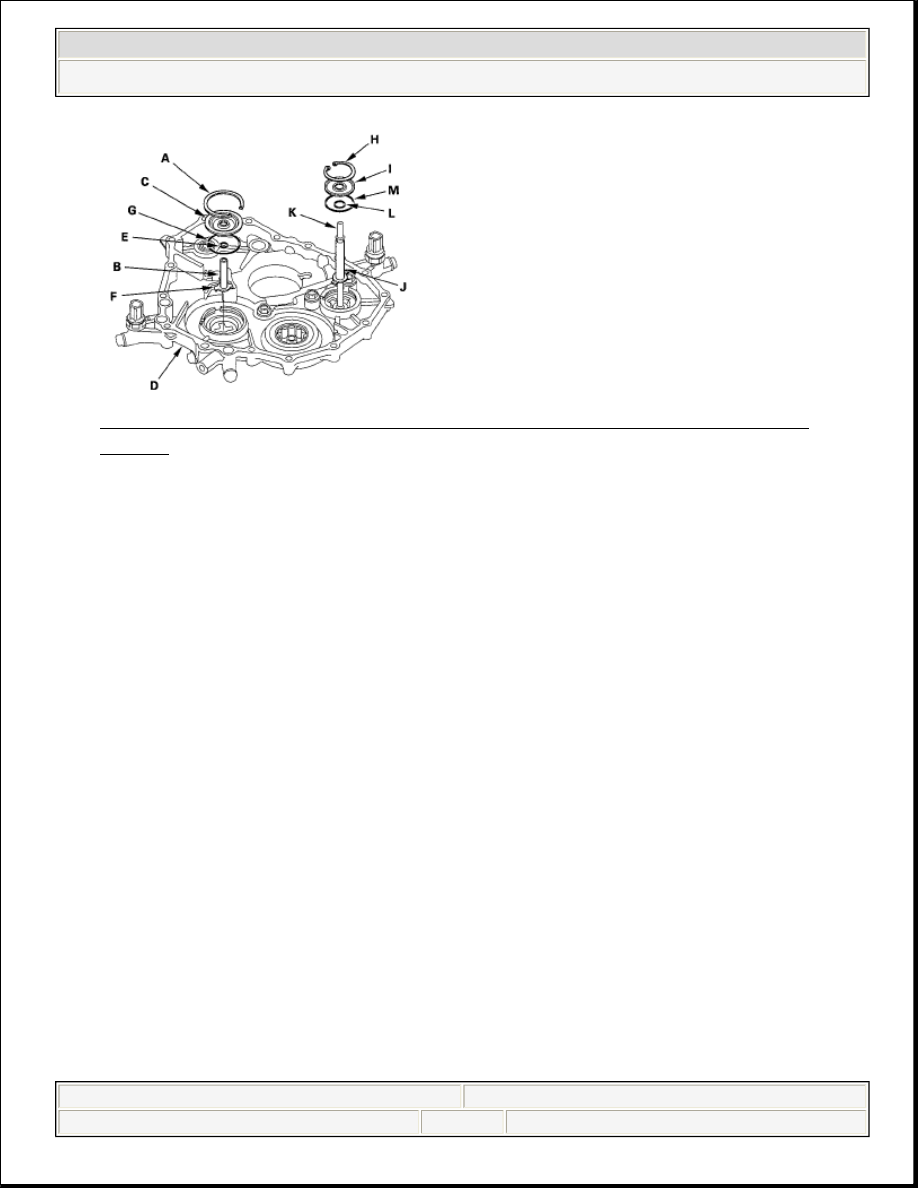

Fig. 367: Identifying Snap Ring, 3rd Clutch Feed Pipe And Feed Pipe
Flange

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install a new O-ring (E) over a new 3rd clutch feed pipe.
3. Install the 3rd clutch feed pipe in the end cover by aligning the feed pipe tabs

(F) with the indentations in the end cover.

4. Install a new O-ring (G) in the end cover, then install the feed pipe flange over

the 3rd clutch feed pipe.

5. Secure the 3rd clutch feed pipe and the feed pipe flange with the snap ring.
6. Remove the snap ring (H) and feed pipe flange (I).
7. Check the 4th clutch feed pipe (J) and 2nd clutch feed pipe (K) for scoring and

damage. Replace the end cover, if the feed pipes are scored or damaged.

8. Install a new O-ring (L) over a new 4th clutch feed pipe.
9. Install a new O-ring (M) in the end cover, then install the feed pipe flange over

the 4th clutch feed pipe.

10. Secure the 4th clutch feed pipe and feed pipe flange with the snap ring.

TRANSMISSION FLUID PRESSURE SWITCH REPLACEMENT

1. Remove the 2nd clutch transmission fluid pressure switch (A).



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)



































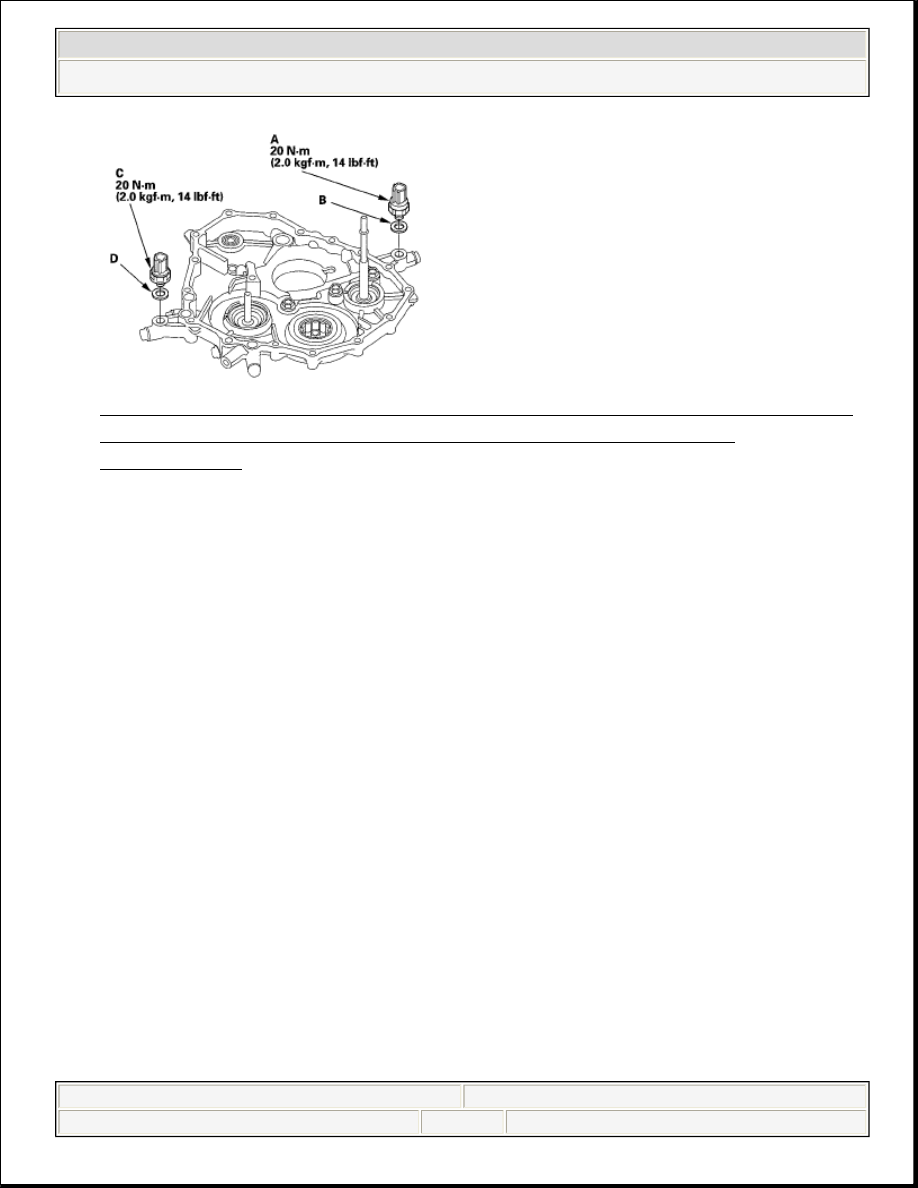

Fig. 368: Identifying 2nd Clutch Transmission Fluid Pressure Switch, 3rd
Clutch Transmission Fluid Pressure Switch & Bolts w/Torque
Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Make sure there is no water, oil, dust, or foreign particles inside the connector.
3. Install a new 2nd clutch transmission fluid pressure switch and a new sealing

washer (B), then tighten the switch to the specified torque on the metal part,
not the plastic part.

4. Remove the 3rd clutch transmission fluid pressure switch (C).
5. Make sure there is no water, oil, dust, or foreign particles inside the connector.
6. Install a new 3rd clutch transmission fluid pressure switch and a new sealing

washer (D), then tighten the switch to the specified torque on the metal part,
not the plastic part.

AIR CHECK VALVE INSPECTION AND REPLACEMENT

1. Check the air check valve filter for clogging. If the filter is clogged, remove the

air check valve (A), and clean the filter thoroughly by pouring clean ATF. Do
not blow out the filter with compressed air. Replace the air check valve, if the
filter or check valve (ball) is clogged or damaged.



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)
