Honda Civic. Manual - part 193





YES -Go to step 3.

NO -Intermittent failure, the system is OK at this time. Check for poor
connections or loose terminals between the ATF temperature sensor and the
PCM.

3. Turn the ignition switch to LOCK (0).
4. Disconnect the shift solenoid harness connector.
5. Connect shift solenoid harness connector terminals No. 6 and No. 7 with a

jumper wire.

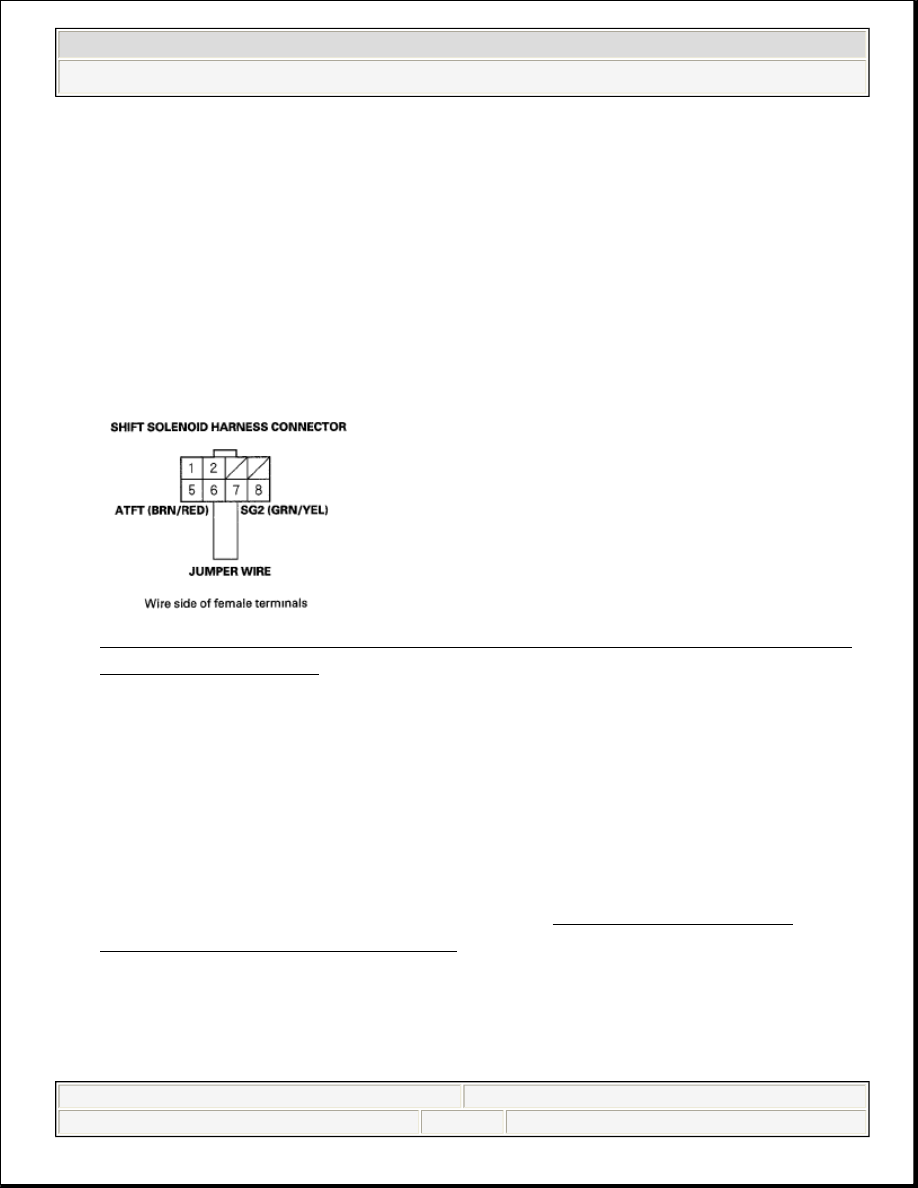

Fig. 87: Connecting Shift Solenoid Harness Connector Terminals 6 And 7
With A Jumper Wire

Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Turn the ignition switch to ON (II).
7. Check the ATF TEMP SENSOR voltage in the DATA LIST with the HDS.

Does the ATF TEMP SENSOR voltage exceed 4.93 V?

YES -Go to step 8.

NO -Replace the ATF temperature sensor (see ATF TEMPERATURE
SENSOR TEST/REPLACEMENT
 ), then go to step 21.

8. Turn the ignition switch to LOCK (0).
9. Remove the jumper wire from the shift solenoid harness connector.

10. Turn the ignition switch to ON (II).



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)



































11. Measure the voltage between shift solenoid harness connector terminal No. 6

and body ground.

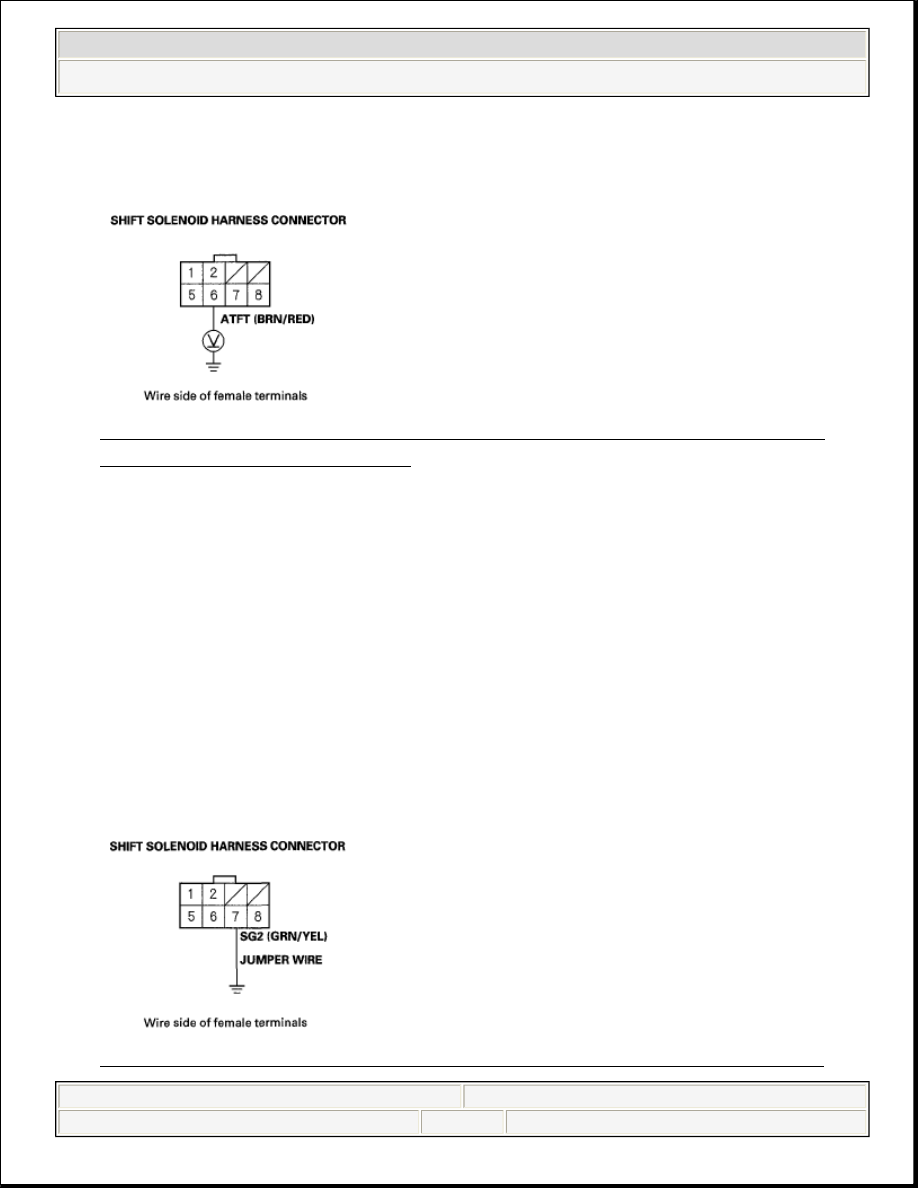

Fig. 88: Measuring Voltage Between Shift Solenoid Harness Connector
Terminal 6 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES -Go to step 12.

NO -Go to step 17.

12. Turn the ignition switch to LOCK (0).
13. Jump the SCS line with the HDS.
14. Disconnect PCM connector B (44P).
15. Connect shift solenoid harness connector terminal No. 7 and body ground with

a jumper wire.

Fig. 89: Connecting Shift Solenoid Harness Connector Terminal 7 And



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)



































Body Ground With A Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Check for continuity between PCM connector terminal B33 and body ground.

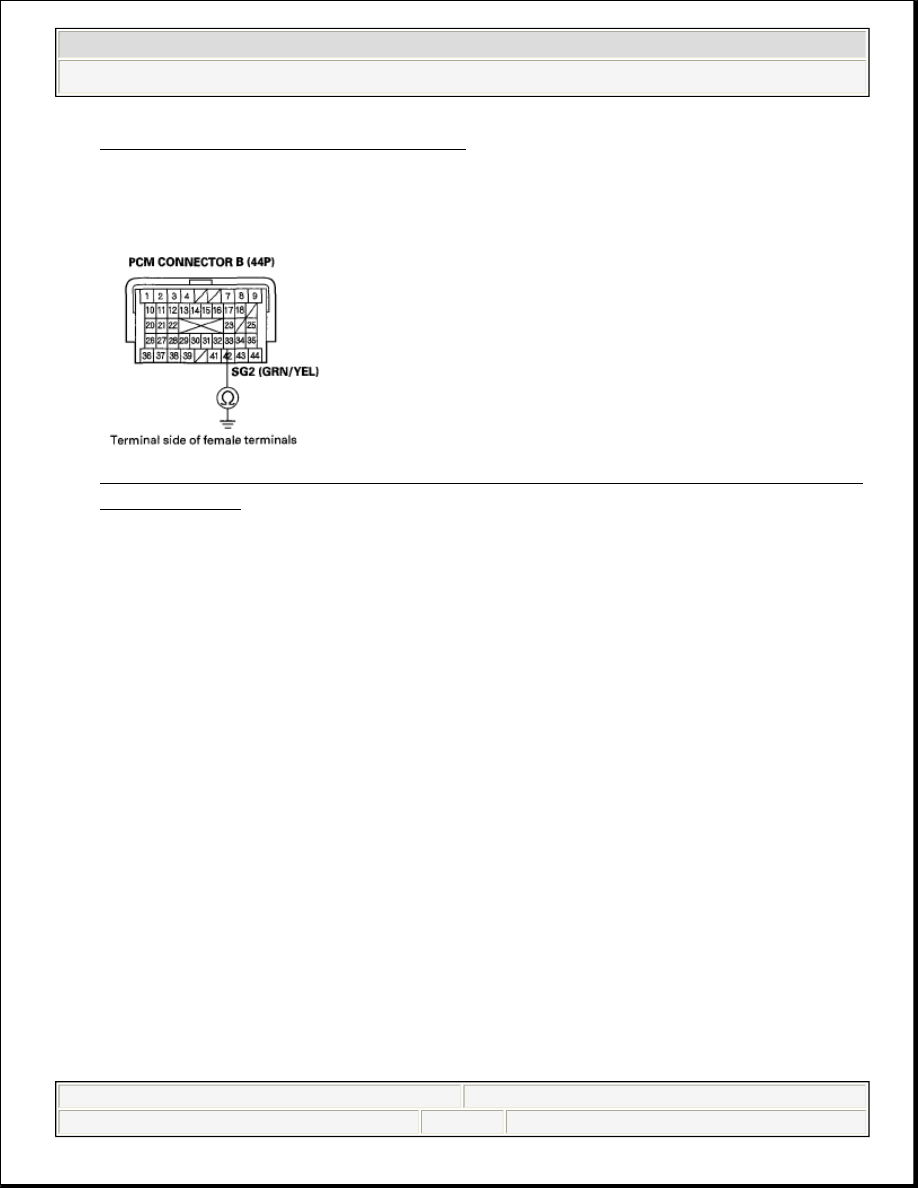

Fig. 90: Checking Continuity Between PCM Connector Terminal B33 And
Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 27.

NO -Repair open in the wire between PCM connector terminal B33 and the
ATF temperature sensor, then go to step 21.

17. Turn the ignition switch to LOCK (0).
18. Jump the SCS line with the HDS.
19. Disconnect PCM connector B (44P).
20. Check for continuity between PCM connector terminal B27 and shift solenoid

harness connector terminal No. 6.



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)

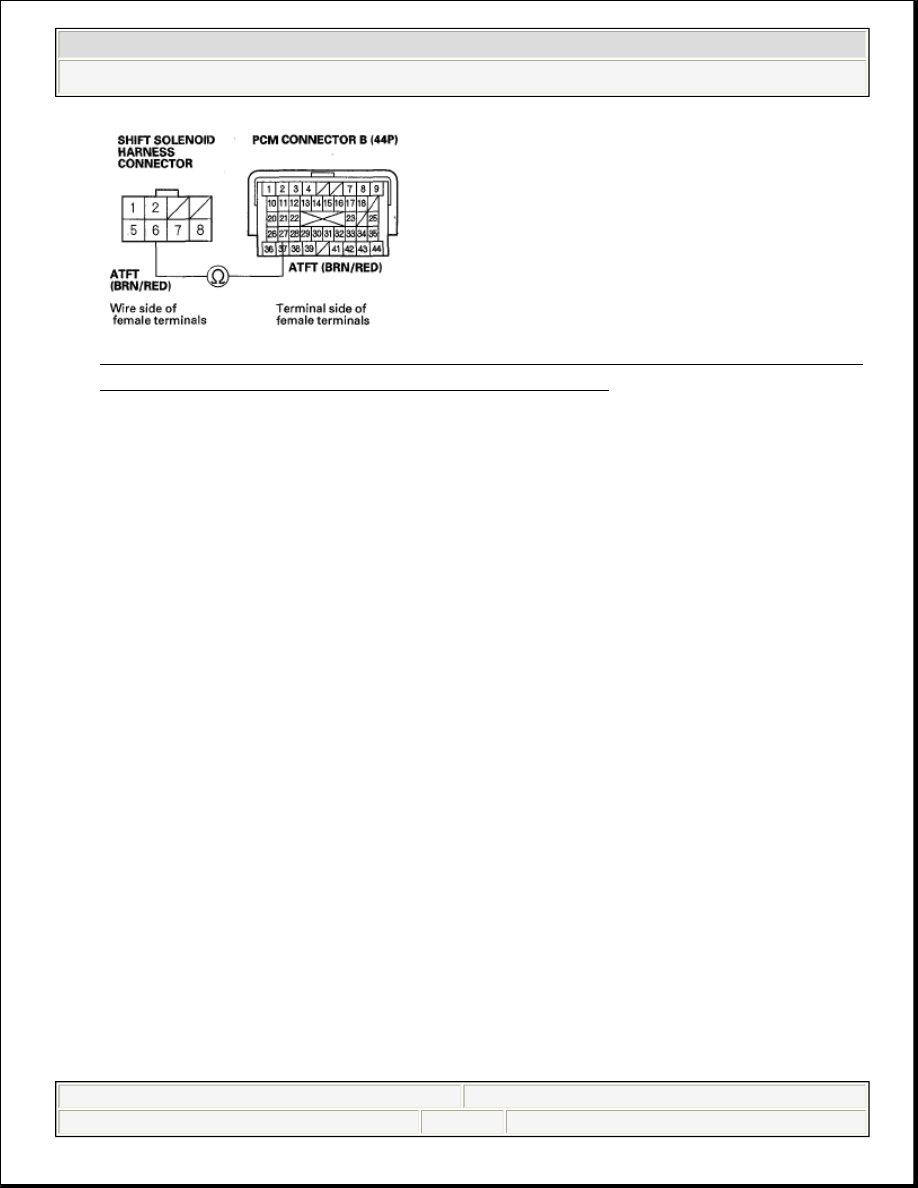

Fig. 91: Checking Continuity Between PCM Connector Terminal B27 And
Shift Solenoid Harness Connector Terminal No. 6

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 27.

NO -Repair open in the wire between PCM connector terminal B27 and the
ATF temperature sensor, then go to step 21.

21. Reconnect all connectors.
22. Turn the ignition switch to ON (II).
23. Clear the DTC with the HDS.
24. Start the engine with the shift lever in P, and wait for at least 20 seconds.
25. Check for DTCs with the HDS.

Is DTC P0713 indicated?

YES -Check for poor connections or loose terminals between the ATF
temperature sensor and the PCM, then go to step 1.

NO -Go to step 26.

26. Monitor the OBD STATUS for P0713 in the DTCs MENU with the HDS.

Does the HDS indicate PASSED?

YES -Troubleshooting is complete. If any other DTCs were indicated in step



2008 Honda Civic LX

2006-08 TRANSMISSION Automatic Transmission - Civic (Except Hybrid)
