NO -Repair open or short in the wires between stereo amplifier and speaker(s).

20. Check for continuity between body ground and the following terminals of

stereo amplifier connector A (20P).

SPEAKER TERMINALS REFERENCE

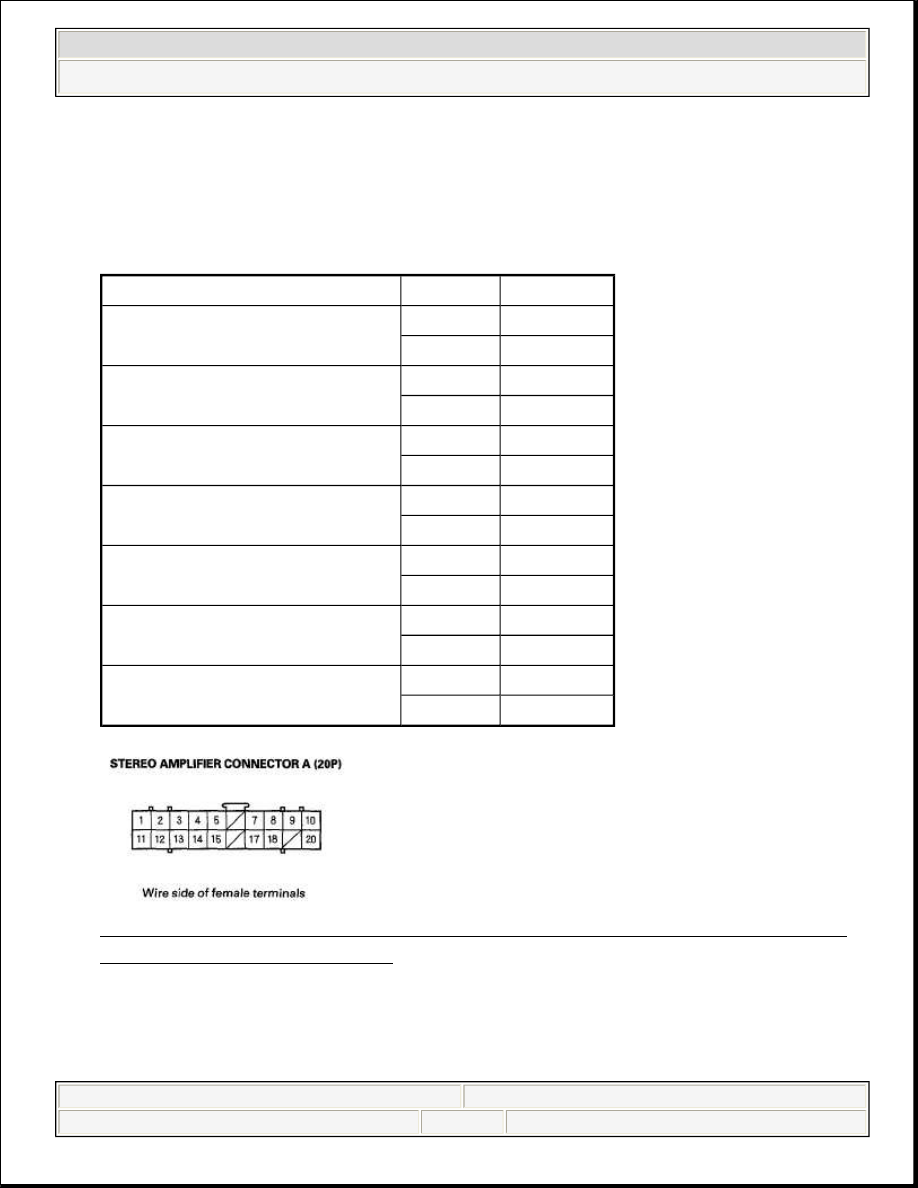

Fig. 82: Measuring Voltage Between Stereo Amplifier A (20P) Connector
Terminal And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

Speaker

Terminal Wire color

Driver's door speaker

A3 (+)

LT GRN

A13 (-)

PNK

Left tweeter

A4 (+)

RED

AH (-)

GRN

Front passenger's door speaker

A2 (+)

GRY

A12 (-)

BRN

Right tweeter

A1 (+)

PNK

A11 (-)

BLU

Left rear speaker

A8 (+)

YEL

A18 (-)

BRN

Right rear speaker

A7 (+)

BLU

A17 (-)

ORN

Subwoofer

A5 (+)

GRN

A15 (-)

RED



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Audio System - Civic (Except Hybrid)



































YES -Repair short to body ground in the wire(s) between stereo amplifier and
speaker(s).

NO -



2-door: Go to step 21.



'08 4-door: Go to step 25.

21. Disconnect stereo amplifier connector B (14P).
22. Disconnect audio unit connector A (17P).
23. Check for continuity between stereo amplifier connector B (14P) and body

ground according to the table. Then check for continuity between the same
terminals listed in the table and stereo amplifier connector B (14P) No. 2
terminal (the harness shield).

AMPLIFIER CONNECTOR REFERENCE

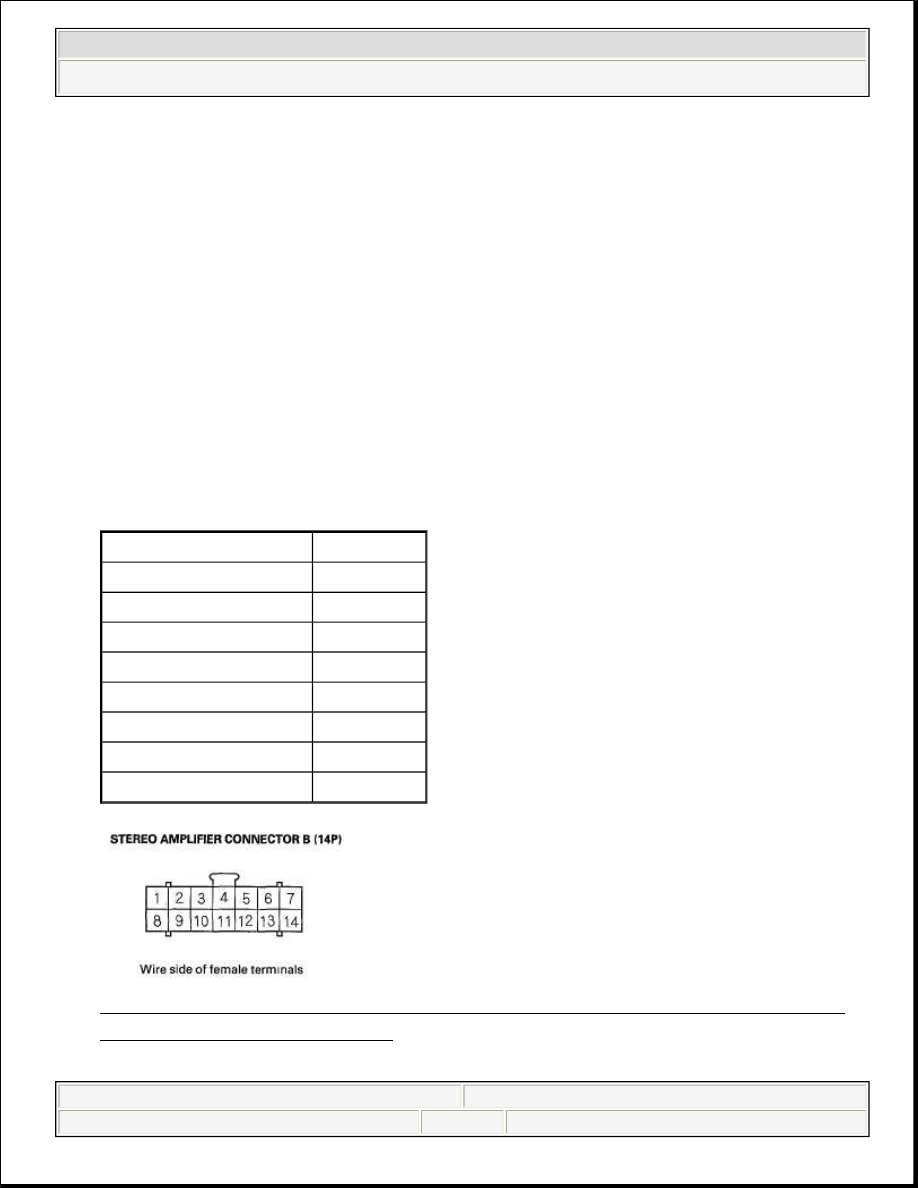

Fig. 83: Measuring Voltage Between Stereo Amplifier B (14P) Connector
Terminal And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Amplifier connector Wire color

B1

BLU

B3

BLK

B4

GRN

B6

BRN

B8

ORN

B10

WHT

B11

RED

B13

YEL



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Audio System - Civic (Except Hybrid)



































Is there continuity?

YES -Repair short in the wire between the stereo amplifier and the audio unit.
Replace the appropriate shielded harness.

NO -Go to step 24.

24. Check for continuity between audio unit connector A and stereo amplifier

connector B according to the table.

AUDIO UNIT CONNECTOR AND AMPLIFIER CONNECTOR
REFERENCE


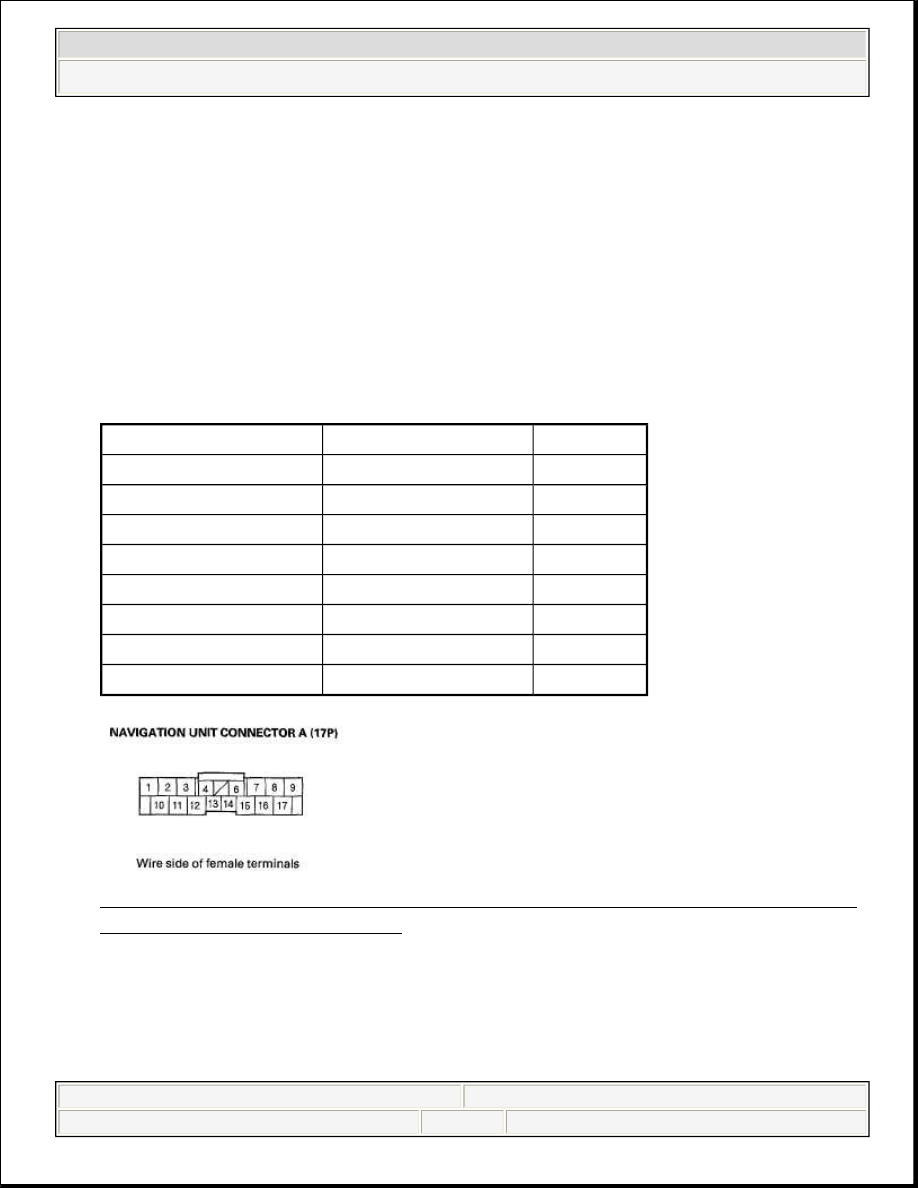

Fig. 84: Checking Continuity Between Navigation Unit A (17P) Connector
Terminals And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio unit connector Amplifier connector Wire color

A2

B10

WHT

A3

B8

ORN

A7

B11

RED

A8

B13

YEL

A11

B3

BLK

A12

B1

BLU

A15

B4

GRN

A16

B6

BRN



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Audio System - Civic (Except Hybrid)



































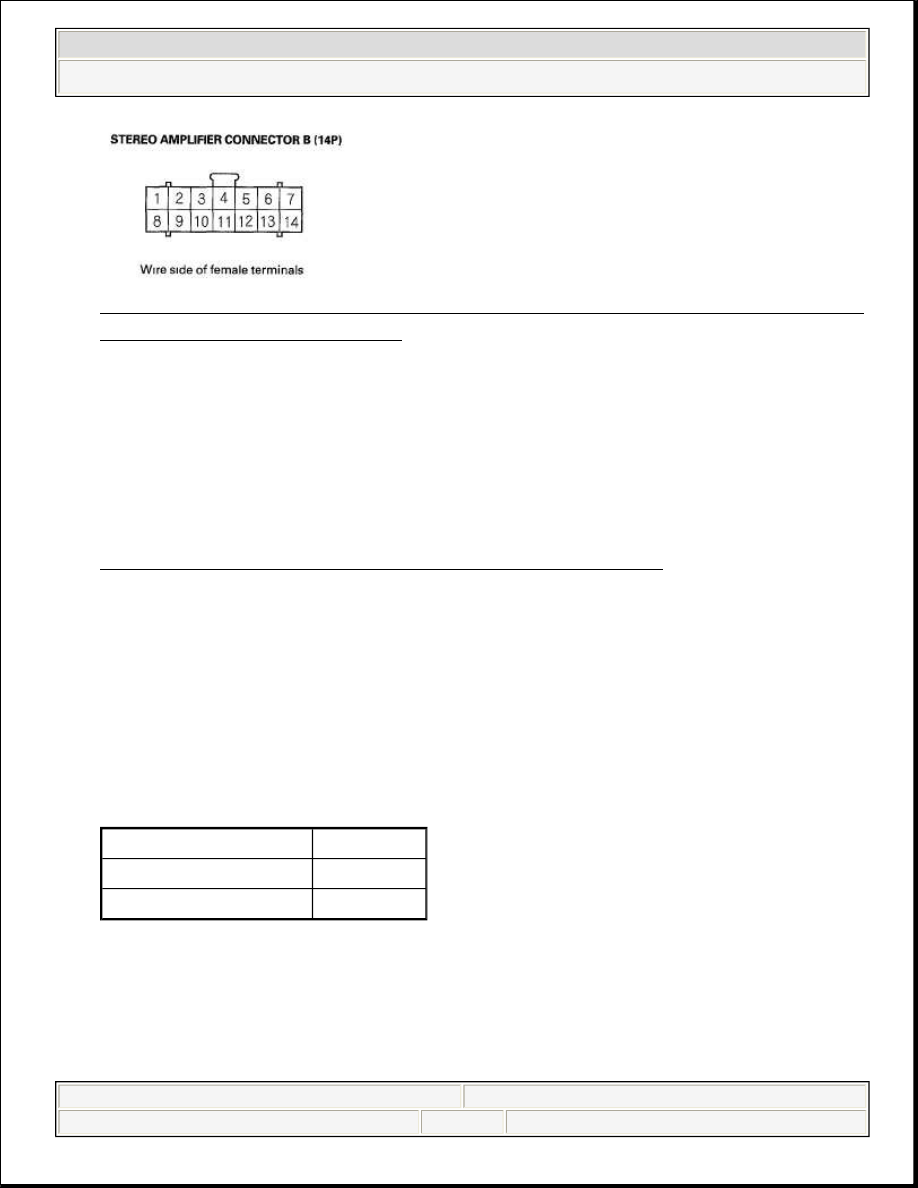

Fig. 85: Checking Continuity Between Stereo Amplifier B (14P) Connector
Terminals And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Substitute a known-good audio unit and recheck. If the
symptom/indication goes away, replace the original audio unit. If symptom is
still present, substitute a known-good stereo amplifier and recheck. If the
symptom/indication goes away, replace the original stereo amplifier (see
STEREO AMPLIFIER REMOVAL/INSTALLATION).

NO -Repair open in the wire between the audio unit and stereo amplifier.

25. Disconnect audio unit connector A (17P).
26. Check for continuity between stereo amplifier connector B (14P) and body

ground according to the table. Then check for continuity between the same
terminals listed in the table and stereo amplifier connector B (14P) No. 2
terminal (the harness shield).

AMPLIFIER CONNECTOR REFERENCE

Amplifier connector Wire color

B1

BLU

B8

RED



2008 Honda Civic LX

2006-08 ACCESSORIES & EQUIPMENT Audio System - Civic (Except Hybrid)
