14. Do the wiper motor test (see WIPER/WASHER SWITCH TEST ).

Does the wiper motor run normally?

YES - Go to step 15.

NO - Replace the windshield wiper motor and recheck.

15. Reconnect the windshield wiper motor 5P connector.
16. Check the voltage between the No. 18 (LO) and No. 19 (HI) terminals of the

under-dash fuse/relay box connector F (34P) and body ground with the wiper
switch in the corresponding position individually.

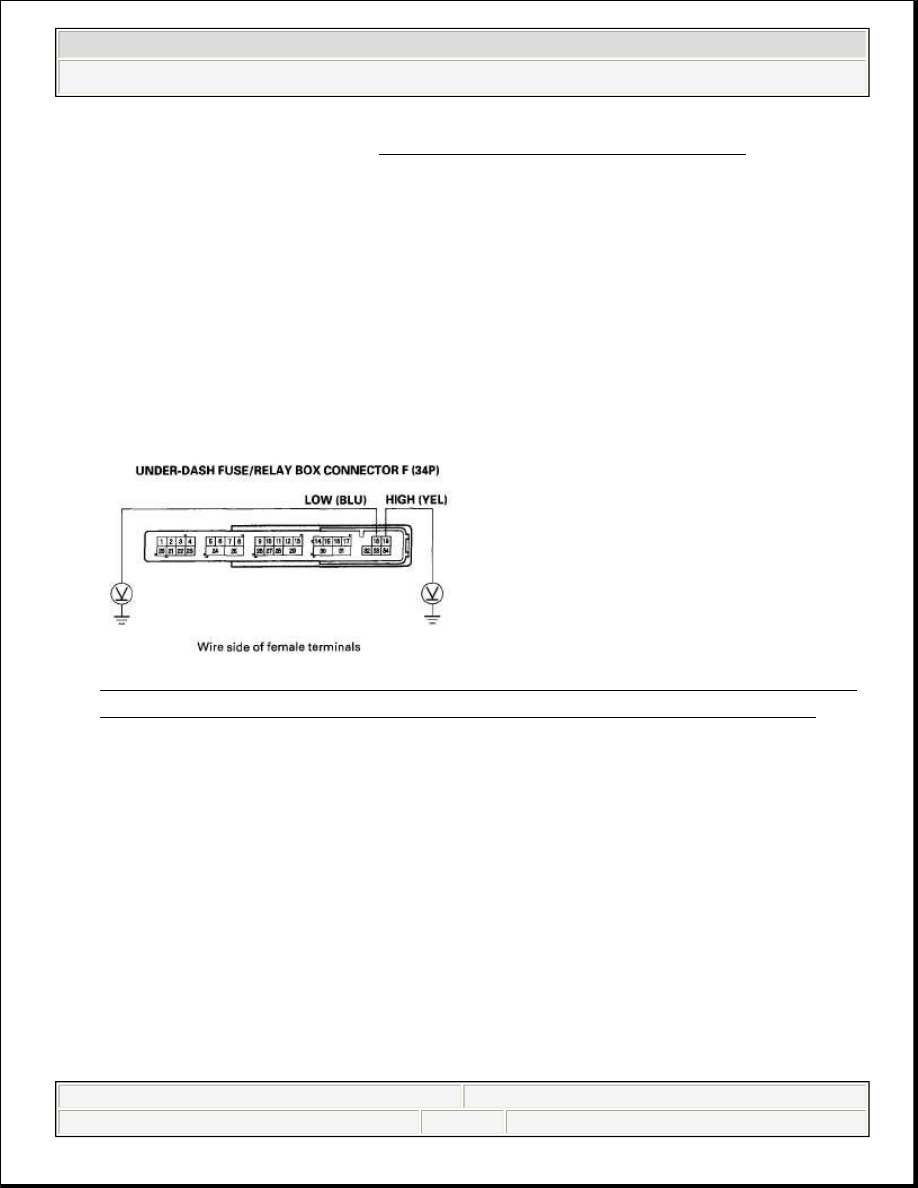

Fig. 7: Checking Voltage Between No. 18 (LO) And No. 19 (HI) Terminals
Of Under-Dash Fuse/Relay Box Connector F (34P) And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 17.

NO - Faulty MICU; replace the under-dash fuse/relay box.

17. Check the voltage between the No. 2 terminal of the windshield wiper motor

5P connector and body ground.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Wipers/Washers - Civic (All Except Hybrid)

































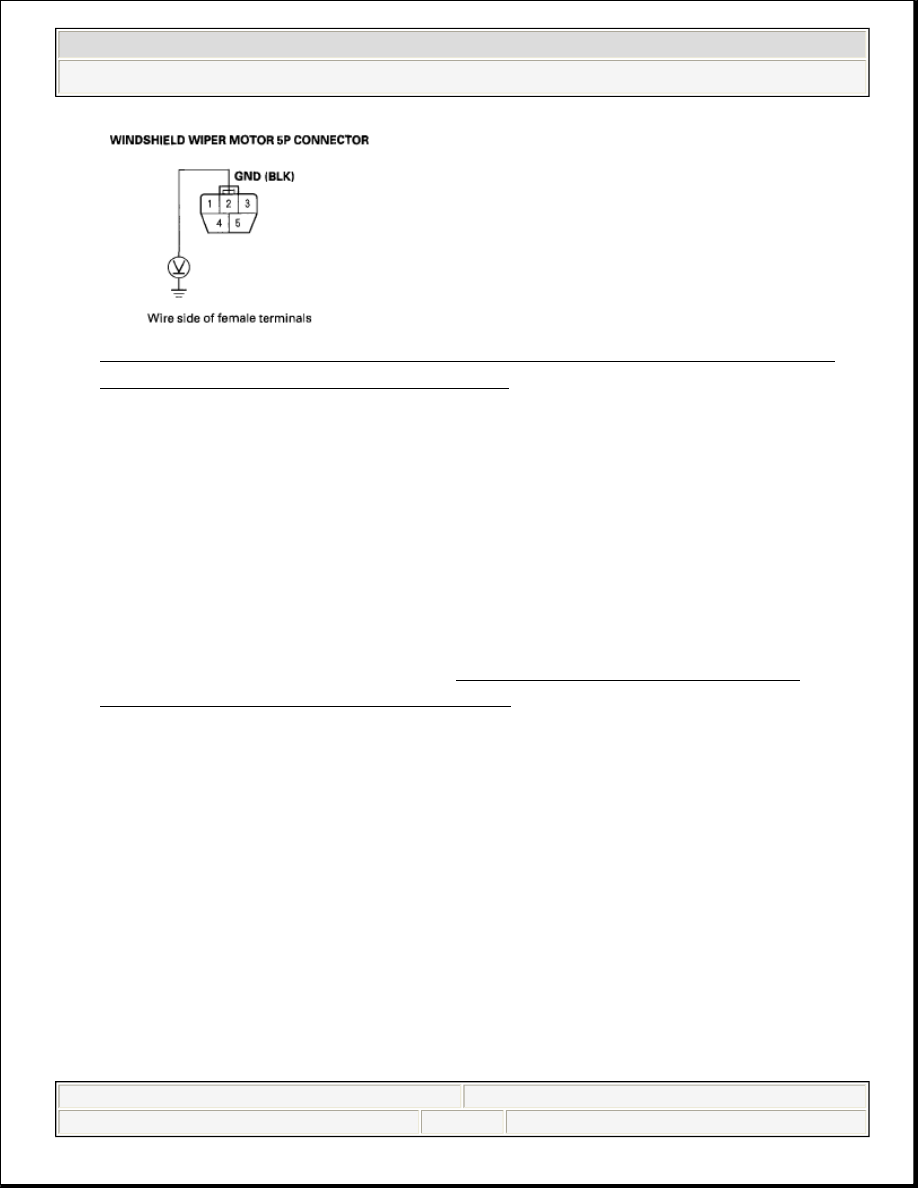

Fig. 8: Checking Voltage Between No. 2 Terminal Of Windshield Wiper
Motor 5P Connector And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 1 V?

YES - Repair an open in the BLU (LO) or YEL (HI) wire.

NO - Repair an open in the BLK wire or poor ground (G201).

MICU INPUT TEST

1. Before troubleshooting the wiper/washer system, troubleshoot the B-CAN

System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN
SYSTEM DIAGNOSIS TEST MODE A
 ), and check the No. 10 (7.5 A) and
No. 38 (30 A) fuses in the under-dash fuse/relay box.

2. Disconnect the under-dash fuse/relay box connectors E, F, S, and T.

NOTE:

All connector views are shown from wire side of female
terminals.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Wipers/Washers - Civic (All Except Hybrid)

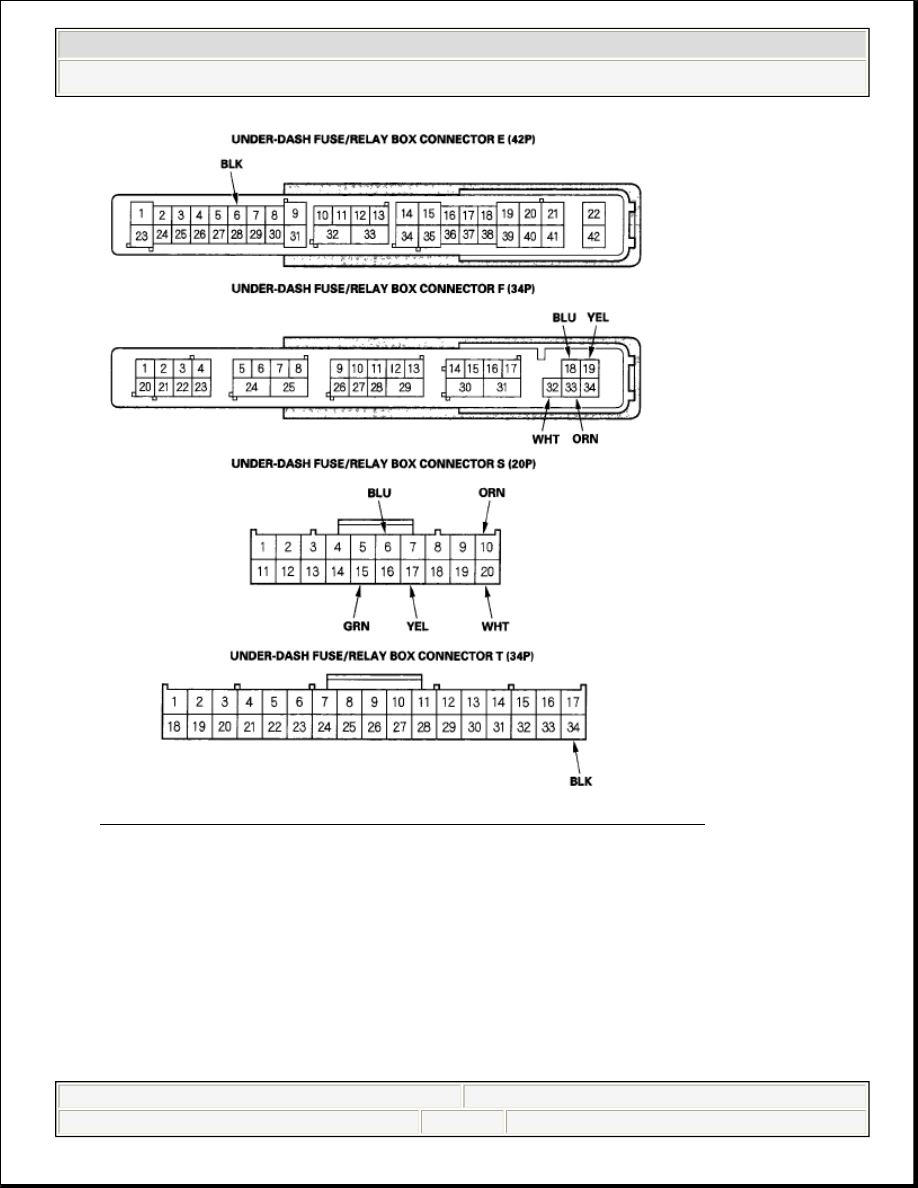

Fig. 9: Identifying Under-Dash Fuse/Relay Box Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Inspect the connector and socket terminals to be sure they are all making good

contact.



If the terminals are bent, loose or corroded, repair them as necessary and
recheck the system.



If the terminals look OK, go to step 4.

4. With the connectors still disconnected, make these input tests at the appropriate

connector.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Wipers/Washers - Civic (All Except Hybrid)



































If any test indicates a problem, find and correct the cause, then recheck the
system.



If all the input tests prove OK, go to step 5.

MICU INPUT TEST (CONNECTORS DISCONNECTED)

Cavity Wire

Test condition

Test: Desired result

Possible cause if

result is not

obtained

F18

BLU

Under all
conditions

Connect battery power
to the F18 terminal:
The wiper motor should
run at low speed.



Poor ground
(G201)



Faulty
windshield
wiper motor



An open in the
wire

F19

YEL

Under all
conditions

Connect battery power
to the F19 terminal:
The wiper motor should
run at high speed.



Poor ground
(G201)



Faulty
windshield
wiper motor



An open in the
wire

F32 WHT

Under all
conditions
(disconnect the
wiper motor 5P
connector)

Check for continuity
between the F32
terminal and wiper
motor 5P connector No.
5 terminal: There
should be continuity.

An open in the wire

F33 ORN

Under all
conditions

Connect battery power
to the F33 terminal:
The windshield washer
motor should run.



Poor ground
(G201)



Faulty
windshield
washer motor



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Wipers/Washers - Civic (All Except Hybrid)
