VSA MODULATOR-CONTROL UNIT) MALFUNCTION

1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it ON (II) again.
4. Check for DTCs with the HDS.

Is DTC 66-11, 66-12, 66-13, 66-14, or 66-16 indicated?

YES -Replace the VSA modulator-control unit (see VSA MODULATOR-
CONTROL UNIT REMOVAL AND INSTALLATION
 ).

NO -Intermittent failure, the system is OK at this time.

DTC 66-15: PRESSURE SENSOR (INSIDE OF VSA MODULATOR-CONTROL UNIT)
MALFUNCTION

1. Raise the vehicle, and support it with safety stands in the proper locations (see

LIFT AND SUPPORT POINTS ).

2. Turn all four wheels by hand.

Is there brake drag?

YES -Repair the brake drag.

NO -Go to step 3.

3. Check the PRESSURE SWITCH in the VSA DATA LIST with the HDS while

moving the brake pedal.

Does the indicated value change?

YES -Intermittent failure, the system is OK at this time.

NO -Replace the VSA modulator-control unit (see VSA MODULATOR-
CONTROL UNIT REMOVAL AND INSTALLATION
 ).

DTC 68-21: BRAKE PEDAL POSITION SWITCH STUCK OFF



2008 Honda Civic GX

2006-08 BRAKES VSA System - Civic (All Except Hybrid)



































1. Turn the ignition switch ON (II).
2. Check the BRK PRESS in the VSA DATA LIST with the HDS. Do not press

the brake pedal.

Is there 10 MPa or less?

YES -Go to step 3.

NO -Check for brake drag or a miss-adjusted brake pedal position switch. If
they are normal, replace the VSA modulator-control unit (see VSA
MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION
 ).

3. Check the BRAKE SWITCH in the VSA DATA LIST with the HDS while

moving the brake pedal.

Does it indicate ON when the pedal is pressed, and OFF when pedal is
released?


YES -Intermittent failure, the system is OK at this time. Check for loose
terminals between the brake pedal position switch 4P connector, ECM
connector A (44P), and the VSA modulator-control unit 37P connector. Refer
to INTERMITTENT FAILURES TROUBLESHOOTING (see ).

NO -Go to step 4.

4. Turn the ignition switch to LOCK (0).
5. Disconnect the brake pedal position switch 4P connector.
6. Connect brake pedal position switch 4P connector terminal No. 1 and No. 2 to

with a jumper wire.



2008 Honda Civic GX

2006-08 BRAKES VSA System - Civic (All Except Hybrid)



































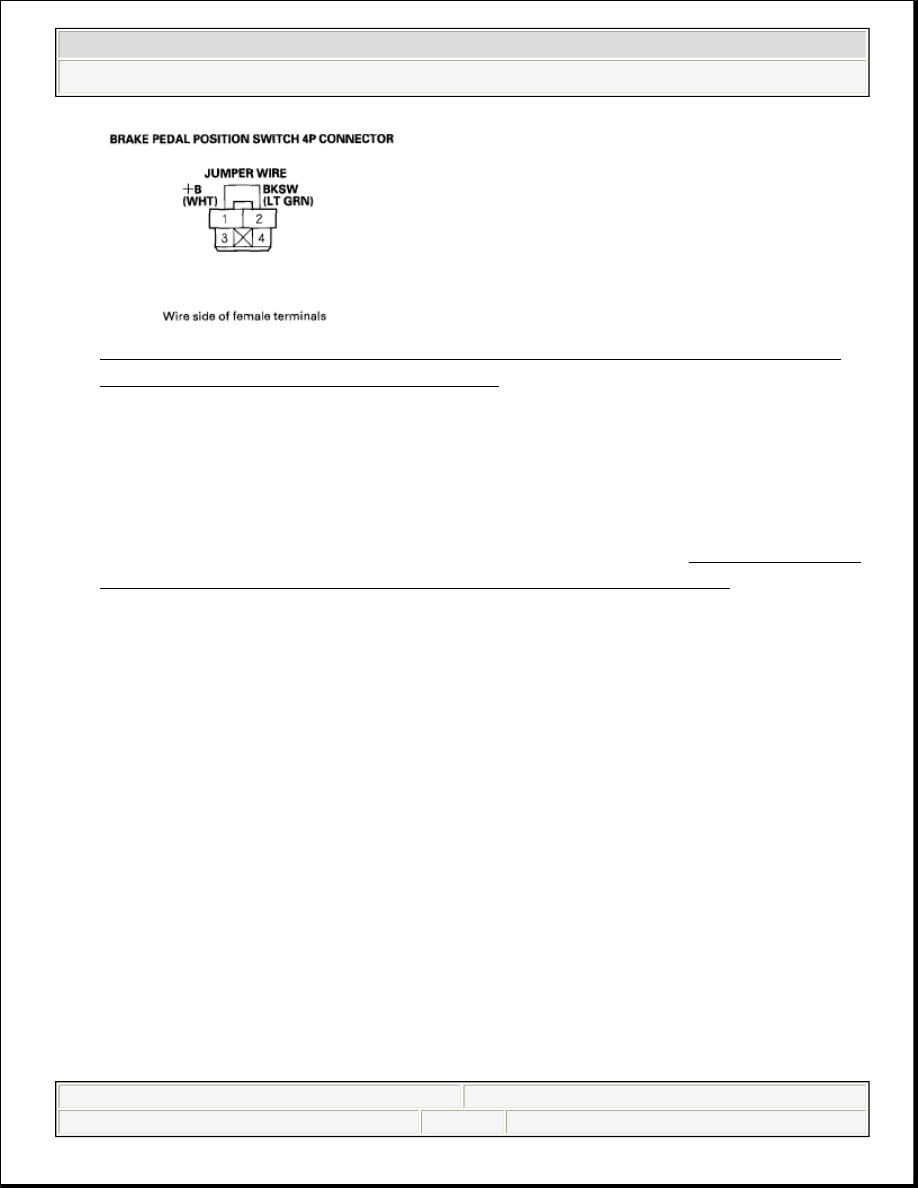

Fig. 42: Identifying Brake Pedal Position Switch 4P Connector Terminal
No. 1 And No. 2 To With Jumper Wire


7. Turn the ignition switch ON (II).
8. Check the BRAKE SWITCH in the VSA DATA LIST with the HDS.

Does it indicate ON?

YES -Check the brake pedal position switch adjustment (see BRAKE PEDAL
AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT
 ). If it is OK,
replace the brake pedal position switch.

NO -Go to step 9.

9. Disconnect the jumper wire.

10. Turn the ignition switch to LOCK (0).
11. Short the SCS line with the HDS.
12. Disconnect ECM connector A (44P).
13. Check for continuity between brake pedal position switch 4P connector

terminal No. 2 and ECM connector A (44P) terminal No. 40.



2008 Honda Civic GX

2006-08 BRAKES VSA System - Civic (All Except Hybrid)



































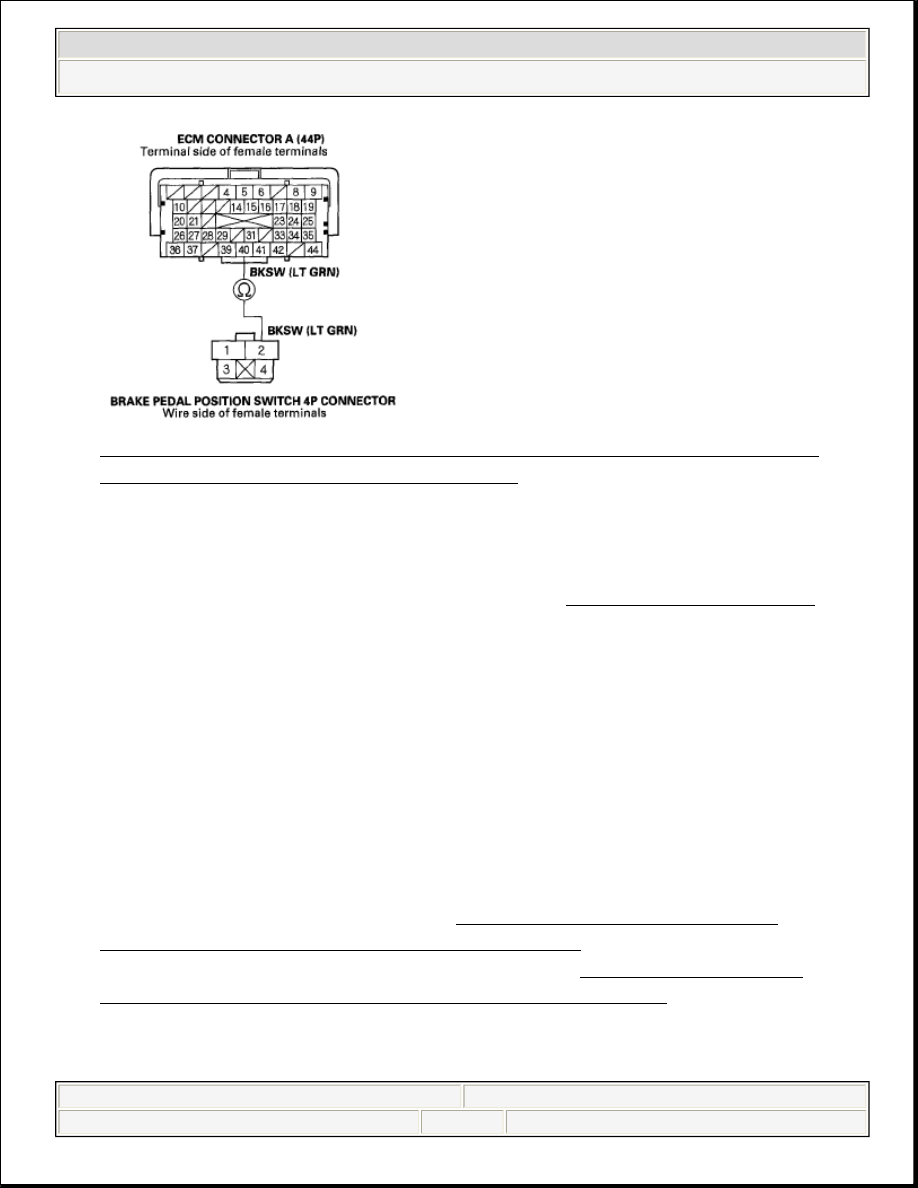

Fig. 43: Checking Continuity Between Brake Pedal Position Switch 4P
Connector And ECM Connector A (44P)


Is there continuity?

YES -Substitute a known-good ECM, then go to step 1 and recheck. If DTCs
are not indicated, replace the original ECM (see ECM REPLACEMENT ).

NO -Repair open in the wire between the ECM and the brake pedal position
switch.

DTC 68-22: BRAKE PEDAL POSITION SWITCH STUCK ON

1. Turn the ignition switch ON (II).
2. Check the BRK PRESS in the VSA DATA LIST with the HDS. Do not press

the brake pedal.

Is 10 MPa or more?

YES -Check brake pedal height (see BRAKE PEDAL AND BRAKE
PEDAL POSITION SWITCH ADJUSTMENT
 ). If the brake pedal height is
OK, replace the VSA modulator-control unit (see VSA MODULATOR-
CONTROL UNIT REMOVAL AND INSTALLATION
 ).

NO -Go to step 3.



2008 Honda Civic GX

2006-08 BRAKES VSA System - Civic (All Except Hybrid)
