1. Install the rear safing sensor (A) with a new TORX bolt (B) then connect the

floor wire harness 4P connector (C) to the rear safing sensor.

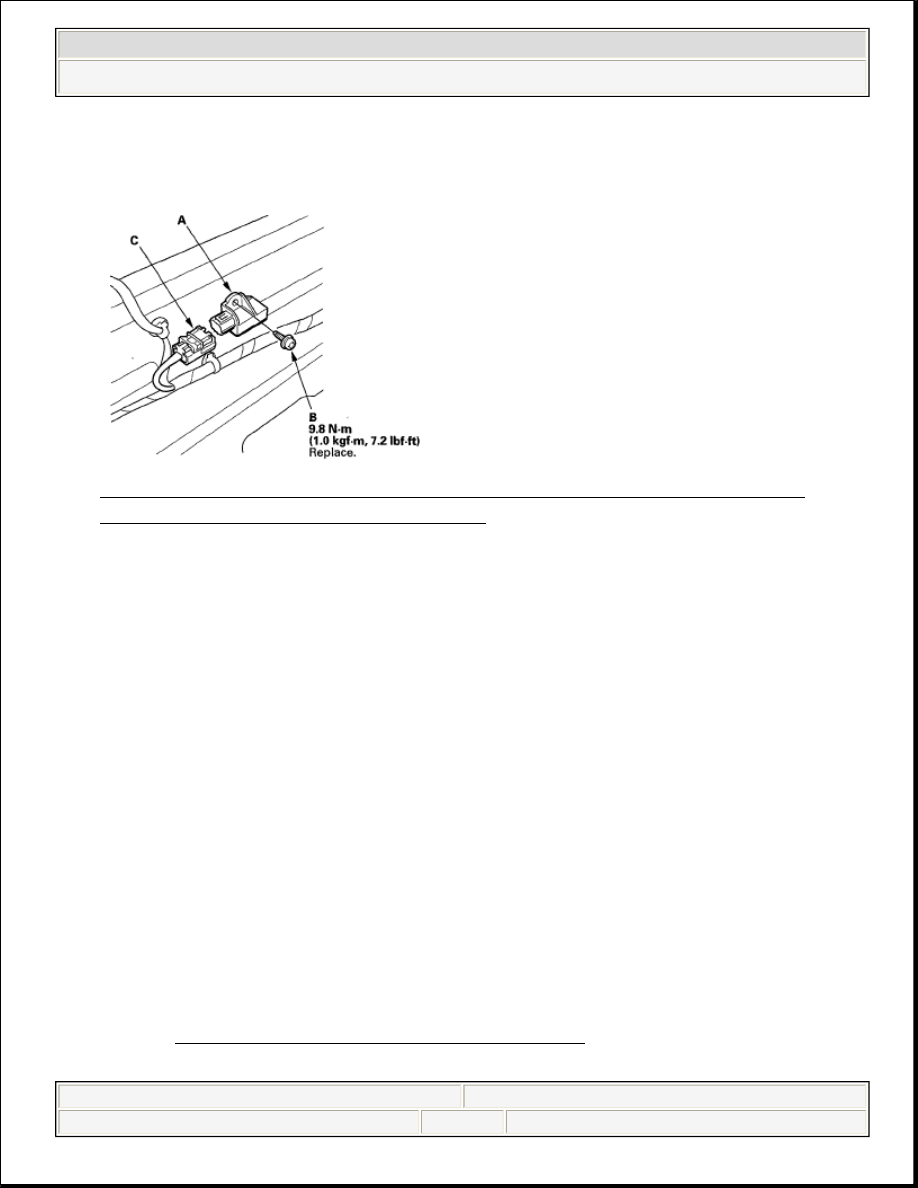

Fig. 340: Identifying Rear Safing Sensor And Floor Wire Harness 4P
Connector With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reconnect the negative cable to the battery.
3. Reinstall all removed parts.
4. After installing the rear safing sensor, confirm proper system operation: Turn

the ignition switch ON (II); the SRS indicator should come on for about 6
seconds and then go off.

FRONT PASSENGER'S WEIGHT SENSOR REPLACEMENT

Special Tools Required

Pin driver, 3.5 mm 07744-0010300

4-DOOR

Removal

NOTE:

Removal of the front passenger's weight sensors must be
done according to Precautions and Procedures (see
PRECAUTIONS AND PROCEDURES).



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































1. Disconnect the negative cable from the battery, then wait for 3 minutes before

starting work.

2. Remove the front passenger's seat assembly section (see FRONT SEAT

REMOVAL/INSTALLATION ).

3. Remove the cushion cover/pad from the seat cushion frame (see FRONT

SEAT CUSHION COVER REPLACEMENT ).

4. Using a TORX E18 socket, remove the TORX nuts (A) attaching the seat track

(B) to the front passenger's seat slide assembly including all four front
passenger's weight sensors (C).

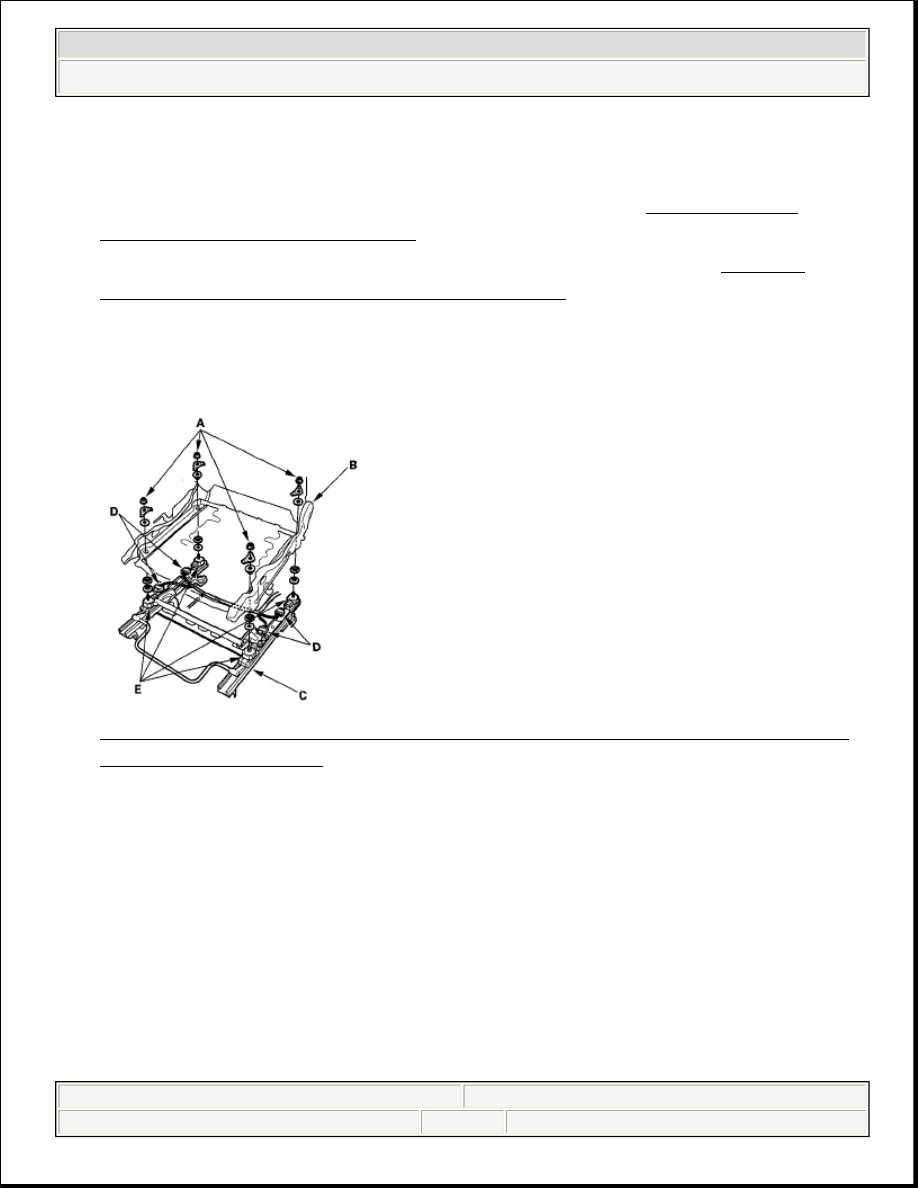

Fig. 341: Identifying Front Passenger's Weight Sensors, Connectors, Seat
Track And Torx Nuts

Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the sensor connectors (D) from the front passenger's weight sensors

(E), then remove the front passenger's weight sensors.

Installation

1. Install the new front passenger's seat slide assembly including all four front

passenger's weight sensors under the seat track.

NOTE:

Be sure to install the harness wires so they are not pinched
or interfering with other parts.



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































2. Apply multipurpose grease to the spring washer and bushing.

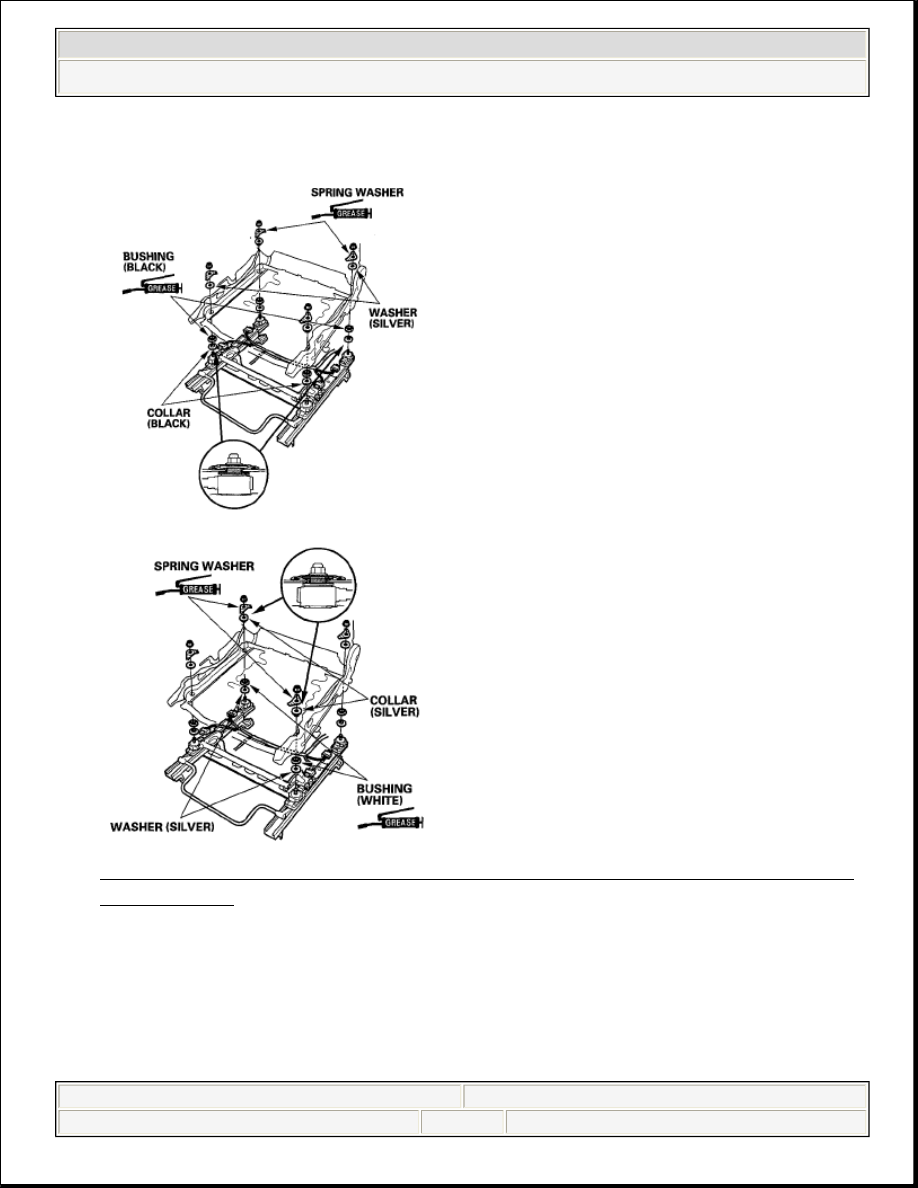

Fig. 342: Identifying Multipurpose Grease Apply Area To Spring Washer
And Bushing

Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Insert a 3.5 mm center punch into the hole in the cushion frame to position the

spring washers, when tightening the TORX nuts (A). Begin with the (1) and
tighten them in crisscross pattern in two or more steps.



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































Fig. 343: Identifying Special Tool With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Using the pin driver to position the spring washers, torque the TORX nuts in

the sequence shown in two or more steps.

5. Make sure the gap between the spring washer (A) and the seat track (B) is

more than 4 mm, as shown.
