Honda Civic. Manual - part 1057





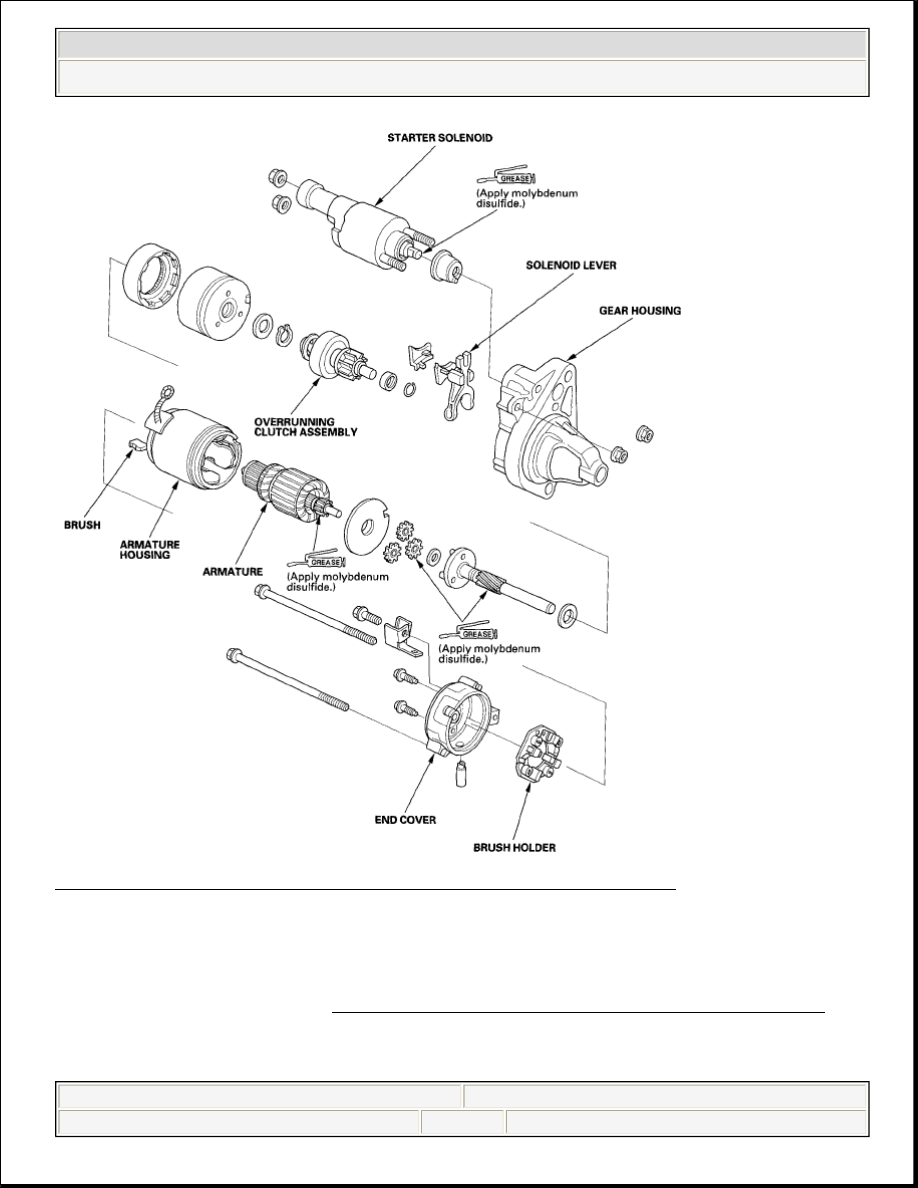

Fig. 25: Disassembly/Reassembly Of Starter Overhaul (M/T)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Armature Inspection and Test

1. Remove the starter (see STARTER REMOVAL AND INSTALLATION ).
2. Disassemble the starter as shown at the beginning of this procedure.
3. Inspect the armature for wear or damage from contact with the permanent



2008 Honda Civic GX

2006-08 ENGINE Starting System (R18A1) - Civic (All Except Hybrid)



































magnet. If there is wear or damage, replace the armature.

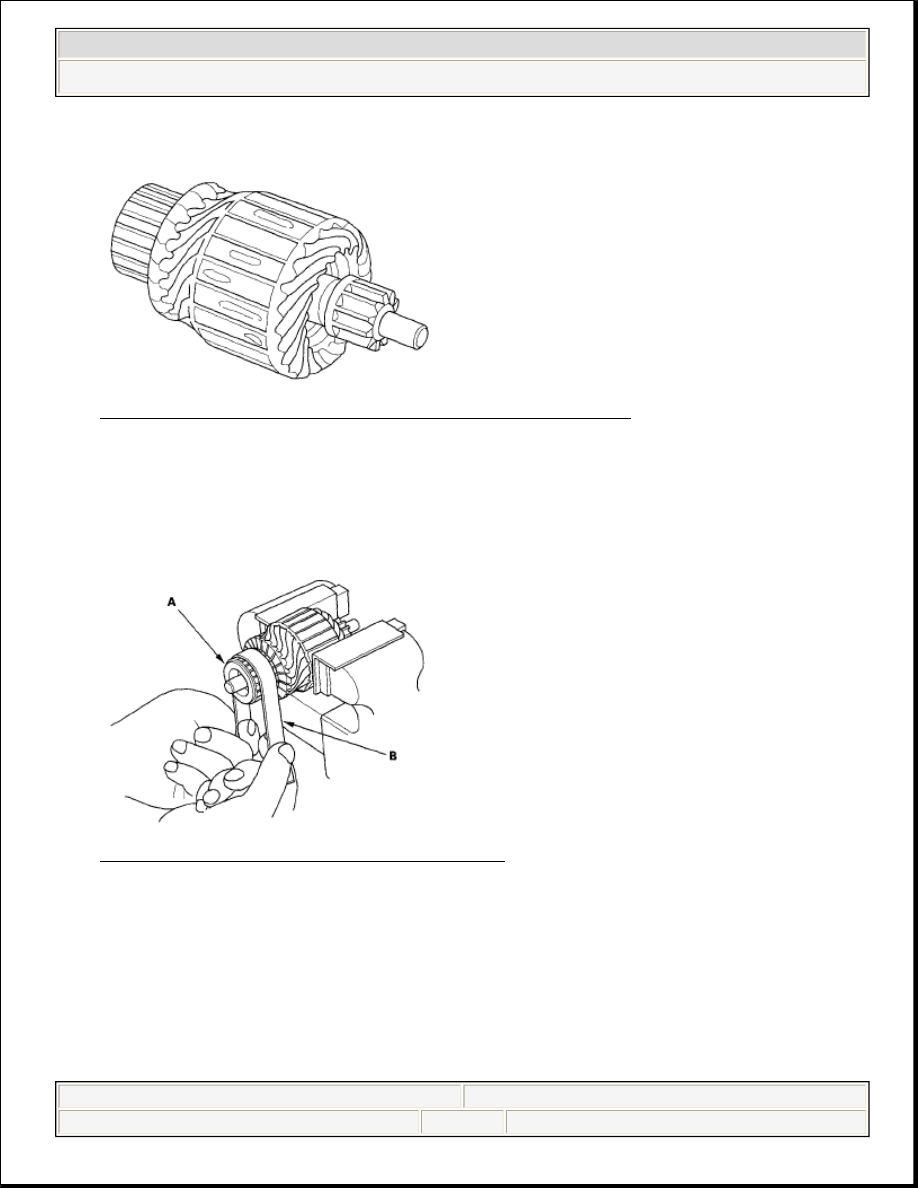

Fig. 26: Inspecting Armature For Wear Or Damage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check the commutator (A) surface. If the surface is dirty or burnt, resurface it

with an emery cloth or a lathe to the following specifications, or recondition
with #500 or #600 sandpaper (B).

Fig. 27: Checking Commutator Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Check the commutator diameter. If the diameter is below the service limit,

replace the armature.

Commutator Diameter

Standard (New): 28.0 mm (1.10 in.)



2008 Honda Civic GX

2006-08 ENGINE Starting System (R18A1) - Civic (All Except Hybrid)



































Service Limit: 27.0 mm (1.06 in.)

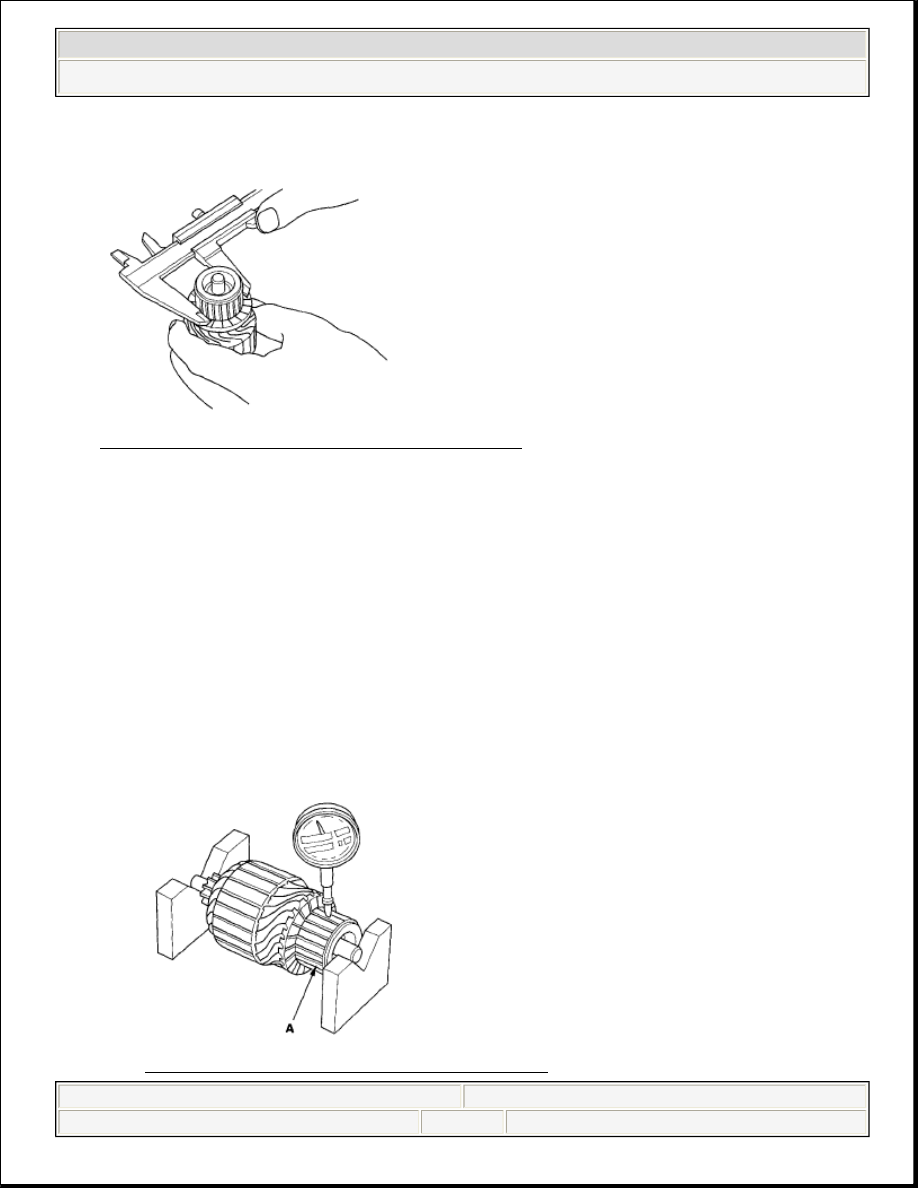

Fig. 28: Checking Commutator Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Measure the commutator (A) runout.



If the commutator runout is within the service limit, check the commutator
for carbon dust or brass chips between the segments.



If the commutator runout is not within the service limit, replace the
armature.

Commutator Runout

Standard (New): 0.02 mm (0.001 in.) max.
Service Limit: 0.05 mm (0.002 in.)

Fig. 29: Checking Commutator Runout



2008 Honda Civic GX

2006-08 ENGINE Starting System (R18A1) - Civic (All Except Hybrid)



































Courtesy of AMERICAN HONDA MOTOR CO., INC.

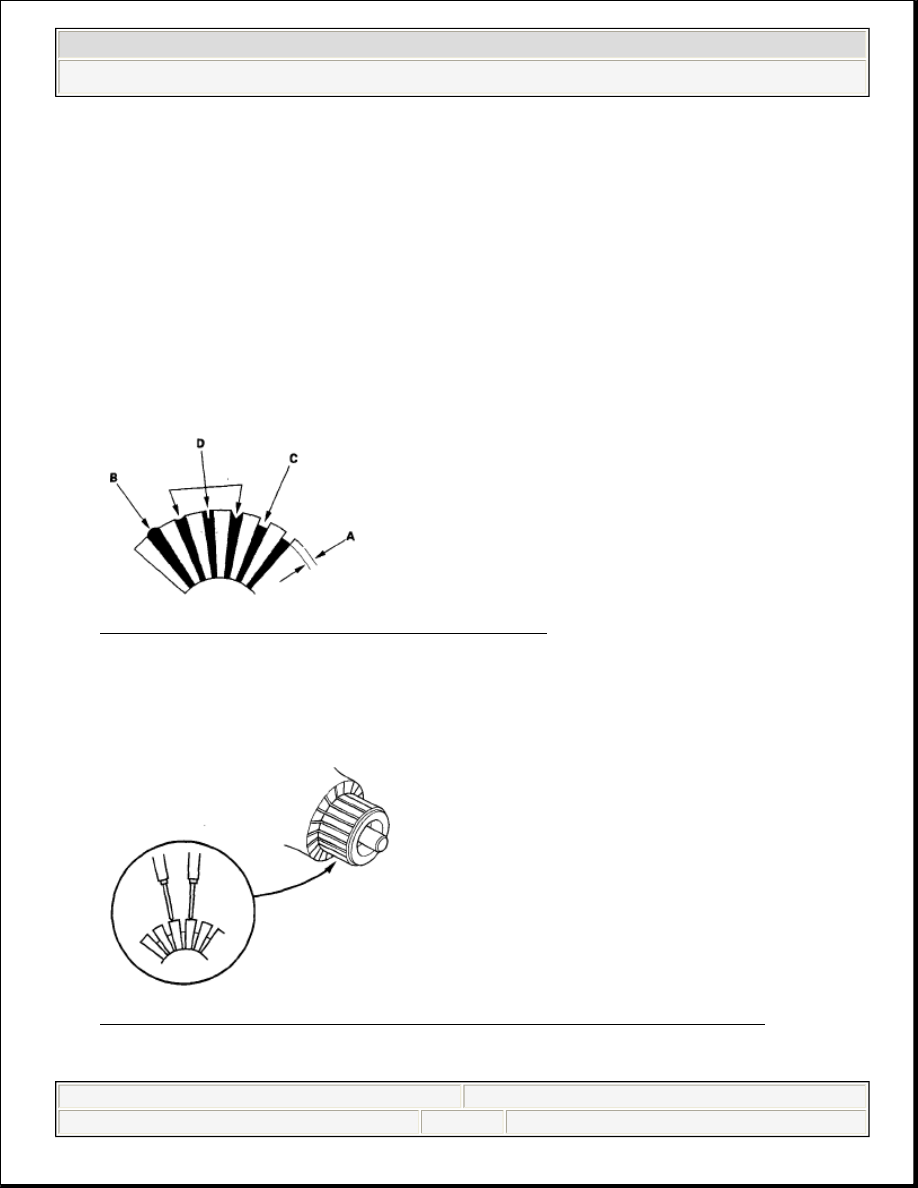

7. Check the mica depth (A). If the mica is too high (B), undercut the mica with a

hacksaw blade to the proper depth. Cut away all the mica (C) between the
commutator segments. The undercut should not be too shallow, too narrow, or
V-shaped (D).

Commutator Mica Depth

Standard (New): 0.50-0.80 mm (0.020-0.031 in.)
Service Limit: 0.2 mm (0.008 in.)

Fig. 30: Checking Commutator Mica Depth
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Check for continuity between the segments of the commutator. If there is open

circuit between any of the segments, replace the armature.

Fig. 31: Checking Continuity Between Segments Of Commutator
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2008 Honda Civic GX

2006-08 ENGINE Starting System (R18A1) - Civic (All Except Hybrid)
