Honda Civic. Manual - part 48





YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and
the SRS unit. Check the connection; if the connection is OK, replace the SRS
unit (see SRS UNIT REPLACEMENT).

NO -Short to power in the floor wire harness; replace the floor wire harness.

DTC 21-9X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO GROUND IN DRIVER'S SEAT
BELT TENSIONER

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead K 070AZ-SNAA200

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE

HDS).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on

for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 21-9x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to
TROUBLESHOOTING INTERMITTENT FAILURES. If another DTC is
indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery,

then wait for 3 minutes.

4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt

tensioner.

NOTE:

Before doing this troubleshooting procedure, review SRS
Precautions and Procedures (see PRECAUTIONS AND
PROCEDURES) and General Troubleshooting Information
(see GENERAL TROUBLESHOOTING INFORMATION).



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































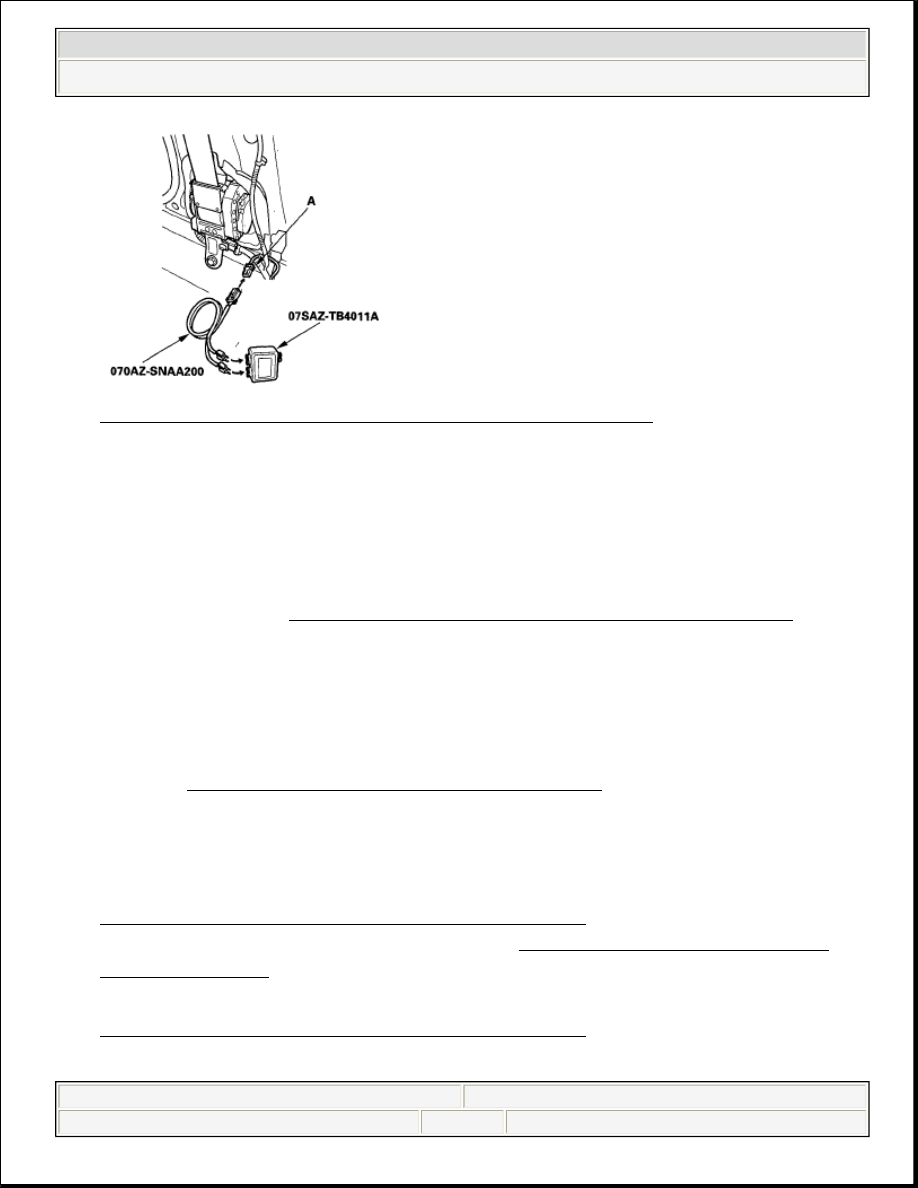

Fig. 96: Identifying Floor Wire Harness 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms, connectors) and simulator lead K

to the floor wire harness.

6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC (see CLEAR THE DTC MEMORY WITH THE HDS).

Is DTC 21-9x indicated?

YES -Go to step 9.

NO -Short to ground in the driver's seat belt tensioner; replace the driver's seat
belt (see FRONT SEAT BELT REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery,

then wait for 3 minutes.

10. Disconnect both seat belt buckle tensioner 4P connectors (see step 8

DISCONNECTING SYSTEM CONNECTORS) and the front passenger's
seat belt tensioner 4P connector (see step 7 DISCONNECTING SYSTEM
CONNECTORS
).

11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9

DISCONNECTING SYSTEM CONNECTORS).

12. Disconnect the simulator lead from the floor wire harness.



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































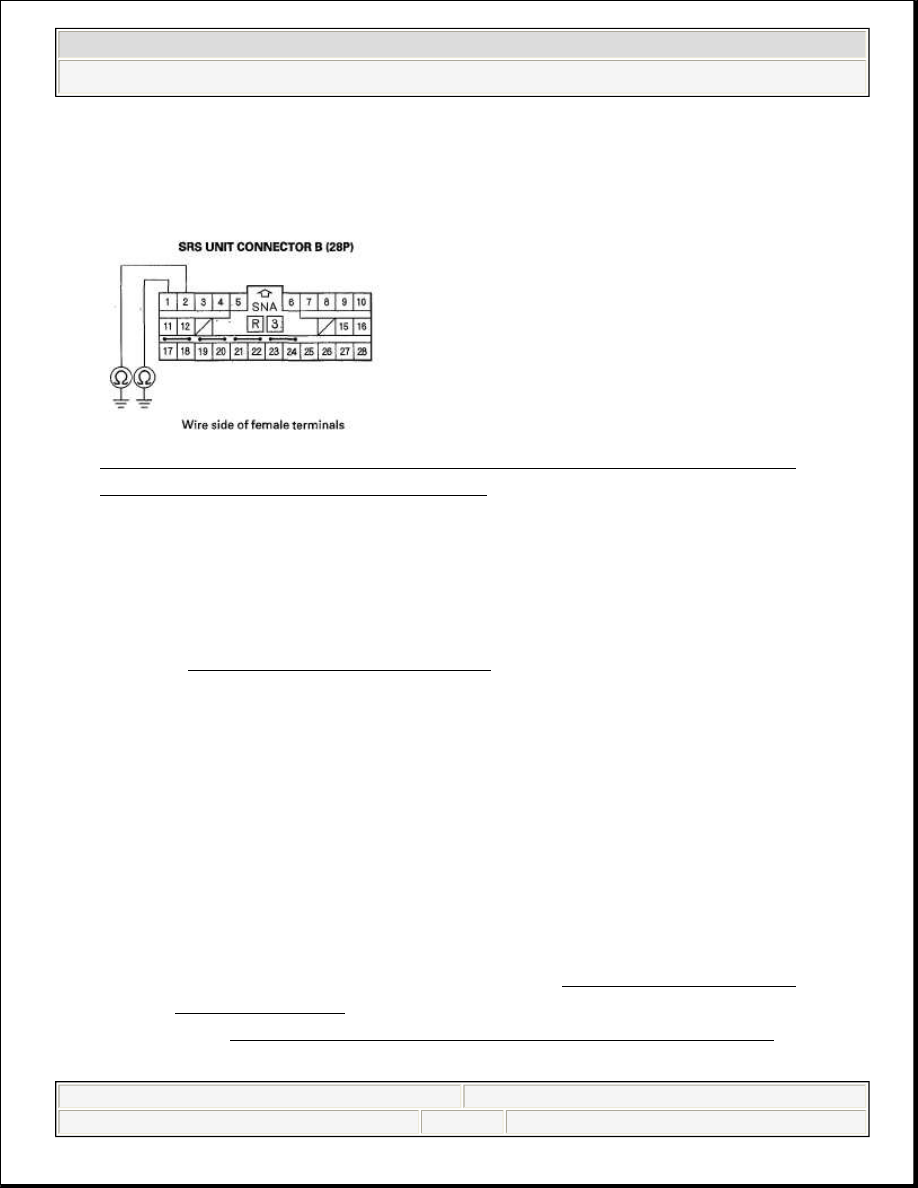

13. Measure the resistance between the No. 1 terminal of SRS unit connector B

(28P) and body ground, and between the No. 2 terminal and body ground.
There should be an open circuit or at least 1 M ohms

Fig. 97: Measuring Resistance Between No. 1 Terminal Of SRS Unit
Connector B (28P) And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and
the SRS unit. Check the connection; if the connection is OK, replace the SRS
unit (see SRS UNIT REPLACEMENT).

NO -Short to ground in the floor wire harness; replace the floor wire harness.

DTC 22-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN FRONT PASSENGER'S SEAT BELT
TENSIONER

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead K 070AZ-SNAA200

NOTE:

Before doing this troubleshooting procedure, review SRS
Precautions and Procedures (see PRECAUTIONS AND
PROCEDURES) and General Troubleshooting Information
(see GENERAL TROUBLESHOOTING INFORMATION).



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)



































1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE

HDS).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on

for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 22-1x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to
TROUBLESHOOTING INTERMITTENT FAILURES. If another DTC is
indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery,

then wait for 3 minutes.

4. Disconnect the floor wire harness 4P connector (A) from the front passenger's

seat belt tensioner.

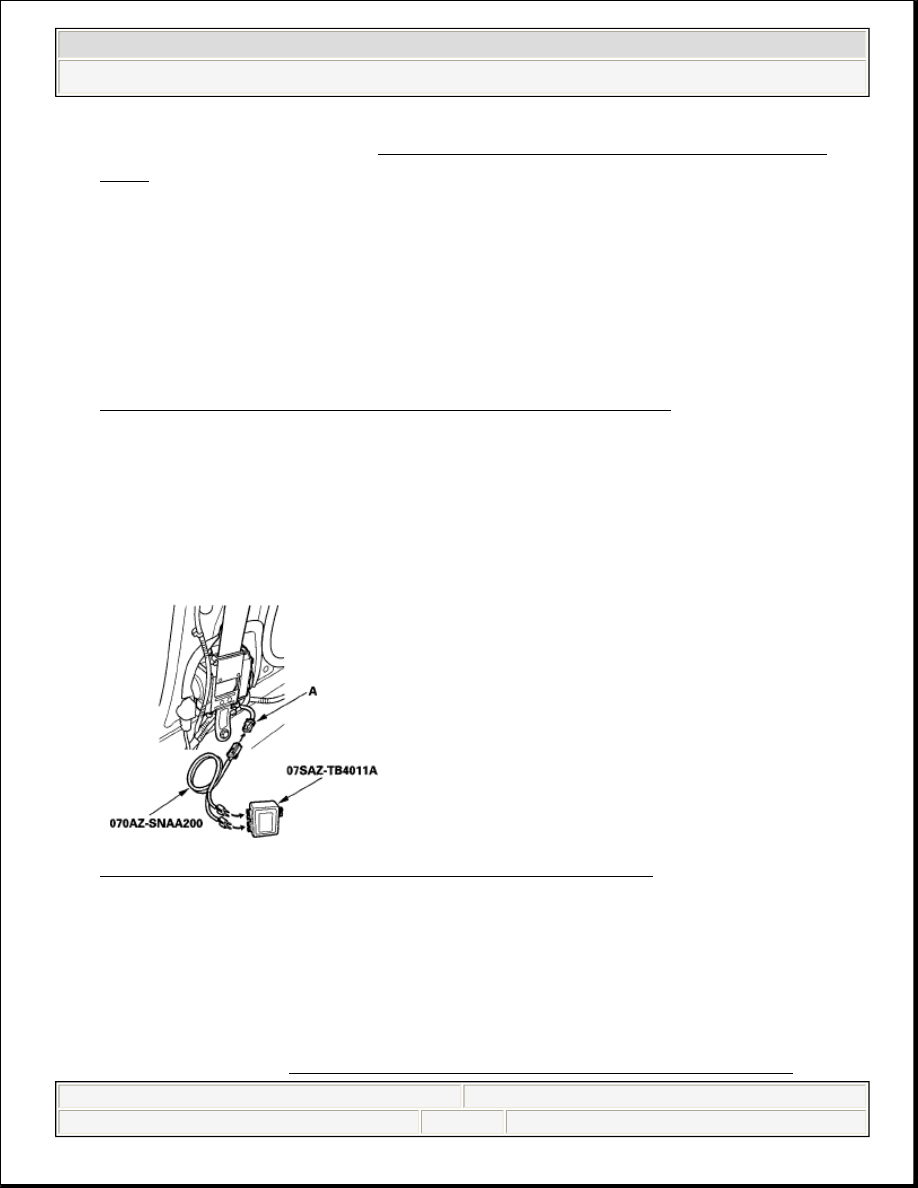

Fig. 98: Identifying Floor Wire Harness 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms, connectors) and simulator lead K

to the floor wire harness.

6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC (see CLEAR THE DTC MEMORY WITH THE HDS).



2008 Honda Civic EX

2006-08 RESTRAINTS SRS (Supplemental Restraint System) - Civic (Except Hybrid)
