Honda Civic. Manual - part 8

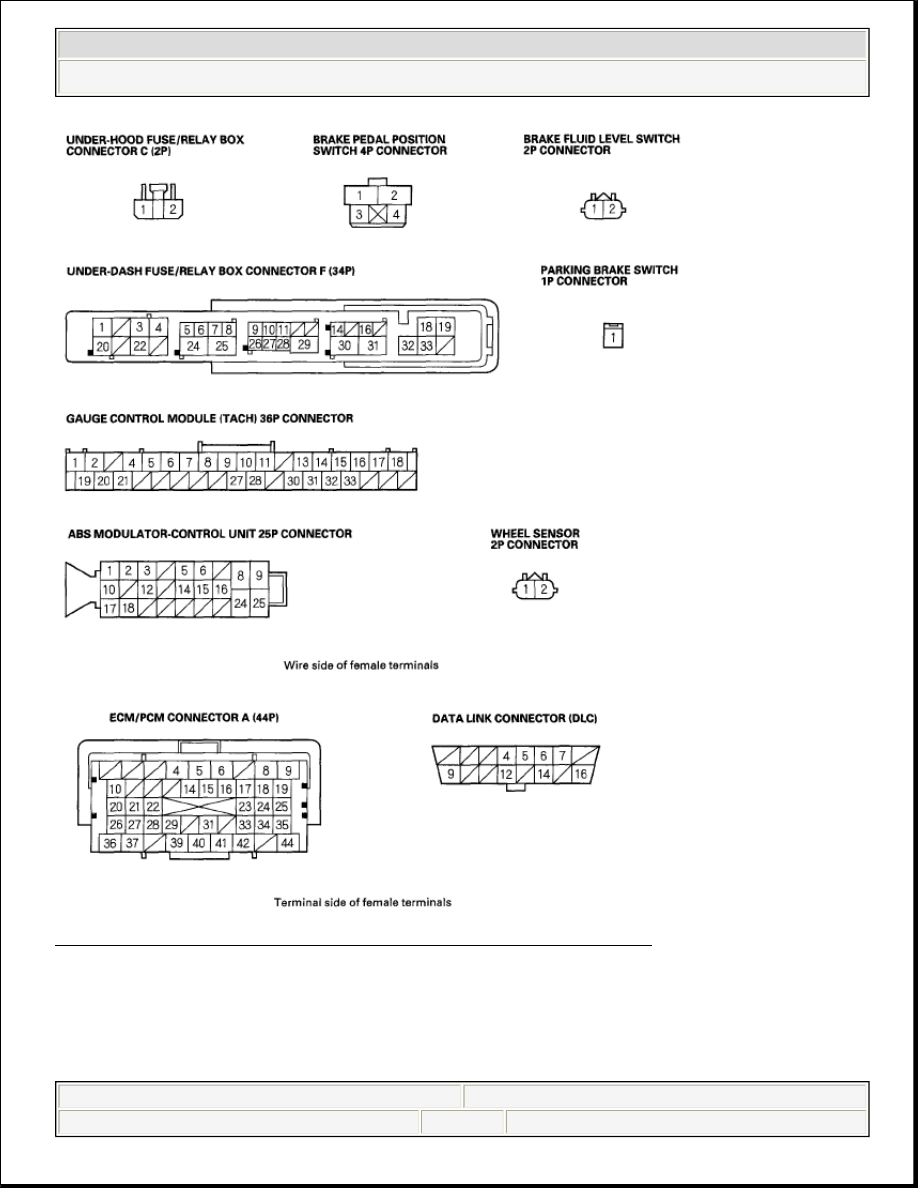

Fig. 12: Anti-Lock Brake System Circuit Diagram (3 Of 3)

DTC TROUBLESHOOTING

DTC 11-13: RIGHT-FRONT WHEEL SENSOR CIRCUIT MALFUNCTION; DTC 13-13: LEFT-
FRONT WHEEL SENSOR CIRCUIT MALFUNCTION; DTC 15-13: RIGHT-

REAR WHEEL SENSOR

CIRCUIT MALFUNCTION; DTC 17-13: LEFT-REAR WHEEL SENSOR CIRCUIT MALFUNCTION



2008 Honda Civic GX

2006-08 BRAKES ABS System - Civic (All Except Hybrid)



































1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it ON (II) again.
4. Check for DTCs with the HDS.

Is DTC 11-13, 13-13, 15-13, and/or 17-13 indicated?

YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for loose
terminals between the wheel sensor 2P connector and the ABS modulator-
control unit 25P connector. Refer to INTERMITTENT FAILURES
TROUBLESHOOTING
 .

5. Turn the ignition switch to LOCK (0).
6. Disconnect the ABS modulator-control unit 25P connector.
7. Check for continuity between the appropriate ABS modulator-control unit 25P

connector wheel sensor +B and GND terminals (see ABS MODULATOR-
CONTROL UNIT 25P CONNECTOR WHEEL SENSOR +B AND
GND
 ), then check for continuity between the same terminals and reverse the
positive and negative tester probes.

ABS MODULATOR-CONTROL UNIT 25P CONNECTOR WHEEL
SENSOR +B AND GND


DTC ABS Modulator-control Unit 25P Connector Terminal No.

11-13

No. 2

No. 18

13-13

No. 12

No. 3

15-13

No. 6

No. 15

17-13

No. 14

No. 5



2008 Honda Civic GX

2006-08 BRAKES ABS System - Civic (All Except Hybrid)



































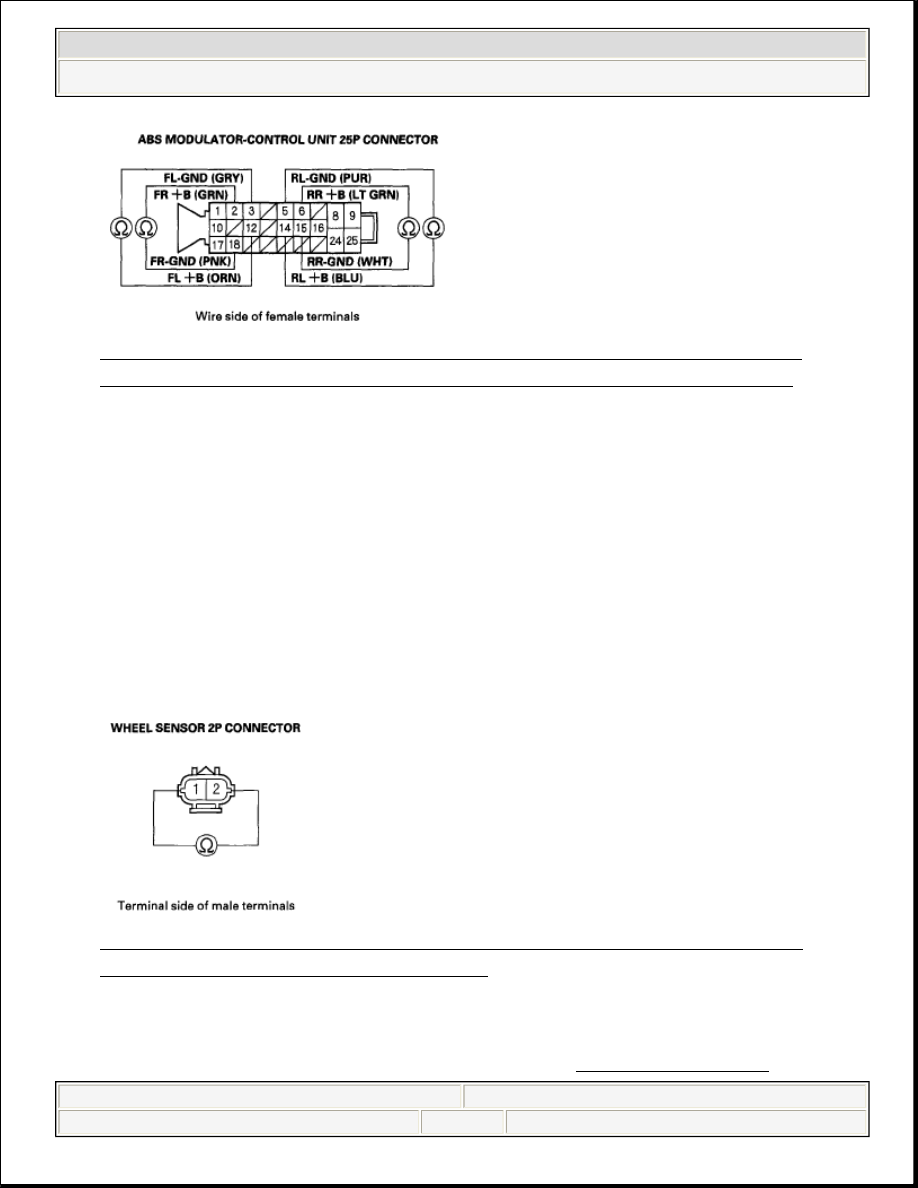

Fig. 13: Checking Continuity Between Appropriate ABS Modulator-
Control Unit 25P Connector Wheel Sensor +B And GND Terminals


Is there continuity in both directions?

YES - Go to step 8.

NO - If there is no continuity in either direction, go to step 10. If there is
continuity in only one direction, go to step 12.

8. Disconnect the appropriate wheel sensor 2P connector.
9. On the sensor side, check for continuity between appropriate wheel sensor 2P

connector terminals No. 1 and No. 2, then check for continuity between the
same terminals and reverse the positive and negative tester probes.

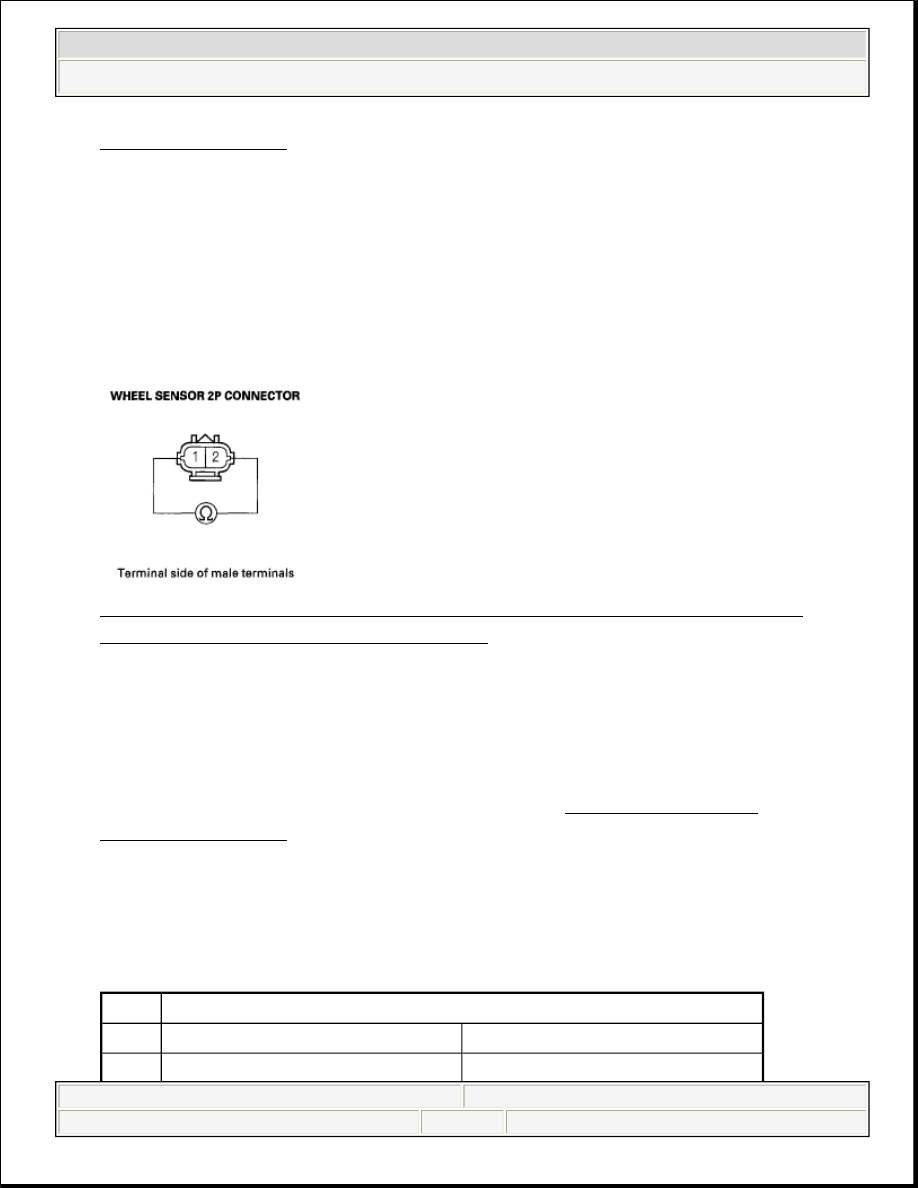

Fig. 14: Checking Continuity Between Appropriate Wheel Sensor 2P
Connector Terminals No. 1 And No. 2


Is there continuity in both directions?

YES - Replace the appropriate wheel sensor (see WHEEL SENSOR



2008 Honda Civic GX

2006-08 BRAKES ABS System - Civic (All Except Hybrid)



































REPLACEMENT ).

NO - Repair short in the wire between the appropriate wheel sensor and the
ABS modulator-control unit.

10. Disconnect the appropriate wheel sensor 2P connector.
11. On the sensor side, check for continuity between appropriate wheel sensor 2P

connector terminals No. 1 and No. 2, then check for continuity between the
same terminals and reverse the positive and negative tester probes.

Fig. 15: Checking Continuity Between Appropriate Wheel Sensor 2P
Connector Terminals No. 1 And No. 2


Is there continuity in only one direction?

YES - Repair open in the wire between the appropriate wheel sensor and the
ABS modulator-control unit.

NO - Replace the appropriate wheel sensor (see WHEEL SENSOR
REPLACEMENT
 ).

12. Check for continuity between body ground and the appropriate ABS

modulator-control unit 25P connector terminal (see table).

BODY GROUND AND APPROPRIATE ABS MODULATOR-
CONTROL UNIT 25P CONNECTOR TERMINAL


DTC ABS Modulator-control Unit 25P Connector Terminal No.

11-13

No. 2

No. 18

13-13

No. 12

No. 3



2008 Honda Civic GX

2006-08 BRAKES ABS System - Civic (All Except Hybrid)
