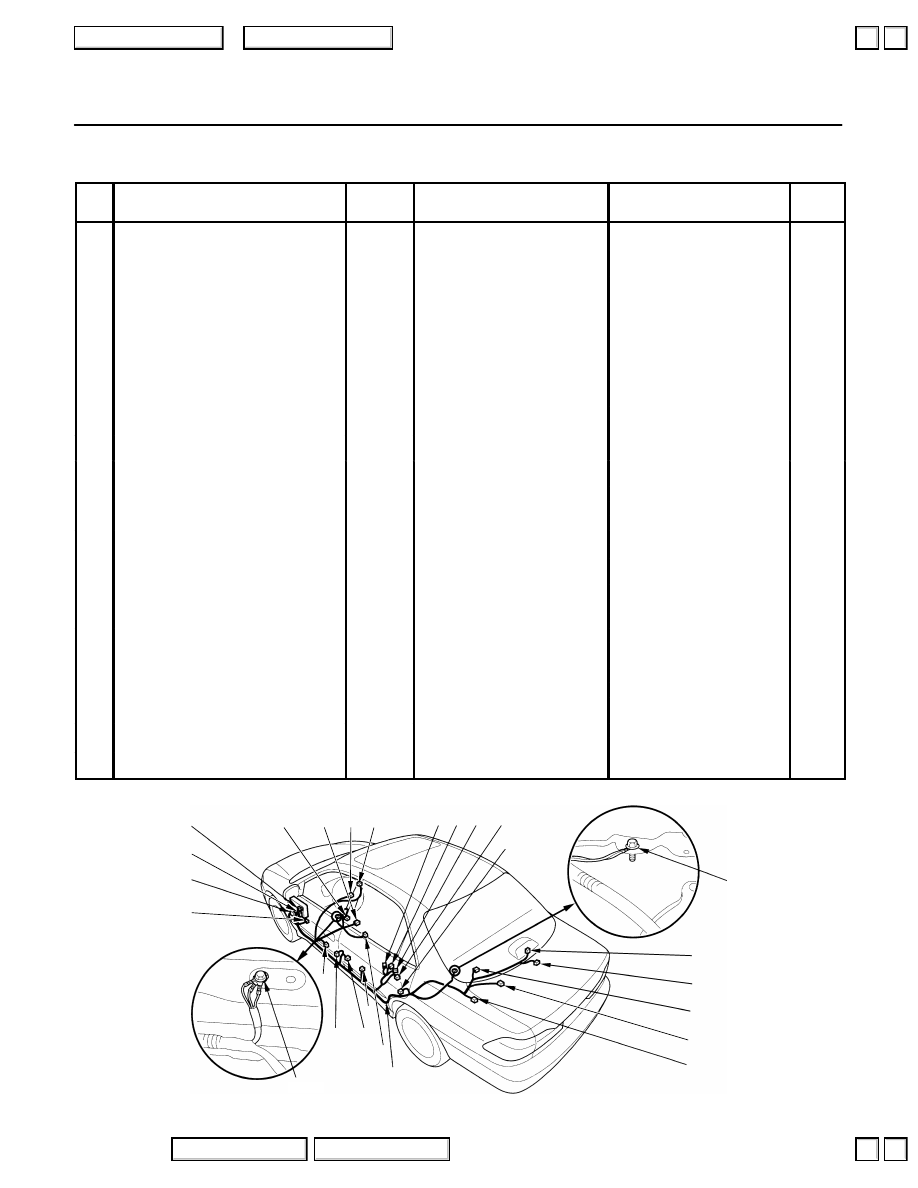

203-20



Connector to Harness Index

Left Side Wire Harness (Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

C501

18-GRY

Above left kick panel

Dashboard wire harness A

(see page 203-19)

*1

1

C501

20-GRY

Above left kick panel

Dashboard wire harness A

(see page 203-19)

*2

2

Driver’s under-dash fuse/relay box connector

(see page 6)

10-LT GRN

Behind left fuse box cover

3

Driver’s under-dash fuse/relay box connector

(see page 6)

14-LT GRN

Behind left fuse box cover

4

C555

2-BLU

Behind left fuse box cover

Security system wire harness

(Optional)

5

C551

10-GRY

Underside of driver’s seat

Driver’s power seat wire harness

(see page 203-27)

8-way

5

C552

4-GRY

Underside of driver’s seat

Driver’s power seat wire harness

(see page 203-27)

2-way

6

Driver’s seat belt switch

2-GRY

Underside of driver’s seat

’98-99

6

Driver’s seat belt switch

3-GRY

Underside of driver’s seat

’00-’02

7

C556

4-YEL

Under center console

SRS main harness

(see page 203-37)

*3

8

C557

4-YEL

Under center console

SRS main harness

(see page 203-37)

*3

9

EVAP canister vent shut valve

2-BRN

Under side of vehicle, near fuel tank

10

EVAP bypass solenoid valve

2-BLK

Under side of vehicle, near fuel tank

11

Fuel tank pressure sensor

3-GRY

Under side of vehicle, near fuel tank

12

Left rear wheel speed sensor

2-ORN

Behind left rear wheel

13

Left rear door switch

1-WHT

Near left rear door striker

14

G552

Front of trunk

Body ground via left side wire

harness

15

Left rear speaker

2-GRY

Side of trunk

16

High mount brake light

2-GRY

Center of trunk

17

Trunk light

2-GRY

Center of trunk

18

Fuel tank unit

5-GRY

Front of trunk

19

C554

12-GRY

Left side of trunk

Rear wire harness

(see page 203-24)

20

Driver’s side airbag inflator

2-YEL

Under driver’s seat

*3

21

Driver’s seat belt tensioner

2-YEL

Left B-pillar

*3

22

C553

10-GRY

Center pillar

Left rear door wire harness

(see page 203-33)

23

Driver’s door switch

1-WHT

Near driver’s door striker

24

Driver’s side impact sensor

2-YEL

Under driver’s seat

*3

25

G551

Below driver’s seat, carpet pulled back

Body ground via left side wire

harness

*1: All ’98-99 models, ’00-’02 models except Canada EX        *2: ’00-’02 Canada EX        *3: ’01-’02 models

LEFT SIDE
WIRE HARNESS

2

4

23

22

19

18

15

17

16

14

13

5

6

7

8

9 10

11 12

25

3

1

24

21

20

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

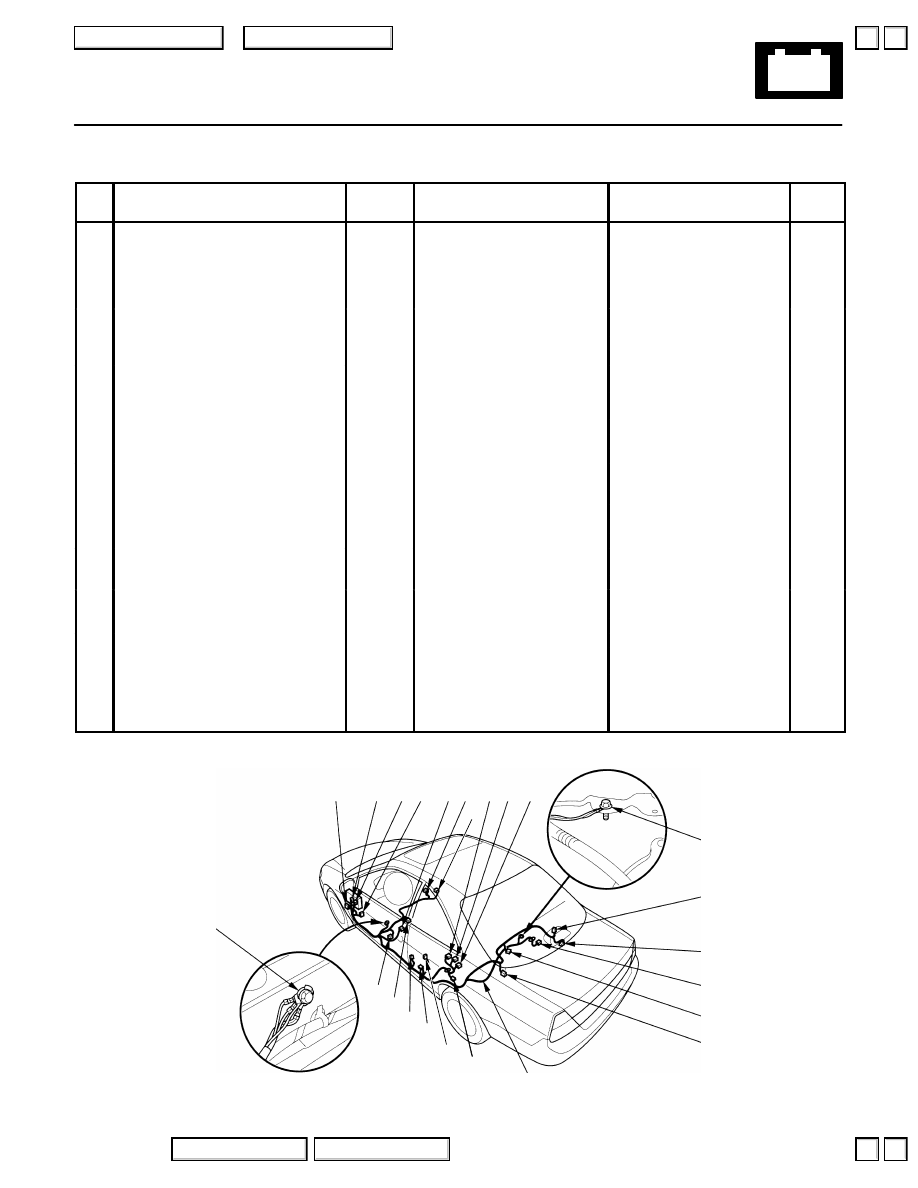

203-21



Connector to Harness Index

Left Side Wire Harness (Coupe)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

C501

18-GRY

Above left kick panel

Dashboard wire harness A

(see page 203-19)

2

Driver’s under-dash fuse/relay box connector

(see page 6-1)

10-LT GRN

Behind left fuse box cover

3

Driver’s under-dash fuse/relay box connector

(see page 6-1)

14-LT GRN

Behind left fuse box cover

4

C555

2-BLU

Behind left fuse box cover

Security system wire harness

(Optional)

5

Driver’s seat belt switch

2-GRY

Under-driver’s seat

’98-99

5

Driver’s seat belt switch

3-GRY

Under driver’s seat

’00-’02

6

C556

4-YEL

Below front of center console

SRS main harness

(see page 203-38)

’00-’02

7

C557

4-YEL

Under center console

SRS main harness

(see page 203-38)

’01-’02

8

EVAP canister vent shut valve

2-BRN

Underside of vehicle, near fuel tank

9

EVAP bypass solenoid valve

2-BLK

Underside of vehicle, near fuel tank

10

Fuel tank pressure sensor

3-GRY

Underside of vehicle, near fuel tank

11

G552

Front of trunk

Body ground via left side wire

harness

12

High mount brake light

2-GRY

Center of trunk

13

Trunk light

2-GRY

Center of trunk

14

Fuel tank unit

5-GRY

Front of trunk

15

Left rear speaker

2-GRY

Side of trunk

16

C554

12-GRY

Left side of trunk

Rear wire harness

(see page 203-25)

17

Left rear wheel speed sensor connector

2-ORN

Behind left wheel wheel

18

Driver’s seat belt tensioner

2-YEL

Left B-pillar

’01-’02

19

Driver’s side impact sensor

2-YEL

Below driver’s seat, carpet pulled back

’00-’02

20

Driver’s door switch

1-WHT

Near driver’s door striker

21

Driver’s side airbag inflator

2-YEL

In driver’s seat back

’00-’02

22

C551

10-GRY

Underside of driver’s seat

Driver’s power seat wire harness

(see page 203-27)

8-way

22

C552

4-GRY

Underside of driver’s seat

Driver’s power seat wire harness

(see page 203-27)

2-way

23

G551

Below driver’s seat, carpet pulled back

Body ground via left side wire

harness

16

LEFT SIDE WIRE HARNESS

15

14

13

12

11

23

10

9

8

6

5

4

3

2

1

17

19

20

21

22

7

18

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

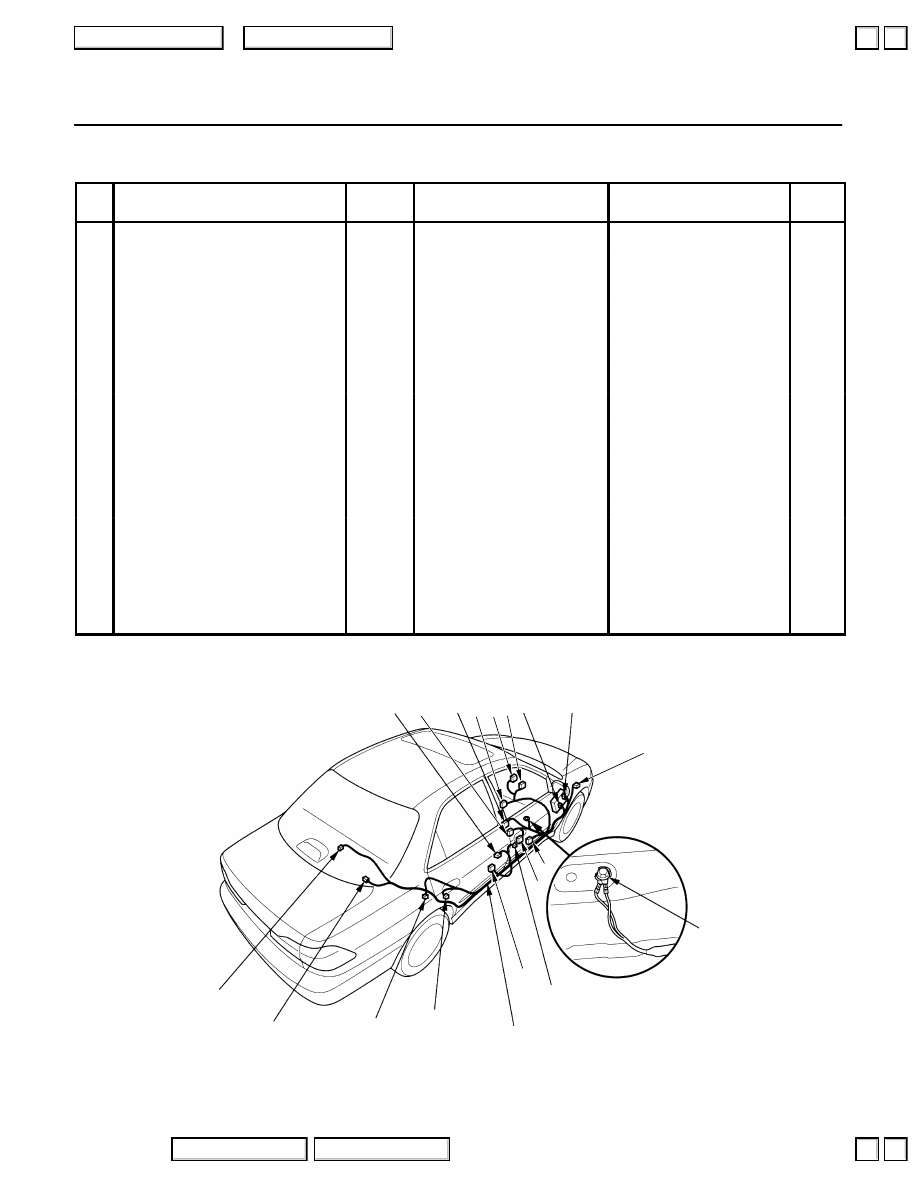

203-22



Connector to Harness Index

Right Side Wire Harness (All ’98-99 models, ’00-’02 Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

C581

10-GRY

Right center pillar

Right rear door wire harness

(see page 203-34)

Sedan

2

Front passenger’s side airbag inflator

2-YEL

Underside of front passenger’s seat

*5

3

Front passenger’s seat heater

3-N/A

Underside of front passenger’s seat

*2

3

Front passenger’s seat heater

4-N/A

Underside of front passenger’s seat

*3

3

C701

10-GRY

Underside of front passenger’s seat

Passenger’s seat wire harness

(see page 203-28)

*4

4

Front passenger’s seat belt switch

3-GRY

Underside of front passenger’s seat

*1

5

C583

4-YEL

SRS main harness

(see page 203-36)

*4

6

C584

4-YEL

SRS main harness

(see page 203-36)

*4

7

Passenger’s under-dash fuse/relay box

connector A

(see page 6-4)

20-LT GRN

Behind right fuse box cover

8

Passenger’s under-dash fuse/relay box

connector G

(see page 6-4)

3-LT GRN

Behind right fuse box cover

Canada

9

C582

6-LT BLU

Behind right kick panel

Dashboard wire harness A

(see page 203-18)

*4

10

G581

Below front passenger’s seat, carpet

pulled back

Body ground via right side

wire harness

11

Front passenger’s side impact sensor

2-YEL

Underside of front passenger’s seat

*5

12

C851

4-GRY

OPDS wire harness

(see page 203-39)

*4

13

Front passenger’s door switch

1-WHT

Near front passenger’s door striker

14

Front Passenger’s seat belt tensioner

2-YEL

Right B-pillar

*4

15

Right rear door switch

1-WHT

Near right rear door striker

Sedan

16

Right rear wheel speed sensor

2-ORN

Behind right rear wheel

17

Right rear speaker

2-GRY

Front of trunk, underside of rear shelf

18

Window antenna coil connector A

1-BRN

Front of trunk, underside of rear shelf

*1: ’00-’02 models except Canada EX        *2: ’98-99 models        *3: ’00-’02 Canada EX       *4: ’01-’02 models       *5: ’01-’02 Sedan

RIGHT SIDE WIRE HARNESS

1

3

7

8

10

13

15

16

17

18

14

12

11

9

6

5

2

4

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

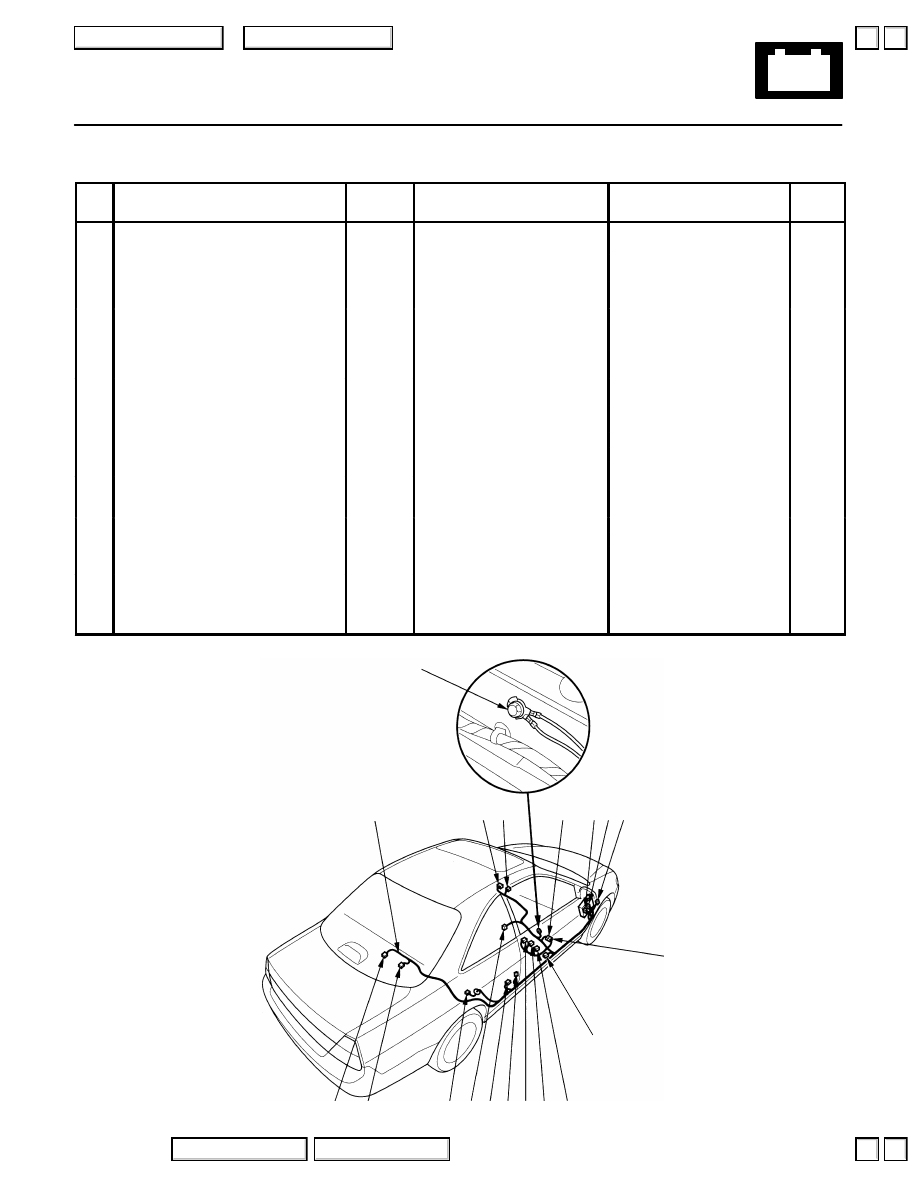

203-23
