203-12



Connector to Harness Index

Left-side Engine Compartment Wire Harness (L4)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

G302

Left side of engine compartment

Body ground via left engine

compartment wire harness

2

G305

Behind ABS control unit

Body ground via left engine

compartment wire harness

3

G304

Behind left kick panel

Body ground via left engine

compartment wire harness

4

Intermittent wiper relay

6-BRN/NAT

Left rear of engine compartment

5

Brake fluid level switch connector A (+)

1-BLK

Left side of engine compartment

6

Brake fluid level switch connector B (–)

1-BLK

Left side of engine compartment

7

Windshield wiper motor

5-GRY

Behind left side of cowl cover

8

C301

20-GRY

Behind driver’s door dashboard lower

cover

Dashboard wire harness B (left

branch)

(see page 203-16)

9

C302

8-GRY

Behind driver’s door dashboard lower

cover

Dashboard wire harness A

(see page 203-19)

10

C303

1-BRN

Above left kick panel

Coupe

11

Driver’s under-dash fuse/relay box connector

(see page 6-1)

5-LT GRN

Behind left fuse box cover

12

Driver’s under-dash fuse/relay box connector

(see page 6-1)

20-LT GRN

Behind left fuse box cover

13

ABS control unit connector B

12-ORN

Behind left kick panel

14

ABS control unit connector A

22-ORN

Behind left kick panel

15

Left front wheel speed sensor

2-ORN

Left side of engine compartment

16

C304

1-BRN

Left side of engine compartment

Coupe

17

Cruise control actuator

4-GRY

Left side of engine compartment

18

Left front turn signal/side marker light

3-WHT

Behind left of front bumper

19

Washer fluid level sensor

2-N/A

Behind left of front bumper

Canada

20

Windshield washer motor

2-GRN/NAT

Behind left of front bumper

21

G303

Left front of engine compartment

Body ground via left engine

compartment wire harness

22

G301

Left front of engine compartment

Body ground via left engine

compartment wire harness

23

ABS pump motor

2-ORN

Left front of engine compartment

24

ABS modulator unit

10-ORN

Left front of engine compartment

25

Left headlight connector A

2-WHT

Behind left headlight assembly

26

Left front parking light

2-BRN/NAT

Behind left headlight assembly

27

Left headlight connector B

2-BLU

Behind left headlight assembly

28

PSP switch

2-GRY

Underside of vehicle, rear of engine

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

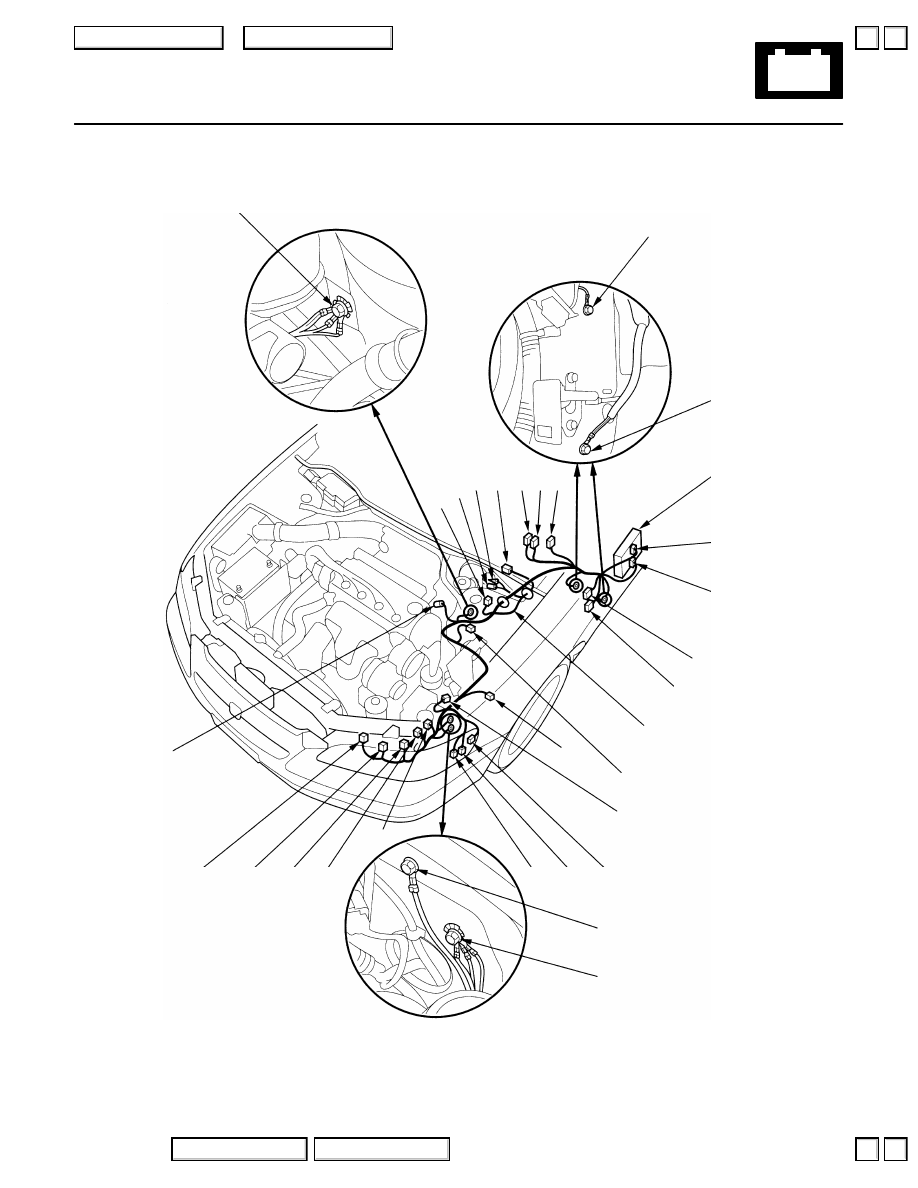

203-13



Connector to Harness Index

DRIVER’S
UNDER-DASH
FUSE/RELAY BOX

LEFT-SIDE ENGINE COMPARTMENT
WIRE HARNESS (L4)

1

2

3

11

12

13

14

15

17

20

19

18

21

22

28

26

25

24

27

4

5

6

7

8

9 10

16

23

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

203-14



Connector to Harness Index

Left-side Engine Compartment Wire Harness (V6)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Test tachometer connector

2-NAT

Left rear of engine compartment

2

C103

14-GRY

Left rear of engine compartment

Engine wire harness

(see page

203-4 (’98-’99)

 or

203-6 (’00-’02))

3

EVAP canister purge valve

2-BLK

Left rear of engine compartment

4

Engine mount control solenoid valve

2-GRY

Left rear of engine compartment

5

G302

Left side of engine compartment

Body ground via left engine

compartment wire harness

6

Brake fluid level switch connector A (+)

1-BLK

Left rear of engine compartment

7

Brake fluid level switch connector B (–)

1-BLK

Left rear of engine compartment

8

Windshield wiper motor

5-GRY

Behind left side of cowl cover

9

C301

20-GRY

Behind driver’s dashboard lower cover

Dashboard wire harness B (left

branch)

(see page 203-16)

10

C302

16-GRY

Behind driver’s dashboard lower cover

Dashboard wire harness A

(see page 203-19)

11

C303

1-BRN

Above left kick panel

Coupe

12

Driver’s under-dash fuse/relay box connector

(see page 6-1)

5-LT GRN

Behind left fuse box cover

13

Driver’s under-dash fuse/relay box connector

(see page 6-1)

20-LT GRN

Behind left fuse box cover

14

Seat heater relay

5-N/A

Behind left kick panel

’01-’02

Canada

15

Intermittent wiper relay

6-BRN/NAT

Left rear of engine compartment

16

C104

10-GRY

Left rear of engine compartment

Engine wire harness

(see page

203-4 (’98-’99)

 or

203-6 (’00-’02))

17

Left front wheel speed sensor

2-ORN

Left side of engine compartment

18

C304

1-BRN

Left side of engine compartment

Coupe

19

Left front turn signal/side marker light

3-WHT

Behind left of front bumper

20

G301

Left front of engine compartment

Body ground via left engine

compartment wire harness

21

Left headlight connector A

2-WHT

Behind left headlight assembly

22

Left front parking light

2-BRN/NAT

Behind left headlight assembly

23

Left headlight connector B

2-BLU

Behind left headlight assembly

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

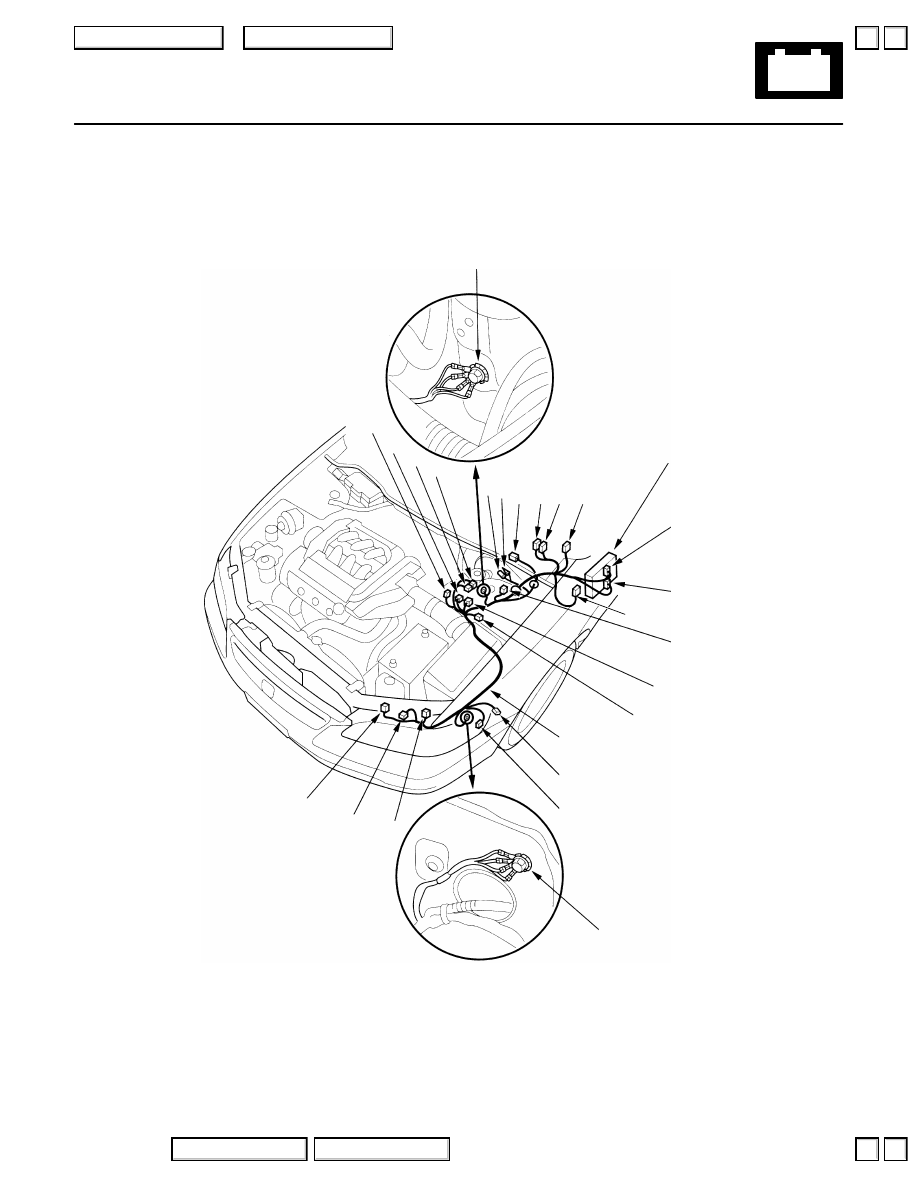

203-15
