203-8
Connector to Harness Index

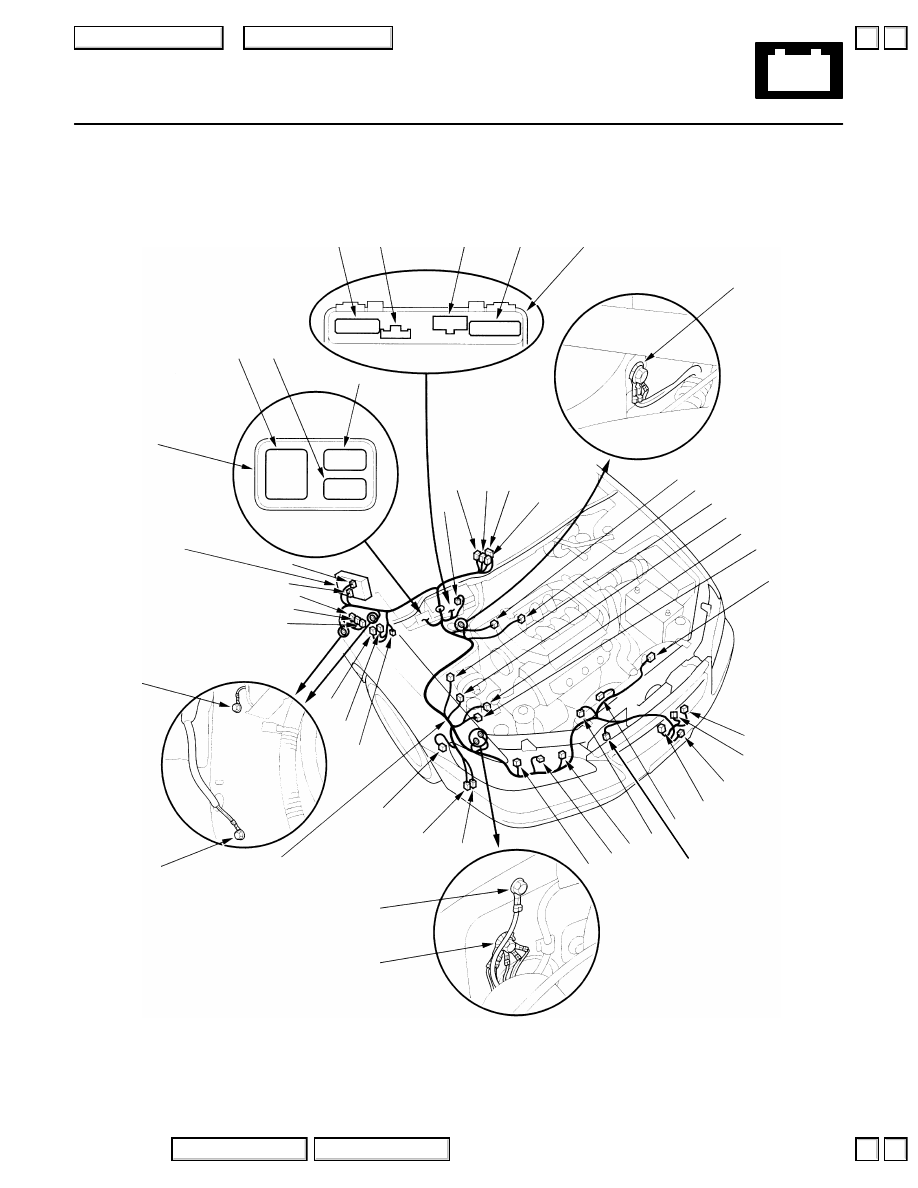

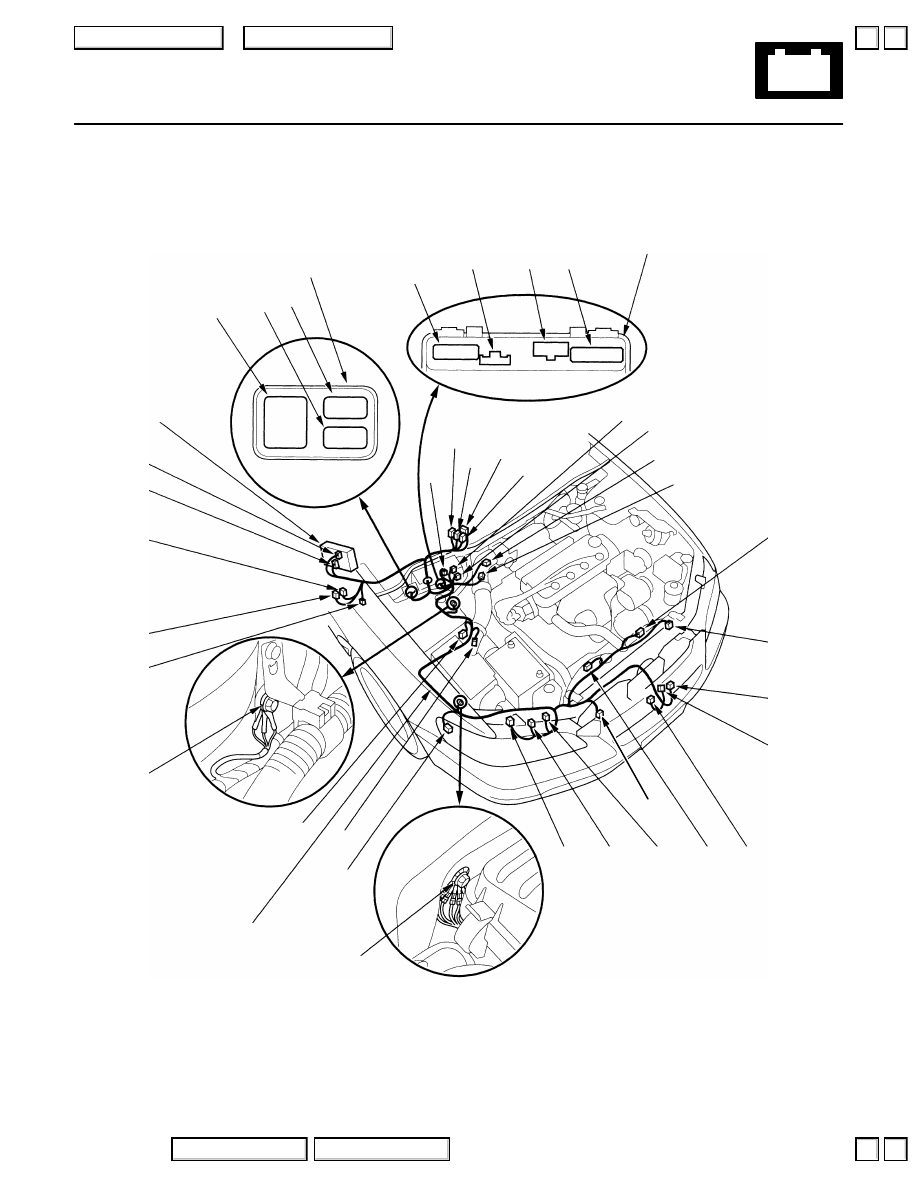

Right-side Engine Compartment Wire Harness (L4)
Ref
Connector or Terminal
Cavities/
Color
Location
Connects to
Notes
1
DRL diode
2-—
Behind right kick panel
Canada
2
Primary H02S relay
5-BLK
Behind right kick panel
2
High beam cut relay
5-BLK
Behind right kick panel
Canada
2
A/F sensor heated control relay
5-BLK
Behind right kick panel
3
Taillight relay
5-BLK
Behind right kick panel
4
Passenger’s under-dash fuse/relay box
18-LT GRN
Behind right fuse box cover
5
Passenger’s under-dash fuse/relay box
3-LT GRN
Behind right fuse box cover
6
ABS pump motor relay
5-BLK
Right rear of engine compartment
7
ABS fail-safe relay
5-BLK
Right rear of engine compartment
8
Seat heater relay
5-BLK
Right rear of engine compartment
Canada
9
Under-hood fuse/relay box connector D
16-GRN or
BLU
Right rear of engine compartment
10
Under-hood fuse/relay box connector C
3-BRN
Right rear of engine compartment
11
Under-hood fuse/relay box connector B
7-BRN
Right rear of engine compartment
12
Under-hood fuse/relay box connector A
18-GRN or
BLU
Right rear of engine compartment
13
ELD unit
3-GRY
Inside under-hood fuse/relay box
14
C201
16-BLU
Behind glove box
Dashboard wire harness B (right
15
C202
7-BRN
Behind glove box
Dashboard wire harness B (right
16
C204
22-GRN
Behind right fuse box cover
Dashboard wire harness A
17
C203
5-GRY
Behind glove box
Dashboard wire harness B (right
18
C101
10-GRY
Right rear of engine compartment
Engine wire harness
19
C102
14-GRY
Right rear of engine compartment
Engine wire harness
A/T
19
C102
8-GRY
Right rear of engine compartment
Engine wire harness
*1 (M/T)
19
C102
10-GRY
Right rear of engine compartment
Engine wire harness
*2 (M/T)
20
Engine mount control solenoid valve
2-GRY
Center rear of engine compartment
A/T
21
Secondary HO2S
4-GRY
Underside of vehicle, near catalytic
converter
22
Condenser fan motor
2-GRY
Front of engine compartment
23
A/C compressor
1-GRY
Right front of engine compartment
24
High horn
1-BLK
Behind center of front bumper
25
Hood switch
2-GRY
Front of vehicle, at hood latch
26
Low horn
1-BLK
Behind center of front bumper
27
28
Radiator fan motor
A/C pressure switch
2-GRY
2-GRY
Front of engine compartment
Behind right side of front bumper
29
Right headlight connector B
2-BLU
Behind right headlight assembly
30
Right front parking light
2-BRN/NAT
Behind right headlight assembly
31
Right headlight connector A
2-WHT
Behind right headlight assembly
32
G201
Right side of engine compartment
Body ground via right engine
compartment wire harness
33
Right front turn signal/side marker light
3-WHT
Behind right front of bumper
34
Test tachometer connector
2-NAT
Right side of engine compartment
35
Right front wheel speed sensor
2-ORN
Right side of engine compartment
36
G202
Right side of engine compartment
Body ground via right engine
compartment wire harness
*1:
’98-99 models, ’00-’02 models (except California)
*2:
’00-’02 models (California)
