186. Below Front of Center Console (’00 Sedan)

G801

C505
(6-YEL)

CONNECTOR C
(8-YEL)

CONNECTOR B
(14-YEL)

CONNECTOR A
(18-YEL)

SRS
UNIT

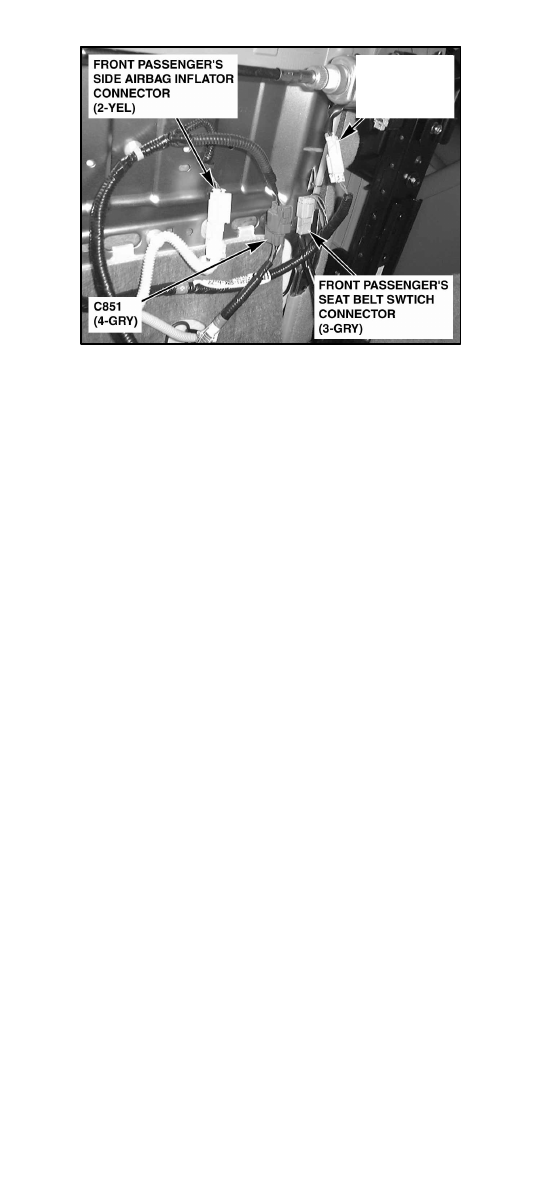

187. Underside of Front Passenger’s Seat (’00-’02)

SLIDE MOTOR
CONNECTOR
(’01-’02 EX V6)
(2-GRY)

188. Center of Trunk

HIGH MOUNT
BRAKE LIGHT

TRUNK LIGHT

189. Below Steering Wheel (’98-’00 Models)

CABLE REEL
CONNECTOR B
(4-BLK)
