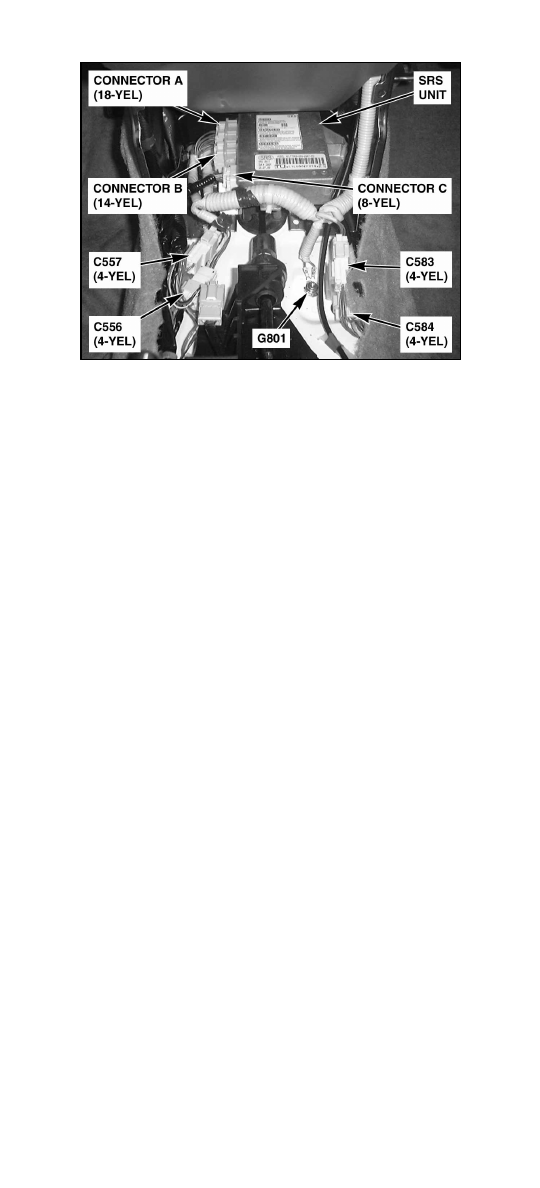

171. Below Front of Center Console

(’00-’02 Coupe, ’01-’02 Sedan)



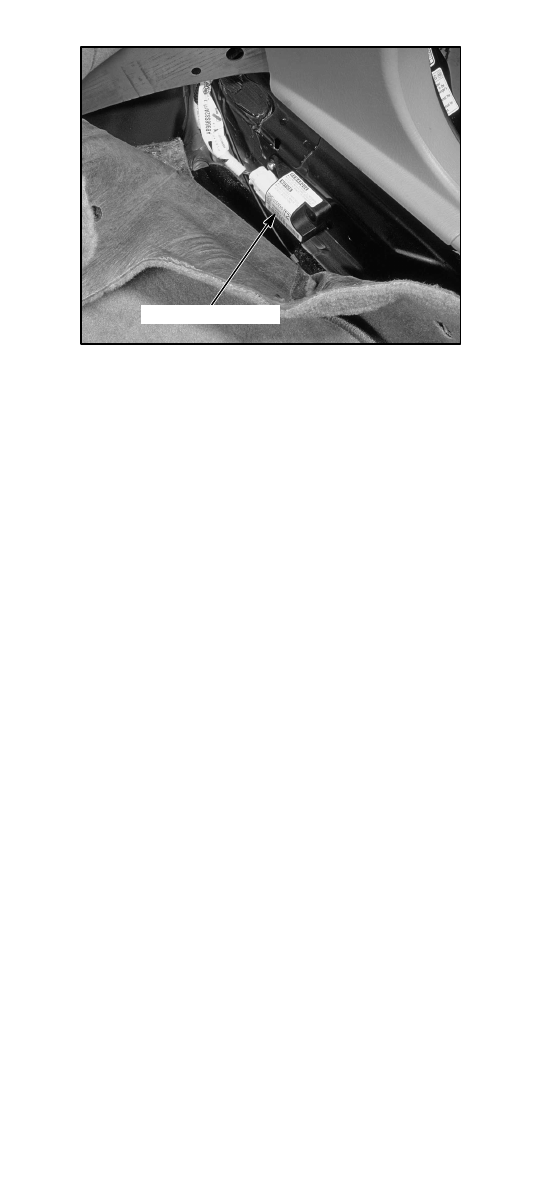

172. Behind Driver’s Dashboard Lower Cover

(’00 Model only)

C503
(8-YEL) (Coupe)
(2-YEL) (Sedan)



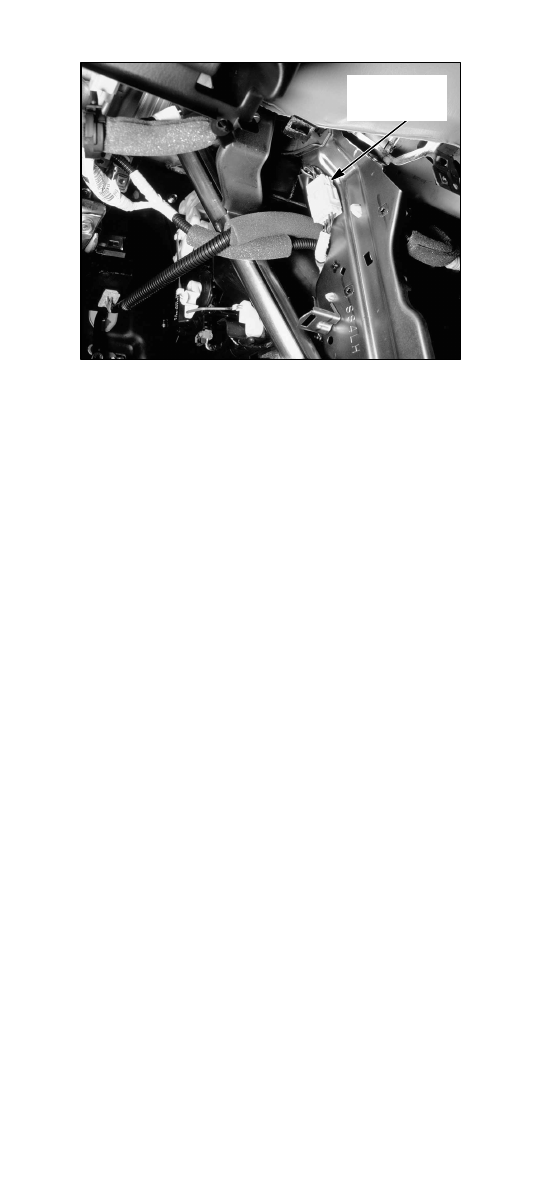

173. Below Driver’s Seat (Pass. Similar) (’00-’02 Coupe)

SIDE IMPACT SENSOR



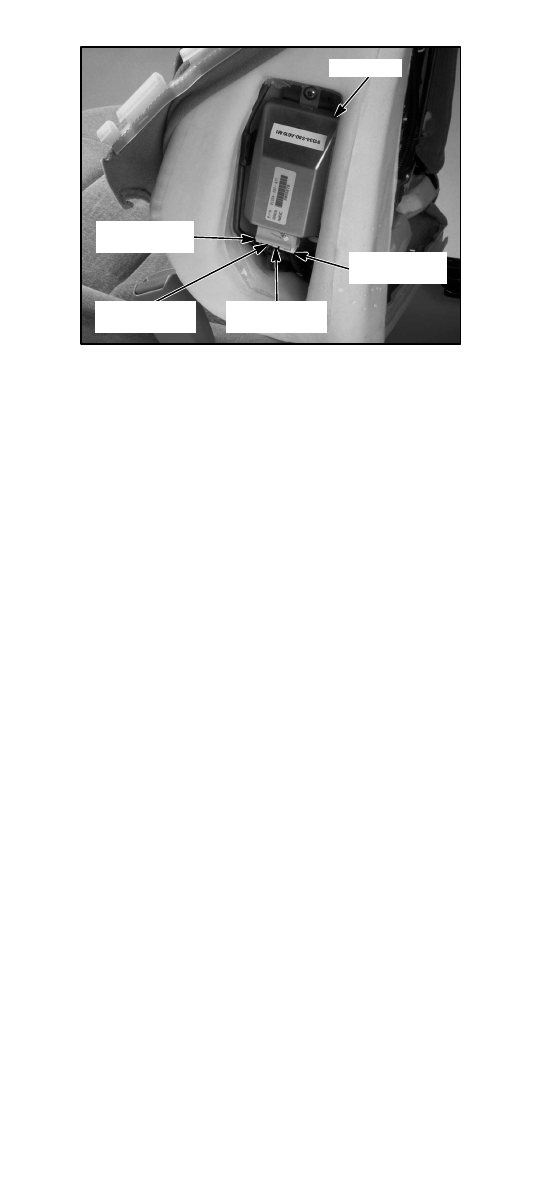

174. In Front Passenger’s Seat-back (’00-’02 Models)

CONNECTOR A
(2-YEL)

CONNECTOR B
(4-YEL)

OPDS UNIT

CONNECTOR D
(8-YEL)

CONNECTOR C
(2-YEL)
