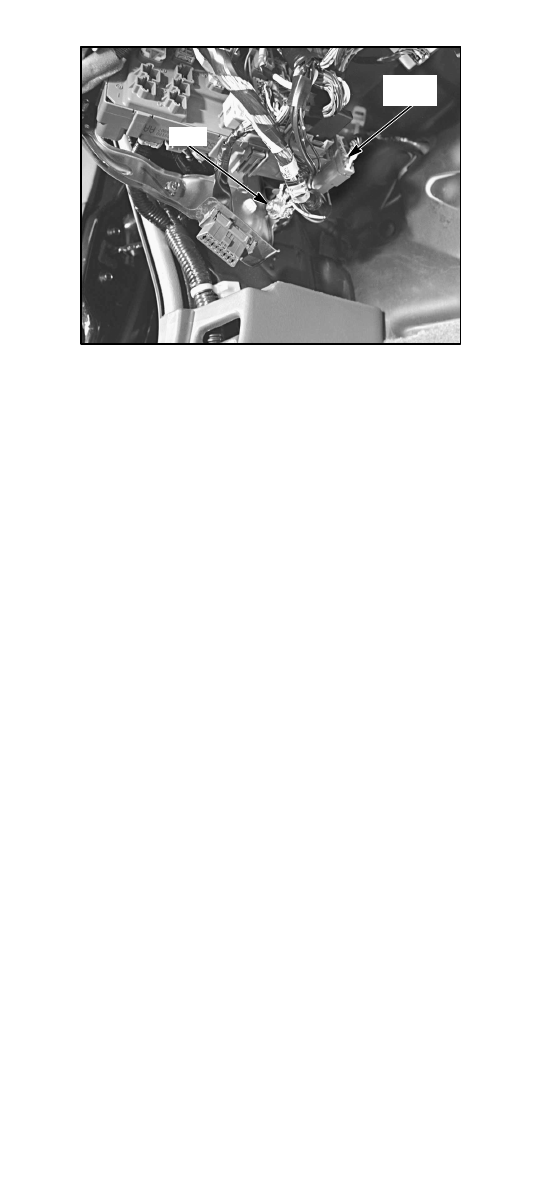

96. Above Left Kick Panel

C502
(7-BRN)

G401

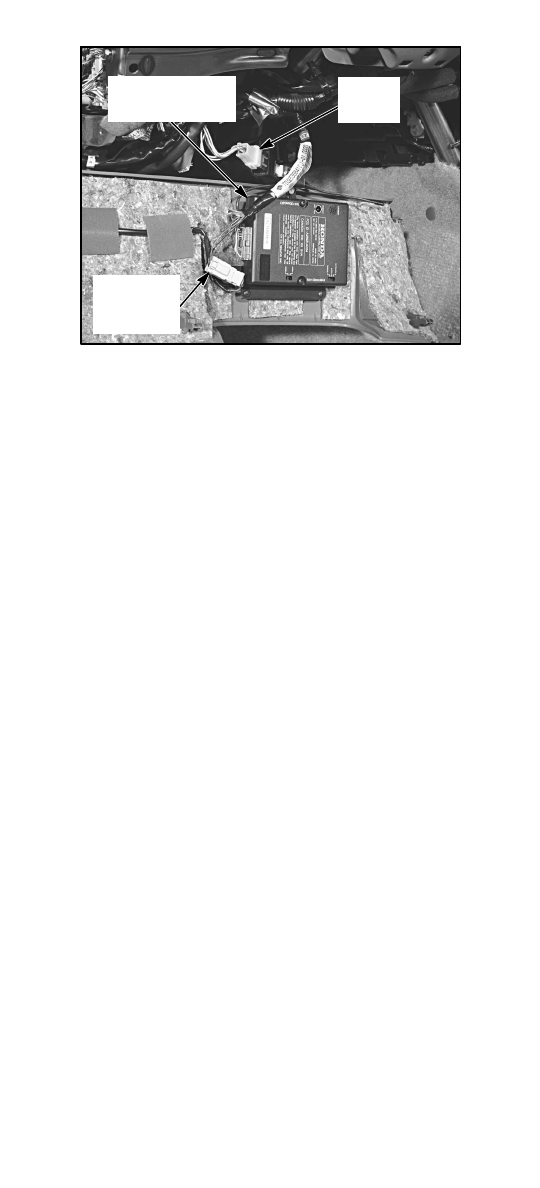

97. Back of Driver’s Dashboard Lower Cover

TRUNK
OPENER
RELAY

KEYLESS OR
KEYLESS/SECURITY
CONTROL UNIT

DISARM
SWITCH
CONNECTOR
(3-GRY)

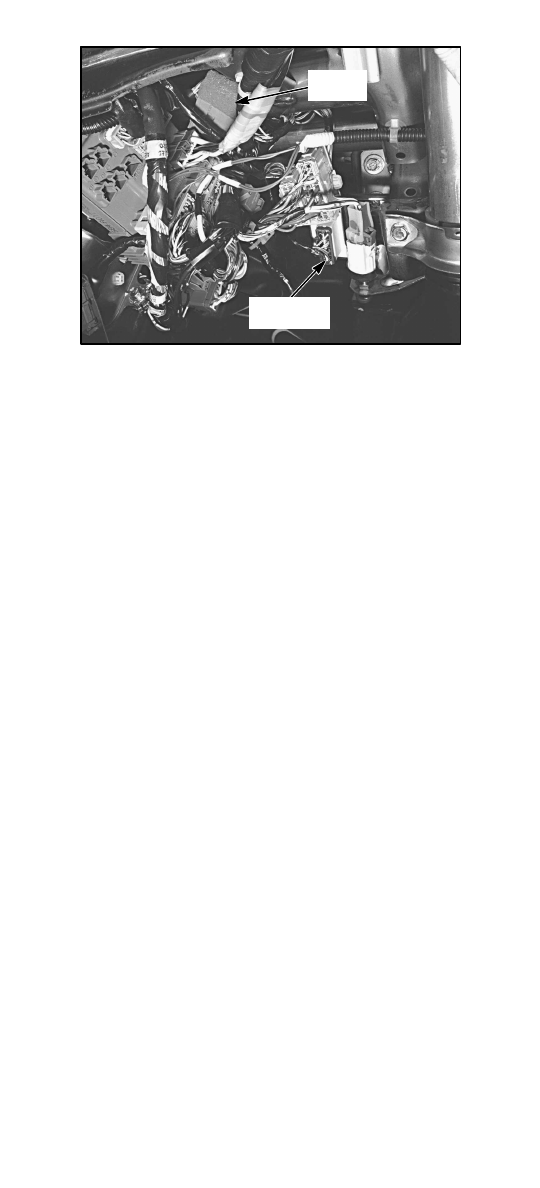

98. Behind Driver’s Dashboard Lower Cover

C301
(20-GRY)

BRAKE PEDAL POSITION SWITCH
(2-BRN) (WITHOUT CRUISE)
(4-BRN) (WITH CRUISE)

C302
(16-GRY) (V6)
(8-GRY) (L4)

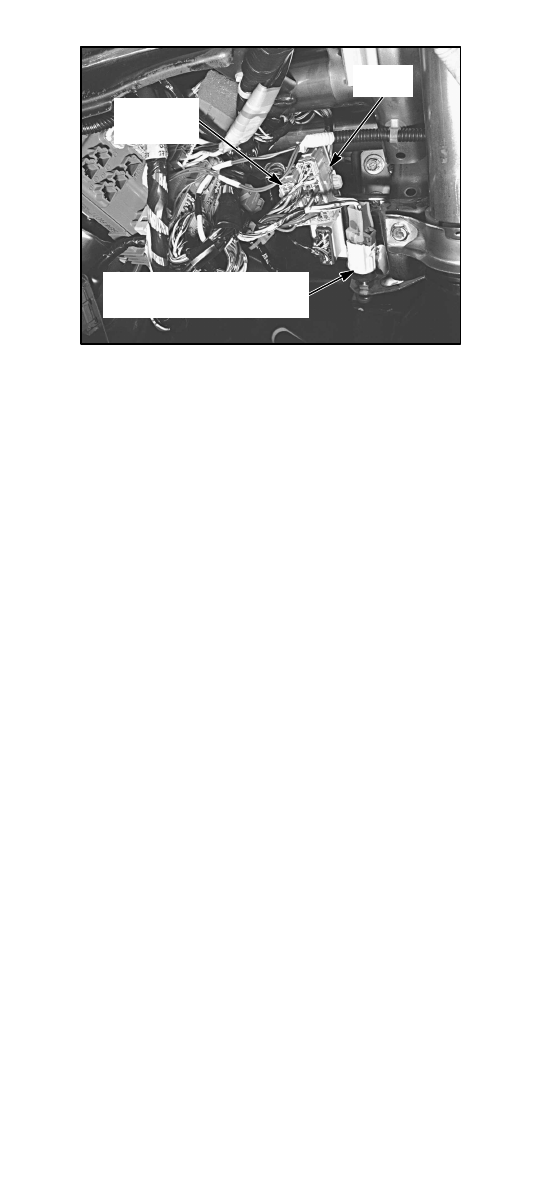

99. Behind Driver’s Dashboard Lower Cover

C401
(22-BLU)

PGM-FI
MAIN RELAY
