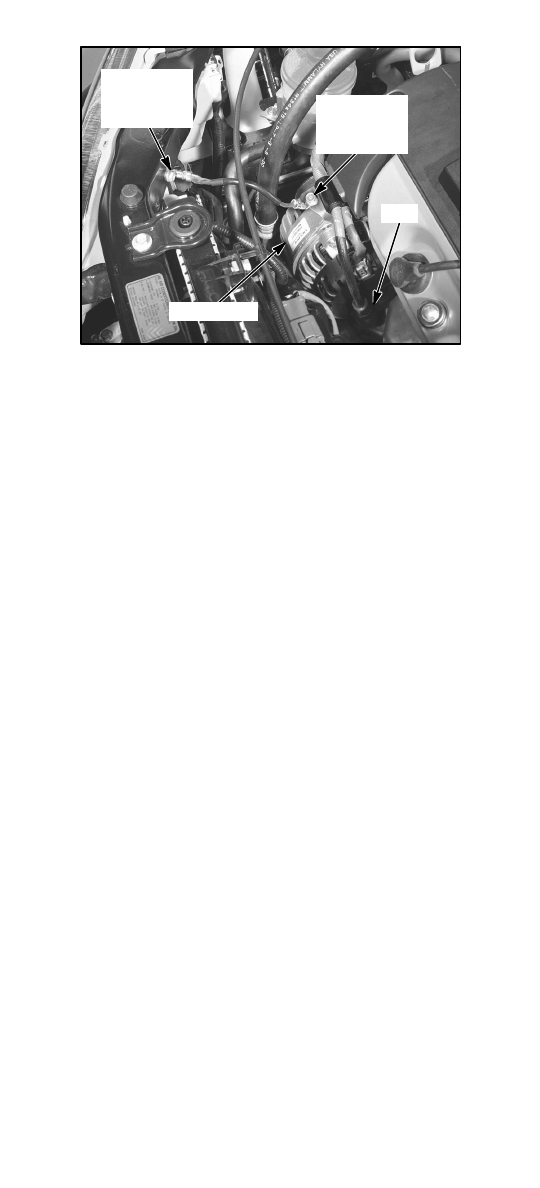

55. Right Front of V6 Engine

T4
(’98 EARLY
PRODUCTION
Models)

G2
(’98 EARLY
PRODUCTION
Models)

ALTERNATOR

T102

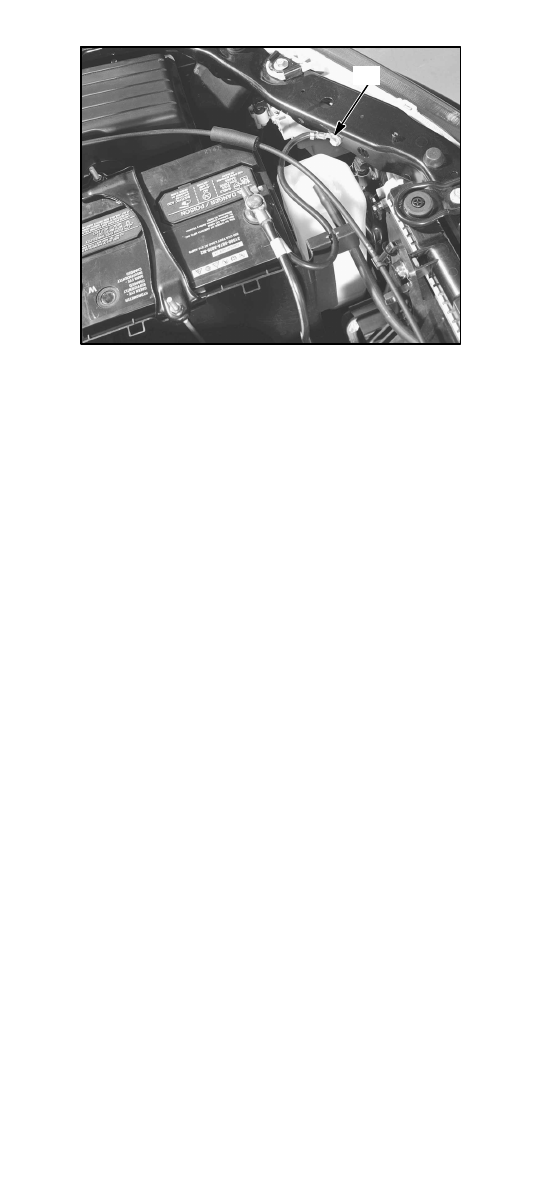

56. Right Front of V6 Engine Compartment

A/C
COMPRESSOR
CONNECTOR
(1-GRY)



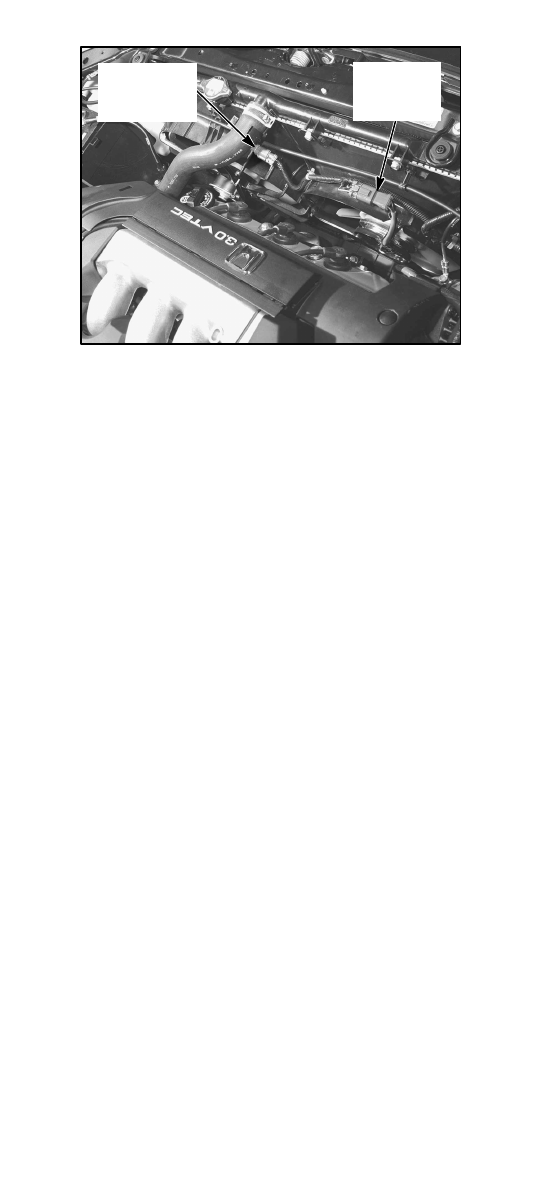

57. Front of V6 Engine Compartment

CONDENSER
FAN MOTOR
CONNECTOR
(2-GRY)

RADIATOR FAN
MOTOR
CONNECTOR
(2-GRY)



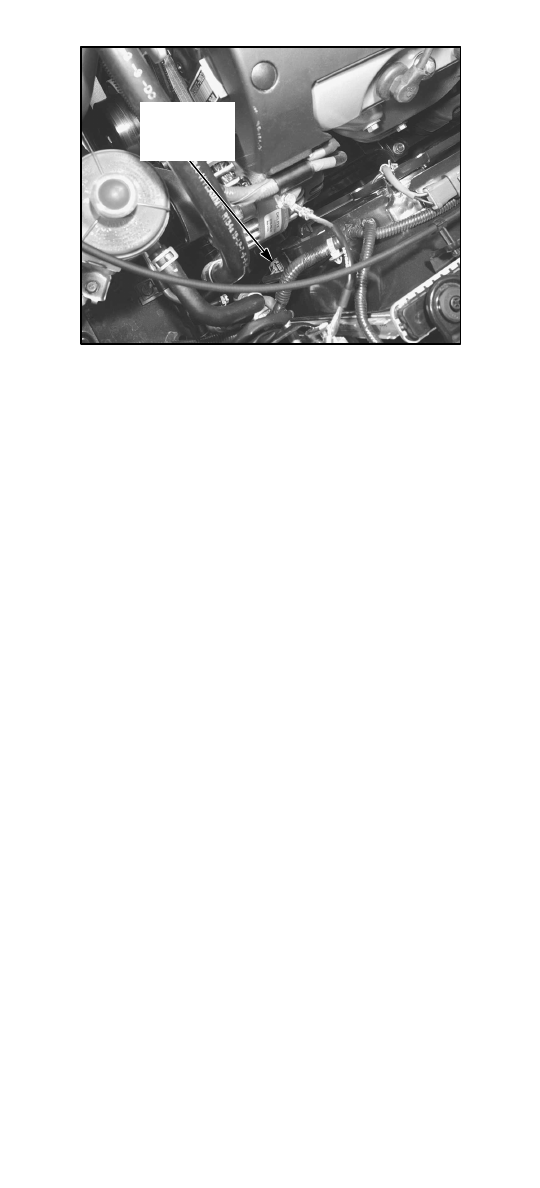

58. Left Front of V6 Engine Compartment

G1
