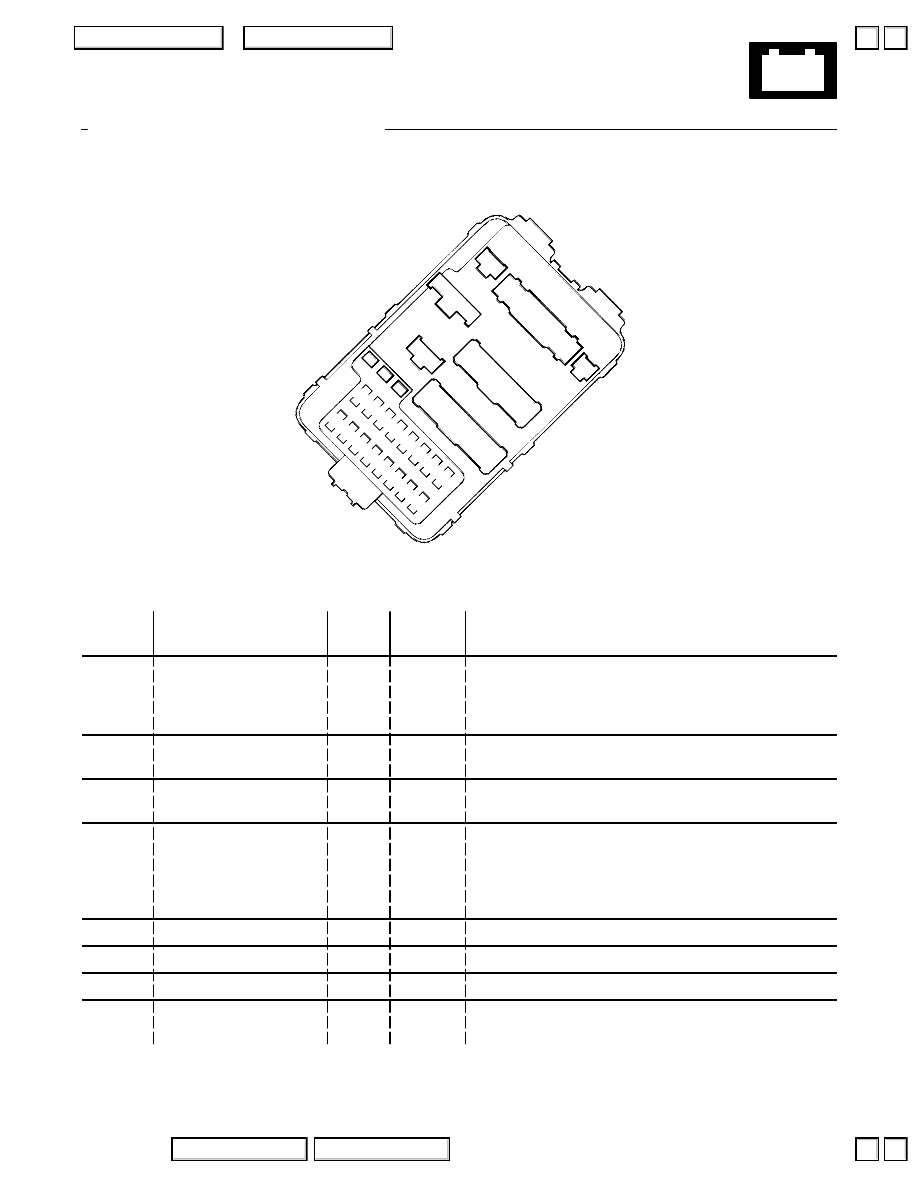

6-3

Passenger’s Under-dash Fuse/Relay Box

Fuse-to-Components Index

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

9

Fuse

Number

Fuse Name

Amps

Page

Component or Circuit Protected

10

SMALL LIGHT
LICENSE LIGHT

10

10-11

Dash and console lights, Driver’s multiplex control
unit, Front parking lights, Front side marker lights,
Glove box light, License plate light, Taillights, Vanity
mirror lights

11

INTERIOR LIGHT
COURTESY LIGHT

7.5

10-11

Ceiling light, Door courtesy lights, Spotlights, Trunk
light

12

(POWER DOOR
LOCK)

20

10-12

Passenger’s multiplex control unit

13

CLOCK
BACK UP

7.5

10-12

Climate control unit (w/auto A/C), Clock, Door
multiplex control unit, Driver’s multiplex control unit,
Gauge assembly, Heater control panel (w/manual
A/C), Passenger’s multiplex control unit, PCM or
ECM, Security indicator (EX)

14

(ABS MTR CHK)

7.5

10-13

ABS control unit (All except ’01-’02 V6)

14

(ABS MTR CHK)

7.5

10-13

ABS/TCS control unit (’01-’02 V6)

15

(P/W FRONT L)

20

10-13

Door multiplex control unit

16

(P/W REAR R)

20

10-13

Right rear window motor

E

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

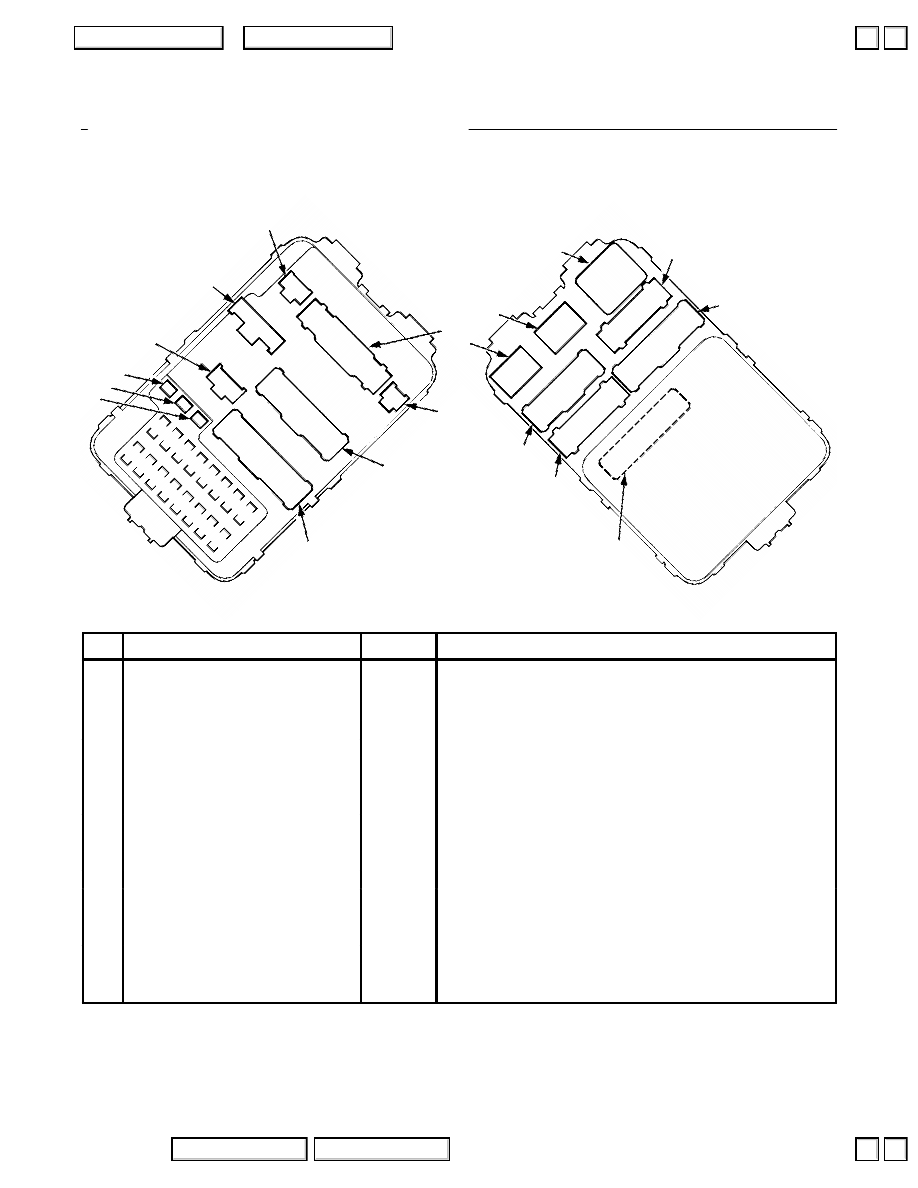

6-4

Passenger’s Under-dash Fuse/Relay Box

Connector-to-Fuse/Relay Box Index

10

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

9

9

8

17

18

7

16

15

14

13

12

11

1

2

3

4

5

6

Front View

Rear View

Ref

Socket

Cavities

Connects to

1

Diode

—

Not used

2

In-line diode 3

—

Circuit 175

(see page 15-5)

3

In-line diode 4

—

Circuit 176

(see page 15-5)

4

B

4

Roof wire harness

5

D

3

Right engine compartment wire harness

6

G

3

Right side wire harness (Canada EX and ’00 L4 only)

7

F

20

Passenger’s door wire harness

8

E

2

Passenger’s door wire harness (Canada only)

9

C

18

Right engine compartment wire harness

10

A

20

Right side wire harness

11

Multiplex control unit connector A

24

(Plugs directly into fuse box)

12

I

18

Dashboard wire harness A

13

K

16

Dashboard wire harness B

14

Power window relay

4

15

Accessory power socket relay

4

16

Rear window defogger relay

4

17

J

16

Dashboard wire harness B

18

H

18

Dashboard wire harness A

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

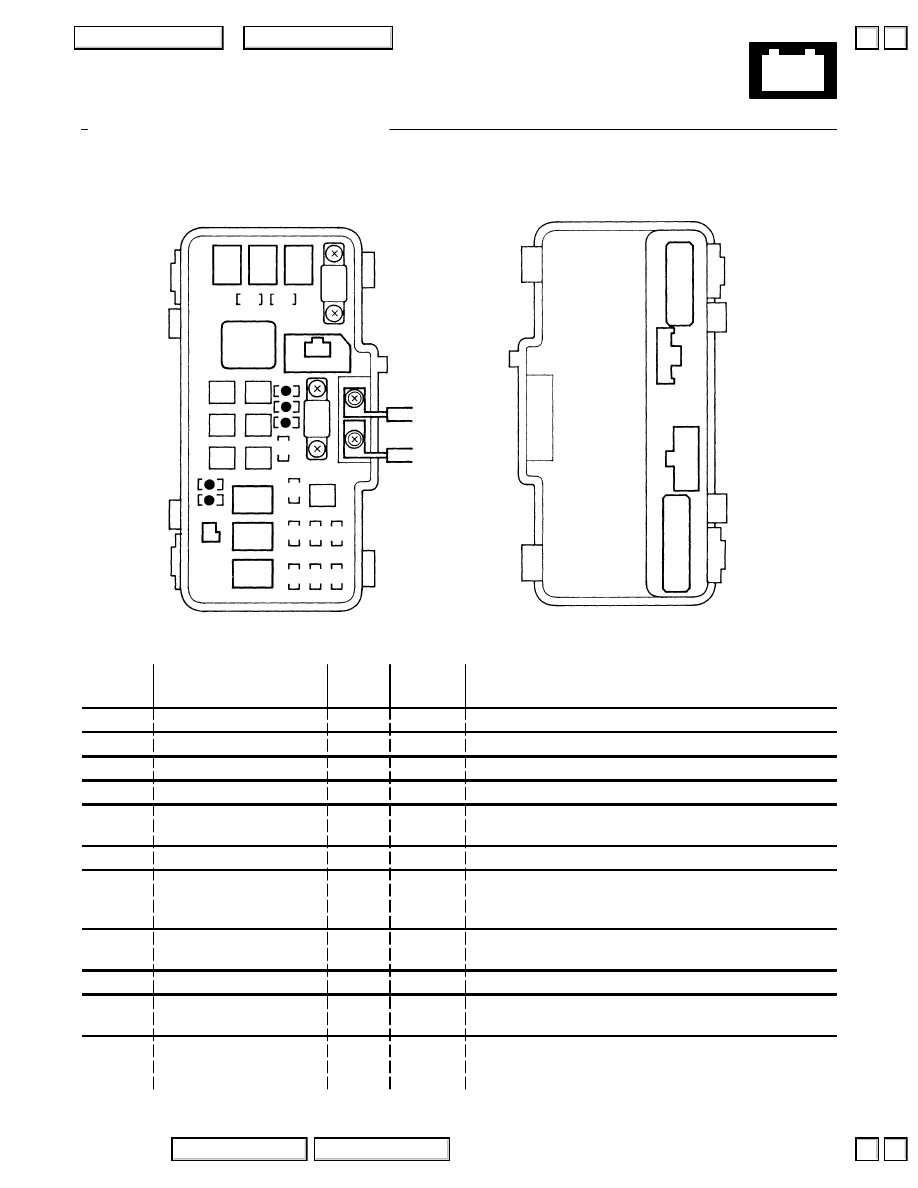

6-5

Under-hood Fuse/Relay Box

Fuse-to-Components Index

Top View

Bottom View

58

59

42

41

57

49

46

47

48

43

44

45

50

54

51

52

55

53

56

Fuse

Number

Fuse Name

Amps

Page

Component or Circuit Protected

41

BATTERY

100

10

Power distribution

42

IG1 MAIN

50

10-3

Ignition switch (BAT)

43

RIGHT HEAD LIGHT

20

10-14

DRL control unit (Canada), Right headlight

44

—

—

10-14

Not Used

45

LEFT HEAD LIGHT

20

10-14

DRL control unit (Canada), High beam cut relay
(Canada), High beam indicator (USA), Left headlight

46

ACG S

15

10

DLC, PGM-FI main relay

47

STOP

20

10-2

ABS control unit, Brake lights, Cruise control unit,
Horn relay, Ignition key light, Key interlock switch
(A/T), PCM or ECM

48

(ABS F/S)

(20)

10-2

ABS control unit (All except ’01-’02 V6), ABS/TCS
control unit (’01-’02 V6)

49

HAZARD

15

10-2

Turn signal/hazard relay

50

(ABS MOTOR)

(30)

10-2

ABS pump motor, Fuse 14 (in passenger’s
under-dash fuse/relay box)

51

(POWER WINDOW
MOTOR)

(40)

10-1

Fuse 1 (in passenger’s under-dash fuse/relay box),
Power window relay

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

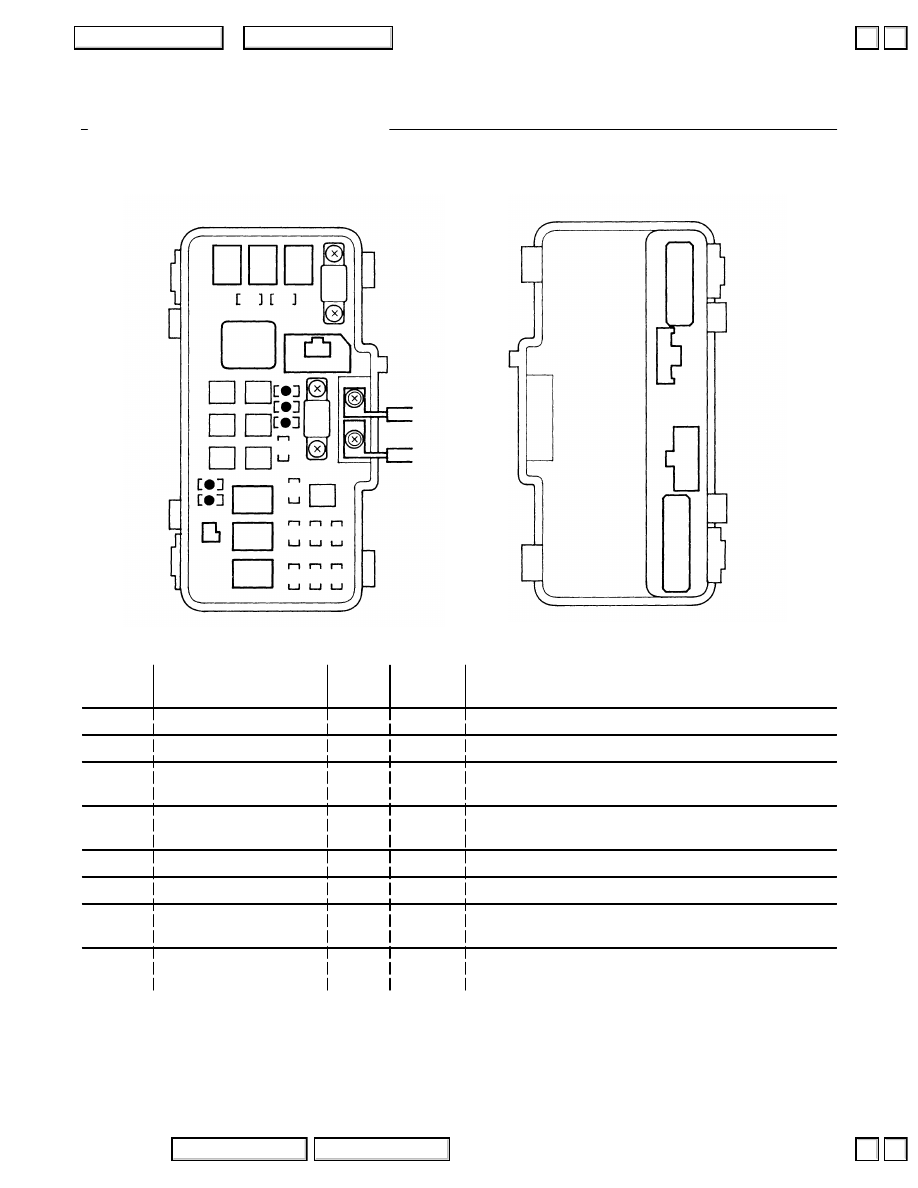

6-6

Under-hood Fuse/Relay Box

Fuse-to-Components Index

Top View

Bottom View

58

59

42

41

57

49

46

47

48

43

44

45

50

54

51

52

55

53

56

Fuse

Number

Fuse Name

Amps

Page

Component or Circuit Protected

52

BSC F/S

(20)

10

TCS relay

53

RR DEFROSTER

40

10

Rear window defogger

54

BACK UP, ACC

40

10-1

Fuses 9, 10, 11, 12, and 13
(in passenger’s under-dash fuse/relay box)

55

(POWER SEAT)

(40)

10-1

Fuses 2, 3, 4, 5, and 6
(in passenger’s under-dash fuse/relay box)

56

HEATER MOTOR

40

10-1

Blower motor

57

COOLING FAN

20

10-1

Radiator fan motor

58

(CONDENSER FAN)

(20)

10

A/C compressor clutch, Condenser fan motor,
Radiator fan control module (V6)

59

(HEATED SEAT)

(20)

10

Seat heaters (Canada EX)
