Ford F150 Pickup. Instruction - part 280

Fig. 42: Pinpoint Test E: Defrost System Is Inoperative (E6 - E7)
Courtesy of FORD MOTOR CO.

PINPOINT TEST F: DEFROST SYSTEM WILL NOT SHUT OFF AUTOMATICALLY

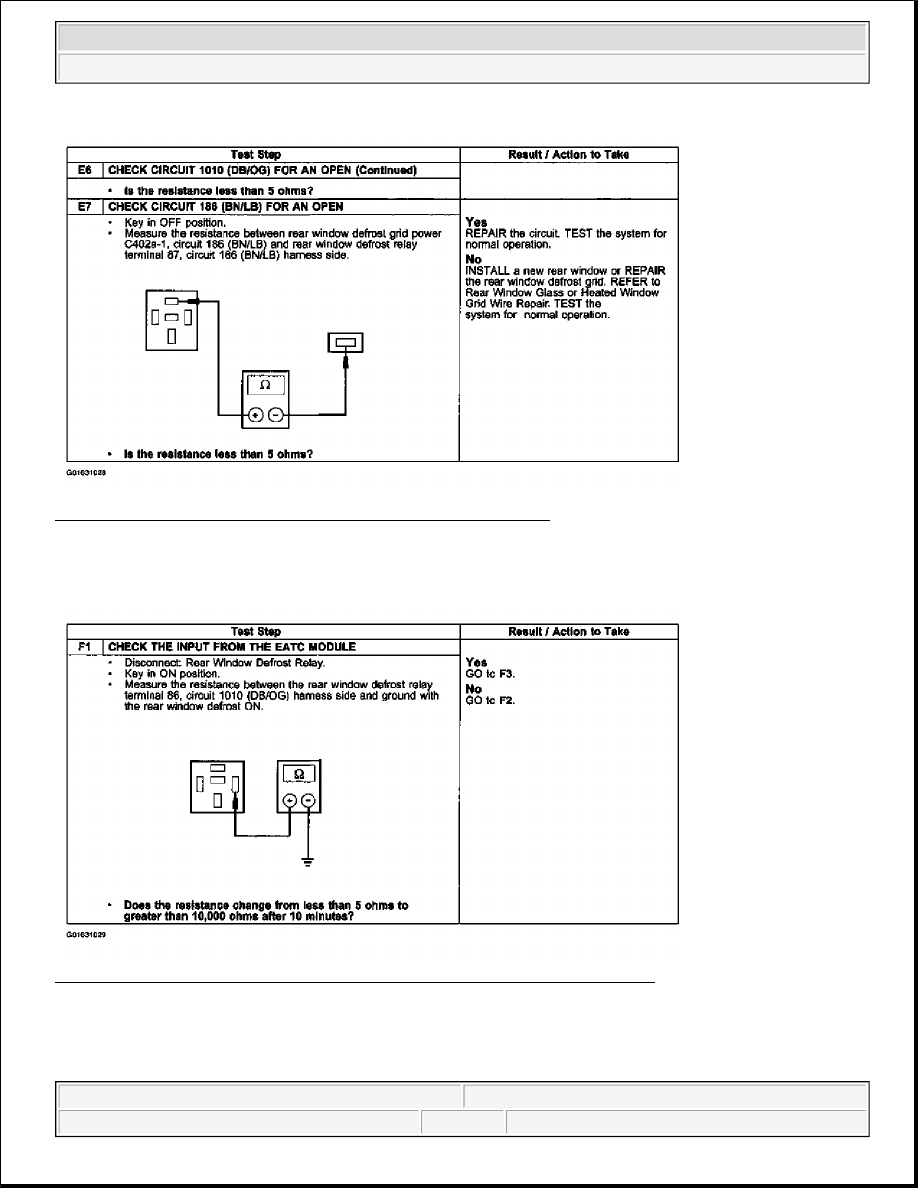

Fig. 43: Pinpoint Test F: Defrost System Will Not Shut Off Automatically (F1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 44: Pinpoint Test F: Defrost System Will Not Shut Off Automatically (F2 - F3)
Courtesy of FORD MOTOR CO.

GENERAL PROCEDURES

HEATED WINDOW GRID WIRE REPAIR

Material



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

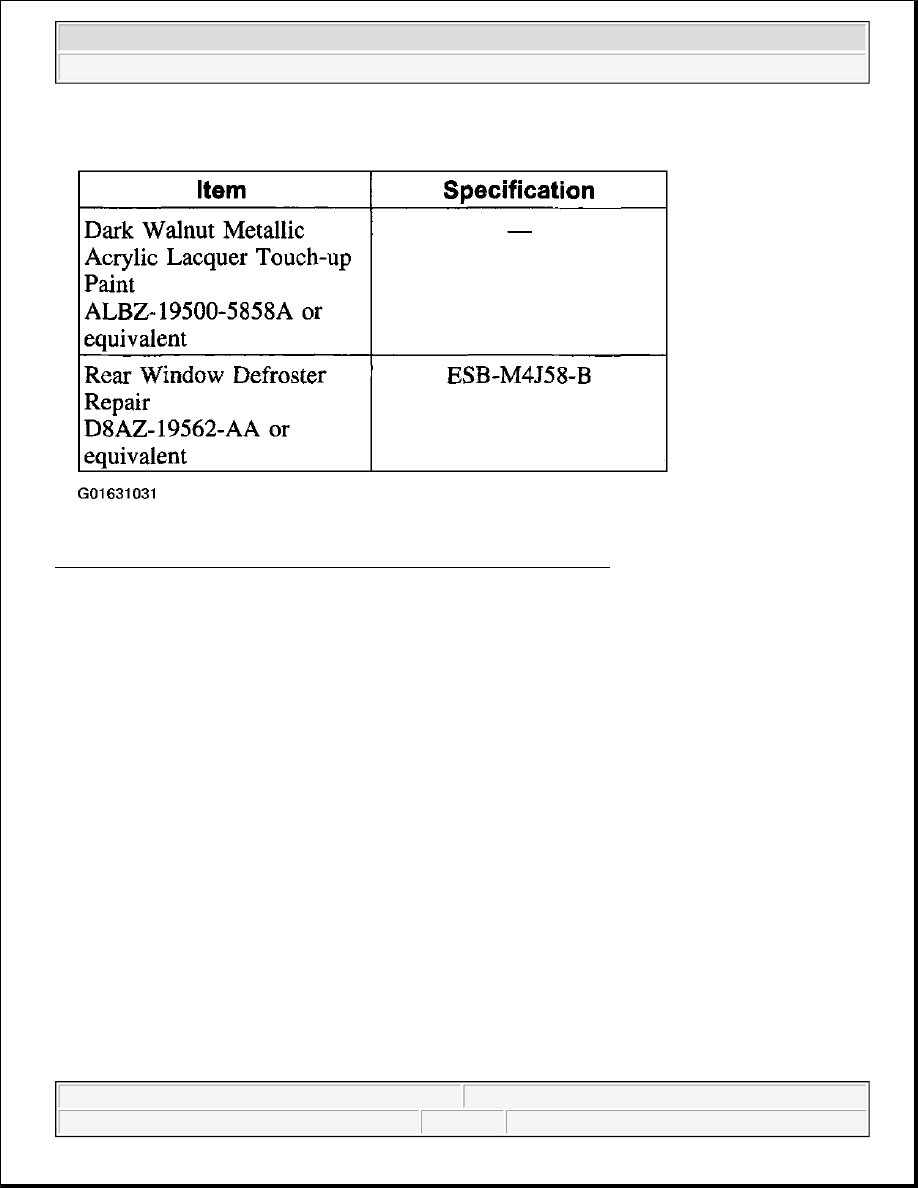

Fig. 45: Heated Window Grid Wire Repair Material Specification Chart
Courtesy of FORD MOTOR CO.

NOTE:

A single break or any breaks which exceed 25 mm (1 inch) in one grid
cannot be repaired. Install a new rear window glass.

NOTE:

If the first layer of the heated rear window grid (brown) is damaged or
missing, it will be necessary to apply touch-up paint on the glass prior to
applying the silver rear window defroster repair.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 46: Identifying Inoperative Grid Wires
Courtesy of FORD MOTOR CO.

1. Repair any inoperative grid wires using rear window defroster repair.

2. Bring the vehicle up to room temperature of at least 16° C (60° F) or above.

3. Clean the entire grid line repair area with a non-alcohol based window cleaner.

4. Mark the location of the grid break on the exterior of the rear window glass.
