Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 32





Electric System

EL-9

Starting Division

Starter

Starting relay

Assistant start button

The assistant start button is located at the right side of cab rear support. When the engine need to be repaired

under the truck, put the ignition switch to "ON" position and make the ignition relay's contactor pull-in. Let the
transmission in idle position and join up the idle switch. Press the sub-starting button under the truck to start the
starter.

Electromagnetic Main Power Switch

Operation principle

When this switch is turned on, the current passes through the coil and the contactor closed to connect the bat-

tery cathode and chassis frame.

As soon as fuse is burnt the electromagnetic main supply switch will automatically cut off the battery nega-

tive earthed circuit. So there will be no electricity in the complete truck.

Specification

Trouble analysis

Vehicle model

DFA1064DH01-985

Nominal voltage (V)

24

Nominal power (kW)

3.7

Pinion teeth

10

Pinion module

2.54/2.1167

Brake torque (N · m)

40

Brake current (A)

800

Brake voltage (V)

12

Operating voltage (V)

18~32

Operating current (A)

50

Pull-in voltage (V)

9~17

Drop-off voltage (V)

1~8

Mode

Nominal voltage

Operating voltage

Operating current

Main contacts current

in operation

DK238

24V

20~30V

0.5A

300A

Trouble

Cause

Remedy

Jamming

The electromagnetic main supply switch is
jammed

Slap the housing gently or
repair

Not working

The electromagnetic main supply switch's interior
trouble

Repair or replace

Electric  System

EL-10

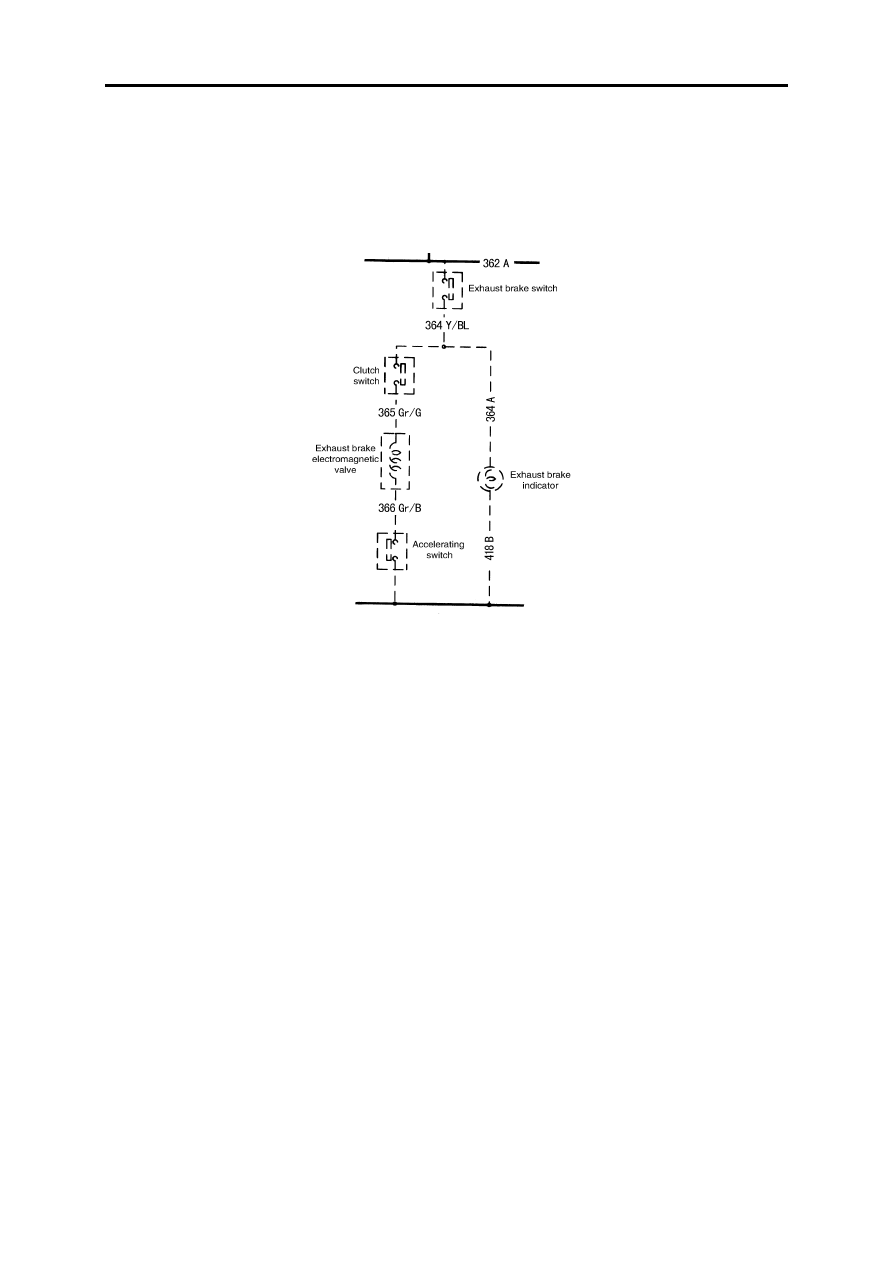

Exhaust Brake System

The exhaust brake is operative when the foot is removed from both the clutch pedal and the accelerator

pedal; and the exhaust brake switch, clutch switch, accelerator switch and electromagnetic solenoid are all on. But
the exhaust brake will be released when either the clutch pedal or the accelerator pedal is depressed.

Note:
The exhaust brake indicator lamp comes on, which only indicates the exhaust brake switch is ready for

operation, not indicates the exhaust brake is operative.

Electric System

EL-11

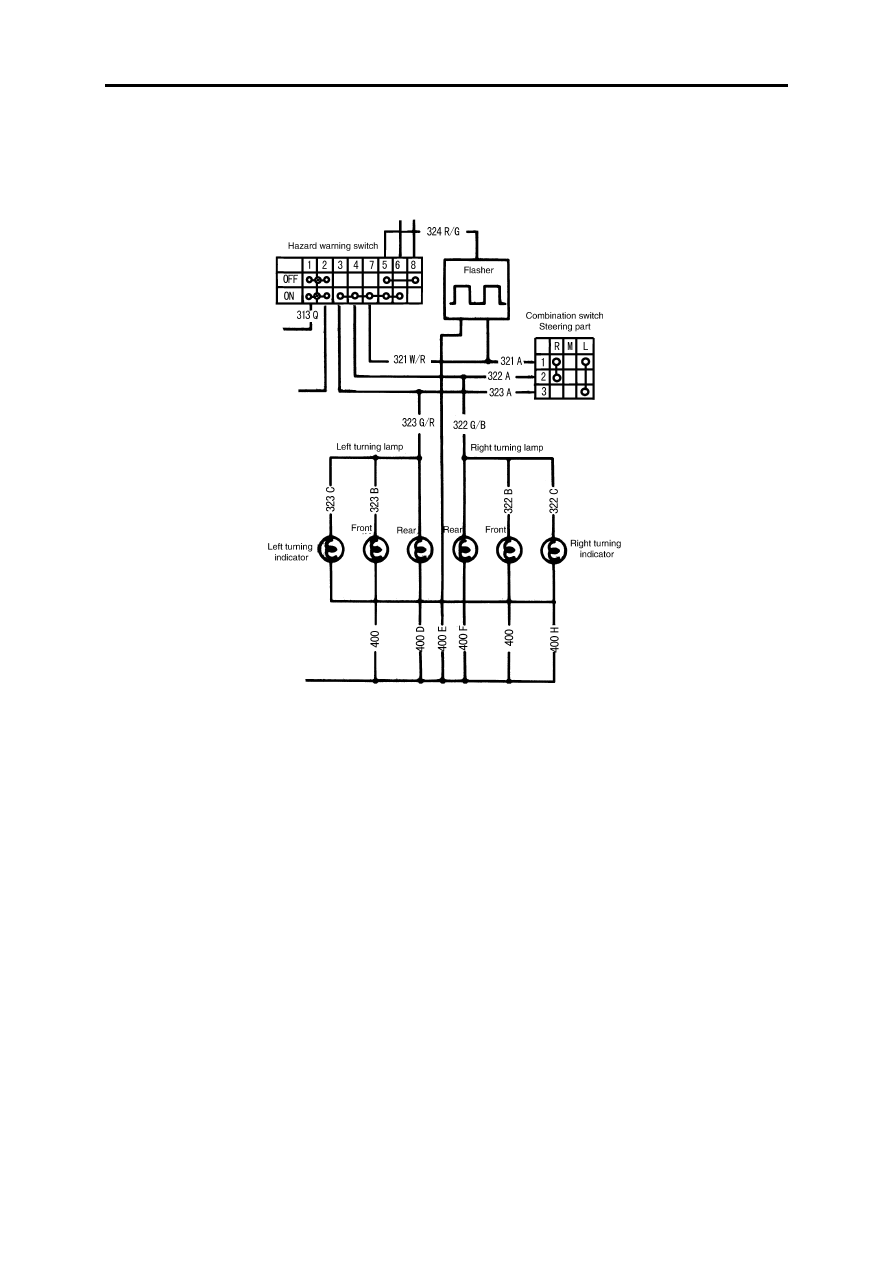

Hazard Warning System

When the hazard warning switch is in the alarm position, the left and right turning signal lamps will flash

simultaneously.

Electric  System

EL-12

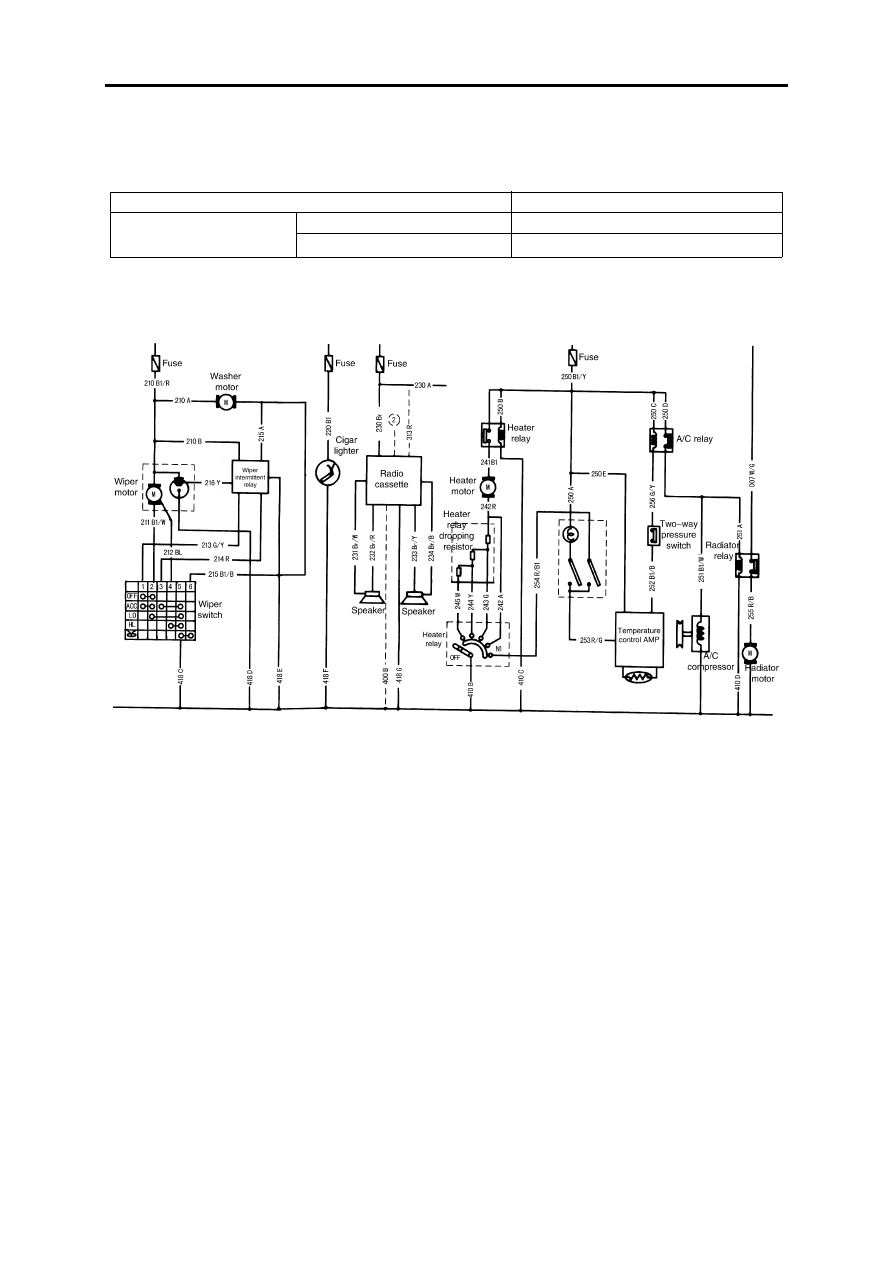

Accessories

Wiper motor

Power

50

Revolution

Low speed

40

High speed

60 ± 6

 -2
 +3
