Cab

BF-11

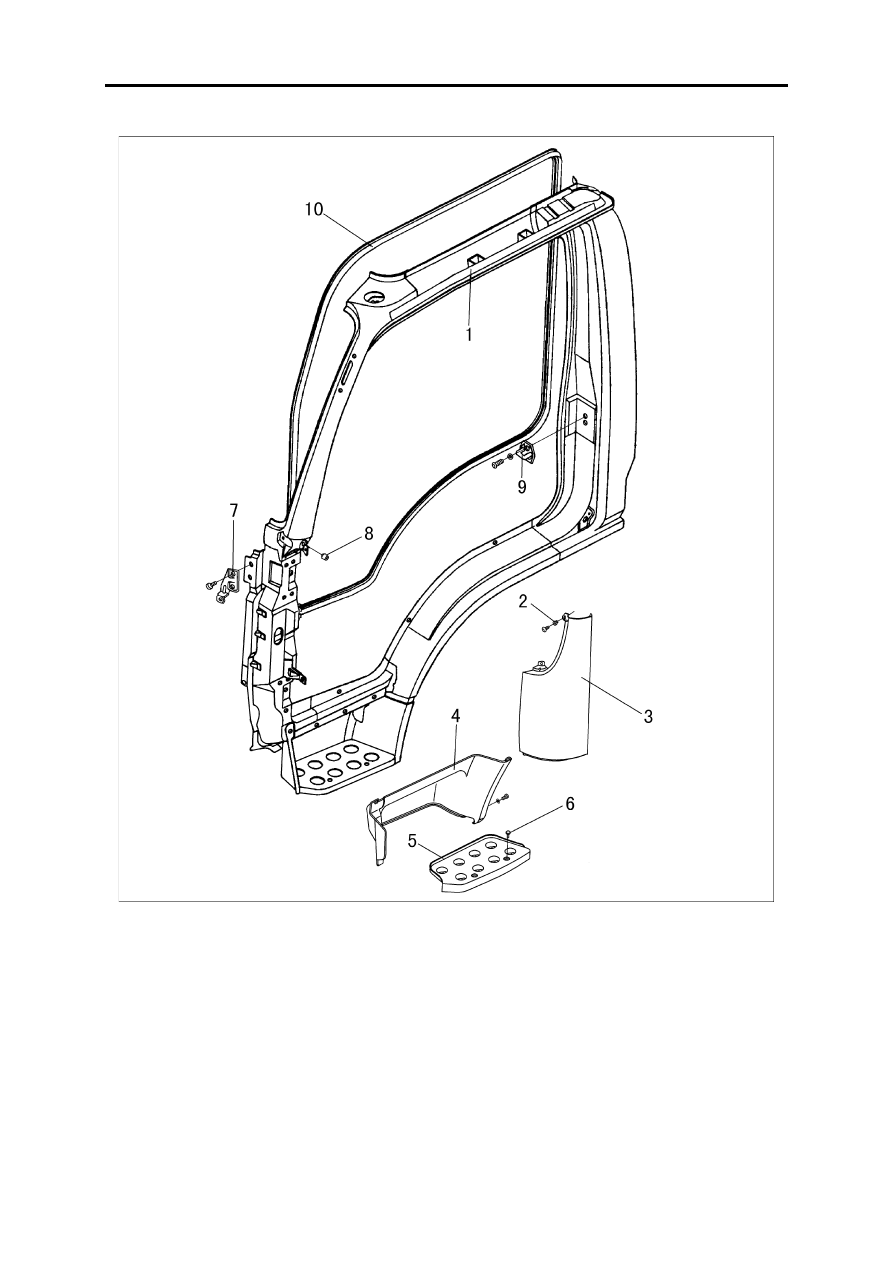

Pedal shield and pedal pad

1.

Welded left side panel assembly

2.

Plastic nut assembly

3.

Outer cover assembly

4.Pedal shield
5.Pedal pad

6.

Clip assembly

7.

Front bracket

8.

Buffering rubber nail

9.

Door lock dowel pin assembly

10.

Door sealing strip assembly

Cab

BF-12

Seat

Note:
When assemble or disassemble the seat, it should be maintarined clean and well.

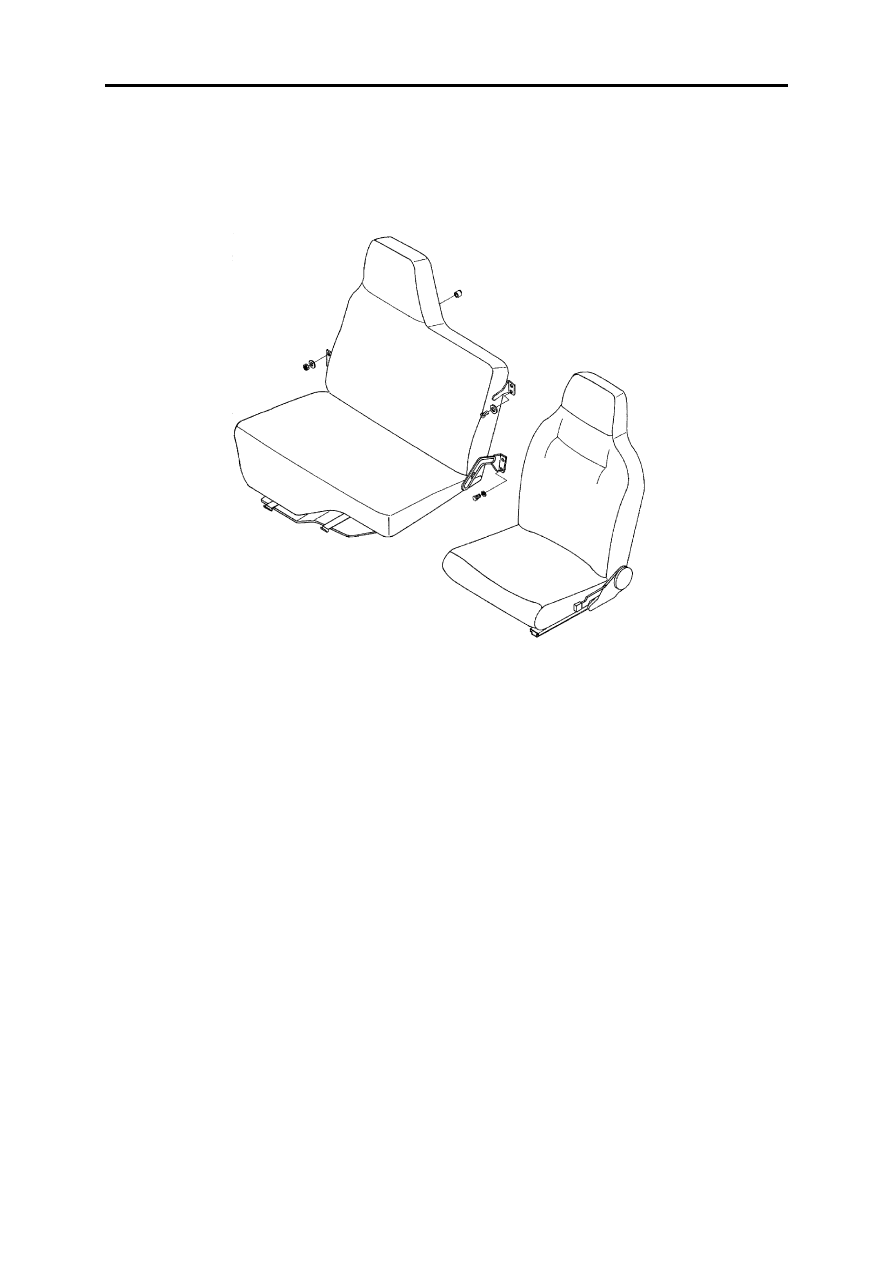

Front seat

Cab

BF-13

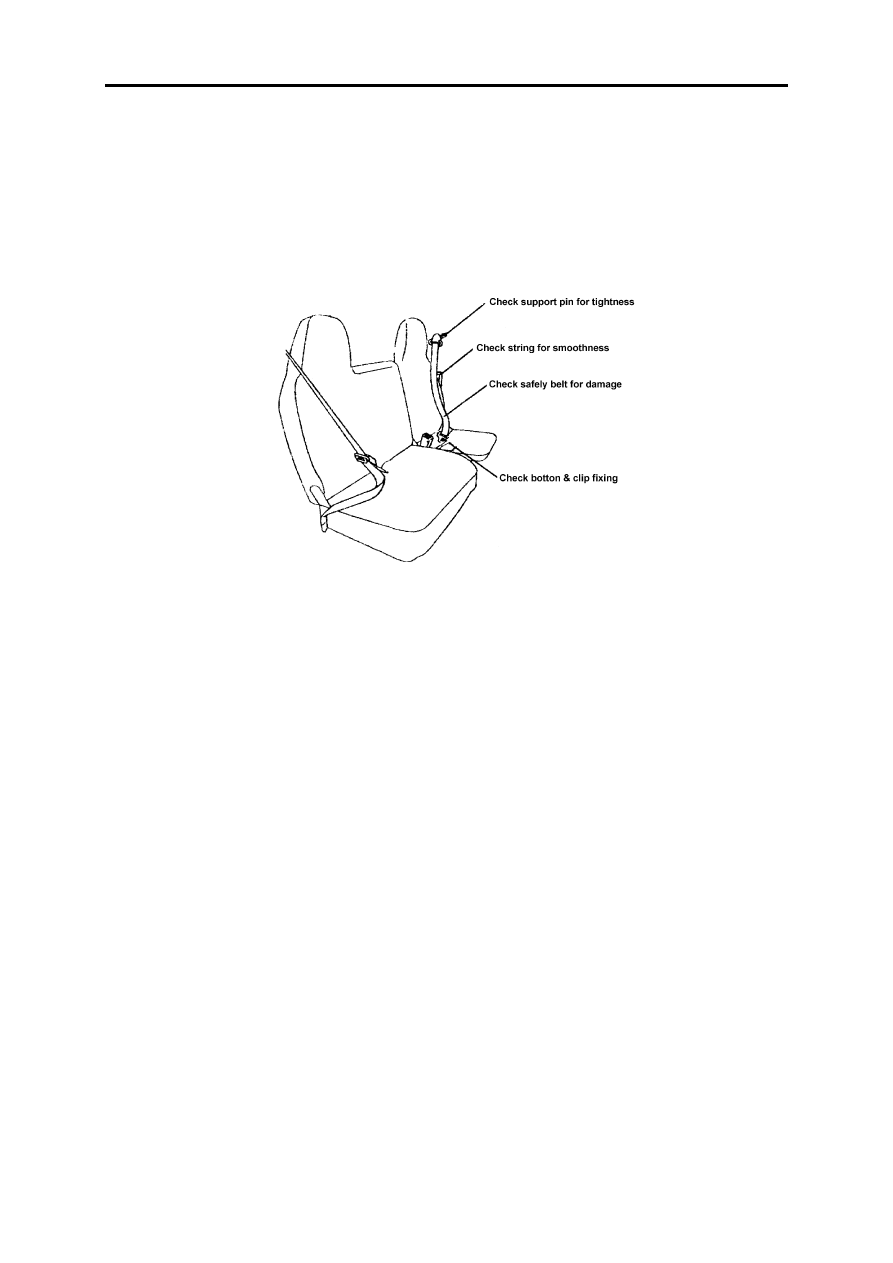

Cab Safety Belt

Notes:
If the vehicle in severely dashed in an accident, whatever the nature of the accident is, the belt assembly must be
replaced.
If any part of the belt has quality problems, it must be replaced instead of repairing it.
If there is any cut, looseness or damage on the texture, etc., replace the assembly.
Wine, oil or other material should not be sprayed into the buckle hole lock, so does not the huckle and the knob.

Cab

BF-14

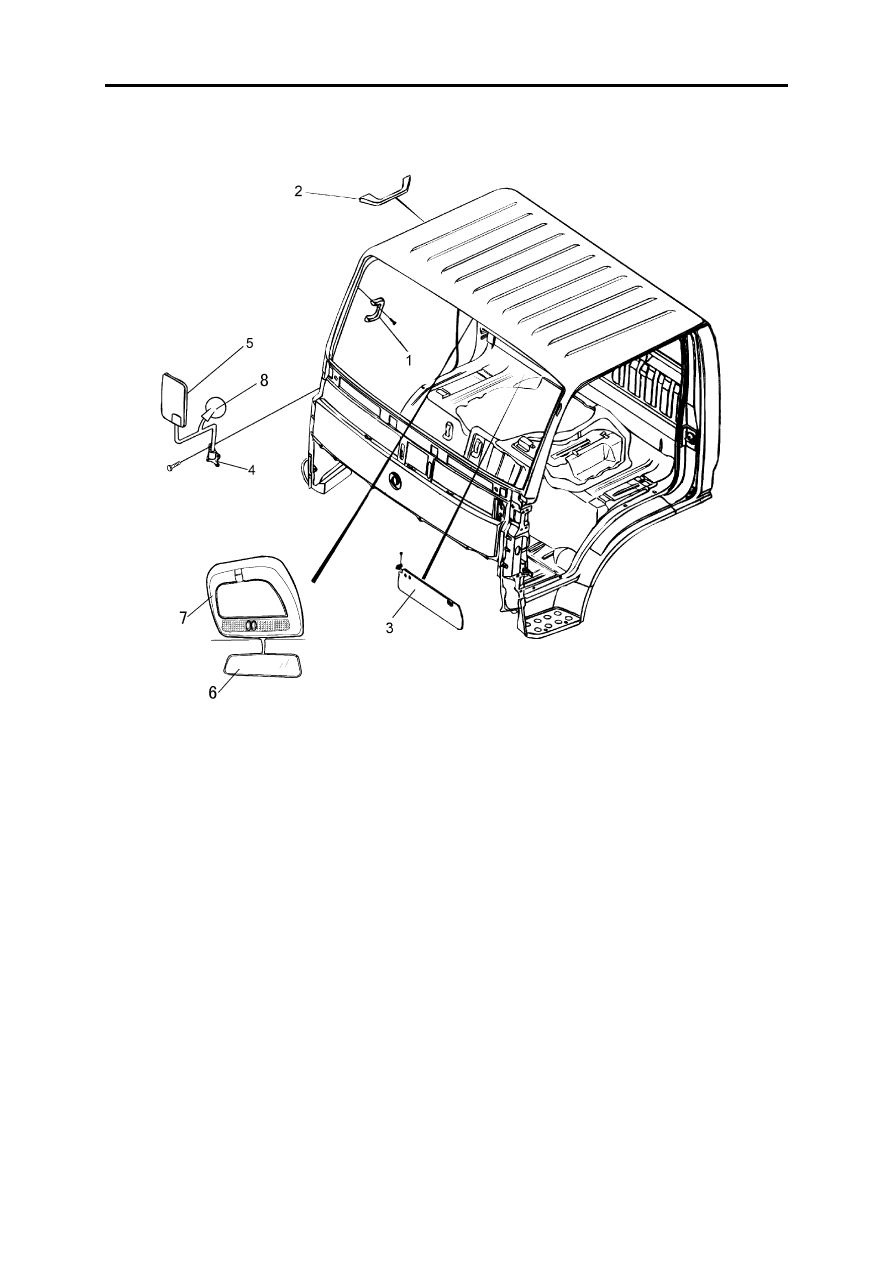

Rear Mirror Outside Cab

1.Handrail
2.Handrail
3.Sun visor assembly
4.Outside rear view mirror bar assembly

5.Rear view mirror assembly
6.Inside rear view mirror
7.Dome glove box with roo lamp assembly
8.Down view mirror assembly
