Dongfeng EQ1030T47D-820. Manual - part 37

Cab

BF-3

Door

Front Door

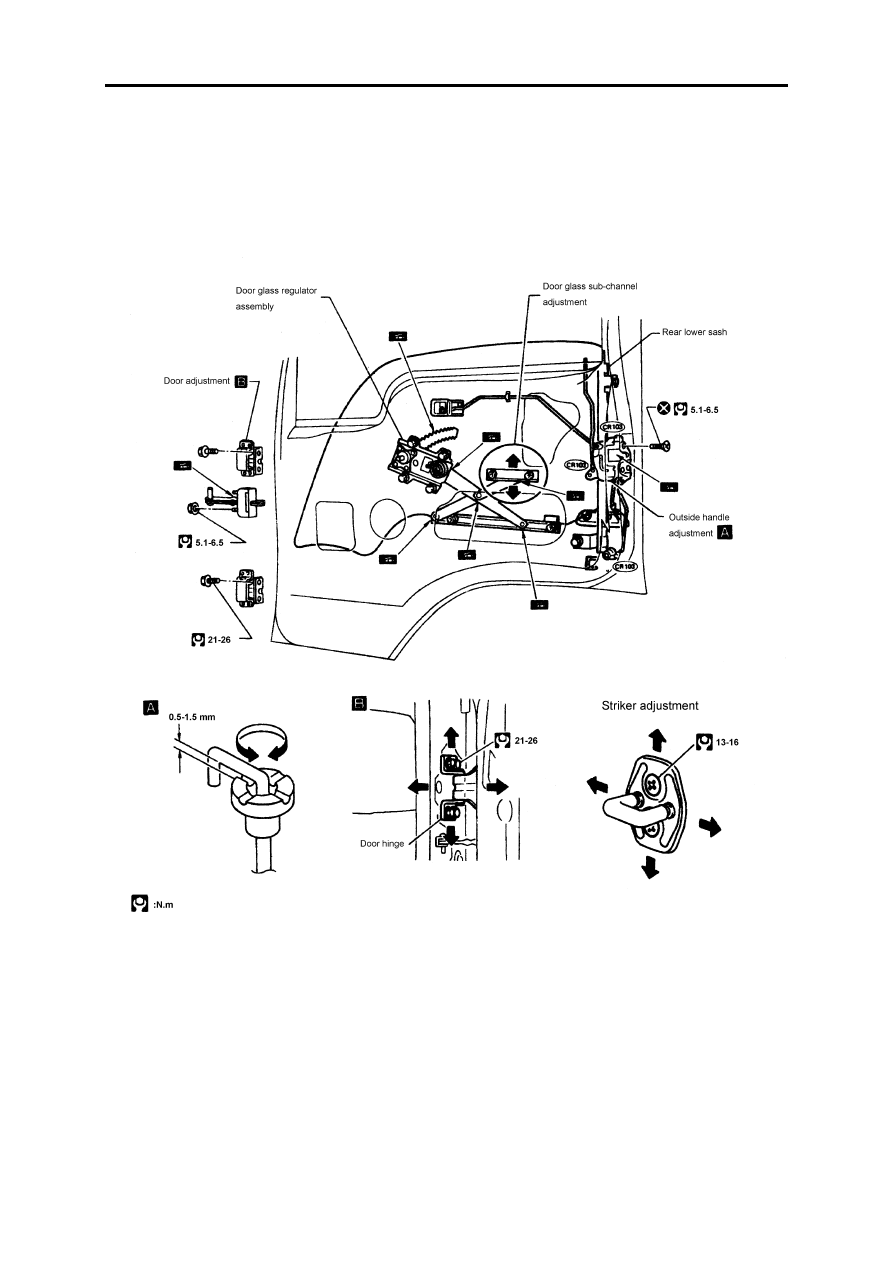

Note:
•When disassembling the front door, it is better to disassemble the cover at  front side first.
•After adjusting the door or door lock, check the door lock open and lock condit ion.

Cab

BF-4

Instrument Panel

Note:

•Before disassembling the instrument panel, switch off the power-supply.
•e careful not to scratch pad and other parts.
•These parts are made of plactic. Excessive force will damage them.

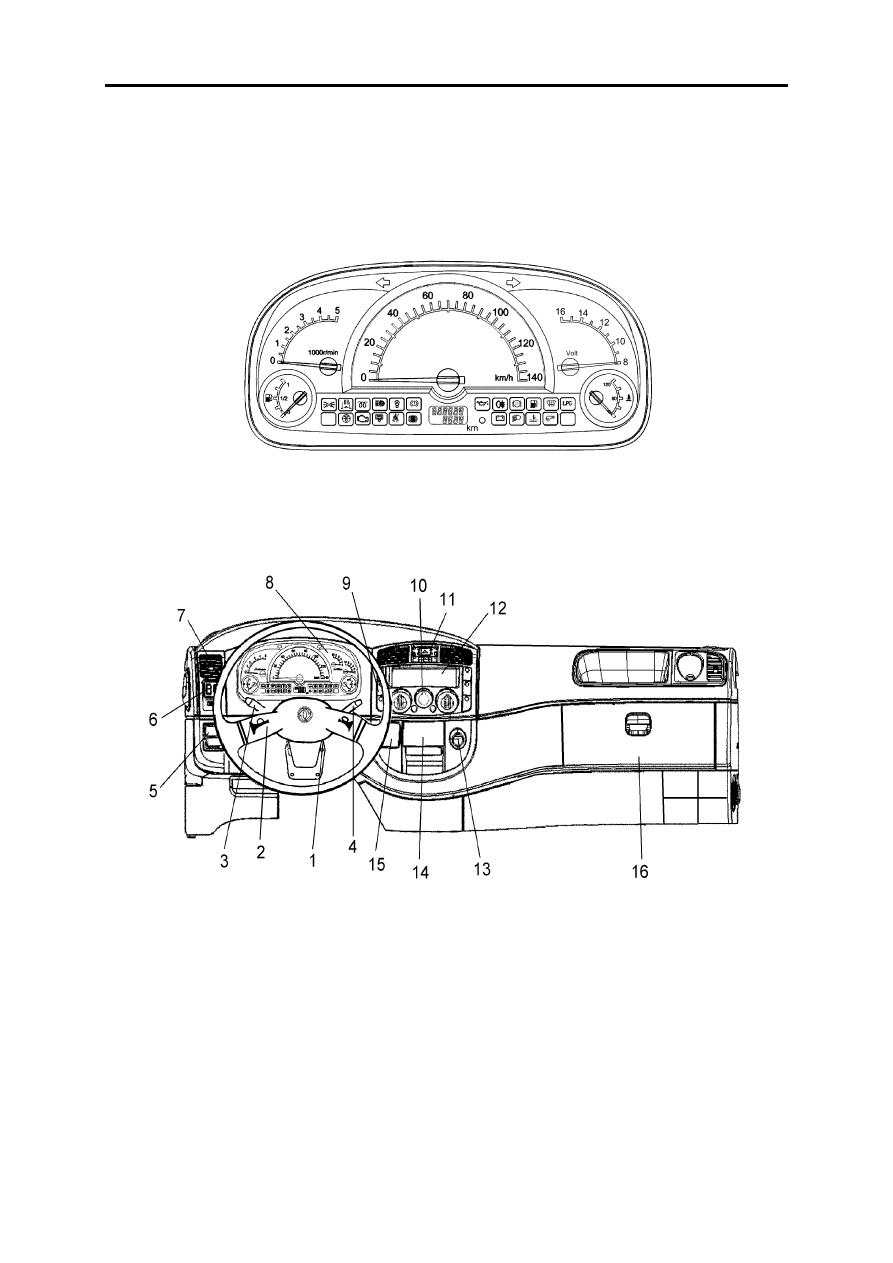

Cab arrangement

1.Ignition lock
2.Horn button
3.Combined light switch
4.Windshield wiper & washer rod
5.Compartment light switch
6.Windshield switch
7.Vent
8.Instrument panel

9.Fog light switch
10.Heater switch
11.Hazard warning light switch
12.Radio cassette
13.Cigarette lighter
14.Ashtray
15.Storage box
16.16.Glove box

Cab

BF-5

Cab Interior Trims and Exterior Trims

Interiorl trims

Side ard floor trims--Passenger area

Note:
•Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

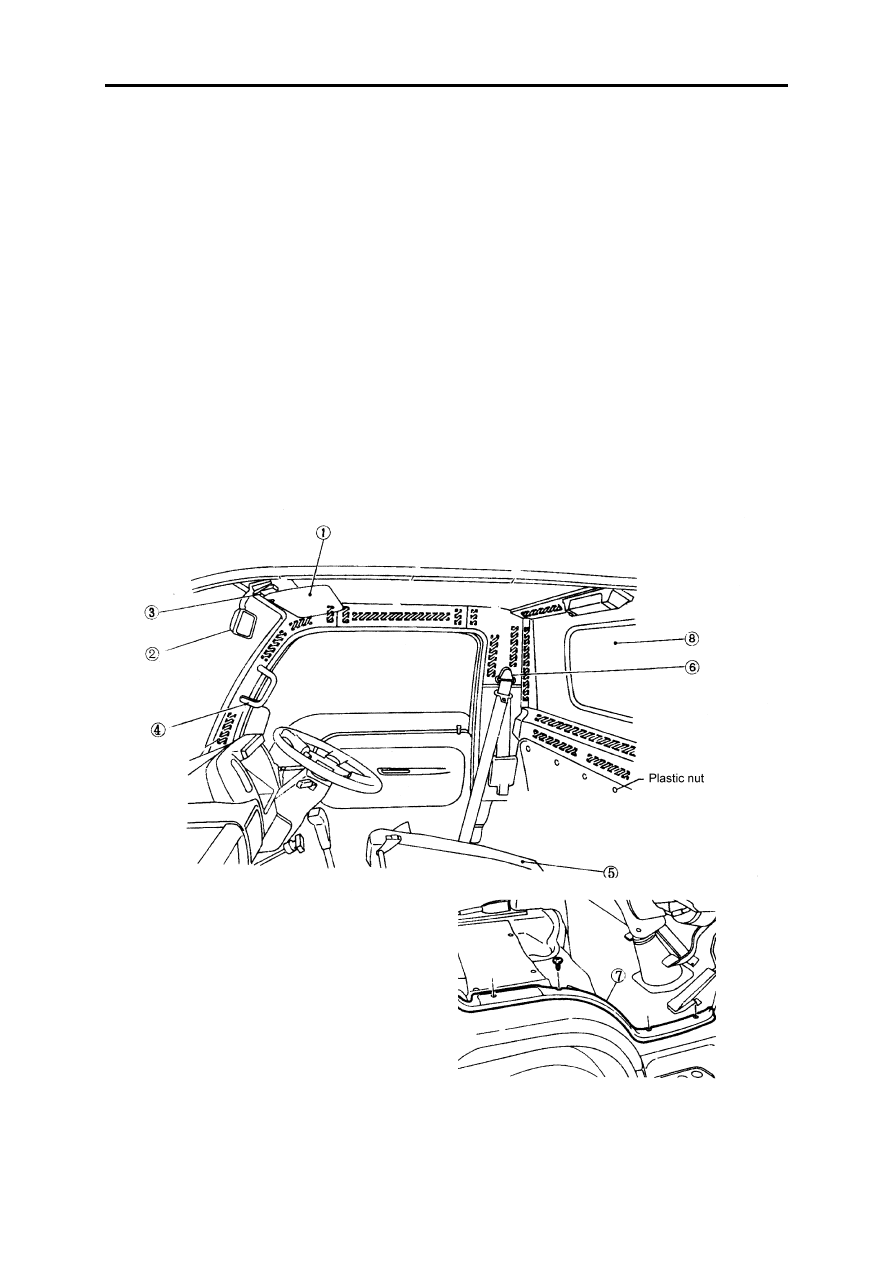

Disassembly of the side inner trims:

①

Disassemble the sun visor.

②

Disassemble the rearview mirror.

③

Disassemble the roof lamp ass'y.

④

Disassemble the handrail.

⑤

Disassemble the seats.

⑥

Disassemble the safely belt.

⑦

Disassemble the door guardrail.

⑧

Disassemble the rear window glass.

Cab

BF-6

Door trims

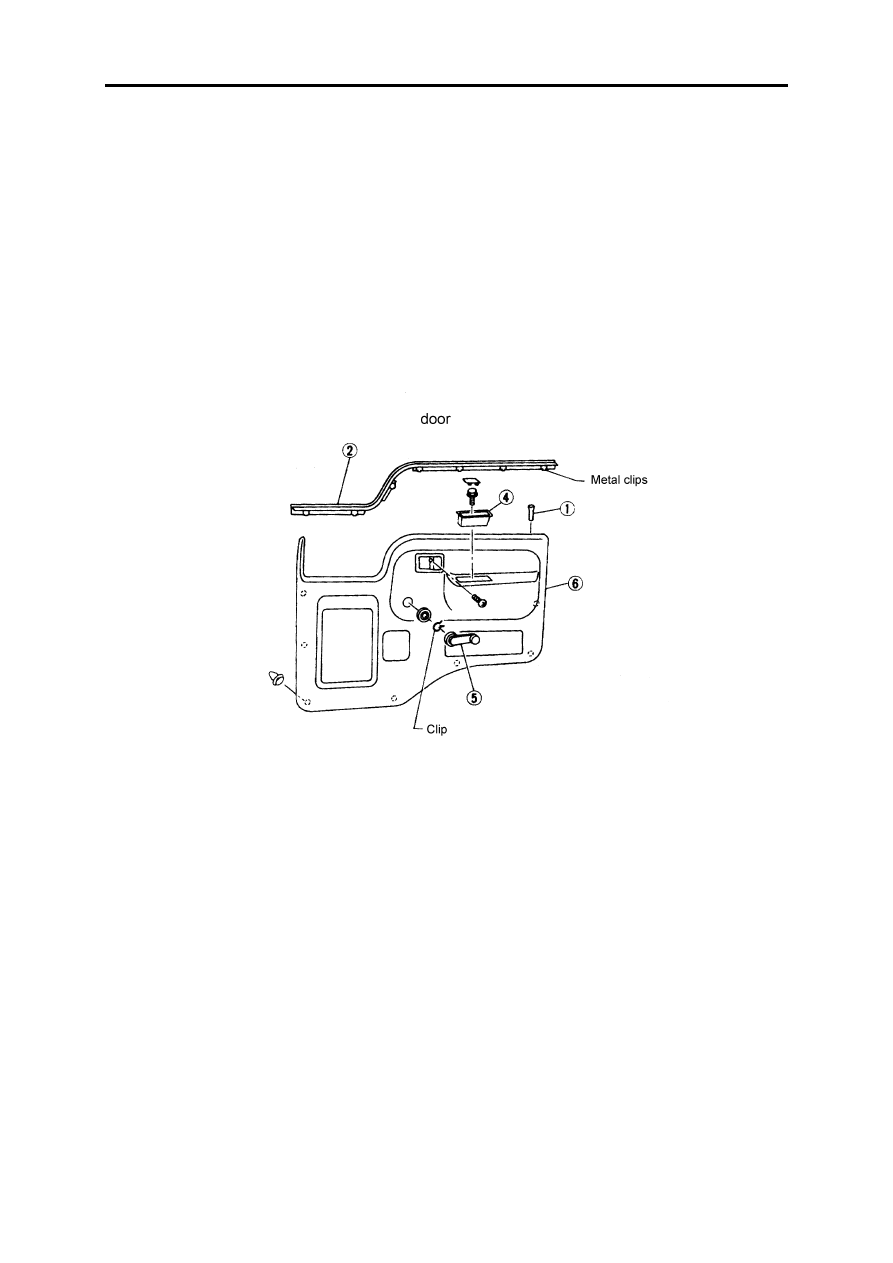

Disassembly of the door trims:

①

Disassemble lock knob.

②

Disassemble inside seal.

③

Disassemble inside handle escutcheon rear door).

④

Disassemble pull handle.

⑤

Pull out regulator handle.

⑥

Disassemble inner guard board of door (front door).
