Steering System

ST-7

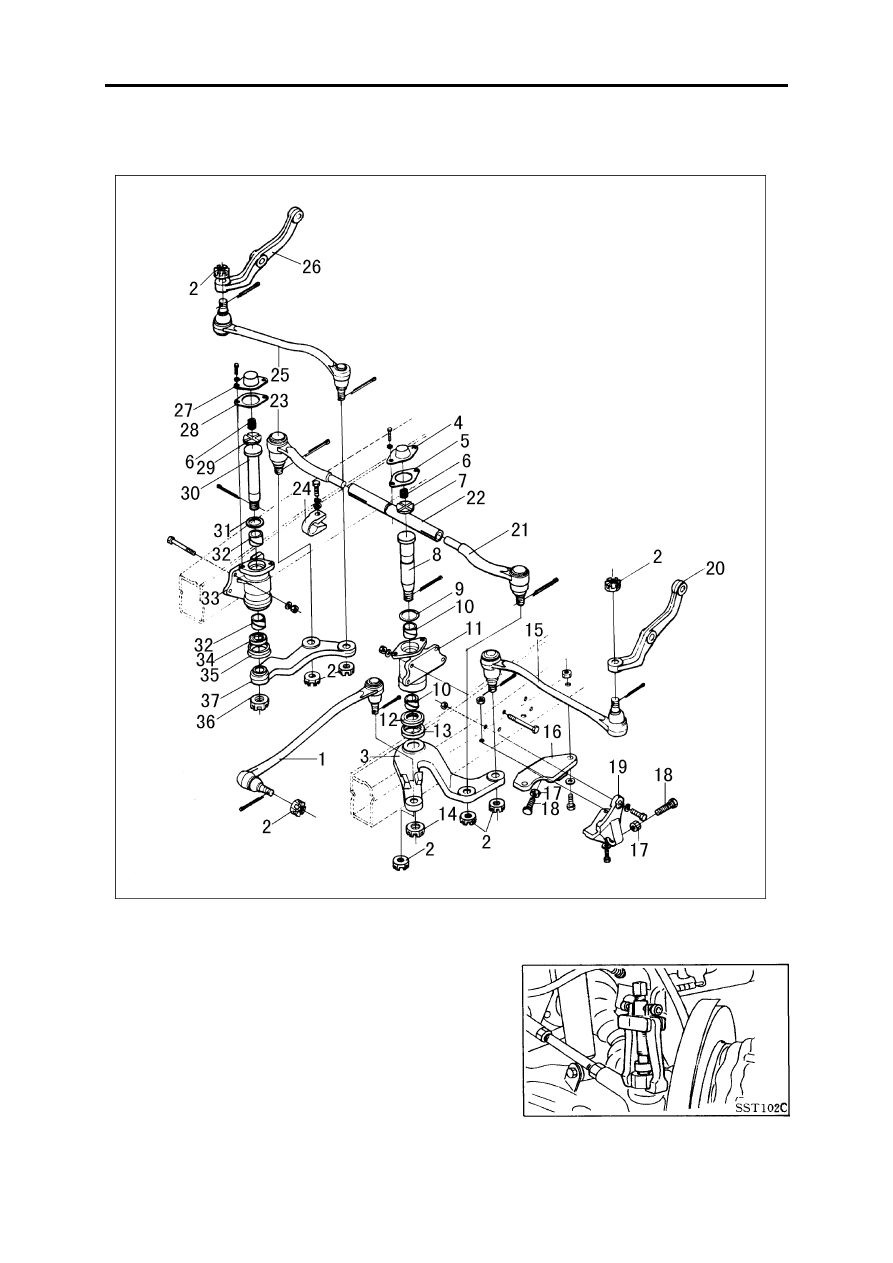

Steering Tie-rod

Disassembly and assembly

1.Remove the cotter pin and nut from the tie-rod connecting

part, and then make use of proper tool to separate steering knuckle
arm from tie-rod.

Steering System

ST-8

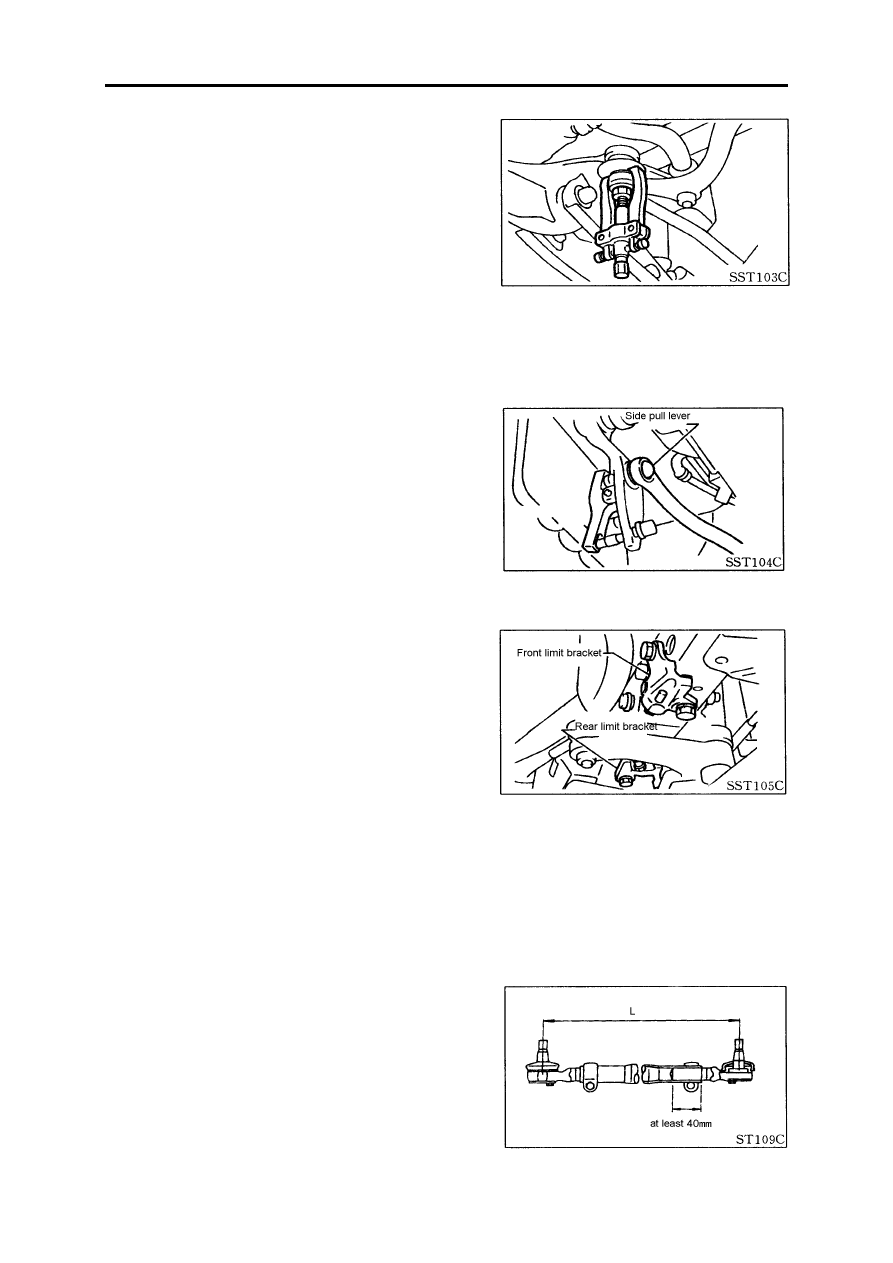

2.Make use of proper tool to release the ball pin connection

part like connecting pull rod, etc.

3.Remove the drag link from the steeringdrop arm by use

of tools.

4.Remove the fixed bolt of front and rear limit bracket.

Intermediate pull rod and tie-rod

1.When disassemble the tir-rod ball head connection,

adjust the pull rod length.

Adjust it betwen the ball head bolt center.

Standard length: See "Maintenance data and explanation"

2.Lock the fixed nut of the tie-rod to assure the consistent

motion of two ends.
Note:
To assure the connecting pull rod screw up to 40mm length in
the tie-rod pipe.

Steering System

ST-9

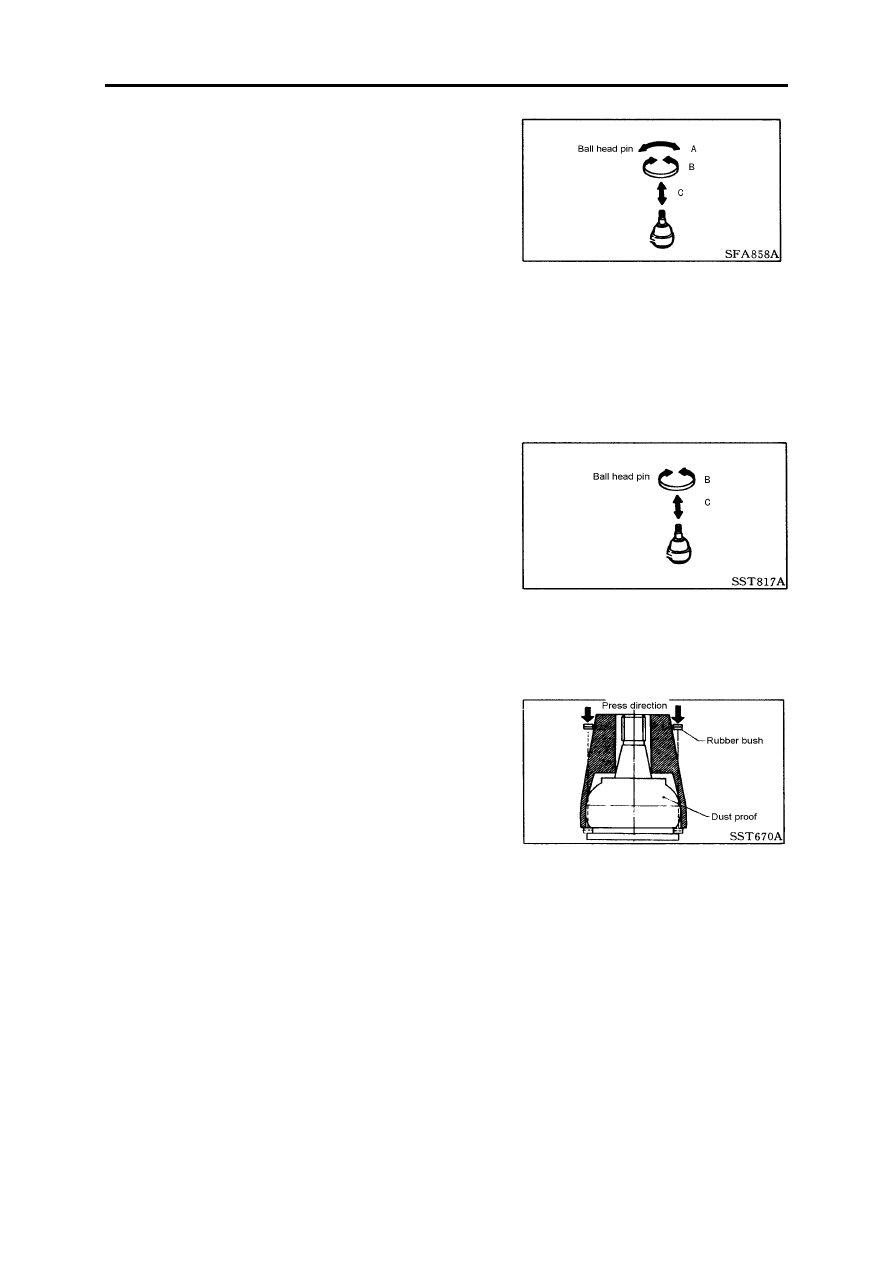

Check

Ball head pin assembly

1.Check the ball head pin travel. If there is damage, too large

axial clearance or hard move of the ball head pin, replace the ball
head pin assembly.

Transverse swing force(measuring point: cotter pin) A:

See "Maintenance data and explanation".

Driving moment B:

See "Maintenance data and explanation".

Axial clearance C:

0mm

2.Check the working condition of the dust proof. If it had been

damaged, replace immediately.

a.When replacing the dust proof, pay much attention to it and

do not damage it.

b.Use the li-based grease to lubricate the ball head pin if nec-

essary.

c.Install the dust proof by the special tool, and be careful never

let the dust proof over expansion.

Note:
Be careful and never let the grease on the tapered part of the bal
head pin.

Drag link and tie-rod

Check the tie-rod and the related rods for any break, bend or

crack, replace if necessary.

Fixing and adjusting part:

Check each connecting part (bolt and cotter pin) for any loose-

ness, clearance or damage.

If there is looseness or extra clearance, check the ball head pin

for damage.

When reassembling the ball head pin, use a new one.

Steering System

ST-10

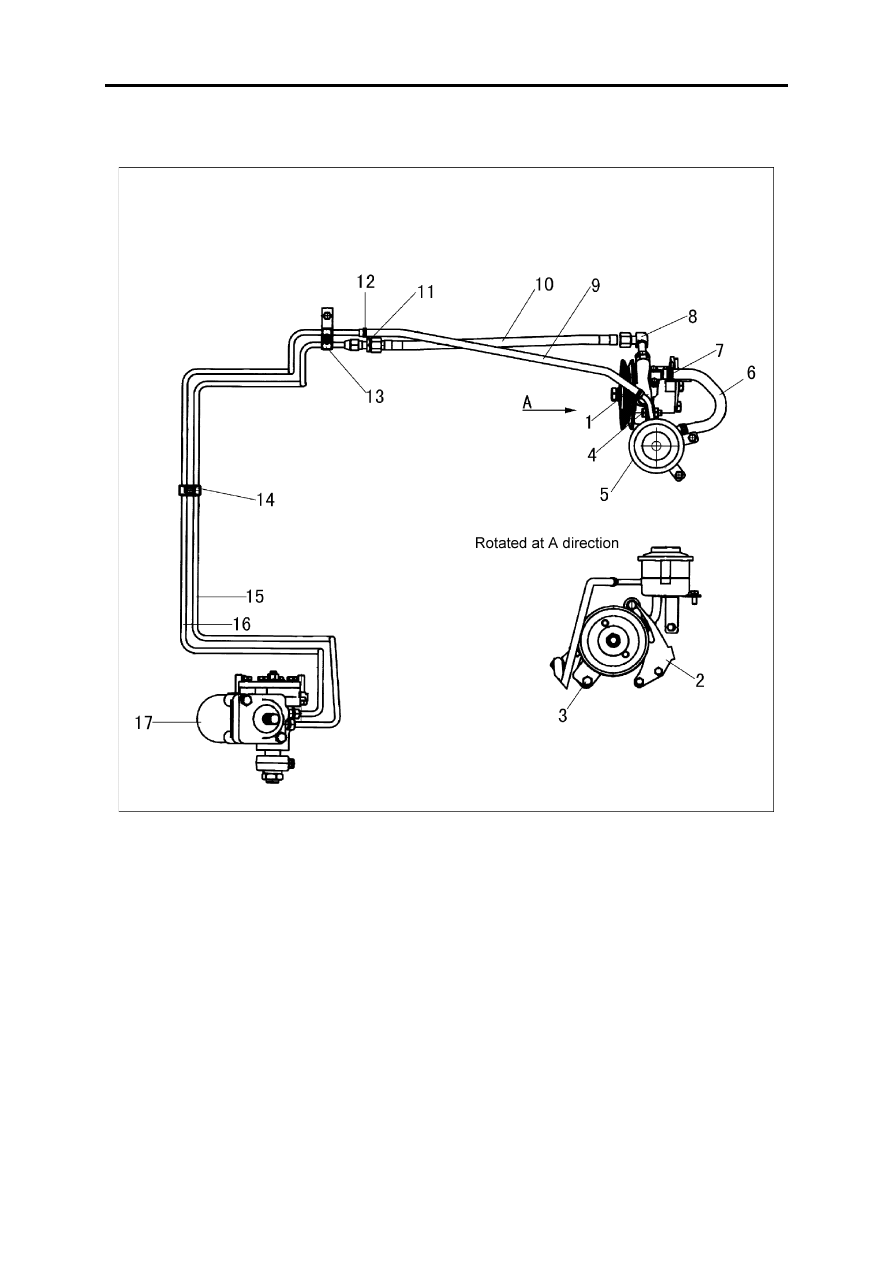

Power Steering System

1.

Steering oil pump assy

2.

Steering oil pump bracket

3.

Bolt

4.

Bolt

5.

Oil reservoir assy

6.

Oil pump intake pipe assy

7.

Clip

8.

Adjustable elbow joint assy

9.

Rubber hose

10.

Steering gear oil intake hose assy

11.

Straight joint

12.

Throat hoop

13.

Dual pipe clip upper bracket

14.

Steel pipe clip backing ring

15.

Steering gear oil intake pipe assy

16.

Steering gear oil return pipe assy

17.

Power steering gear assy
