Dongfeng EQ1030T47D-820. Manual - part 30





Steering System

ST-3

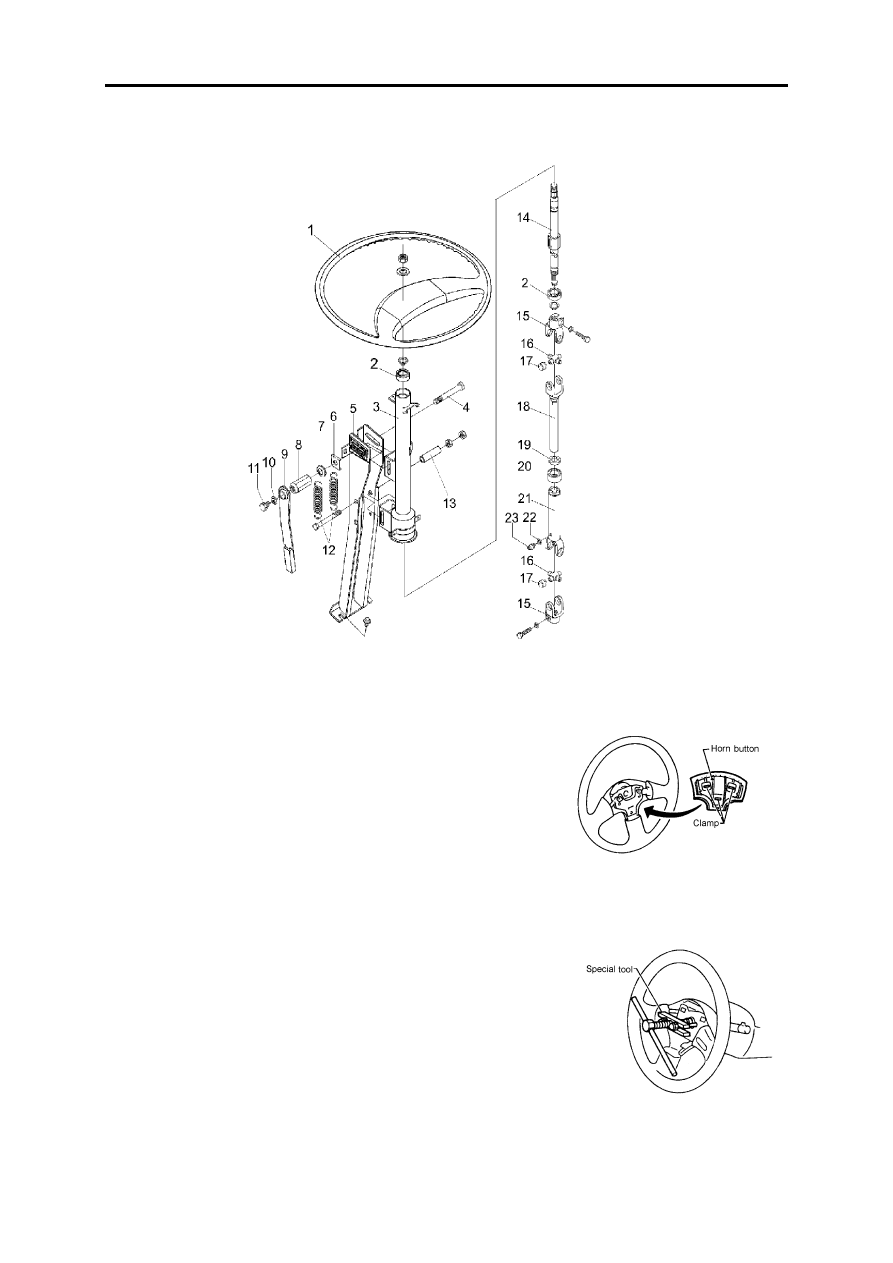

Steering Wheel and Steering Column

Steering Wheel

·

Remove the horn button.

·

Disassembling the steering wheel by using special tools.

Steering System

ST-4

·

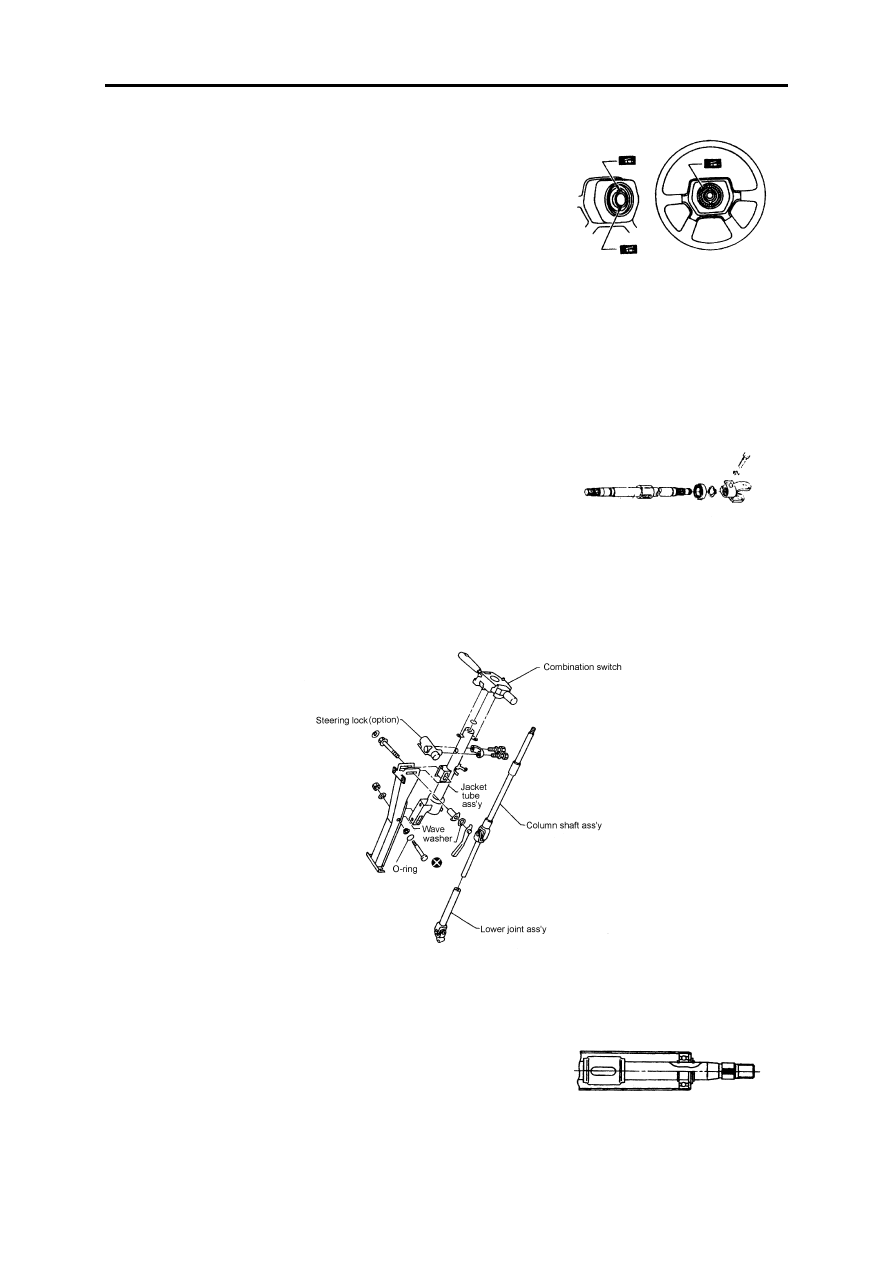

When installing the steering wheel, apply a layer of multi-purposed

grease on the whole surface (two parts) of the automatic return-back pin of
steering indicator and touch point of the horn.

·

Install the steering wheel on the column shaft at the central position.

·

After installing, turn the steering wheel, make sure to have a smooth

movement and the same turning cycles on both left and right side at the
central position.

Steering Column

·

When fixing the steering column, first screw all the lock bolts of lower

bracket and clips with hands, and then re-tightening again to make sure no
extra pressure will apply to the steering column.

·

When fixing the steering spline shaft, make sure that the tightening bolts

and the sunken part of the shaft are correctly faced to each other.

Disassembly and Assembly

·

When assembling and disassembling, turn on the steering lock with the

key.

·

Be sure the surface of the spring lock ring after installing faces with the

shaft.

·

Before putting the shaft into the sleeve, install the spring lock ring.

Steering System

ST-5

·

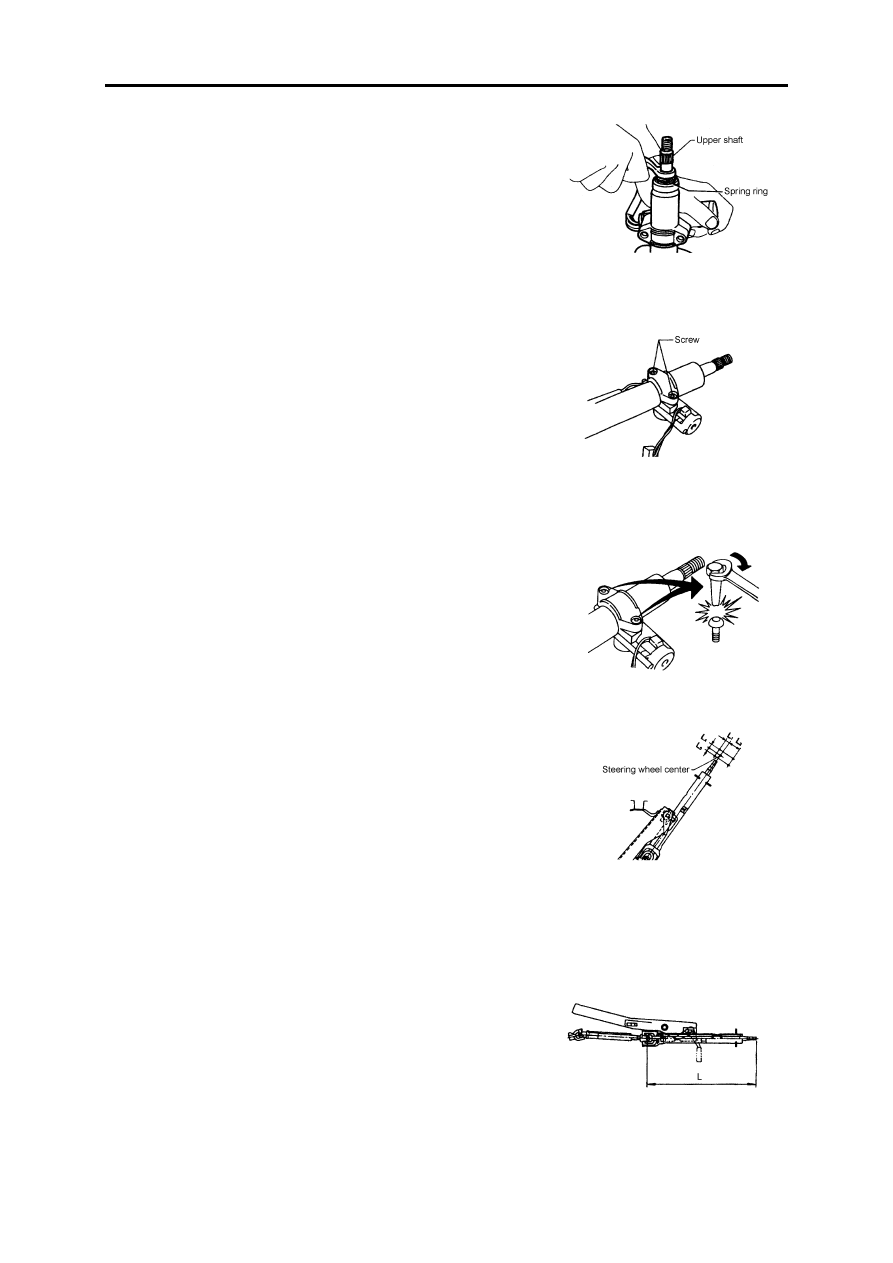

Install the spring lock ring on the upper shaft with tools.

Steering Lock

a) Remove the lock screw with a clamp.

b) Tightening the lock screw.
Notes:
Pay attention to whether the position of the steering lock mechanism is
correctly located.

Adjusting the Mechanism

·

After installing the steering column, check the movement of the adjusting

mechanism.

      Front, Rear

                              L1:                   15mm

                              L2:                   45mm

      Upper, Lower

                              L3:                   10mm

                              L4:                    20mm

Check

·

If the steering wheel could not turn smoothly, check the steering column

from the following aspects, and replace relevant damaged parts.

Check whether bearing of the steering column is damaged or uneven,
lubricate it with recommended common grease. If necessary, replace the
steering column assembly.

Check whether the sleeve is deformed or damaged, replace it if necessary.

If the vehicle is hit a little, check the dimension of L. If the L value is ont
in the required range, replace the steering column.              L: 484mm

Steering System

ST-6

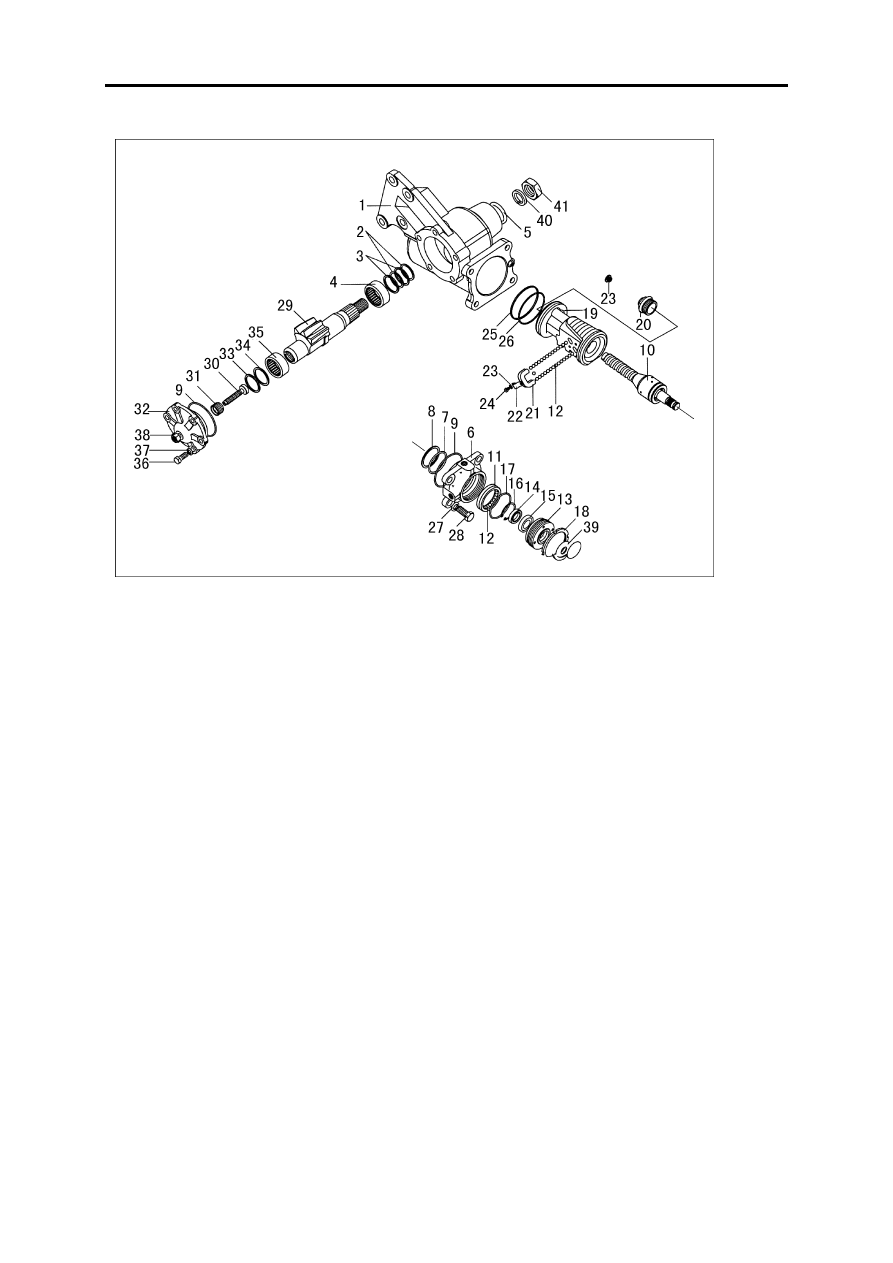

Steering Gear

1.

Hex neck bolt

2.

Spring washer

3.

Hex nut

4.

Side cover

5.

O rubber sealing ring

6.

Retaining nut

7.

Adjusting bolt

8.

Retaining ring

9.

High pressure sealing ring

10.

Needle bearing

11.

Steering arm shaft

12.

Cone plug

13.

Housing

14.

O rubber sealing ring

15.

Dustproof

16.Spring washer

17.

Hex thin nut

18.

Casing cap

19.

Sealing ring

20.

O rubber sealing ring

21.

Steering nut

22.

Steel ball

23.Steel ball duct
24.

Spring washer

25.

Cross-recessed flat round head screw

26.

Duct clip

27.

Steering screw lever

28.

Cylinder pin

29.O rubber sealing ring
30.

Torsion bar

31.

Valve pocket

32.

Needle bearing

33.

Cylinder pin

34.

Imput shaft

35.

Cylnder pin

36.

Steel ball

37.

Outside ring

38.

Sealing ring

39.

O rubber sealing ring

40.

O rubber sealing ring

41.

Valve body

42.Big cone joint

43.

Circlip for holes

44.

Single annular ball bearing

45.

Oil seal

46.O rubber sealing ring

47.

Upper cover

48.

Retainer nut

49.

Dust cap
