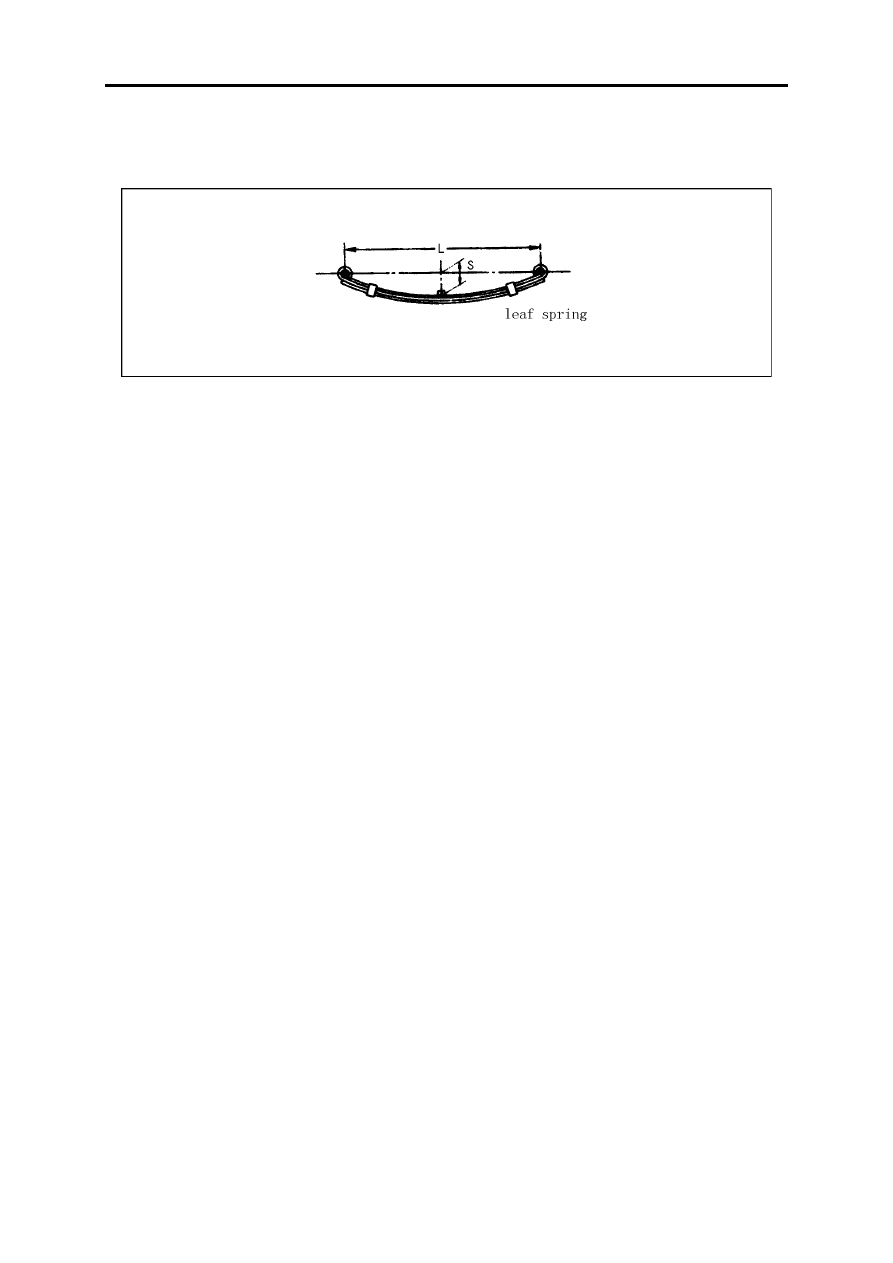

Rear Axle & Rear Suspension RA-13 Maintainance Data and Explaination Leaf Spring Thickness (mm) --Amount of piece Main spring: 7--3 Auxiliary spring: 14--2 Static deflection S: 101 Length L (mm) : 1200 Width (mm) : 70 Shock Absorber Work length (mm) : Min/Max: 338/548 Jouney (mm) : 210 Damp (N) : Extend/Compress: 2250 ±350/600±130 Diameter (mm) : A/B: 54/45 Check and adjust Bearing of wheel Side clearance of wheel bearing (mm) : 0.02 ~ 0.15 Thickness of side gascket of rear axle (mm) : 0.05 0.07 0.10 0.15 0.20 0.50 1.00 Tightne torque of bearing locking nut (N.m) : 167~196 Tightne torque after loose the bearing locking nut (N.m) : 167~196 Start torque of turning the wheel bearing (N.m) : 2.1 ~ 3.4 Bolt of nub (N) : 24.5 ~ 40.2 |
