Front suspension

FA-1

Notice

When assembling the rubber part, the vehicle must be

in curb weight, and the rubber part has to be screwed down
after the wheels touched down the ground.

Curb weight: the vehicle equipped with full fuel,

coolant, oil, and spare tyre, jack, service tools, and parked
on the level ground.

Use tool to disassemble and assemble hub.
When disassembling the suspension part, check the

wheel alignment and adjust it if necessary.

Preparation

Special tools

Tool name

Description

Extractor

 To disassemble the connecting part between ball head pin and steer-
ing kunckle

Ball head pin replacer

Disassemble the ball head connection of tie-rod and drag link.

Bearing punch

 Assemble the hub bearing.

Wheel bearing nut wrench

 Disassemble and assemble bearing nut

Front suspension

FA-2

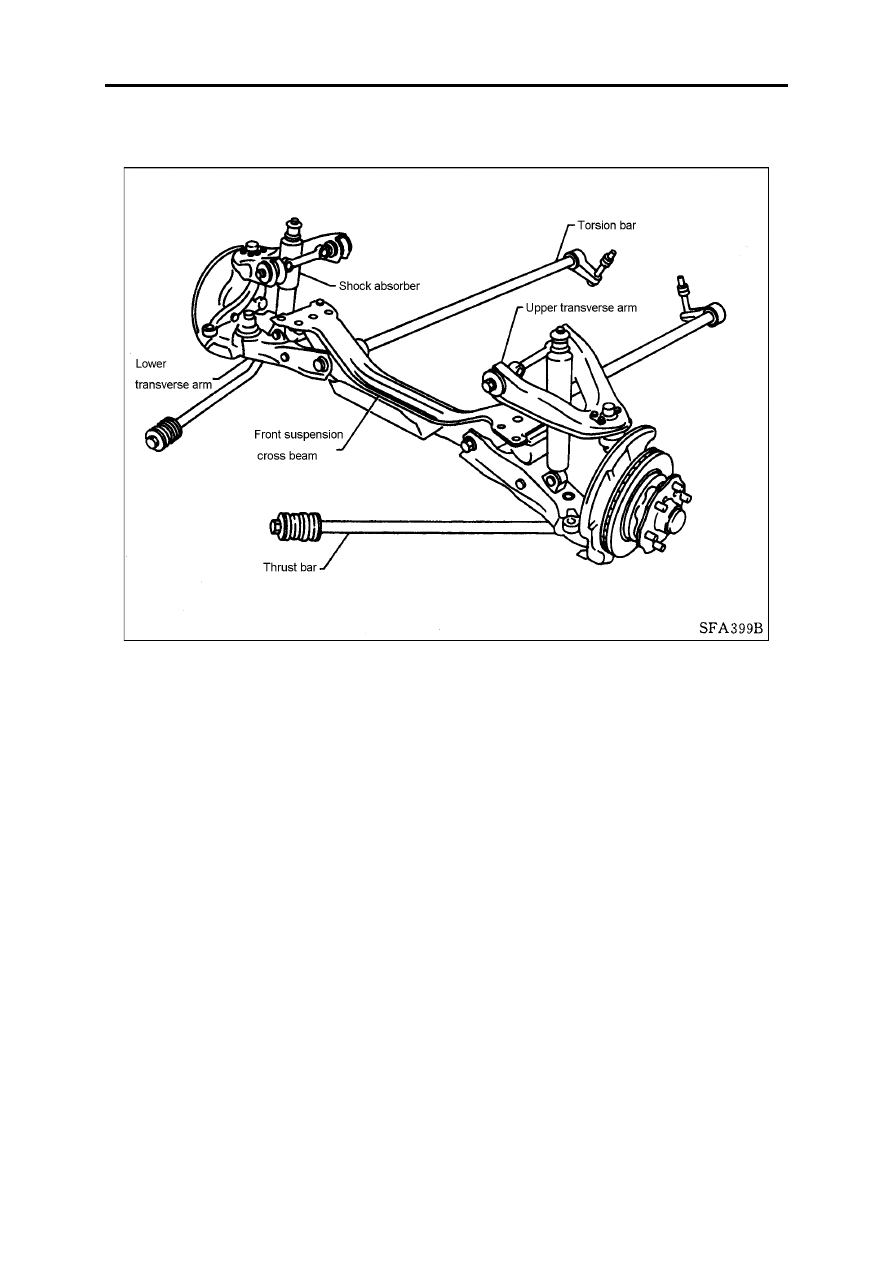

Front Suspension

Front suspension

FA-3

Riding Inspection and Repair

Note:

When assembling the rubber part, the vehicle must be  in curb weight, and the rubber part has to be screwed

down after the wheels touched down the ground.

Curb weight: the vehicle equipped with full fuel, coolant, oil, and spare tyre, jack, service tools, and parked

on the level ground.

When disassembling the suspension parts, please don't squash by the related parts.

Front suspension part

Check the front suspension for loose, crack, wear or other damages.

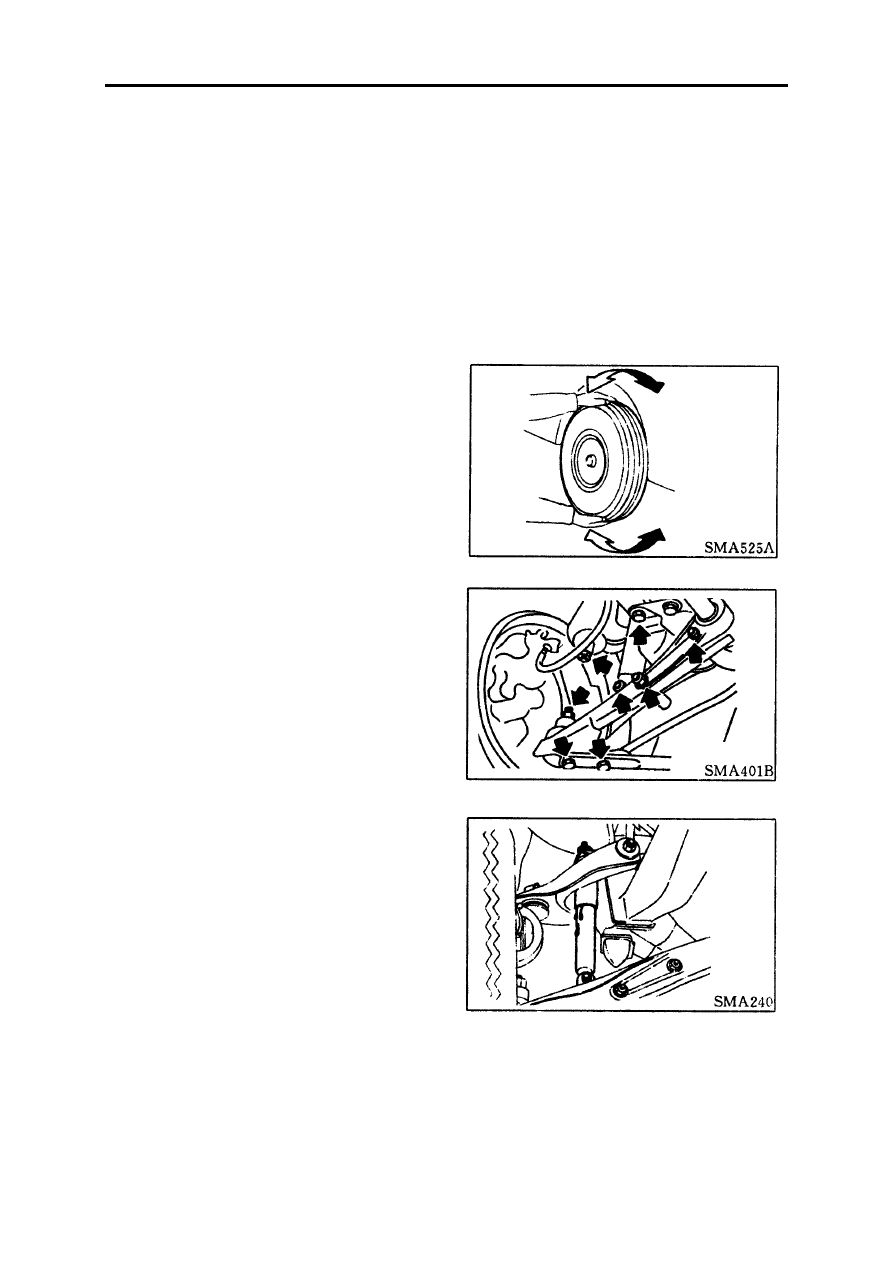

(1) Shake front wheel.

(2) Confirm that the cotter pin is in ggod condition .

(3) Screw down all bolts and nuts again to the

required torque.

Check the shock absorber for any leakage or damage.
