Attached Drawing
12-1
Attached Drawing:

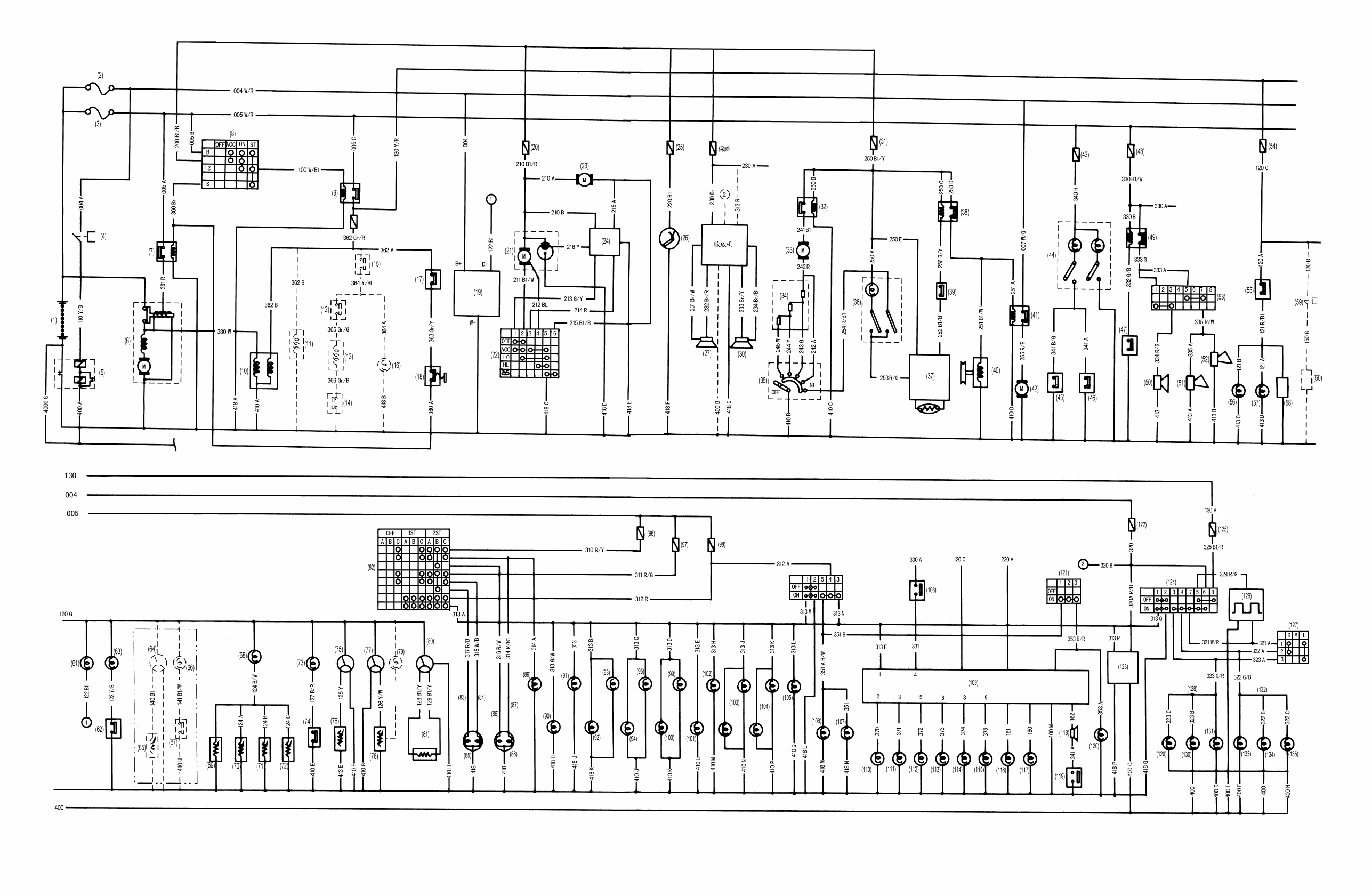

Electric System Drawings
1. Battery
2. Fusible wire
3. Fusible wire
4. Power switch
5. Electronic main power switch
6. Starter
7. Starter relay
8. Ignition switch
9. Ignition relay
10. Electric control engine cut-off
11. Fuel cut-off electronic valve
12. Clutch switch
13. Exhaust brake electronic valve
14. Throttle switch
15. Exhaust brake switch
16. Exhaust brake indicator
17. Neutral switch
18. Assist starting button
19. Alternator
20. Fuse
21. Wiper motor
22. Wiper switch
23. Washer motor
24. Wiper intermittent relay
25. Fuse
26. Cigar lighter
27. Speaker
28. Fuse
29. Radio cassette
30. Speaker
31. Fuse
32. Heater relay
33. Heater motor
34. Heater motor resistance
35. Heater switch
36. A/C switch
37. Temperature control AMP
38. A/C relay
39. Dual direction pressure switch
40. A/C compressor
41. Heat emission relay
42. Heat emission motor
43. Fuse
44. Dome lamp and Switch
45. Left door switch
46. Right door switch
47. Horn button
48. Fuse
49. Horn relay
50. Electric control dual tone air horn
51. Electric horn
52. Electric horn
53. Air/electric horn shift switch
54. Fuse
55. Reverse gear switch
56. Left reverse lamp
57. Right reverse lamp
58. Reverse buzzer
59. Drier switch
60. Drier
61. Charging indicator
62. Oil pressure warning sensor
63. Oil pressure warning indicator
64. Oil pressure gauge
