Dongfeng DFA1101GZ5AD6J-907. Manual - part 19





General Adjustment

9—11

15° normally. If it is too large, check and
adjust the following part:

Check and adjust the clearance of the

bearings of the front wheel hub.

Check the tightness of tie rod ends

and drag link joints, and adjust them.

Check whether the fastening bolts are

loosen  at the connection of the spline of
the pitman arm and its shaft.

Adjustment for Toe-in

Check and adjust toe-in every







12,000km, which recommend value is
0~5mm, if toe-in is adjusted improperly,
the tyre wear would be increase.

The adjusting method is as follows:
Park  the  truck  on  a  level  ground

before checking, the front axle is lifted by
a  jack,  the  front  wheels  are  put  to  run
straightly. Screw off the clamp bolts on tie
rod, turn the tie rod with pipe wrench and
the proper value of toe-in can be achieved
by adjusting.

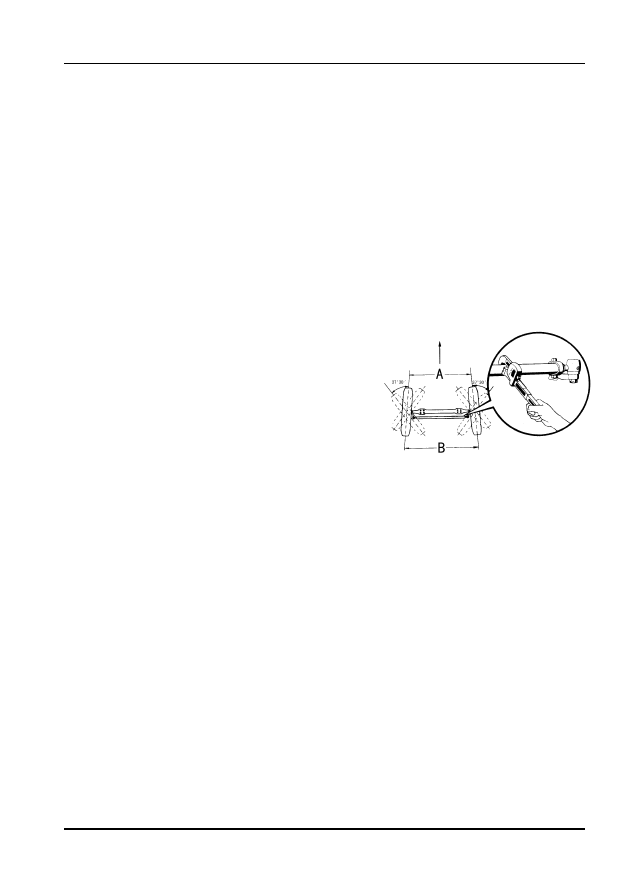

Make a mark in the middle of tyre

engraving  of  the  right  and  left  tyre  when
adjusting, then measure A, B value









respectively in the front of the axle and
behind it.

After adjusting,  if  the  condition  is

permitted, check the side sliding of tyres.
The specified side sliding is  between
3~5mm/m.

Maintenance Schedule

10—1

Maintenance Schedule

It's necessary for periodical inspection and maintenance  of  truck  to

prolong its service life, improve its power performance and fuel
economy, so periodical inspection and maintenance should be carefully
carried out according to the following items. Then it will achieve the max
economic and social benefits.

The users have to do the maintenance accord with the specific con-

tent in this chapter. The following schedule is not only for maintenance
items of 80,000km, but also for normal  maintenance  items  after
80,000Km.

☆——

Running in maintenance items:1,500~2,500km

★——

Normal maintenance items

Note:
Customers should carry out the inspection and maintenance intervals according to

the different area condition. Properly shorten the maintenance intervals can ensure the
truck to get the reasonable maintenance and move reliability.  Never  prolong  the
intervals.

Engine

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80

Clean engine assembly

★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check the performance of





accelerating and decelerating

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check the condition of exhaust

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check engine lubricant oil for







leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check the cleanness and capacity of
lubricating oil

★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check fuel system for leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check cooling system for leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check the fan belt for damage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Clean up the sediment of fuel









prefilter

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check and clean air filter and its
cartridge

Maintenance Schedule

10—2

Replace lubricant oil of engine

Replace oil filter

Check  and  adjust  the  valve
clearance

Change the fuel filter and fuel-water
separator

Replace air filter cartridge

Check compressing pressure

Check the injection pressure

Check the injection timing

Check the injection flow for injection
pump

Check  the  oil  supply  pump  for  its
operation

Check the function for the







thermostat

Check the working conditions of the
radiator

Clean the engine cooling system

Check the working condition of the
supercharger, replace it if necessary

★ ★

Clutch

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80

Check  working condition of





clutch

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check clutch pedal free play

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check hydraulic pipe line  and
pump for leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check the slave cylinder for



leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check  brake fluid level in clutch
oil reservoir

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Engine

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80

Maintenance Schedule

10—3

Change hydraulic oil of clutch

Transmission

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80

Clean transmission and its vent plug

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check transmission oil level

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check transmission for oil leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Change transmission lubricant oil

Check the connections of control
mechanism for looseness

Check working condition of every
bearing

Disassemble and check



transmission

Brake System

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80

Check brake pedal free play

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check  effectiveness of brake and
parking brake

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check  brake line and valve for
leakage

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check and adjust the  clearance  of
brake drum and  lining

☆ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

Check  the tightness of the brake
support plate

Check brake drum  and  brake  shoe
for wearing

Clutch

Maintenance Items

Maintenance Intervals (× 1000km

4 8 12 16 20 24 28 32 36 40 44 48 80
