General Maintenance

8—8

instead, otherwise it  will damage and rub  the
gear face quickly.

Be careful not to allow any dust or dirt enter

the main reductor.

Keep the oil level at normal height,











overheight or overlow will effect the service.

Keep the vent plug fluent.

Power Steering Lubricating Oil

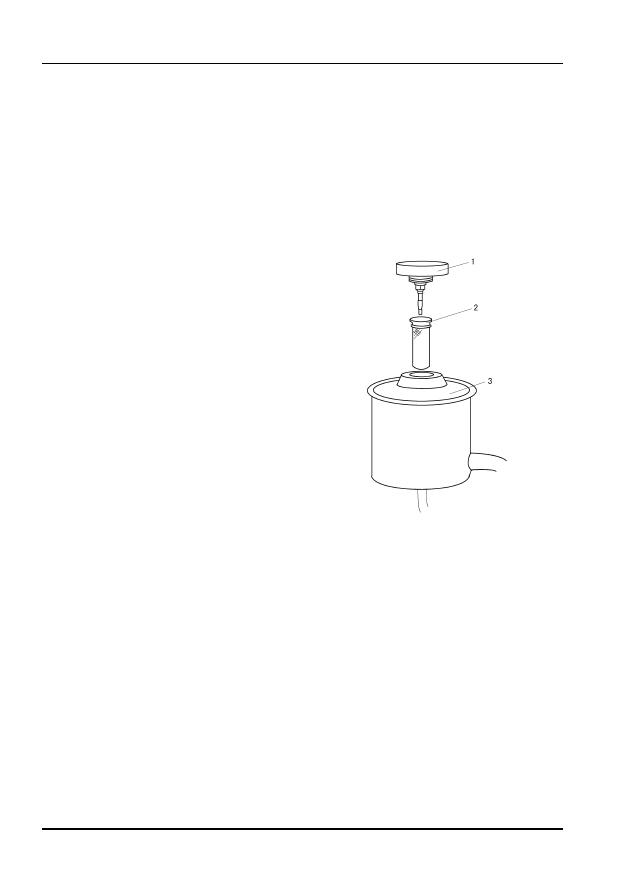

1.Oil filler cap with oil level stick
2.Hydraulic oil cartridge
3.Oil reservior

Before check the oil level, clean the

oil reservior first, then screw off the oil
filler cap with oil level stick. Clean the
stick  and  reassemble  it,  then  remove
again to see the oil level. If the height of
the oil level does not between the high
and  low  scale  of  the  oil  level  stick,  it
need  to  be  filled  with  same  brand
hydraulic oil.

Check the lubricating oil  every

4000km, and if it is insufficient, please
refill it to the oil filler edge.

Replace  the  steering  oil  every

4,8000km.

Replace the oil of power steering

fluid every 2,4000km.

Replace procedure:

1.Block  the  rear  wheel  with  triangle
bolster, set the transmission to neutral
and  rise  the  front  axle  with  the  jack  to
make the wheel away from the ground.

2.Screw  down  the  inlet  and  outlet  oil
tube joint to exhaust the steering









system oil, and start the engine at the
same time, turn the steering wheel.

3.After make sure the oil has been
drained  off,  open  the  cap  of  the  oil

General Maintenance

8—9

reservior to replace the hydraulic oil
cartridge.

4.After replace the cartridge, first refill
the oil reservior and then start the
engine to idle for a short time, then cut
off the engine and refill the hydraulic oil.
Do this process for several times until
the oil level is between the MAX and
MIN of the oil level stick.

Note:
Forbid to refill the hydraulic oil during

engine running.

During engine idling, turn the steering

wheel at clockwise and counter clockwise to
help exhausting the air in the system.

You must cut off the engine when you

check the oil level.

Battery Checking and

Maintenance

Before checking the battery





system,  be sure to cut off  the  main
power switch.
●

 Check the battery liquid

Check the battery liquid monthly  or

every 4,000 km. The liquid should be
above the plate  15 to  20  mm.  If  it's
lower than that, add distilled water, and
charge the battery for 30 minutes until
the distilled water mixed with the









battery liquid.

1.Electrolyte

2.Plate

General Maintenance

8—10

●

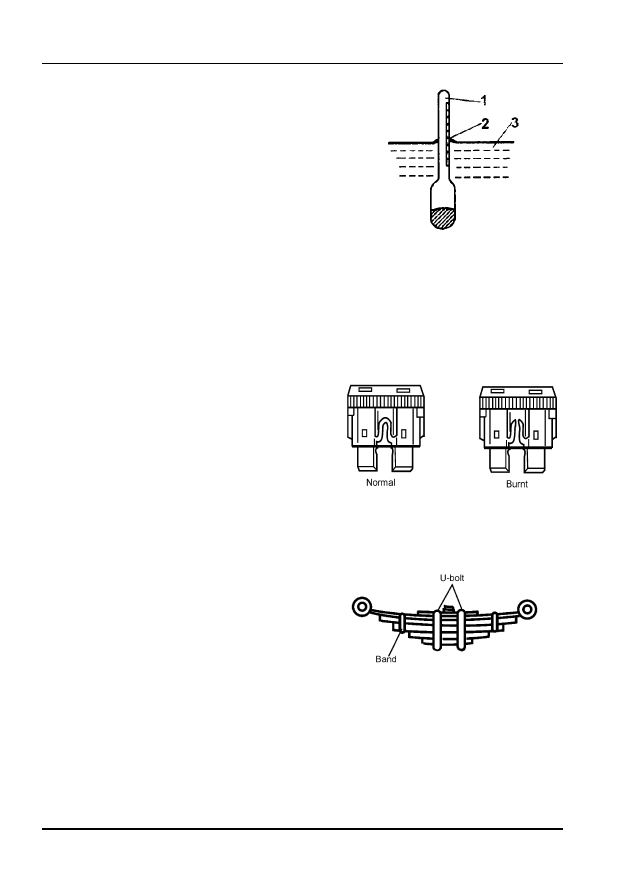

1.Float
2.Reading
3.Level of electrolyte

Checking specific gravity of electrolyte

Check specific gravity of electrolyte

every 12,000km or three months.Use
the hydrometer to check.  The  normal
specific gravity is between 1.26~1.265
(when the electrolyte temperature is 20
℃）

. If the specific gravity is less than

1.22, the battery must be recharged.

Note:
Never use thick lead or tool earth connect

the two poles of battery and other short circuited
method (observing the strong and weak of the
electric spark) to check the electric capacity.

Fuse

Be sure to affirm the load of fuses

before  replacing.  If  the  new  fuse  are
blown  easily,  you  should  find  out  the
reason and repair it.

Note:
Never  use  normal  lead  or  the  fuse  with

other load instead.

Suspension

After the running-in  of  new  truck,

tighten the U-bolt and nut of leaf spring
under the certain torque of fully laden
condition.

The  tightening  torque  of  front  leaf

spring U-bolts and nuts is

250~300N.m;

the  tightening  torque  of  rear  leaf  spring  is

300~350N.m.

Tighten the leaf spring U-bolts and

nuts every 12,000km.

General Maintenance

8—11

Tire Rotation

Rotate  the  tires  according  to  the

picture every 12,000Km. The  principle
for tire rotation is as follows:

1.The  differential  of  outer  diameter  of
two  rear  axle  tirs  is  no  more  than
12mm. Mount  the  smaller  one  to  the
inside wheel.

2.Mount the same type, less wear and
blanced tires on the front wheel.

3.After rotation, the turning direction of
tires should be opposite from its former
mounting direction.

4.New tires must be used in pair.

5.Be sure to mount the tires of the
same size in the same shaft, otherwise
it will cause braking deviation,  cab
swing and lost controlled steering.

6.Check whether there is any scars on
the  wheel  hub  bolts  and  wheel  nuts.
For the sake of the safty, whenever
there is screw damage in bolt or nut, it
must be replaced in pairs as the other
part may also be damaged.

7.Check the connecting (ball) surface
of the tire rim and the installing hole to
see  whether  there  is  any  deformation
or damage. If there is, replace it. And if
there is any damage on the ball surface
of tire nut, replace it, too.

8.Check the rim of the tires, if there is
any cracks, replace it.
