Dongfeng DFA1101GZ5AD6J-907. Manual - part 13





Vehicle Inspection

7—7

18.Other

The above procedure completes

the driver's daily inspection task. If any
problems are encountered in this







inspection,  please  get  in  touch  with
local agency or repair dealers.

General Maintenance

8—1

General Maintenance

Air Filter

The air filter catridge  is  made  of

paper. The air filter is consisted of filter
cartridge assembly,  dust boot,  casing
and casing cover.

The dust exhausting valve should

be placed downward to exhaust the
dust.

Check and clean the outer filter









cartridge of air filter every 8,000km









(4,000km in extremely dusty areas)

.  The

method is as follows:

1.

Take out the filter cartridge and put it on a

plain plate and pat it.  Put  a  light  into  the
filter to check for wear or hole, as well as to
check the washer, replace it if there is
something abnormal

.

2.

Using the dry compressed air of 0.5MPa

to  blow off the accumulated dust from the
inside toward the circumference of the
circle.

 Replace the cartridge immedi-

ately if any of the following situations
appeared:
a)The outer cartridge has damaged or

been cleaned more than 5 hours.

b) After 48000km.

The safety cartridge can not be

cleaned. If the outer cartridge has dam-
aged or been cleaned more than 5
times, you have to replace it.

Note:
Be sure not to take apart the air filter during

driving.

General Maintenance

8—2

Do not clean the filter cartridge with gaso-

line or water.

Check the cyclone boot for wear when

clean it, replace it if it is worn.

Install the filter cartridge and cyclone  boot

correctly, otherwise the dust will come into and
shorten the service life of the engine.

When installing,check every seal ring for

wear, replace or stick it if it is  damaged.  Every
seal ring should not be lost or missed.

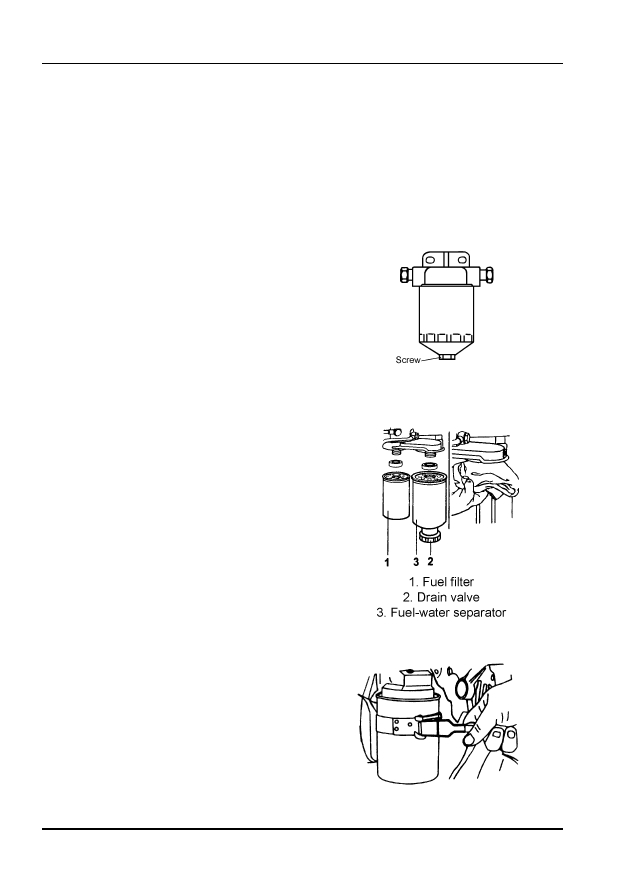

Diesel Oil Prefilter

Drain the water every 12000km,

and replace the prefilter every







36000km.

Fuel Filter and Fuel-water Separa-

tor

Replace it every 16000km.
Use the special wrench to disas-

semble the fuel filter and fuel-water
separator.

Before  you  installing  the  filter

manually, fill it with clean diesel oil until the
sealing surface is engaged with the con-
necting surface, you can screw for 3/4 cir-
cle to tighten it.

Note:
Do  not  use  the  special  wrench  during

installation, otherwise it will deform the thread
and damage the filter finally.

Oil Filter

The engine is equipped with a spin-on

filter  for  lubricating  oil  which  is  one-time
used.  Replace  the  oil  filter  every  interval
10,000km. Use  special  filter  wrench  to
remove the filter. When  assemble  a  new
filter, first fill the filter with clean lubricating

General Maintenance

8—3

oil,  and  apply  oil  on  the  surface  of  the  oil
seal, then assemble the filter by hand. After
the sealing surface engaged with the con-
necting surface, you can screw for 3/4 cir-
cle to tighten it. Start the  engine  to  check
the sealing surface for leakage.  If  there  is
any   leakage,  tighten  it  until  there  is  no
leakage.

Note:
Do not use the special wrench during

installation, otherwise it will deform the thread
and damage the filter finally.

Fuel Tank Draining

Screw off the fuel drain plug at the

bottom of the tank to drain the dirt and
water every 12,000Km. Till the clean
diesel oil flow out, screw up the plug
immediately.  Especially  in  winter,
because the water is easy to ice and
cut off the supply of the diesel oil,
please do remember to drain.

Fuel Pump

In the pump's fuel pipe,  there  is  a

joint bolt is installed a gauze filter to
filter diesel oil.  Be  sure  to  wash  the
gauze with clean diesel oil every









4,000km. If damaged, replace it in time,
or it will influence the fuel supply.

If the manual pump piston is









blocked, check the fuel pipe bolt gauze
filter to see whether it is damaged or
not. Remove the manual pump







assembly and soak it into clean  diesel
oil for a long time. If it is seized, replace
the manual pump assembly.
