Dongfeng DFA1101GZ5AD6J-907. Manual - part 9

Construction and Operation

 3—21

18.Glass regulator

Turn the knob at the clockwise

direction lift the glass, and at counter
clockwise direction to descend the







glass.

19.Quarter window

There are left and right quarter win-

dows on a cab with sleeper, which used
to ventilate.

Tilting Cab

1.Precautions before Tilting Cab

Park the vehicle on a plain ground

as possible as you can.

Note enough clearance between

the roof height and the front wall when
tilting the cab in a room.

Make sure whether the brake







parking  is  in  braking  state  or  not.  Set
the gear shift lever on the neutral
position.

Please withstand on every tyre with

triangle chock if you need.

Be sure to take care of the objects

in the cab druing tilting the cab.

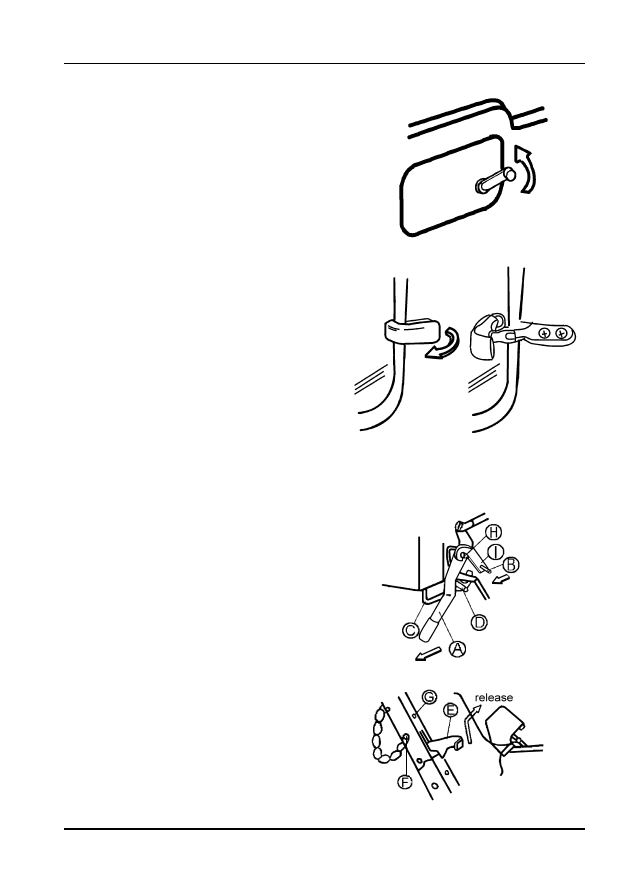

2.Tilt Operating

Construction and Operation

3—22



First push A with your left hand and

pull B at the indicated direction with
your right hand at the same time to
release H from the hook, then pull up A
to the limit.

After that, hold C with your left

hand and pull D with your right hand
until D relaese from J, then tilt the cab.

Be sure that E is hooked and pull

out the safty pin from G and insert it
into F at last.

3.Lock Operating

First hold C with your left hand to

hold the cab, and pull out the safty pin
from F, then insert it into G, and release
E with your right hand at the same time.

After that, hold C to down the cab

slowly until D hooks J. Please do not
move A with your hand during









operating and pay much attention to
the falling cab and A.

 At last, push down A until it hooks I

completely.

Note:
When tilting the cab, starting engine and

shift gear iare forbidden.

Vehicle Starting

4—1

Vehicle Starting

Engine Starting

1.Check the oil and coolant level.

2.Check the fuel level.

3.Without the air-filter, the engine is for-
bidden to operate.

4.First using of a new vehicle and
stopping for a long time,  it  has  to  use
the hand priming lever of the fuel pump
to pump fuel to bleed the air in the fuel
system.

5.Make sure that the transmission gear
shift lever is on the neutral position.

6.Turn the key switch to "ON" position,
and check every warning indicator







lamp to see whether is on or not.

7.Depress the accelerator to middle
speed position and clutch pedal fully,
and turn the key switch to the "START"
position to start the engine.

8.After the engine has been  started,
release the key,  and  gradually  release
the accelerator pedal till idle running.
Be sure to inspect the oil  pressure
within 15 seconds.

Note:
Don't keep the key in the "START" opsition

for more than 5 seconds at a time,  because
continuously use of the start will cause the
battery run down. If the engine fails to start, wait
20 seconds before trying again.

Vehicle Starting

4—2



The time for idling speed is no more than 5

minutes.

To ensure safety and reduce the motor

load, please fully depress the clutch pedal when
starting the engine.

Engine Starting (when the cab is

tilted)

Pull up the parking brake lever and

fill in the wheel with triangle chock.

Turn the key to "ON" position.
Be sure the transmission gear shift

lever is set on the neutral position. The
engine can't be started if the lever is on
the other speed position.

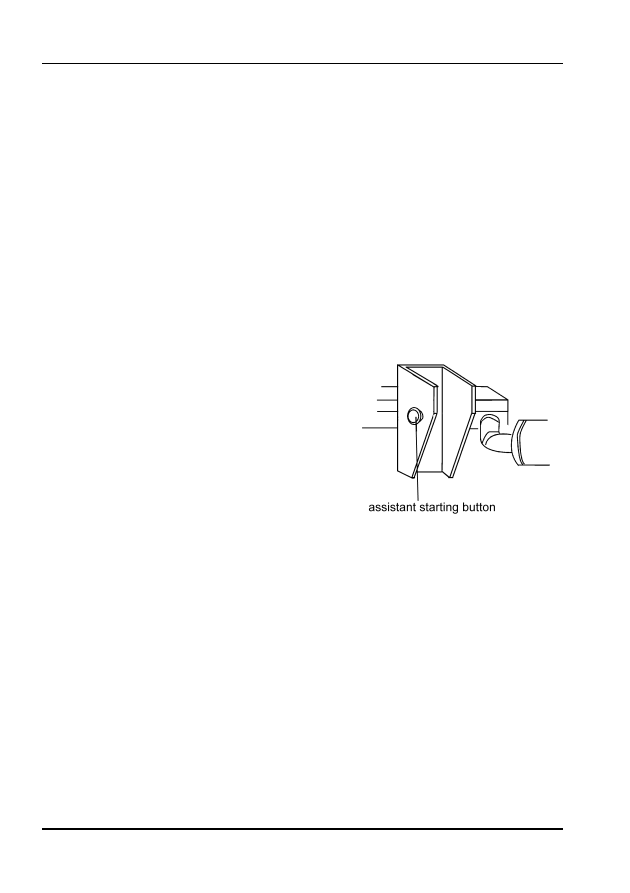

Engine will be started when







pressing the starter button.

Turn the key from "ON" position to

"OFF",  when stopping the engine







running.

Note:
Don't keep the key in the "START" position

for more than 5 seconds of one time. Otherwise
it will be shorten the  life of the battery.

If the engine fails to start, wait 20 seconds

before trying again.

Don't touch the transmission lever  when

the cab is tilted during running.

Don't put down the cab when the engine is

running.
