Construction and Operation

 3—17

Before shifting the gears from forward
to reverse or from reverse to forward,
be sure to make the vehicle stopped at
first.

When the gear shift lever is set at

the "R"(reverse) position, the reverse
lamp will go on, and the reverse buzzer
will sound simultaneously  to  alarm  the
passers-by and vehicles.

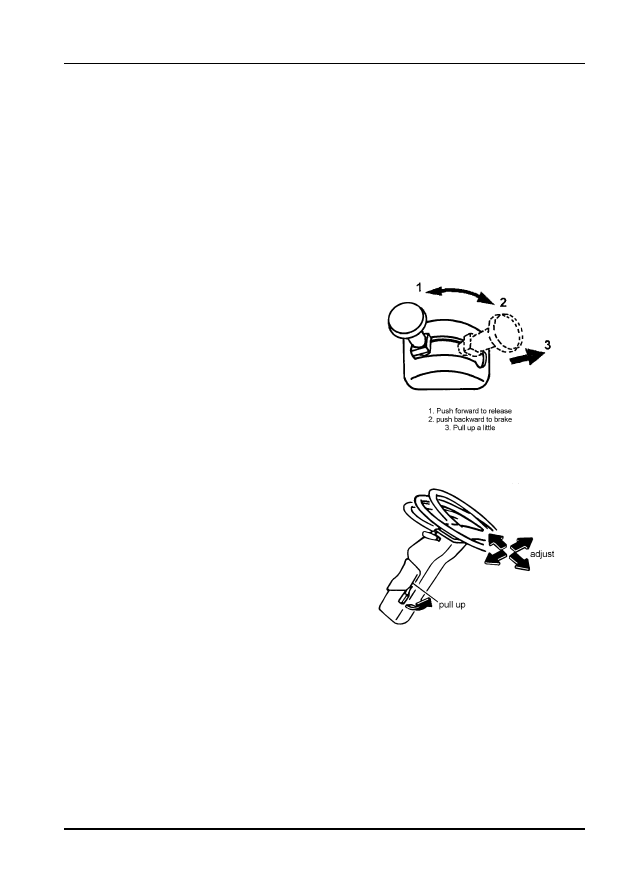

2.Parking brake knob

Pull up the parking brake knob

backward  after the vehicle stopped  to
lock the vehicle.  To release the parking
brake, first pull up the lock sleeve of the
knob,  then push the knob  forward.(if
the air pressure is too low, the parking
brake cannot be released)

3.Steering wheel adjustment

Loosen the lock knob, and the

steering wheel can be tilted forward
and backward, upward and downward.
Before adjust the steering wheel, first
adjust the seat to suit the driver's build.
After that, be sure to tighten the lock
securely to prevent the steering wheel
from being accidentally moved while
the vehicle is in driving state.

Note:
The adjustment of the steering wheel must

be performed only when the vehicle is parking.
Adjustment of the steering wheel while driving is
strictly prohibited.

Construction and Operation

3—18

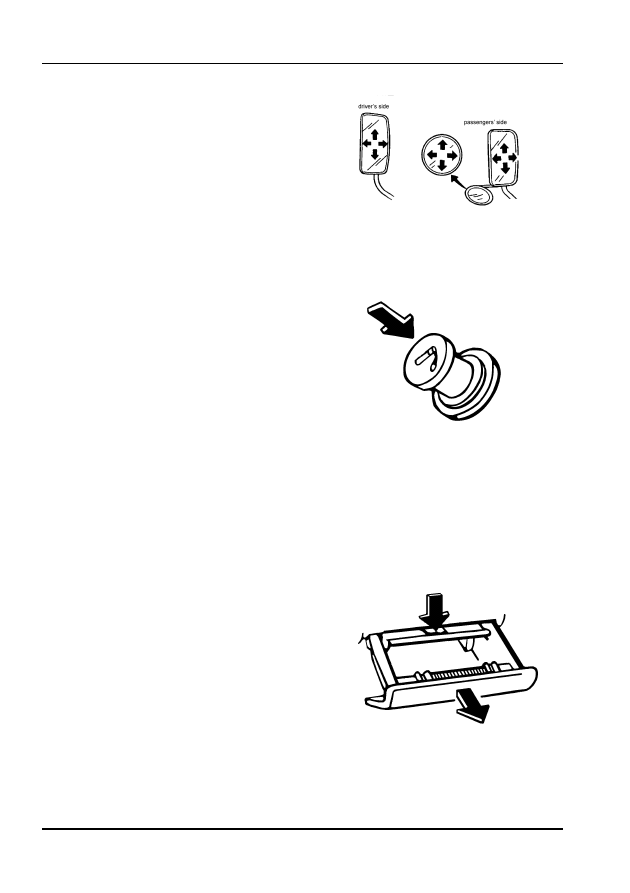

4.Rearview mirror and bottom view mir-
ror adjustment

They  can  be  adjusted  to  any

direction to reach the optimum. Do not
change the direction of the mirror









during driving period, it will cause a
traffic dangerous.

5.Cigarette lighter

Press down the cigarette lighter

knob fully, then wait for ten seconds
until the top end of the lighter becomes
red hot before the lighter jump back to
its original position automatically. Then
it  can  be  pulled  out  to  use,  and  put
back the lighter after lighting cigarettes

Note:
If

the lighter cannot

jump

back

automatically after pressing approx 10 seconds,
please pull out it  manually  to  avoid  other
troubles.

Be sure to use  this  cigarette  lighter

carefully. Careless or incorrect handling of it
may cause a fire accident.

6.Ash tray

Pull out the ash tray to use it.

Detach the tray for cleaning by









pressing  down    the  ash  tray  tongue
while pulling the ash tray out.

Note:
Be sure to close the ash tray for a safety

precaution.

Construction and Operation

 3—19

7.Radio cassette

1. Tuning switch
2. Balance switch
3. Volume control switch
4. Outlet switch
5. Tape outlet
6. Fast backward switch
7. Fastforward switch
8. Tape/radio shift switch
9. Power switch
10. Indicator
11. Button to adjust the hour
12. Button to adjust the minute
13. Time set button
14. Display
15. Mode condition choose



switch

Receive operation
Press down the PWR and then the

TUNING to select the programs and
broadcasting stations.

Use the volume knob to control the

volume.

Use the RD to shift AM to PM

broadcasting stations.

Tape play
Set the open end of the tape to the

right side and it plays automatically,
because the radio cassette will change
from receiving status to playing status.

Press the BAL, and then can adjust

the volume, tone,  and  balanceto
achieve the optimum sound effect.

Press the fast-forward (fast-for-

ward) switch to choose the working sta-
tus, and press again to release, then
the tape is playing.

The tape will change its direction

automatically until switch off.

Press the outlet button to stop it

and then set the tape out.

Time
Press the F/C (time/wave  band

shift) to show time on the screen.

Press the SET  to  adjust  time

through MIN and HOR.

Note:
Press forcibly will set the tape out.
Press the outlet button to the end to stop

and set the tape out.

Before switch on the radio  cassette,  you

should not place a tape in it, and otherwise it will
damage the tape or cause any other troubles.

Construction and Operation

3—20



If the volume obviously becomes low, the

magnetic head needs to wash. Please use the
special wash tape or tampon with alcohol or
magnetic head cleanser to wash the magnetic
head and the parts with surface contacting to
the tape.

If the fuse is burnt, replacewith a new one

and find out the reason.

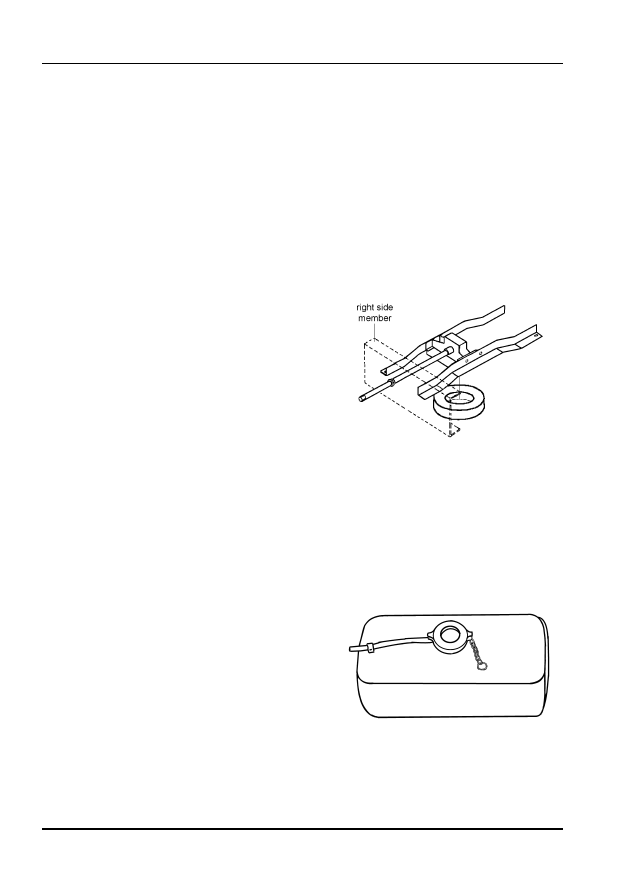

16.Spare tyre

The spare tyre is set underneath

the chassis frame tail, hanged with its
carrier. The operational schedule is as
follows:

Use a spanner to turn the propeller

lever at the counter clockwise direction
to down the spare tyre. After that, take
out the spare tyre from the holder and
you can use it.

To install the spare tyre is to follow

the contrary sequence.

Note:
The spare tyre should be installed firmly

and avoid missing.

17.Expansion tank

The expansion tank is used to

check whether the cooling system is
short of cooling liquid or not. Open the
expansion tank and fill with cooling liq-
uid till overflow.
