brake lining is worn out. Do remember
to refill with brake fuid or chang the
brake lining.

13.Air Filter Block Warning Indicator

When the air filter is blocked, the

indicator will lighten to remind the driver
to clean it.

14.Turning Signal Indicator

This indicator is used to indicate

the working condition of the turning
signal lamp. Switch on it and both the
left and right indicator are flashing.

Keys

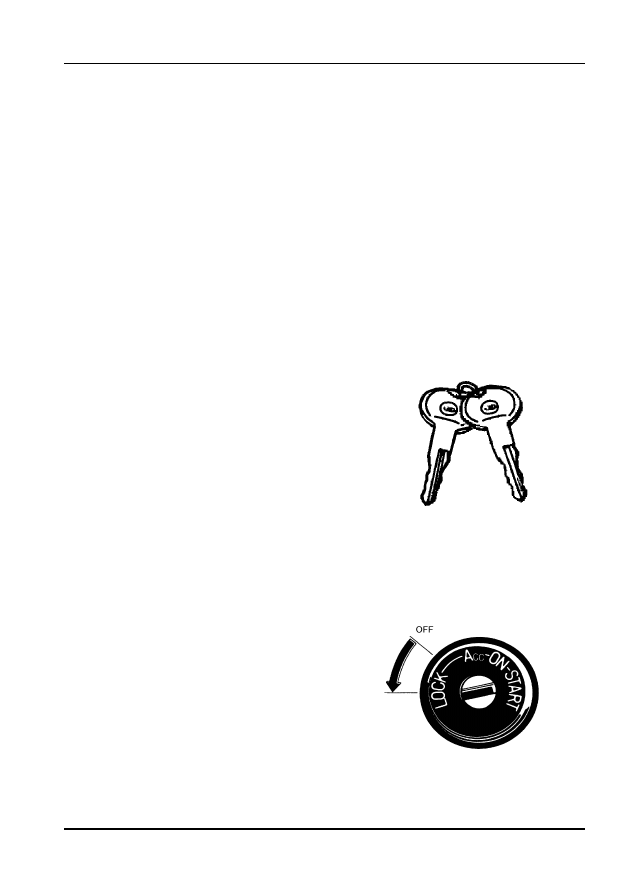

  There  are  two  keys  provided  that

used to start the vehicle, open or lock
the door.

Key Switch

LOCK: Only the key is set on the

LOCK position can it be inserted or pull
out.

OFF: Turn the key from ON to OFF

to shut-down the engine.

ACC:  Set the key at the ACC

position  to use any of the accessories
(such as radio cassette, wiper,
cigarette lighter, etc), while the engine
is not operating.

Construction and Operation

3—10



ON: After the engine starting, the

key return from START to ON and the
engine is started normally.  Never  turn
the key to any other position while the
engine is running.

START:  Set the key to the START

position to start the engine. The key will
return automatically to the ON position
when released from the START







position.

Note:
Never turn the key to the START position

while the engine is running, or else it makes the
starter damaged. Only  after  the  engine  stops
can the engine be started again.

Light Combination Switch

This combined switch is used for

front lamp, tail lamp, head lamp, instru-
ment lamp, licence lamp, passing lamp,
dimmer and turning lamp, etc.

1.Light switch

Turn the end knob of the combina-

tion switch lever forward, the lamps
represented in the below chart will illu-
minate depending on the position of the
switch.

                            ○ ON    xOFF

Knob

position

Head

lamp

Front

lamp

Tail

lamp

Licence

lamp

Instru

ment
lamp

Front

clearan

ce lamp

Rear

clearance

lamp

Side

clearance

marker

OFF

x

x

x

x

x

x

x

x

1st position

x

○

○

○

○

○

○

○

2nd position

○

○

○

○

○

○

○

○

Construction and Operation

 3—11

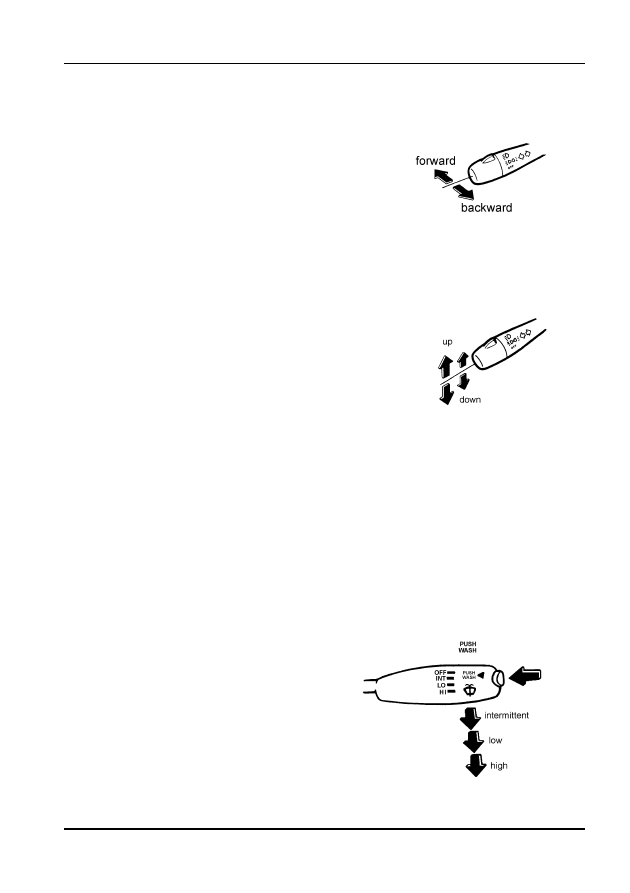

2.Turn signal light switch

Put the control lever forward and

backward to make the left or right turn
signal lamp blinked.

3.Dimmer switch

Put the combined switch control

lever  up  and  down  to  change from  the
high beam to low beam or from the low
beam to high beam. If there is a coming
vehicle, do remember to use it.

4.Passing light switch

The head light high beam will



lighten as long as the lever is being
pulled from the low beam position, and
when releasing the lever, it will auto-
matically return back to the low beam
position. You can use this to tell front
vehicles that you're going to pass them.
During the normal running condition of
the vehicle, no matter other lights' con-
dition, if you use the passing light, it will
be on.

5.Windshield Wiper and Washer Switch

When the front windshield is dirty

and needs to wash, press the button on
top of the windshield washer lever, the
washer will operate and the washer
fluid will be sprayed out  continuously.
At the same time, the equipped









intermitted wiper  (3-speedtype) is also

Construction and Operation

3—12



operating. The wiper should be moved
two or three more times after the











washer stops. The wiper  starts  after
pulling the lever backward. It    has
intermittent, low and high three speeds.
Release the button, the washer  stops.
Pull the lever to the end of the front, the
wiper stops.

Note:
Use of the wiper alone will scratch the

windshield. Be sure to operate it with the washer
when the weather is well.

Do not use the washer without  washer

fluid, otherwise the  washer  motor  will  be
damage.

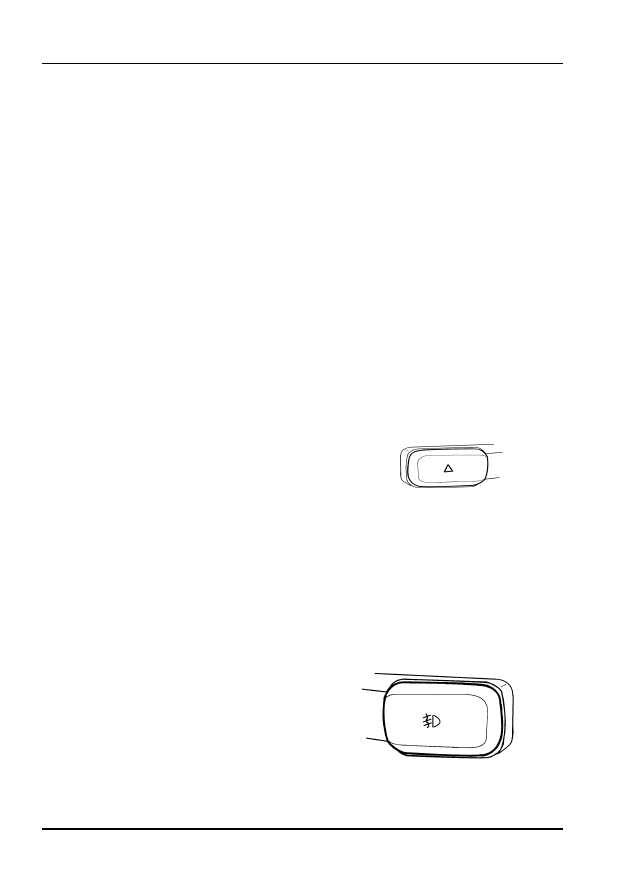

6.Hazard Warning Indicator Switch

Use this switch to warn other









drivers when your vehicle becomes a
traffic hazard source due to mechanical
trouble. If switch on it,  all  left  and  right
turning signal lights are lightened,  and
the turning signal indicator  will  flash
simultaneously.

7.Front Fog Lamp Switch

When this switch is pushed, the

fog lamps, front lamps and tail lamps all
come on. Use this switch to control the
lights when driving in a thick fog.
