Dongfeng DFA1101GZ5AD6J-907. Manual - part 5





Construction and Operation

 3—5

Note:
Do remember refill the fuel tank with clean

fuel before the gauge indicates that the fuel has
been used up.

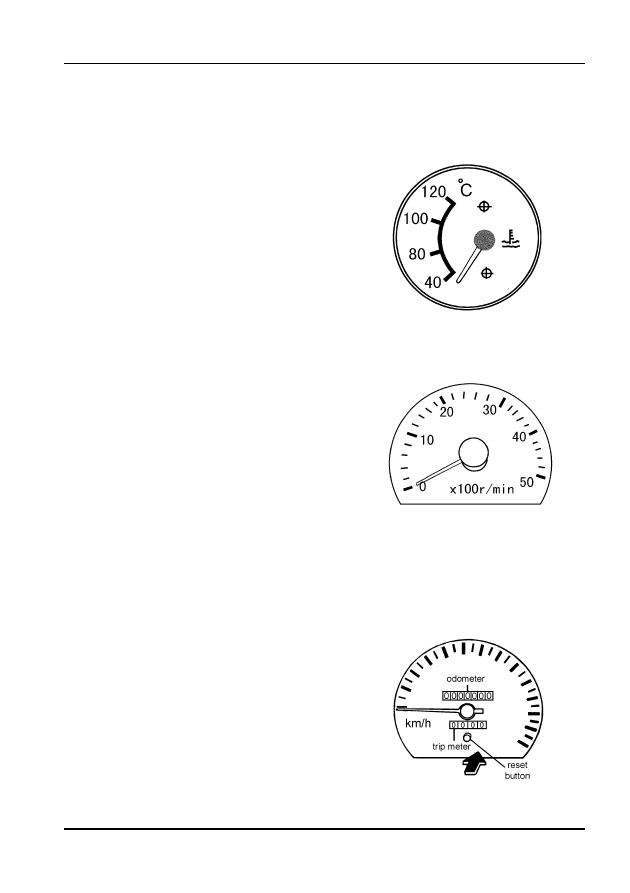

2.Water Temperature Gauge

The gauge indicates the engine

water  temperature.  Its  needle  will
change  because of atmospheric





temperature and driving condition.

Note:
Be  sure  to  stop  the  vehicle  as  soon  as

possible when the needle of the gauge beyond
the normal range.To run the vehicle with a
overheated engine is extremely harmful to the
engine.

3.Tachometer

The needle of the tachometer







indicates the engine speed in







revolutions per minute. The red zone
indicates a range of critical engine
speed. Be sure to always keep the
indictor below this critical zone. The
green zone indicates the range for the
most economical engine operation.





Driving under this green zone will save
fuel and extend the sevice life of the
engine.

4.Speedometer

The speedometer indicates the





speed of the vehicle in kilometers per
hour. The odometer indicates the







accumulated driving distance in





kilometers.

The trip meter is used to represent

the running distance of a day or a
trip.Do remember to press the reset
button to delete the numbers before

Construction and Operation

3—6



you use it. The most right number has a
unit of 0.1km.

Note:
Do not press the reset button during the

driving period.

Do not pull or turn the reset button when

press it.

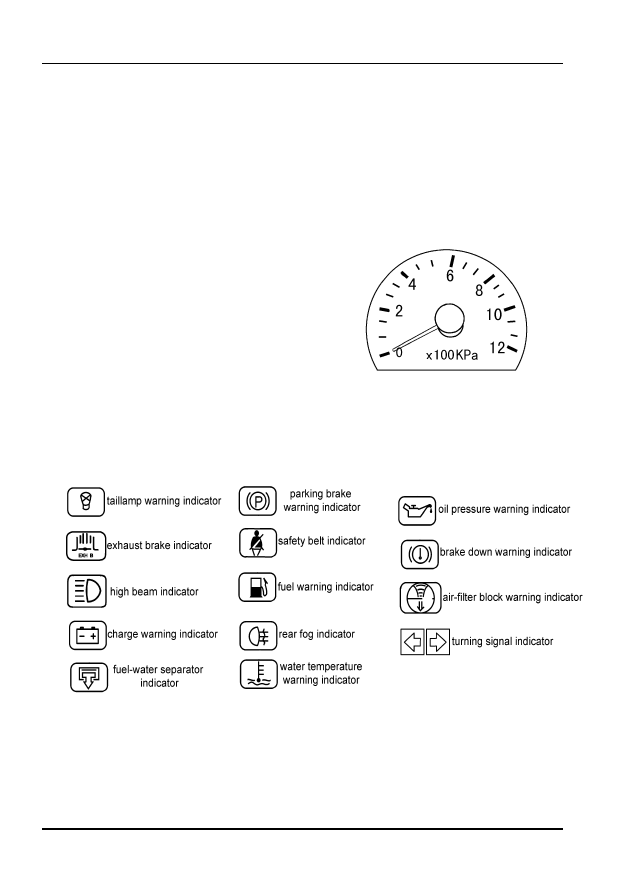

5.Air-pressure Gauge

There are two gauges here, one for

front brake system, the other for rear
brake system. The range of the









indicator is from 0~12x100kPa,  while
0~4x100kPa is in red zone, and under
that condition the vehicle cannot be
started. Only when the indications of
the two needles all over 4x100kPa can
the vehicle be started.

Indicators

1.Taillamp Warning Indicator

The indicator will lighten when any

of the taillamp  (exclude  the  turning
lamp) is in trouble.

Construction and Operation

 3—7

2.Exhaust Brake Indicator

The indicator wil  lighten  when  the

exhaust brake is switched on.

3.High Beam Indicator

The indicator will  lighten  when  the

high beam is used, and if the passing
light is used, the indicator will  also
lighteen.

4.Charge Warning Indicator

The light will lighten when the key

switch is turned on, and will extinguish
when the engine is started and









charging is initiated. If charging is









stopped due to the failure of the











charging system during engine





operation, the light will lighten.

Note:
Never run the vehicle with the warning light

on. This will run down the battery.

5.Fuel-water Separator Indicator

If the sensor of the fuel-water sepa-

rator indicates that the water level is
too high, this indicator will lighten and
remind the driver to drain water.

6.Parking Brake Warning Indicator

The light will lighten when the









parking brake is actuated to aware the
driver  that  the  vehicle  is  in  the  braking
condition. The light wil extinguish when
the parking brake stops operating.







Before moving the vehicle, make sure
the light is off.

7.Safety Belt Indicator

The indicator will flash for 7









seconds to aware the driver and









Construction and Operation

3—8



passengers to use the safty belts when
the ignition lock is placed at "ON"
position.

8.Fuel Warning Indicator

The indicator will lighten when the

remaining fuel is too little to assure the
normal driving. It is  used to aware the
driver to refill the tank.

9.Rear Fog Indicator

The light will lighten when the rear

fog lamp is used.

10.Water Temperature Warning



Indicator

The light will lighten when the









temperature of the water is over 101 ℃
. At the same time, a buzzer will sound
to make the driver aware that the
engine is in dangerous situation. The
buzzer stops when the key switch is
turned off with the engine stopped.

11.Oil Pressure Warning Indicator

The light will lighten when the key

switch is turned on, and will extinguish
after the engine starts. It will be lighted
again when the oil pressure is too low
during the operation of the engine.

Note:
The low pressure of the engine will cause

the damage of the engine.

Never run the vehicle with the warning light

on.

12.Brake-down Warning Indicator

The light will lighten when the level

of the brake fluid drops or the front
