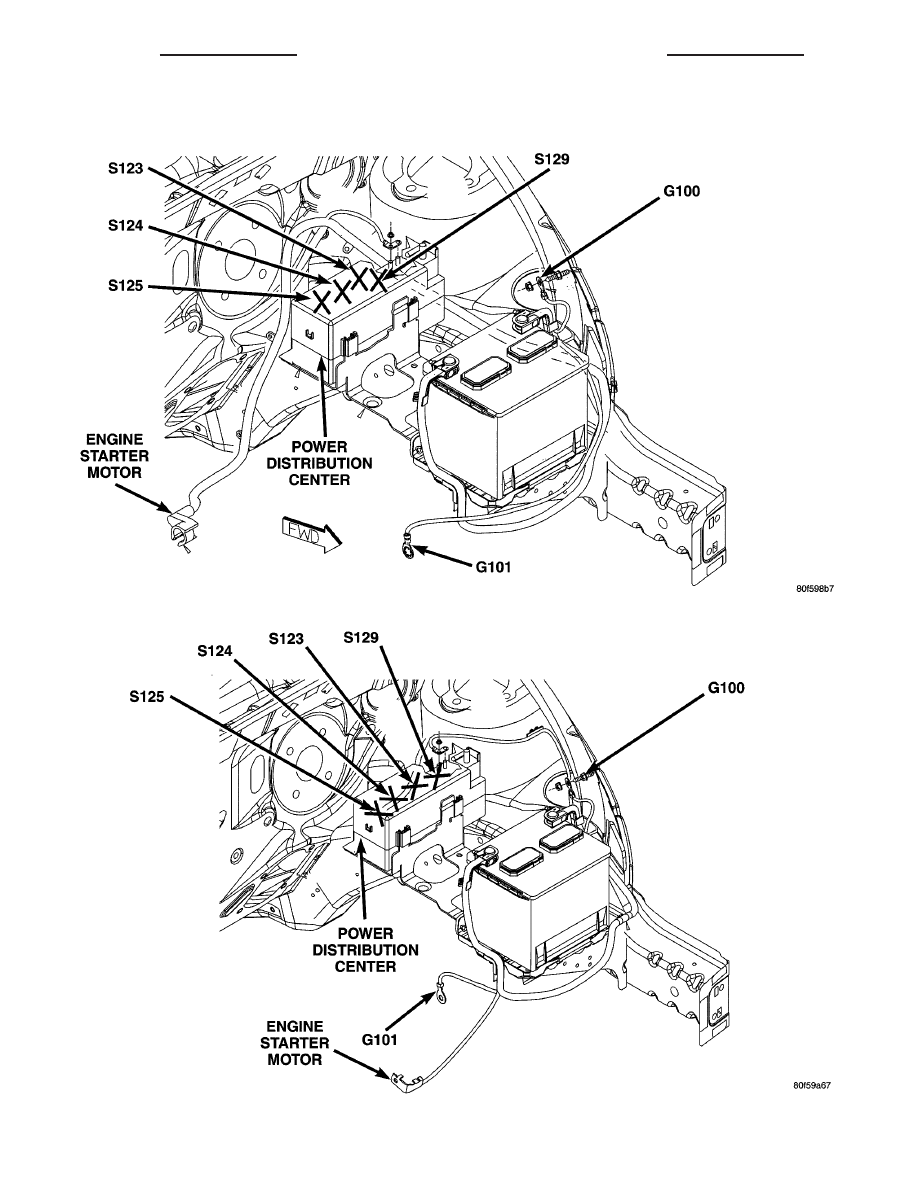

Fig. 6 LEFT FRONT ENGINE COMPARTMENT (1.6L)

Fig. 7 LEFT FRONT ENGINE COMPARTMENT (2.4L)

8W - 91 - 20

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PT

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

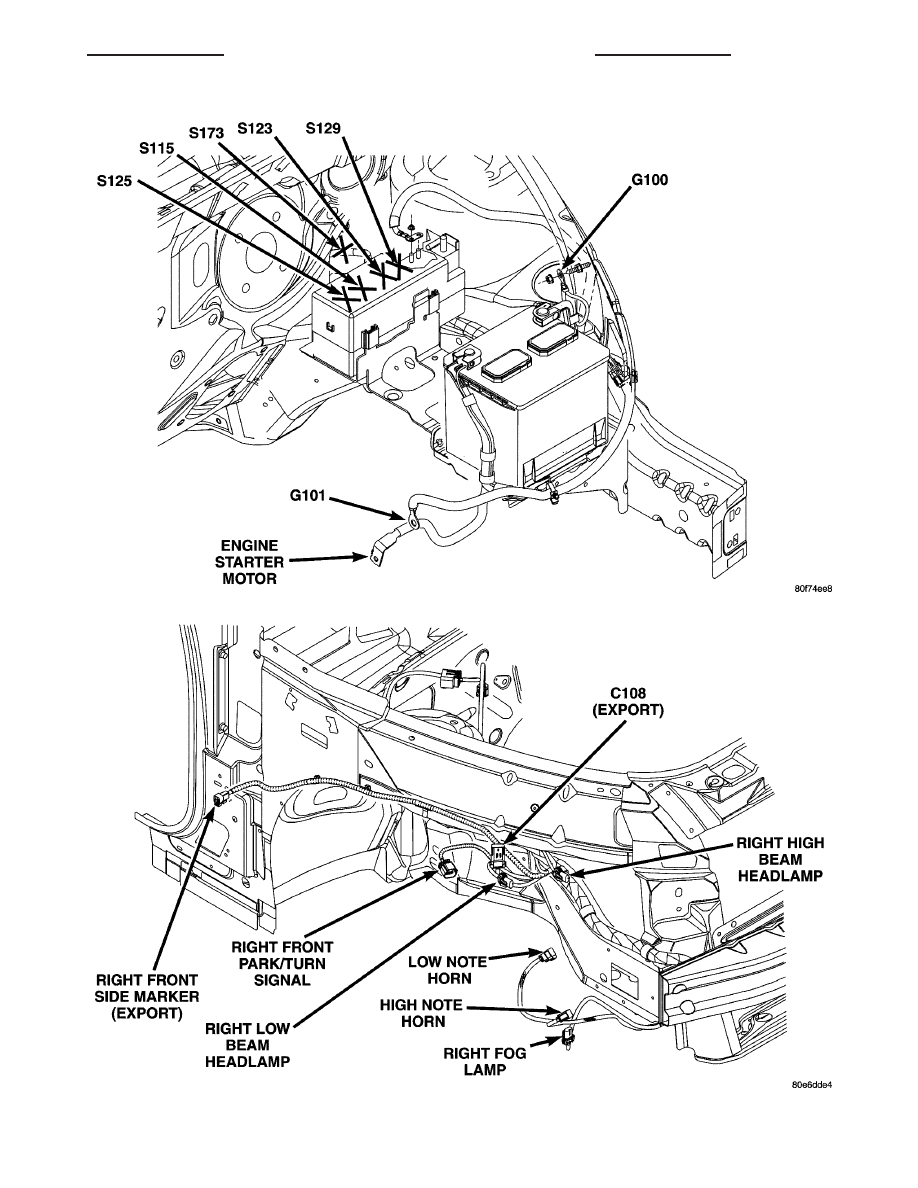

Fig. 8 LEFT FRONT ENGINE COMPARTMENT (2.4L TURBO)

Fig. 9 RIGHT FRONT ENGINE COMPARTMENT (1.6L)

PT

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 21

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

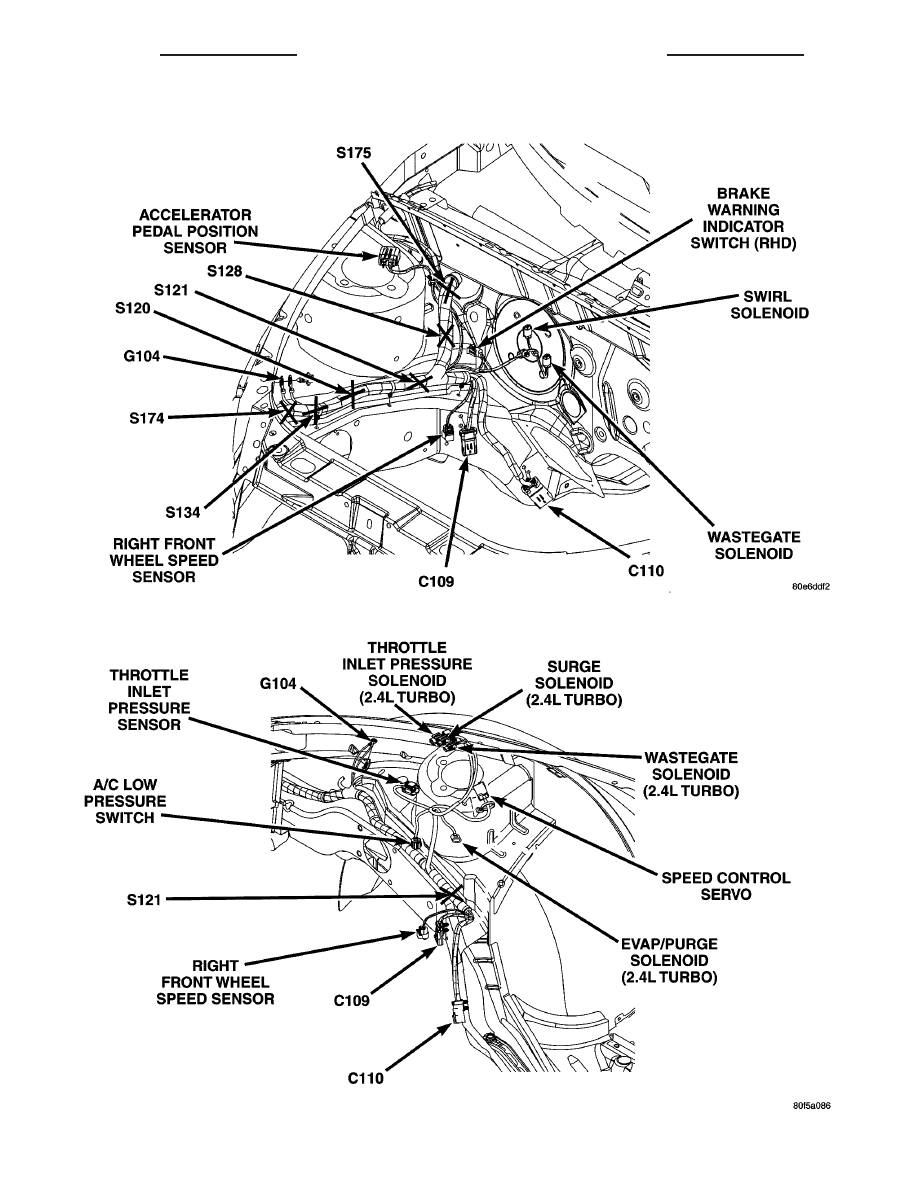

Fig. 10 RIGHT SIDE ENGINE COMPARTMENT (DIESEL RHD)

Fig. 11 RIGHT REAR ENGINE COMPARTMENT (2.4L)

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PT

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

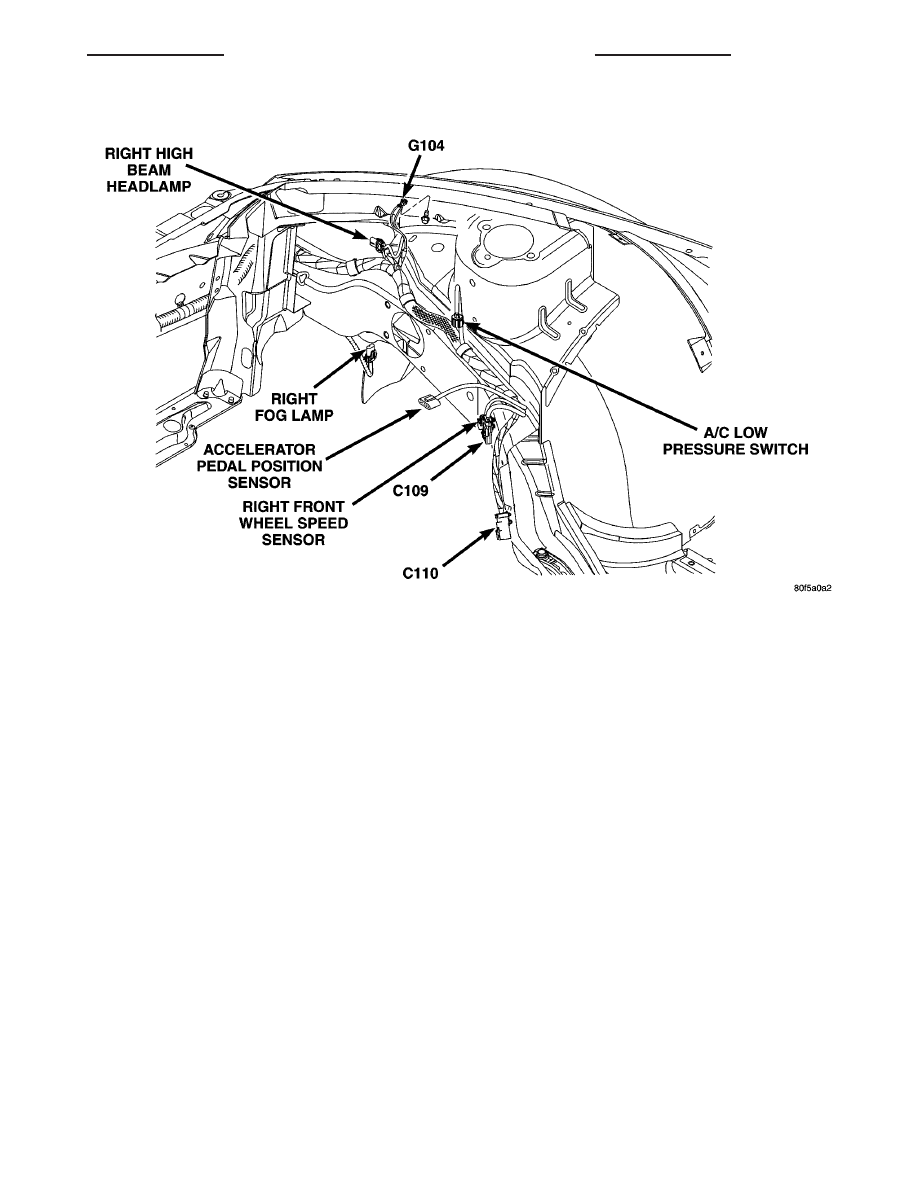

Fig. 12 RIGHT REAR ENGINE COMPARTMENT (1.6L)

PT

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
