Porshe 911 (997). Manual - part 992

Unscrewing fastening nut

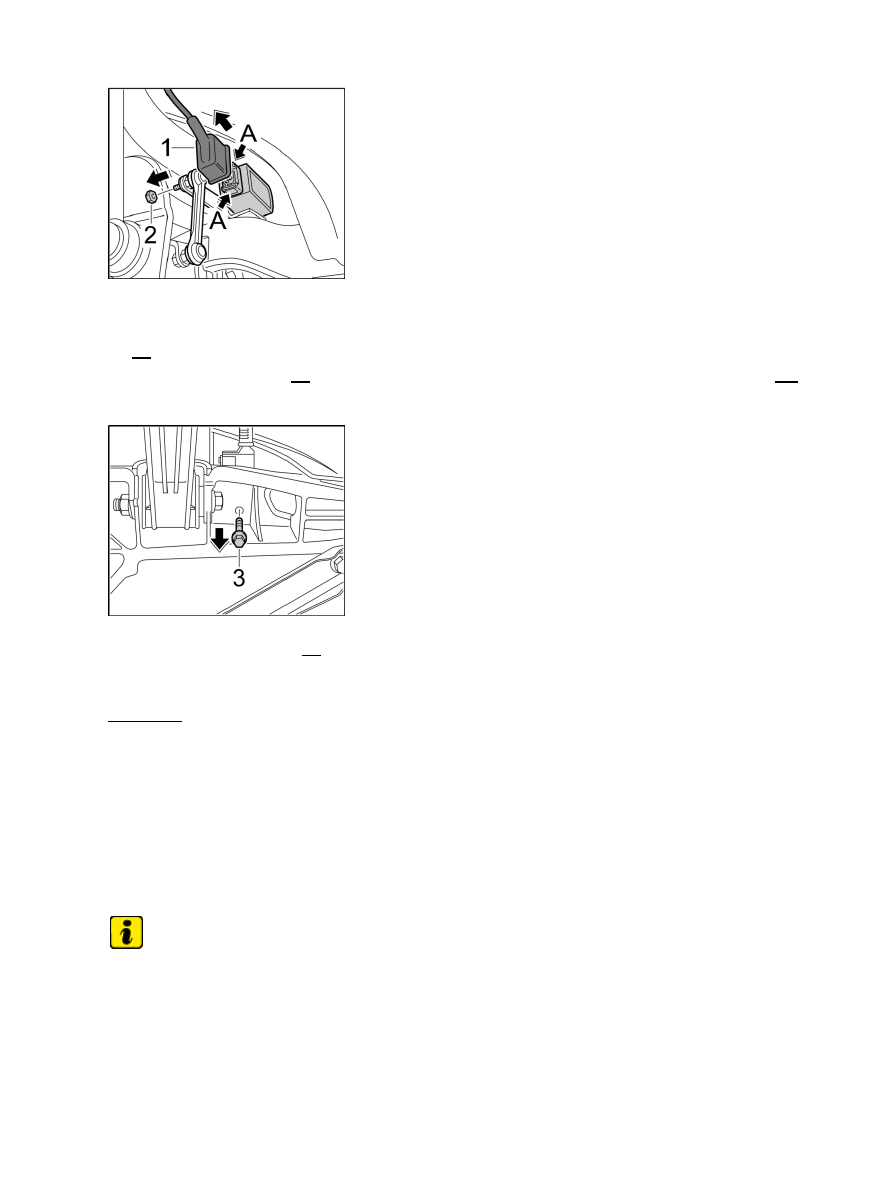

1. Hold intermediate link on rotary lever with second open-ended wrench and screw off fastening nut

-2-

 .

2. Push back rubber cover -1- over the electrical plug connection, release electrical plug connection -A- and

remove connector from angle sensor.

Unscrewing fastening screw for angle sensor retaining bracket

3. Unscrew fastening screw -3- for angle sensor retaining bracket on side member from below.

4. Remove angle sensor from retaining bracket.

Installing front angle sensor for headlight levelling system

Installing front angle sensor for headlight levelling system

Note

If the angle sensor has been replaced, the front end control unit must be calibrated; afterwards the headlight
setting must be checked and adjusted if necessary.

Diagnostic system: reading out fault memory and activating systems

Removing front angle sensor for headlight levelling system

4125

Securing angle sensor and bracket

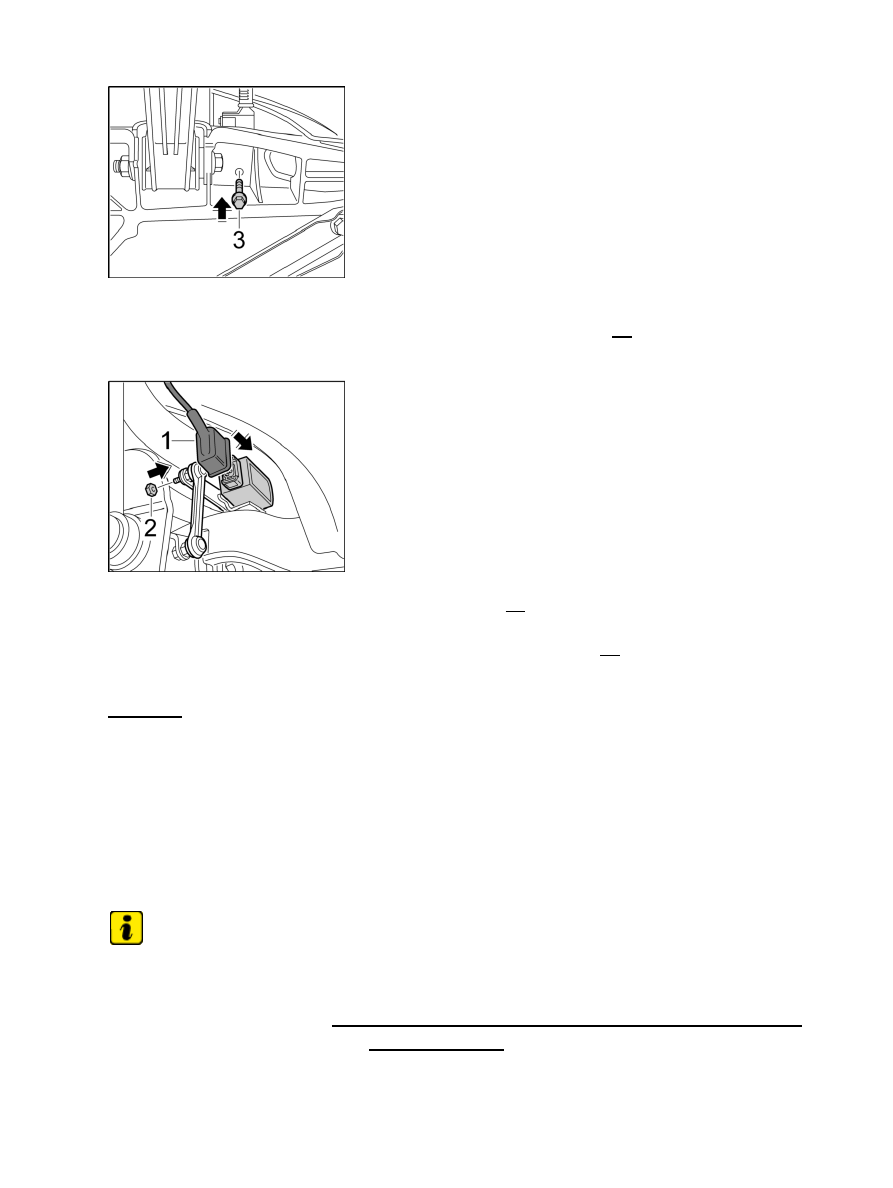

1. Fasten angle sensor to retaining bracket and secure with fastening screw -3- to the side

member.

Engaging electrical plug connection

2. Engage electrical plug connection and pull rubber cover -1- carefully over the plug connection (protects

against ingress of water).

3. Engage intermediate link on rotary lever and secure with fastening nut -2- . → Tightening torque: 7 (5

ftlb.) Nm

Subsequent work

Subsequent work - front angle sensor for headlight levelling system

Note

If the angle sensor has been replaced, the front end control unit must be calibrated; afterwards the headlight
setting must be checked and adjusted if necessary.

1. Install front underbody panel. → 519219 Removing and installing front cover - chapter on "Installing"

2. Connect the Porsche System Tester PIWIS Tester 9718 to the vehicle and start the System Tester. Switch

on ignition. >> to continue.

3.

Diagnostic system: reading out fault memory and activating systems

Installing front angle sensor for headlight levelling system

4126

Select front end on the control unit, carry out calibration
menu.

4. Check headlight setting and adjust if necessary.
