Diagnostic system: reading out fault memory and activating systems

Installing main light switch

4009

Adjusting element

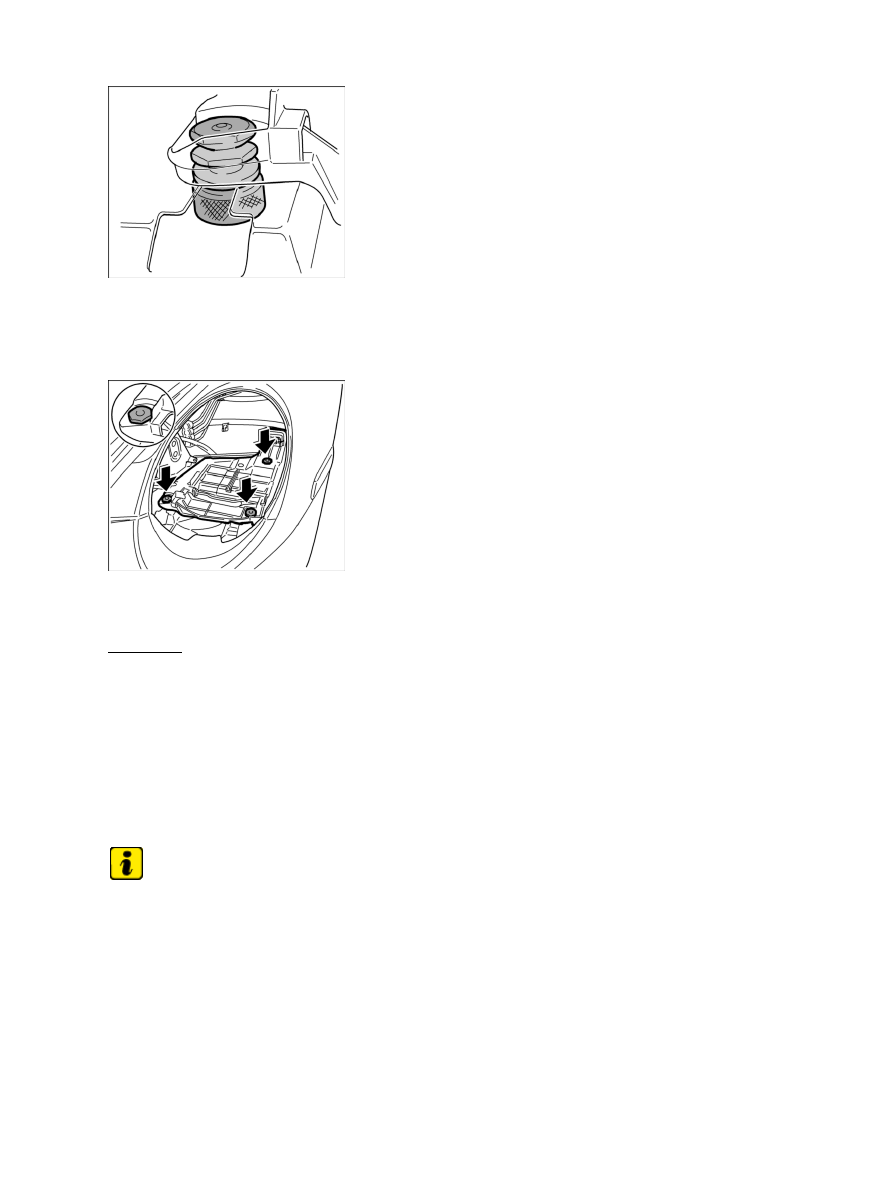

1. Unscrew the 3 knurled nuts from the adjusting

elements.

Mount installation

2. Pull mount forwards out of the body.

Installing headlight mounting

Installing headlight mount

Note

The main headlights are fitted into the body at the factory.
A new adjustment may only be made in the case of accident repairs or replacement of the main headlights.
The headlight mount is secured to the body by 3 knurled nuts.

Diagnostic system: reading out fault memory and activating systems

Removing headlight mount

4011

Adjusting element

1. Push the mount into the body and screw down with three knurled nuts. → Tightening torque: 6 ftlb.

+/-1.5 ftlb.

2. Check that the gaps match the specified gap dimensions → 501000  Illustration of body gap dimensions.

Adjust the headlight mount if necessary. → 941419 Removing and installing headlight mount - testing and
adjusting

Testing and adjusting headlight mount

Edge of body

Note

The headlight cover lens should lie approximately 2 mm below the body edge.

Factory fitting of the adjusting element fastening nuts

Where the headlight housing joins the body, both should be in the same plane (flush).

Diagnostic system: reading out fault memory and activating systems

Installing headlight mount

4012
