Porshe 911 (997). Manual - part 959





Overview of hose for headlight washer system

Pulling off hose for headlight washer system

1. Release hose for headlight washer system -arrow a- and pull hose off the spray

nozzle.

Removing hose for headlight washer system from holder

2. Open holder -arrows A- and remove hose for headlight washer system -arrow B- .

Diagnostic system: reading out fault memory and activating systems

Removing hose for headlight washer system (front apron)

3993

Removing hose for headlight washer system at the clips for the front apron

3. Remove hose for headlight washer system at the clips for the front

apron.

Removing hose for headlight washer system (at tank)

Overview of hose for headlight washer system

Removing hose for headlight washer system out of the clips at the tank

1. Remove hose for headlight washer system out of the clips at the

tank.

Diagnostic system: reading out fault memory and activating systems

Removing hose for headlight washer system (at tank)

3994

Pulling hose for headlight washer system off the pump

2. Pull hose for headlight washer system off the pump.

Installing hose for headlight washer system

Installing hose for headlight washer system (front apron)

Inserting hose for headlight washer system into the clips for the front apron

1. Insert hose for headlight washer system into the clips for the front

apron.

Diagnostic system: reading out fault memory and activating systems

 Installing hose for headlight washer system

3995

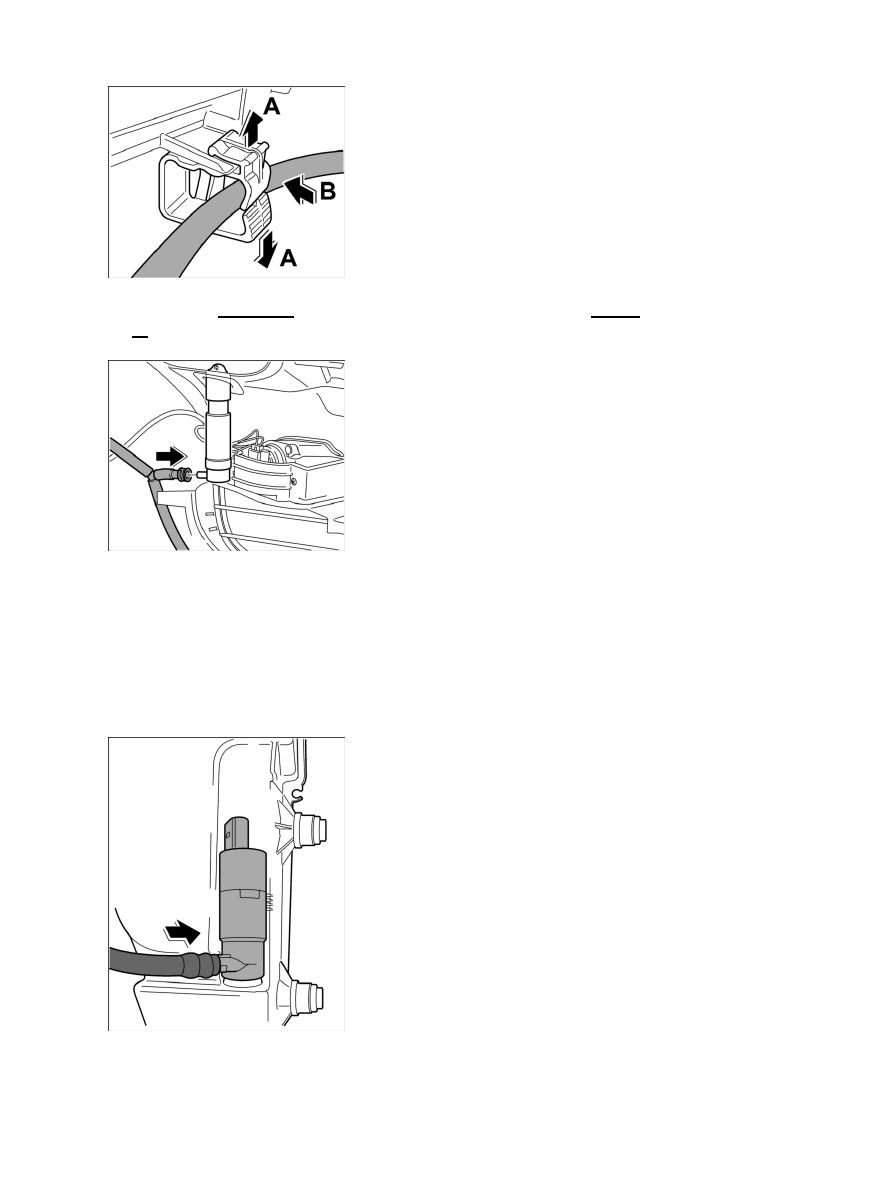

Inserting hose for headlight washer system into holder

2. Open holder -arrows A- and insert hose for headlight washer system -arrow

B-

 .

Pushing on hose for headlight washer system

3. Push hose for headlight washer system onto the spray nozzle until the hose clicks into

place.

Installing hose for headlight washer system (at tank)

Pushing hose for headlight washer system onto the pump

1. Push hose for headlight washer system onto the pump.

Diagnostic system: reading out fault memory and activating systems

Installing hose for headlight washer system (front apron)

3996
