Porshe 911 (997). Manual - part 955





Removing spray nozzle

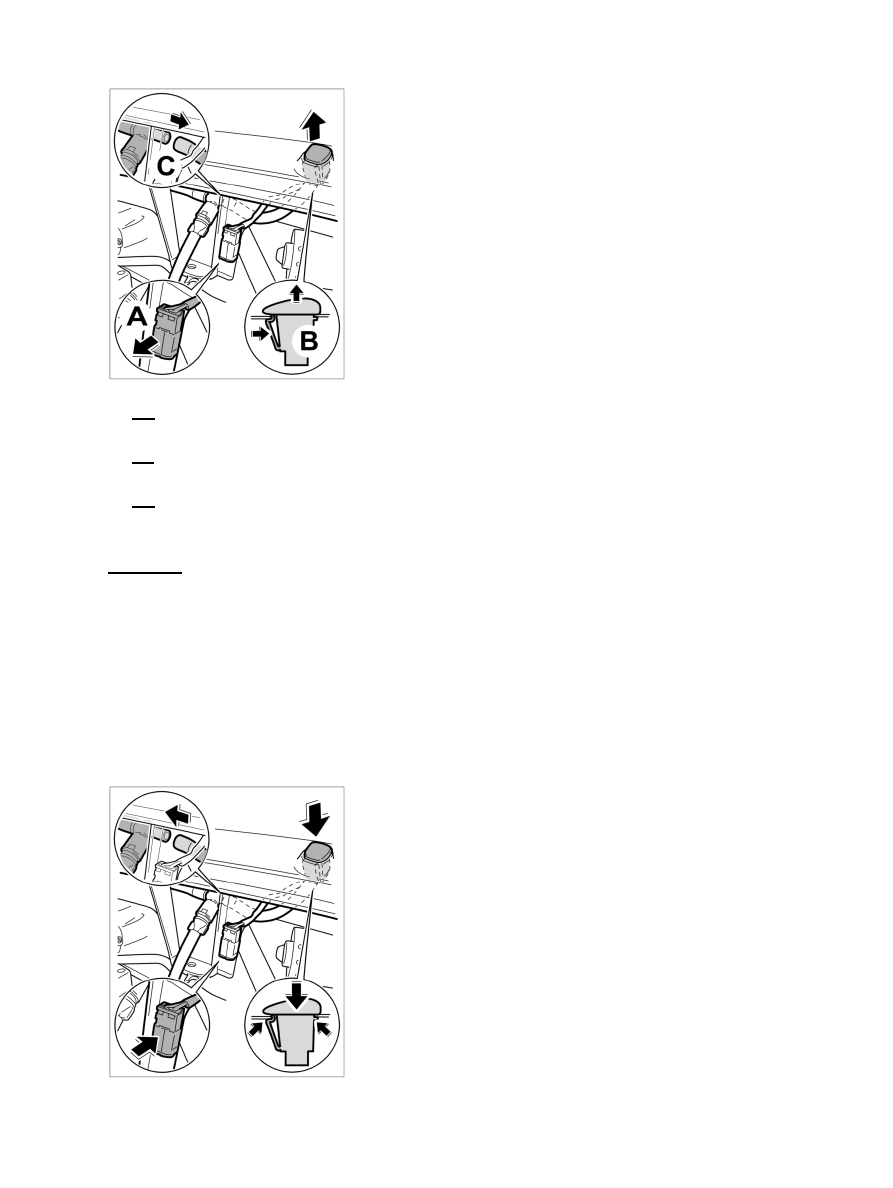

2. -A- Release electric connector on cowl panel cover and push it

down.

3. -B- Press together spray nozzle from below and push it out of cowl panel

cover.

4. -C- Pull off water hose from T-piece (below the cowl panel cover).

5. Pull out spray nozzle with water hose and electric line.

Installing spray nozzle for windscreen washer system

Installing spray nozzle for windscreen washer system

Diagnostic system: reading out fault memory and activating systems

Removing spray nozzle for windscreen washer system

3977

Installing spray nozzle

1. Push spray nozzle, together with hose and electric connector, through cowl panel cover, and

engage.

2. Push water hose onto T-piece and ensure that it is securely

fixed.

3. Push electric connector onto mount on cowl panel

cover.

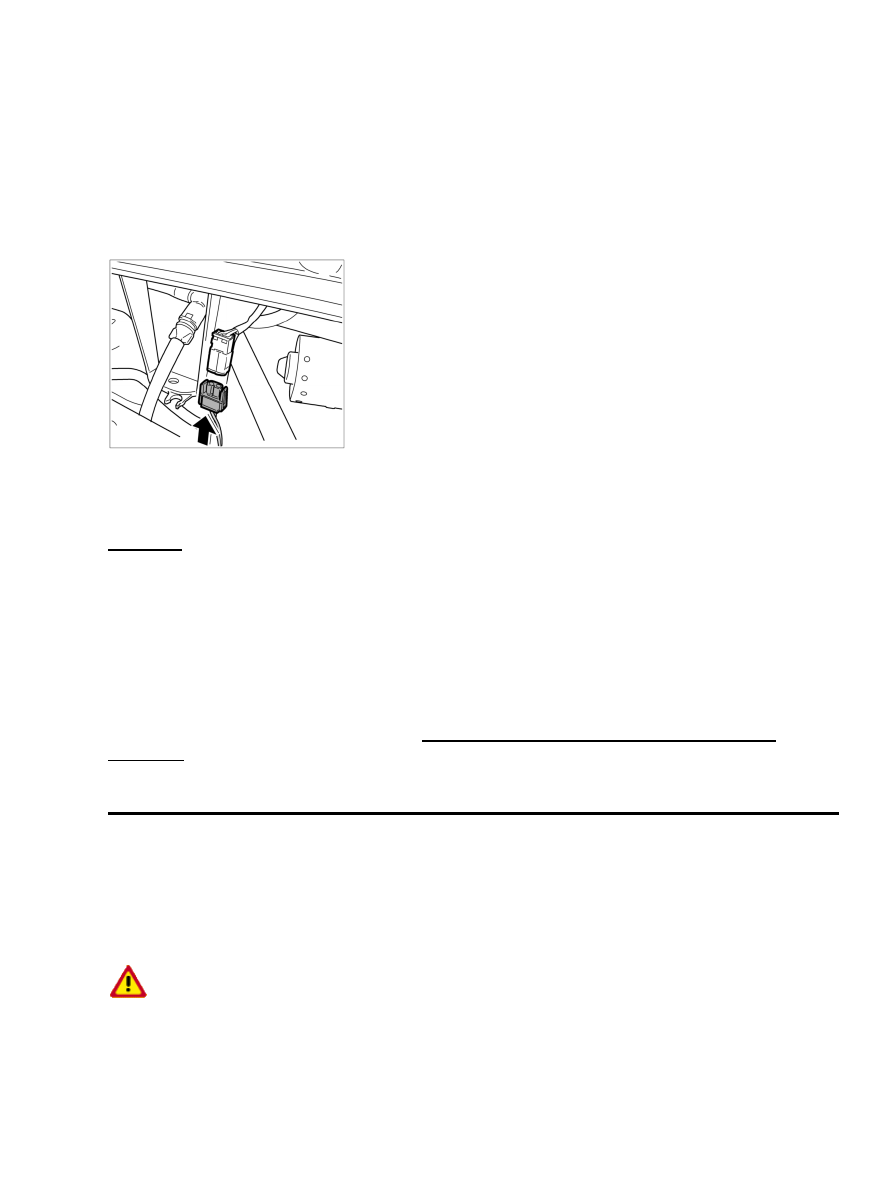

Plugging in connector

4. Push on electric connector for spray nozzle until it clicks into

place.

Subsequent work

Subsequent work for spray nozzle of windscreen washer system

Install plenum panel cover to the left and right. → 852219 Removing and installing cover - chapter on
"Installing"
Install battery cover.
