Porshe 911 (997). Manual - part 948





- Preliminary work
- Removing wiper motor for rear window washer
- Installing wiper motor for rear window washer
- Subsequent work

Preliminary work

Preliminary work for wiper motor for rear window wiper system

Remove lining for rear lid. → 708719 21 Removing and installing rear lid lining - chapter on "removing"
Remove wiper arm for rear window wiper system.→ 924119 Removing and installing wiper arm for rear
window wiper system - chapter on "Removing"

Removing wiper motor for rear window washer

Removing wiper arm for rear window wiper system

Installation Location:

3949

Installation position

Unscrewing grommet

1. After removing the wiper arm, unscrew the grommet -3- from the wiper arm drive to the right.

Diagnostic system: reading out fault memory and activating systems

Removing wiper arm for rear window wiper system

3950

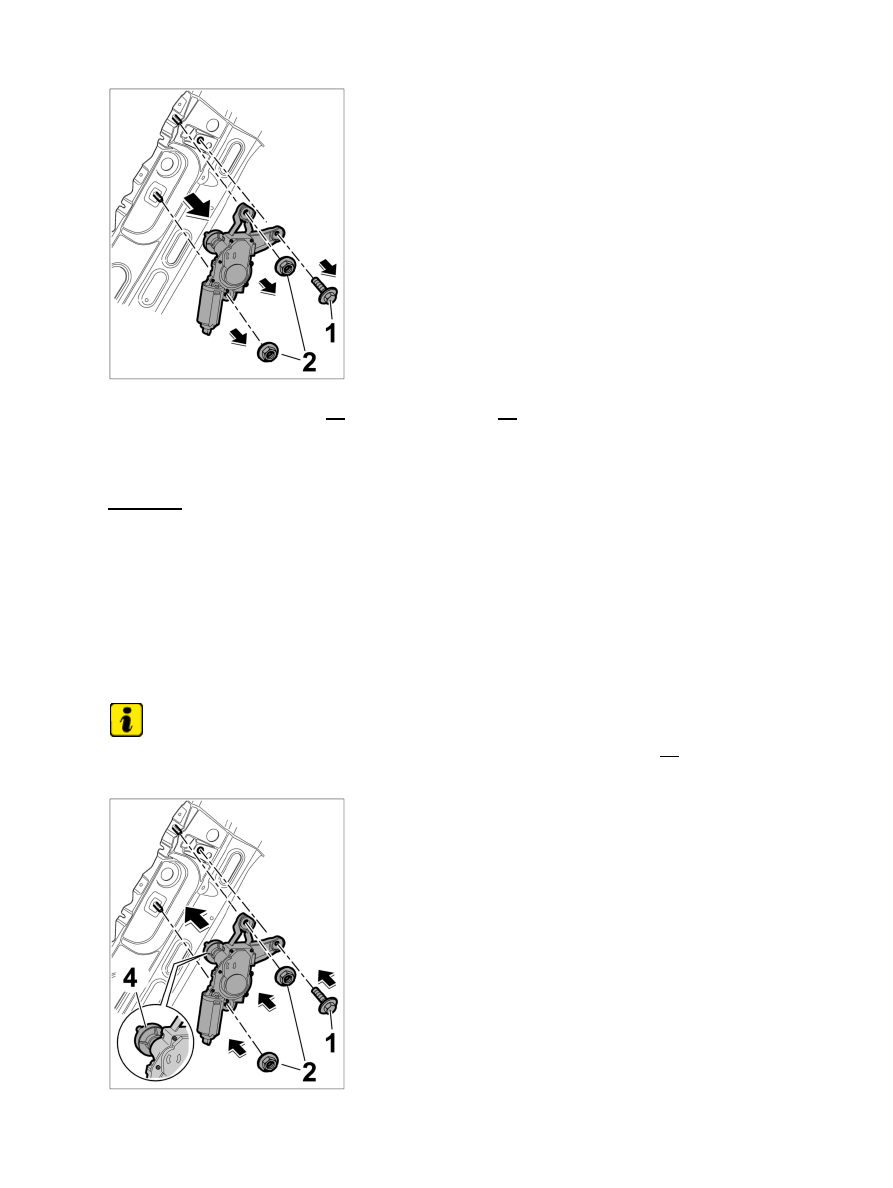

Unscrewing the fastening screw and the fastening nuts

2. Unscrew the fastening screw -1- and the fastening nuts -2- .

3. Take out wiper motor, release and unplug the electrical plug.

4. Take out the wiper motor.

Installing wiper motor for rear window washer

Installing the wiper motor for rear window wiper system

Note

If a previously installed wiper motor is installed ''again", the sealing ring/foam part -4- must be replaced due
to water leakage.

Diagnostic system: reading out fault memory and activating systems

 Installing wiper motor for rear window washer

3951

Sealing ring/foam part

The drive for the wiper arm must be uniformly spaced from the rear window.

1. Position the wiper motor in the vehicle, while making sure that the drive for the wiper arm must be

uniformly spaced from the rear window.

2. Plug in the electric connector on the wiper motor until it clicks into

place.

Positioning and screwing down wiper motor

3. Screw down the wiper motor using the fastening screw -1- and the fastening nuts -2- . → Tightening

torque: 6 ftlb. → Tightening torque: 6 ftlb.

Note

If a previously installed wiper motor is installed ''again", the sealing ring/foam part -4- must be replaced due
to water leakage.

Sealing ring/foam part

The drive for the wiper arm must be uniformly spaced from the rear window.

Diagnostic system: reading out fault memory and activating systems

Installing the wiper motor for rear window wiper system

3952
