AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Installing console for telephone

3905

- Preliminary work
- Technical values
- Removing control unit for telephone
- Installing control unit for telephone
- Subsequent work
- Coding control unit for telephone

Preliminary work

Preliminary work - telephone control unit

→ 720119 Removing and installing front seat - chapter on "removing" [997110 997120 997310 997320
997410 997430 997610 997620]→ 720119 Removing and installing front seat - chapter on
"removing" [997111 997121 997311 997321 997411 997431 997611 997621]

Technical values

Tightening torques for telephone control unit

→ Tightening torque: 3.5 ftlb. → Tightening torque: 1.5 ftlb.

Removing control unit for telephone

Removing control unit for telephone

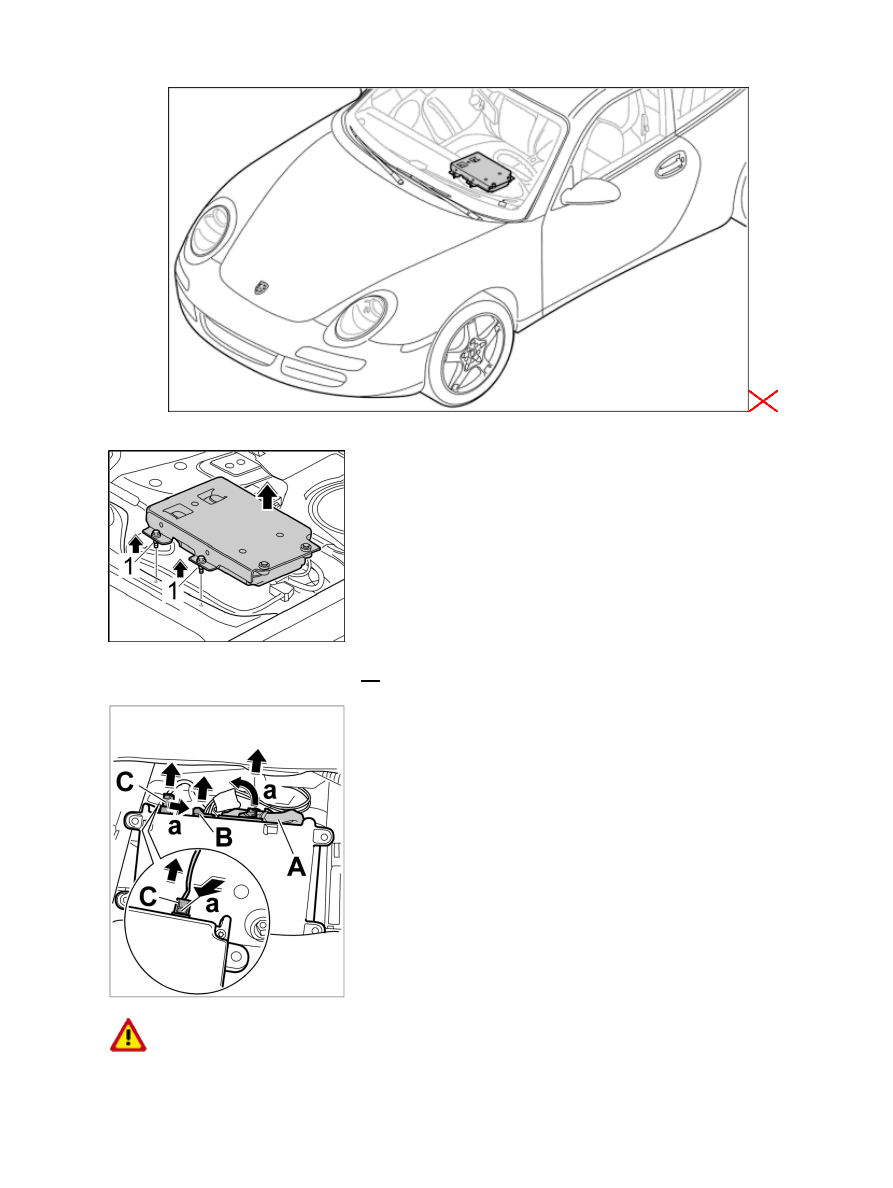

Installation Location:

3906

Installation position

Fastening screws for cover

1. Unscrew the two fastening screws -1- and rotate the cover and telephone control unit by 180°.

Inserting the connectors

WARNING

Risk of damage to electronic control modules.

Diagnostic system: reading out fault memory and activating systems

Removing control unit for telephone

3907

If care is not taken, electrical and electronic components may be destroyed.

•

→ Before removing the control module, switch off the ignition and remove the ignition key.

2. Press latch on the electrical plug -A- , open the locking lever -a- , and remove plug.

3. Press latch on the electrical plug -B- for optical fibre and remove plug.

Pulling the control unit from the cover.

4. Undo both fastening screws -2- on the telephone control unit and pull the control unit from the cover.

Installing control unit for telephone

Installing control unit for telephone

WARNING

If the wiring at the telephone holder is not routed correctly, the wires can catch at the seat.

Danger of destroying/damaging wire harness for the telephone control unit

•

→ The wire harness at the telephone holder must not be routed over the edge.

Diagnostic system: reading out fault memory and activating systems

 Installing control unit for telephone

3908
